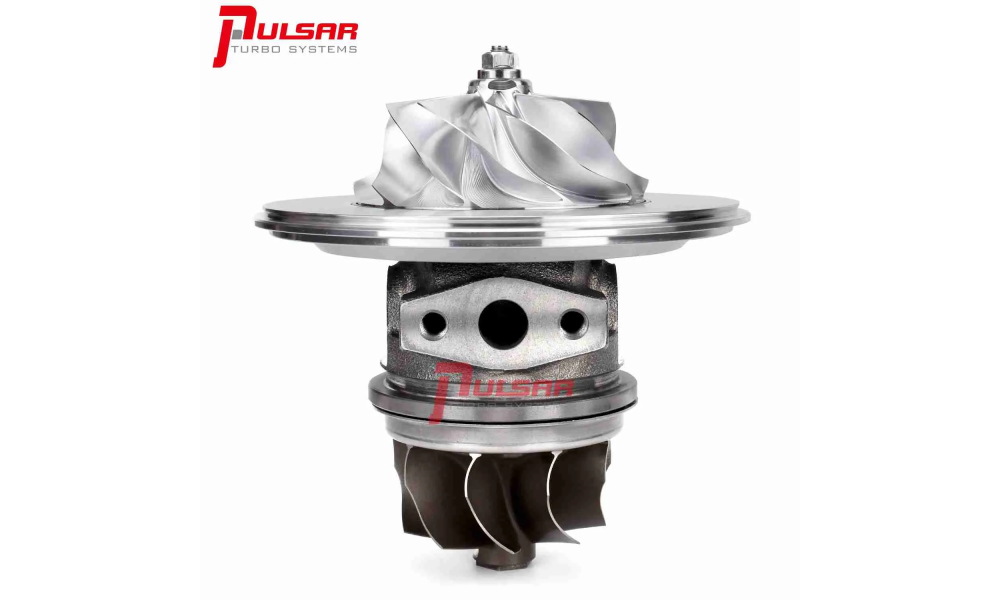

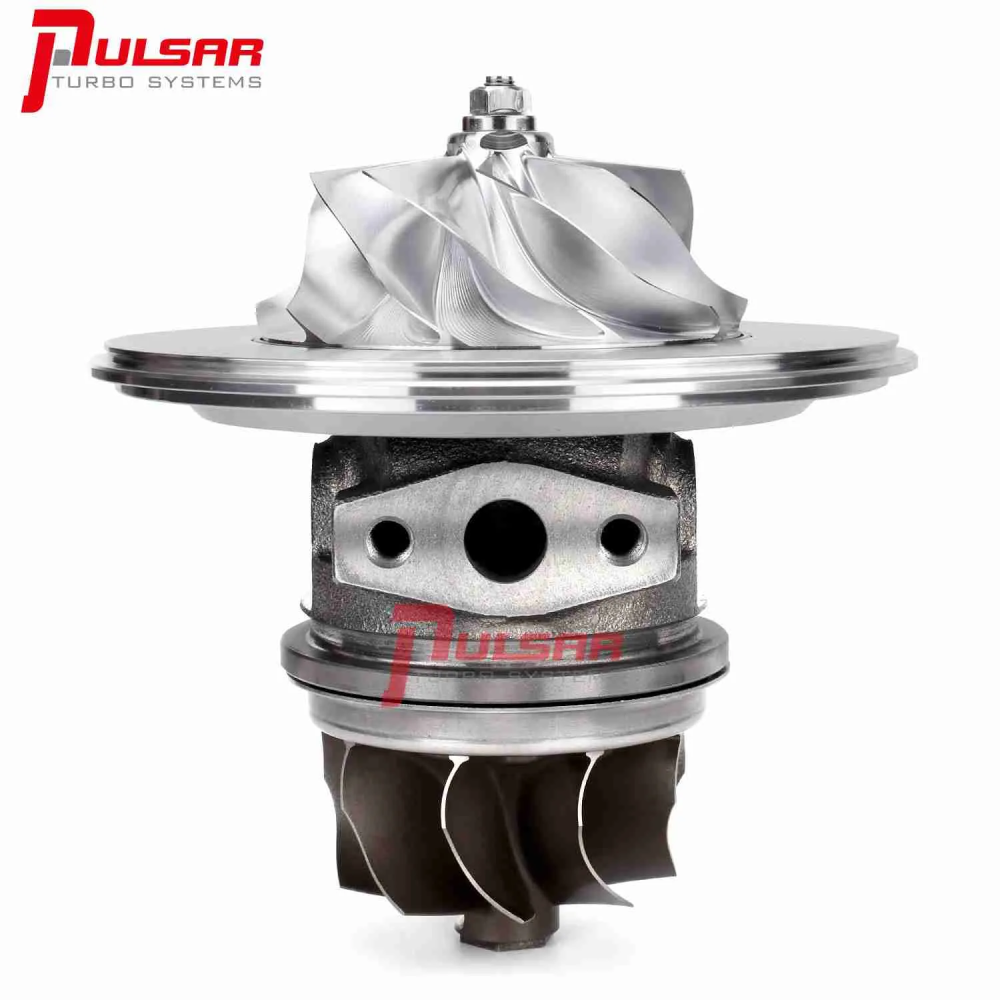

PSR3584 GEN2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c Gen2 9 Blade Turbine Wheel with “RS” blade profile design
• Gen2 Cover Integrated with the Speed Sensor Port
• Available turbine housing options: 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP

Compressor Housing: W/O Compressor Housing

Turbine Housing: W/O Turbine Housing

• Compressor Wheel: 67*84mm
• Turbine Wheel: 68*62mm (“RS” blade profile)
• Compressor Inlet: 4.0 Hose
• Compressor Outlet: 2.5 Hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

Water cooling is highly recommended for better durability.
