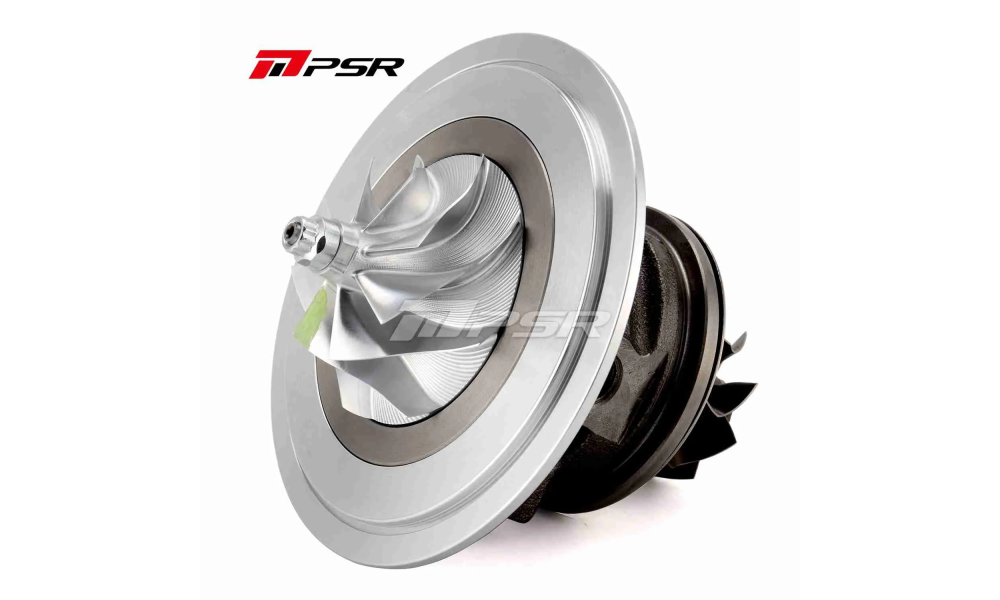

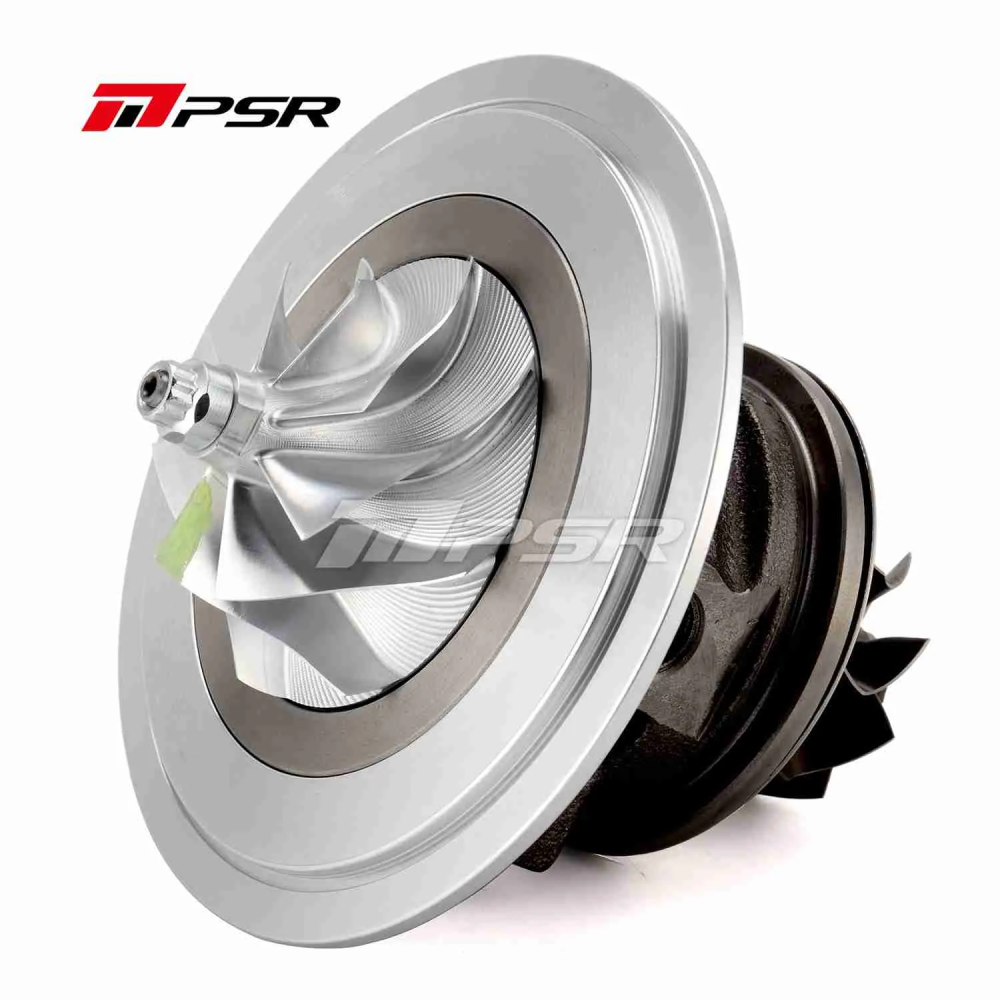

PSR2867 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-blade Turbine Wheel
• Gen2 Cover Integrated with the Speed Sensor Port
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~45 lb/min, rated @ 550 FWHP

Compressor Housing: W/O Compressor Housing

Turbine Housing: W/O Turbine Housing

Actuator: W/O Actuator

• Compressor Wheel: 50*67mm
• Turbine Wheel: 54/47mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T25 or 2.5″ V-Band
• Turbine Outlet: 5 Bolt or 3″ V-Band (3.55 OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommend running water cooling for better durability.
