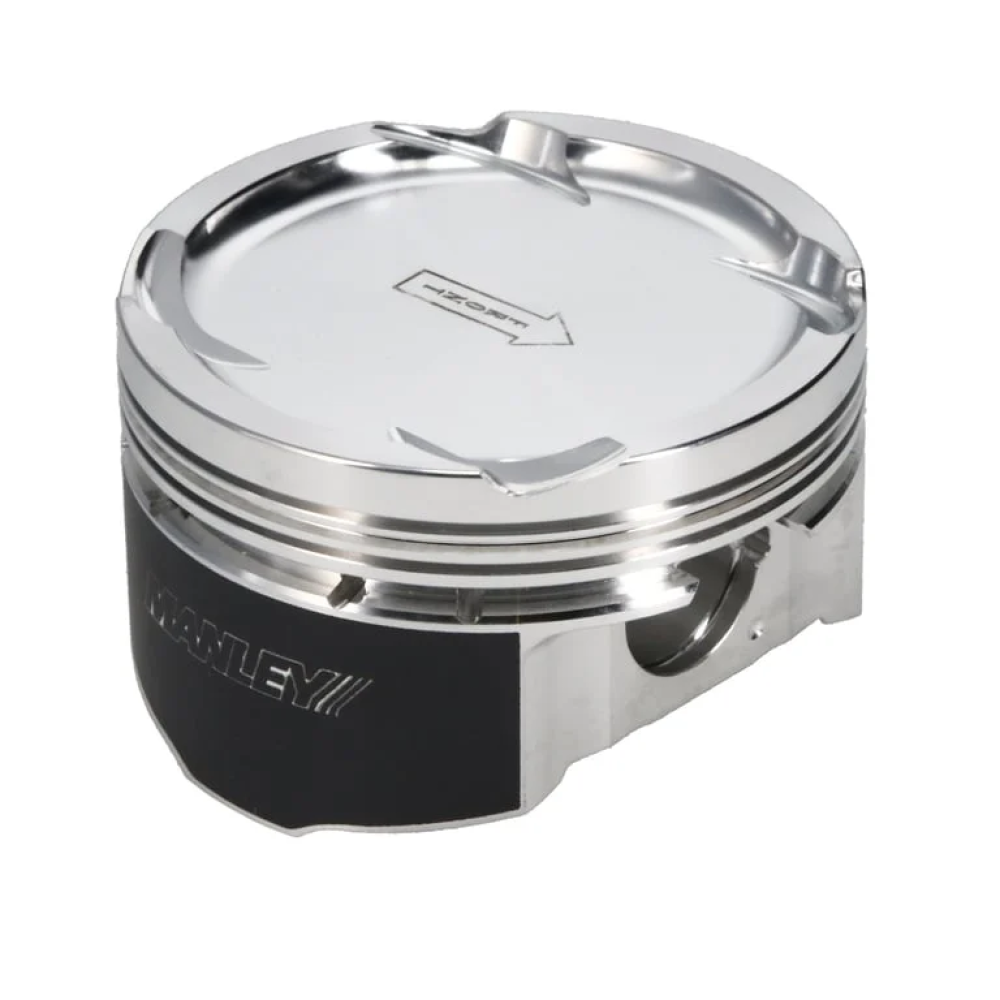

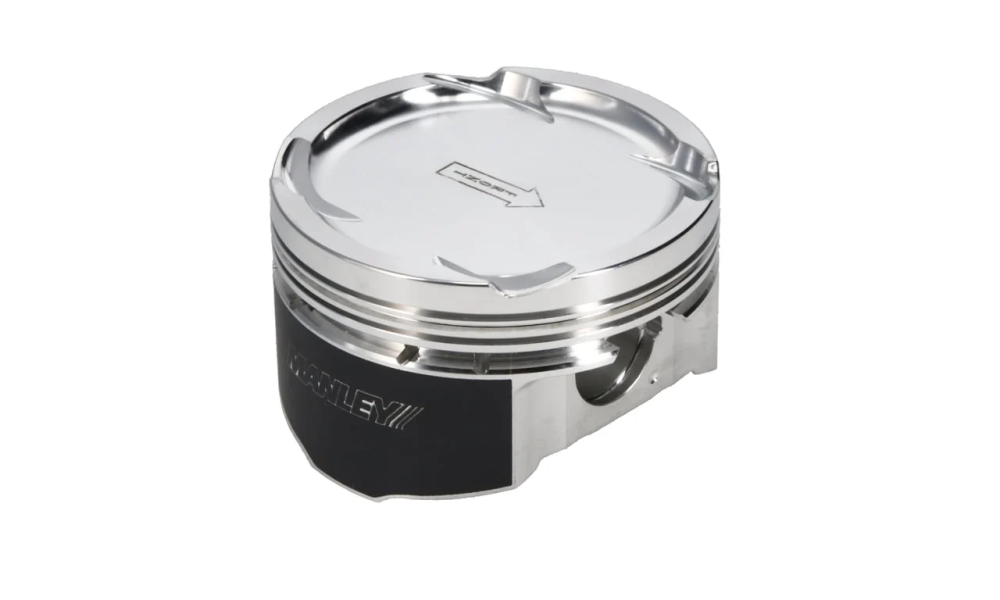

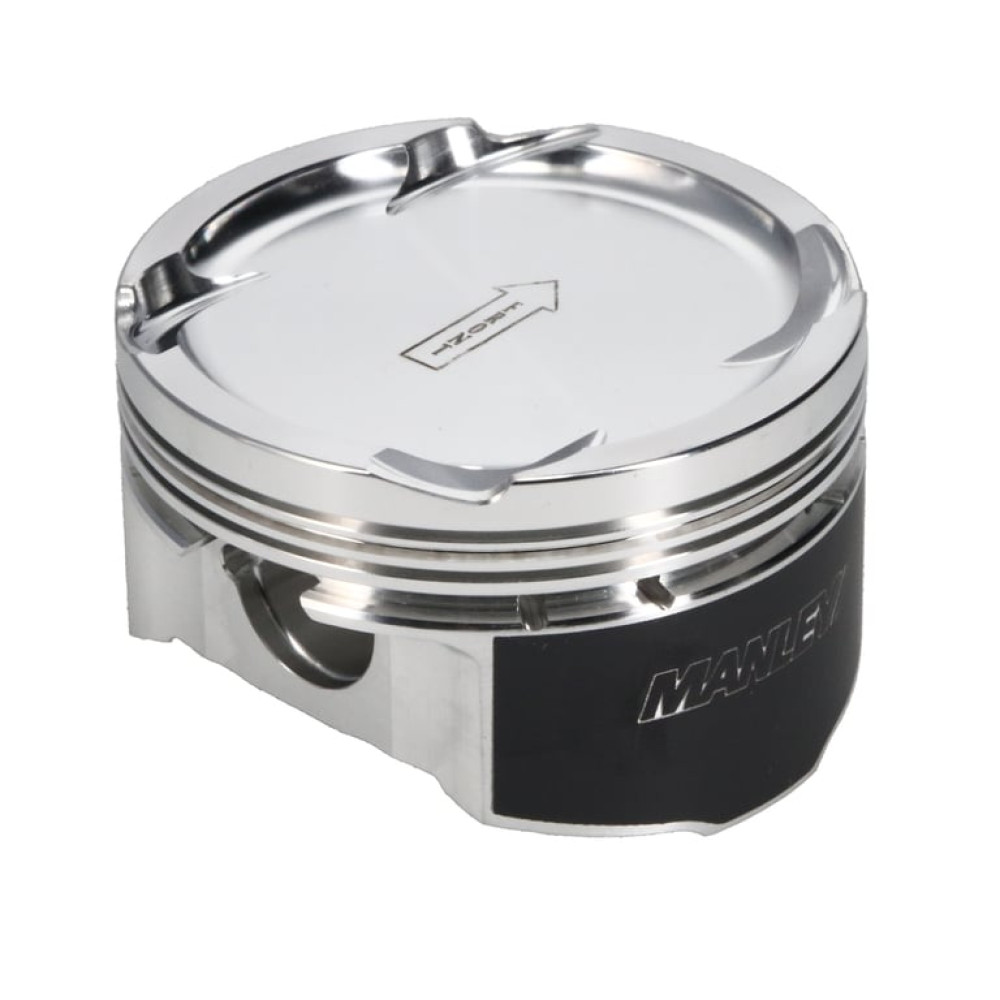

Manley Platinum Series Piston Set – 86.50mm (+0.50) Dish, Extreme Duty (2JZ-GTE)

Manley Piston Set, PIST-SUPRA 86.5mm/1.180 CD/DISH E/D

Manley Platinum Series pistons are built around 2618 alloy forgings with proven cam and barrel skirt profiles, tight ring land and groove control, and Manley’s single-operation skirt/ring-groove machining for excellent groove-to-skirt squareness.

Highlights

• 2618 alloy forgings
• Cam and barrel skirt profiles designed to be effective while staying cylinder-wall friendly
• Tool steel wrist pins
• Moly skirt coating on select part numbers
• Exacting ring lands and grooves for improved ring seal
• Skirt turning and ring-groove machining completed in a single operation for accurate groove-to-skirt squareness

Specifications

Product Type

Engine Piston Kit

Piston Series

Platinum Series

Piston Sub-Series

Extreme Duty

Product Market

Sport Compact

Engine

3.0L 2JZ-GTE

Piston Quantity

6

Bore Diameter

86.50 mm

Bore Oversize

+0.50 mm

Engine Stroke

94.00 mm

Compression Height

1.180 in

Piston Head Type

Dish

Piston Volume

-16.00 cc

Compression Ratio

10.00:1

Weight

322 g
