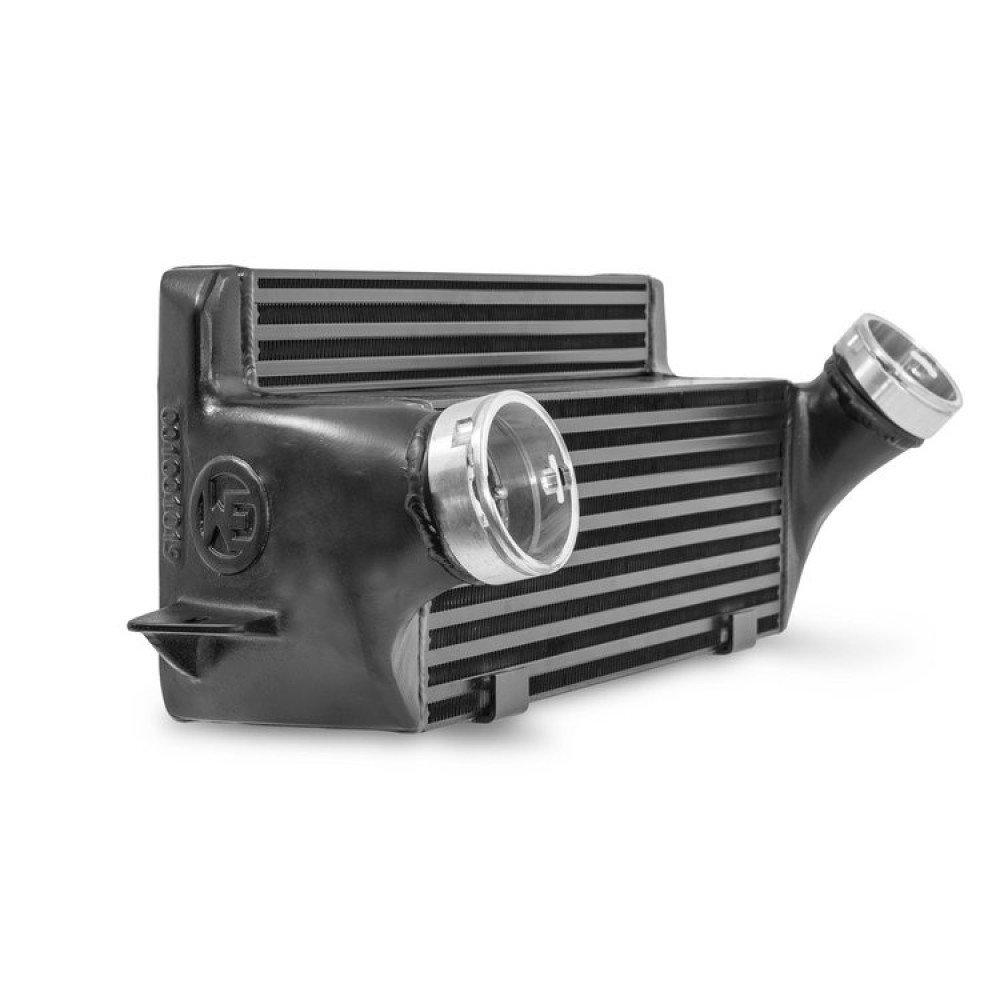

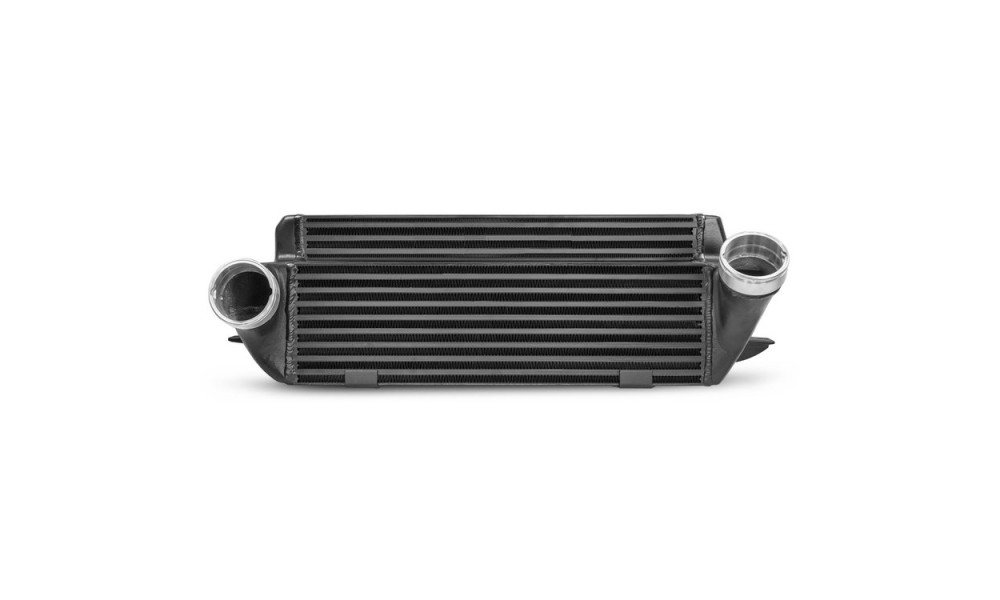

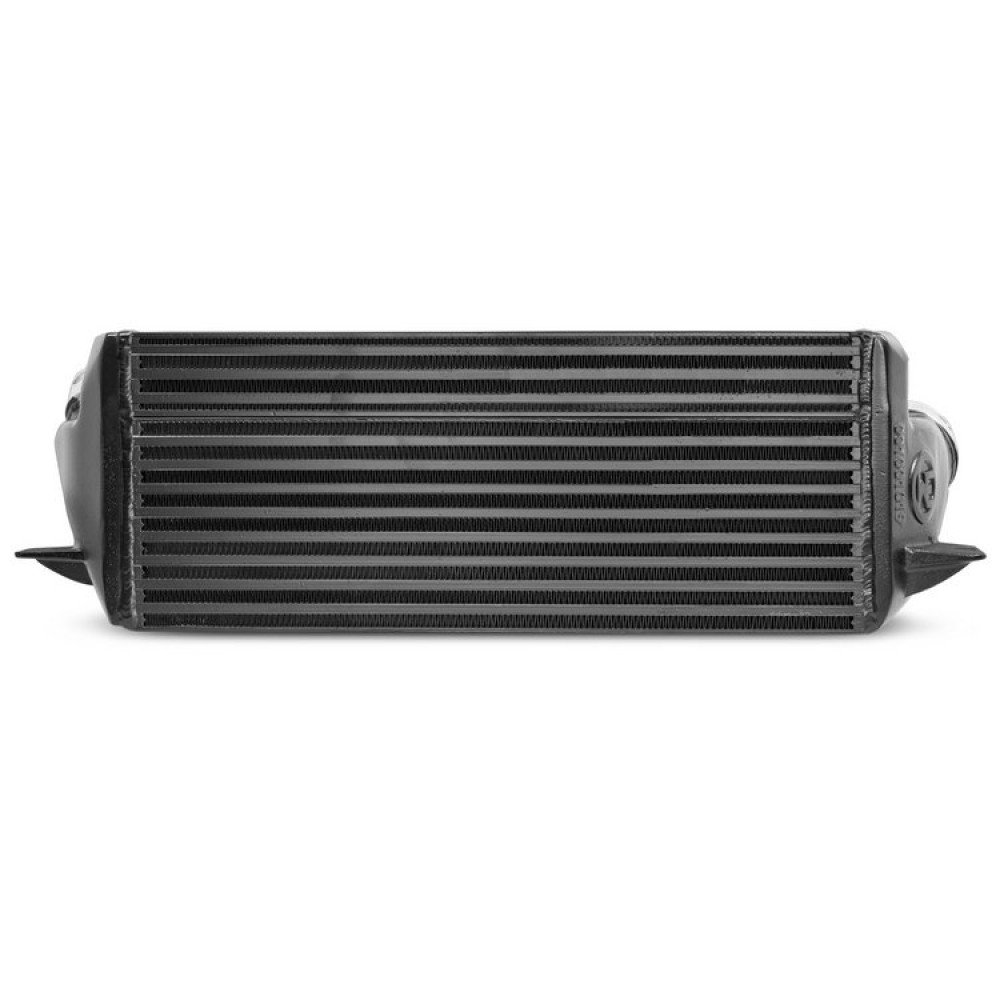

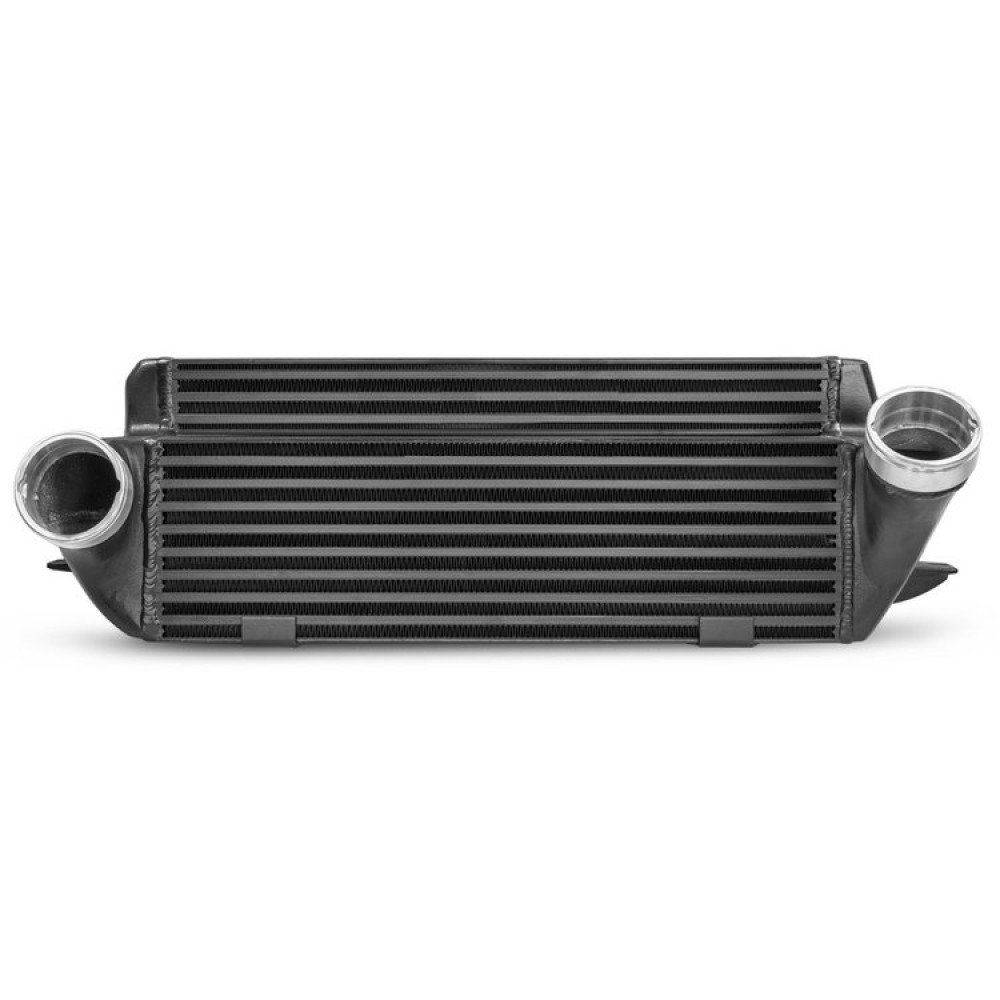

The EVO 1 Performance Intercooler Kit is designed as a direct replacement intercooler upgrade for BMW models including the 1 Series E81/E82/E87/E88 and other listed applications. It uses a bar-and-plate intercooler core and lightweight cast-aluminum end tanks that are CFD-optimized for improved airflow and reduced back pressure compared to the stock intercooler.

Key specifications

• Core net dimensions: 520 mm x 210 mm x 130 mm
• Stepped structure volume: 11,750 cc
• 85% larger flow area vs. original intercooler
• 60% increase in charge air volume vs. original intercooler
• Anti-corrosion coating with heat conduction properties
• Pressure stable up to 6 bar

Installation

• Ready-to-install, plug-and-play replacement for the stock intercooler
• Original intercooler hoses can be reused

Vehicle fitment (as listed)

• BMW 135i E82/E88 (2006-2013)
• BMW 1 Series M E82 (2011-2013)
• BMW 335 (x)i E90/E91/E92/E93 (2006-2013)
• BMW 335is E92 (2009-2013)
• BMW Z4 18i (N20) E89 (2011-2016)
• BMW Z4 20i (N20) E89 (2011-2016)
• BMW Z4 28i (N20) E89 (2001-2016)
• BMW Z4 35i E89 (2009-2016)
• BMW Z4 35is E89 (2010-2016)

What’s included

• 1 intercooler
• 1 mounting material
• 1 assembly instruction

Part number: 200001023
