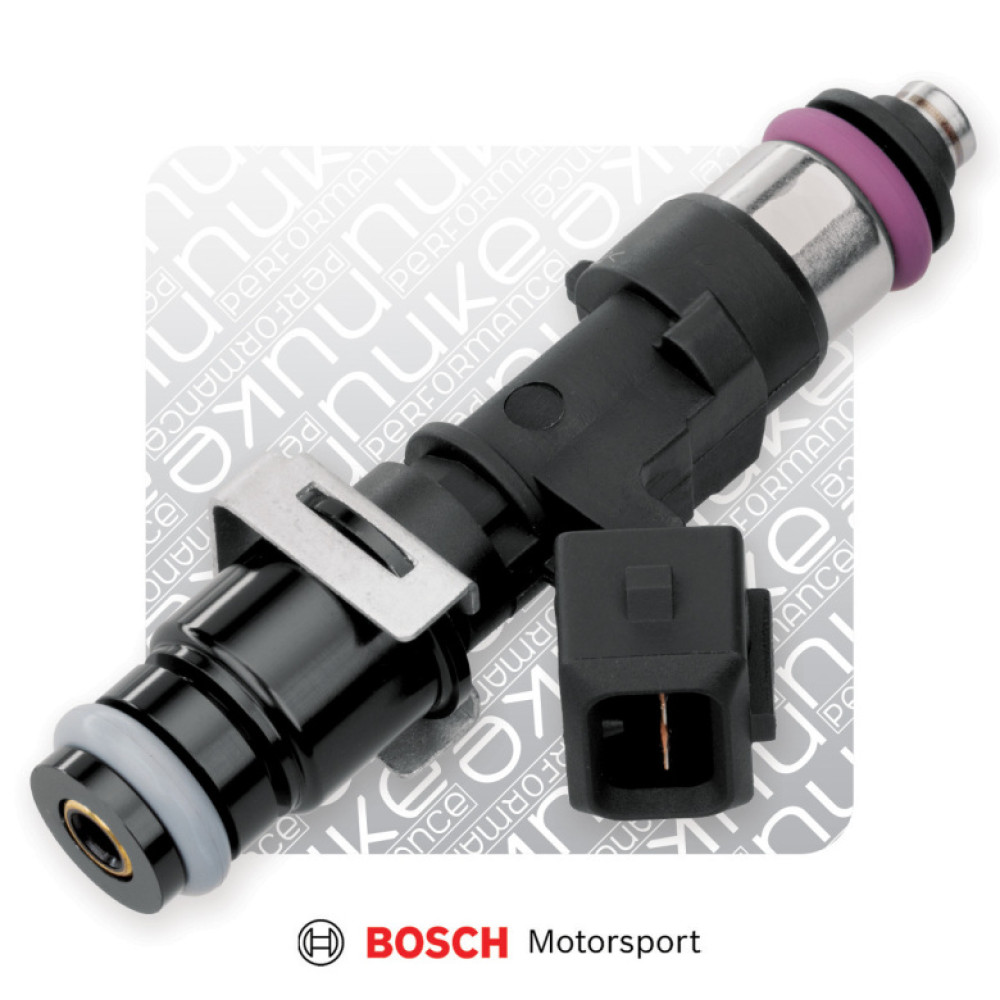

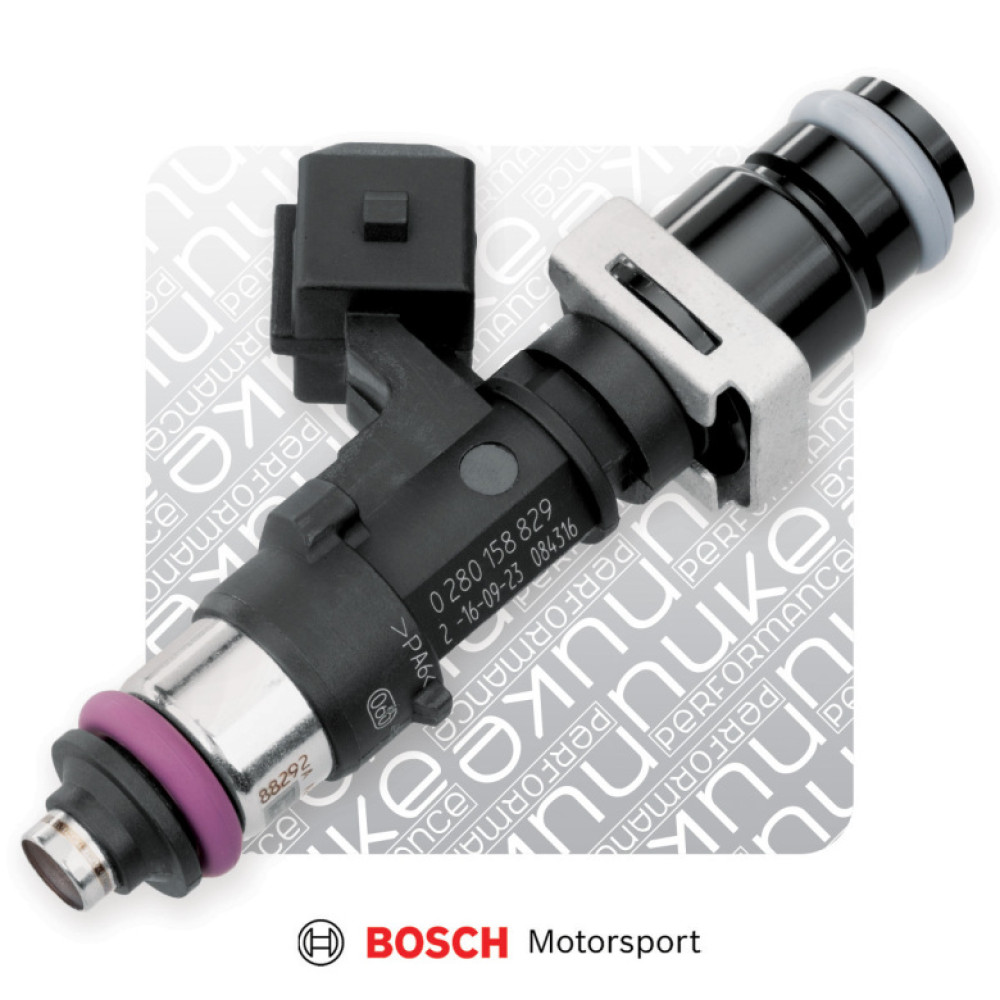

Flow matched Bosch 2200cc NGI2 injector, high impedance - adapted to 65mm (EV14L) to fit the Nuke Performance range of 4cyl fuel rails.

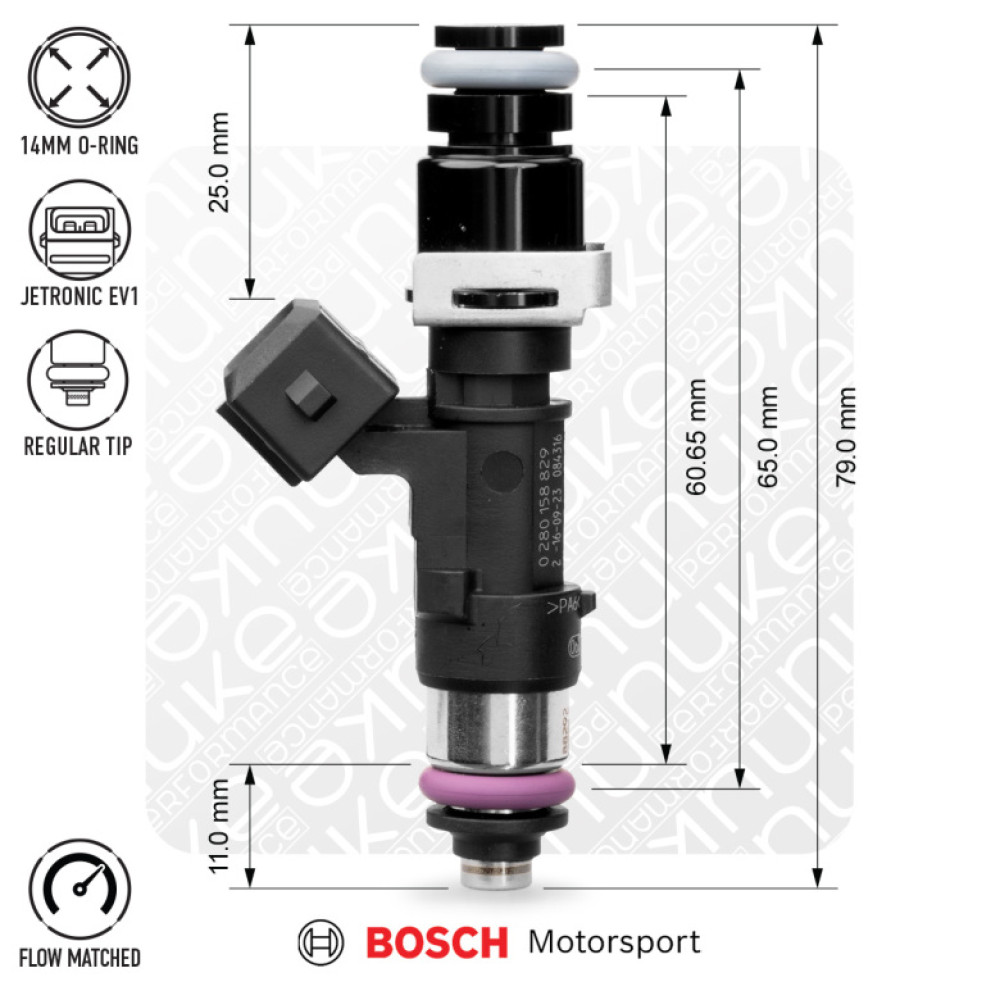

This injector is equipped with the necessary accessories according to a Bosch EV14L injector (60,65mm between O-rings / 65mm center to center of the O-rings).
- High impedance 2200cc injector from Bosch Motorsport
- Corresponding to a Bosch EV14 L injector length

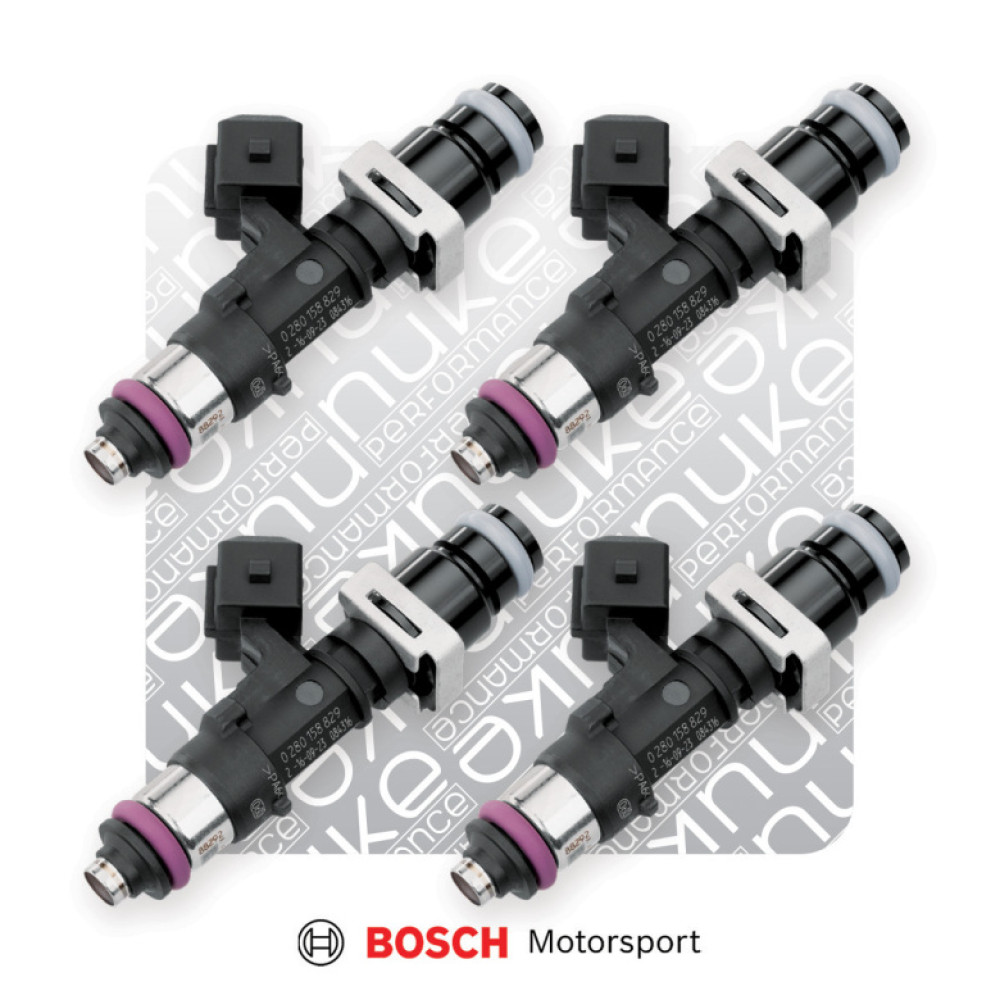

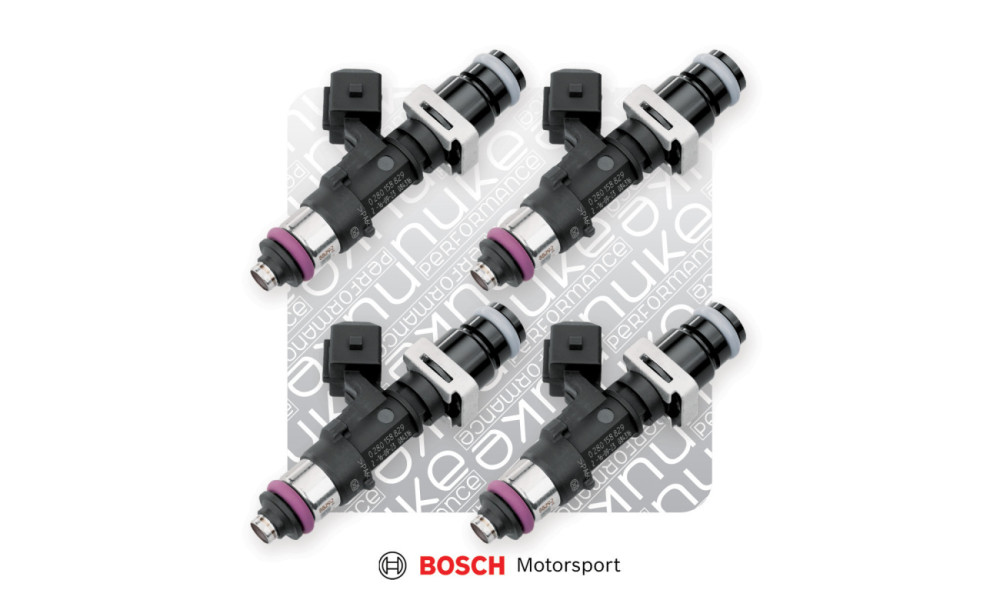

- Kit of x4 flow matched 2200cc NGI2 injectors
- Filtered top adapter for additional protection
Bosch Motorsport 2200cc Injector specifications:
| Bosch part number | 0280158829 / Bosch -829 |
| OEM part number | 0 280 158 829 / 2200cc NGI2 |
| Type - w/o included adapters | 53mm EV14S (Standard) |
| Type - with included adapters | 65mm EV14L (Long) |
| Connector | Bosch JPT EV1 Minitimer Jetronic |
| O-ring top / bottom | 14mm Viton / 14mm Viton |
| Resistance | 8.5 ohm |
| Volume at 3 BAR | 980cc/min = 670g/min = 89lb/hr @ 3bar |
| Fuel compatibility | Petrol / Gasoline * |
| Nozzle / Spray pattern | Regular tip / Single cone spray |
| For motorsports use | YES |
| Part # / EAN | 130-04-220 / 7340209508369 |
* Note: This injector is made for natural gas (CNG) fuel and is not compatible with E85 or other alcoholic fuel.
Bosch 2200cc NGI2 Injector capacity :
Test conditions can differ from real-world use due to equipment and technical factors. However, this info helps understand injector performance and when choosing other fuel system components.
| Measured peak static flow in a test environment | |
| 2 BAR (29 PSI) | 1800cc / min = 171.4 lb / h |
| 3 BAR (43.5 PSI) | 2200cc / min = 209.5 lb / h |
| 4 BAR (58 PSI) | 2550cc / min = 242.8 lb / h |
| 5 BAR (78.5 PSI) | 2865cc / min = 272.8 lb / h |
| 6 BAR (88 PSI) | 3155cc / min = 300.5 lb / h |
| 7 BAR (101.5 PSI) | 3350cc / min = 319 lb / h |
| Petrol (10% margin) | Turbo charged | Naturally aspirated |
| 1 cyl | 1x314 = 314hp | 1x377 = 377hp |
| 4 cyl | 4x314 = 1256hp | 4x377 = 1508hp |
| 5 cyl | 5x314 = 1570hp | 5x377 = 1885hp |
| 6 cyl | 6x314 = 1884hp | 6x377 = 2262hp |
| 8 cyl | 8x314 = 2512hp | 8x377 = 3016hp |
| E85 (10% margin) |
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
Nuke Performance
Founded in 2004 in Gothenburg, Sweden by motorsport engineers, Nuke Performance designs and manufactures fuel delivery systems and components for high-performance applications. Their iconic fuel rails, surge tanks, regulators, and precision fittings are trusted by motorsport teams and performance builders globally.
Official page: nukeperformance.com
Official page: nukeperformance.com
Performance Bosch Injector 2200cc NGI2 65mm EV14L 4pcs Flow Matched
553.58€
548.04€
Excl. VAT: 452.93€
This product has universal fitment.
