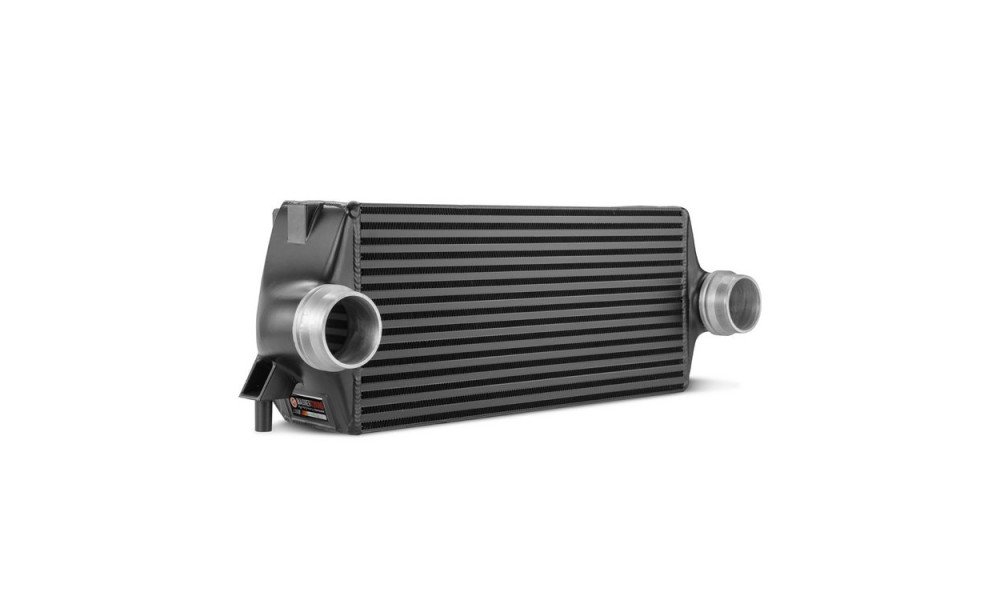

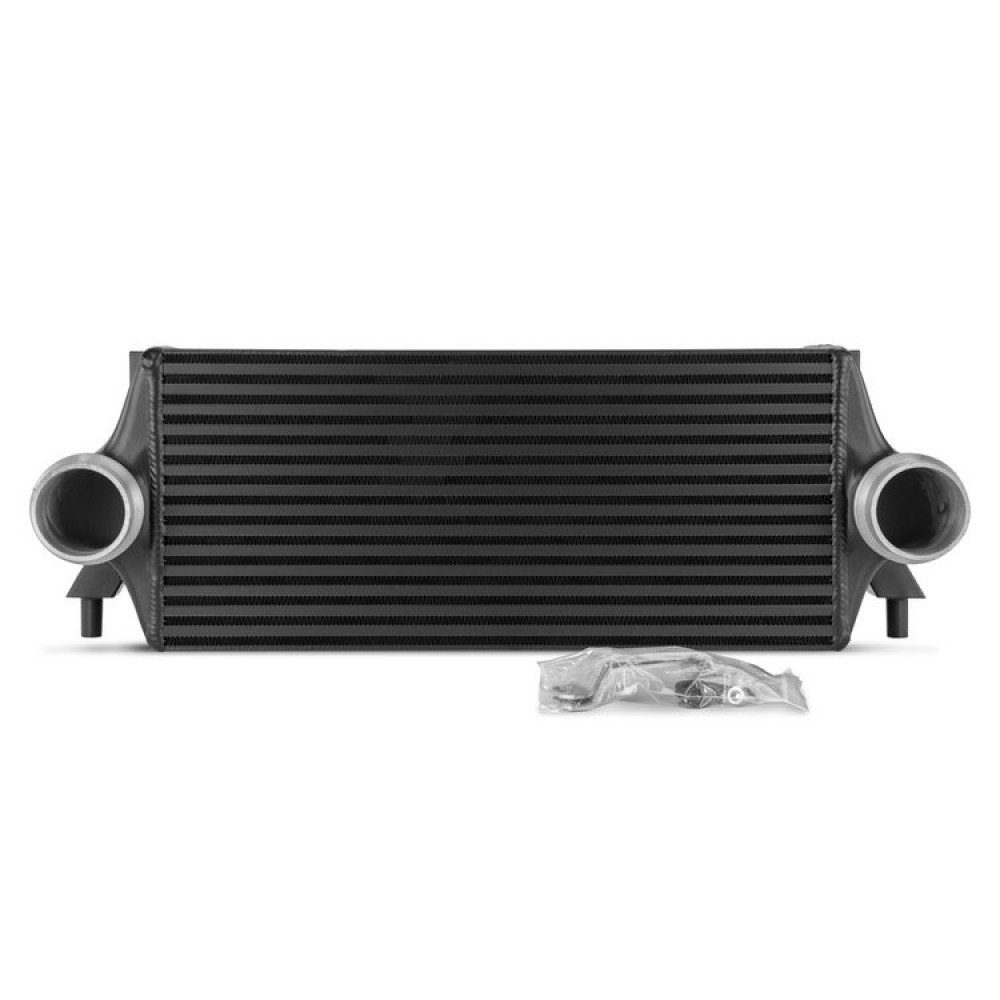

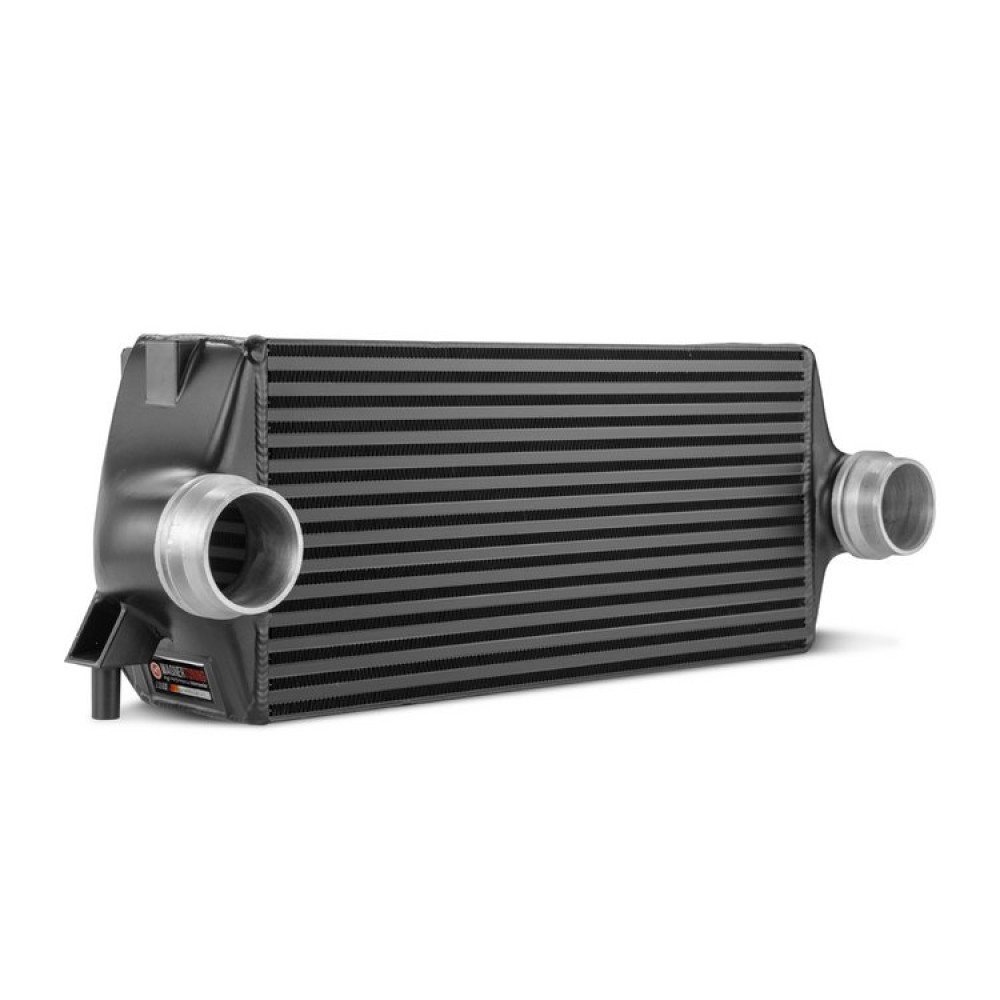

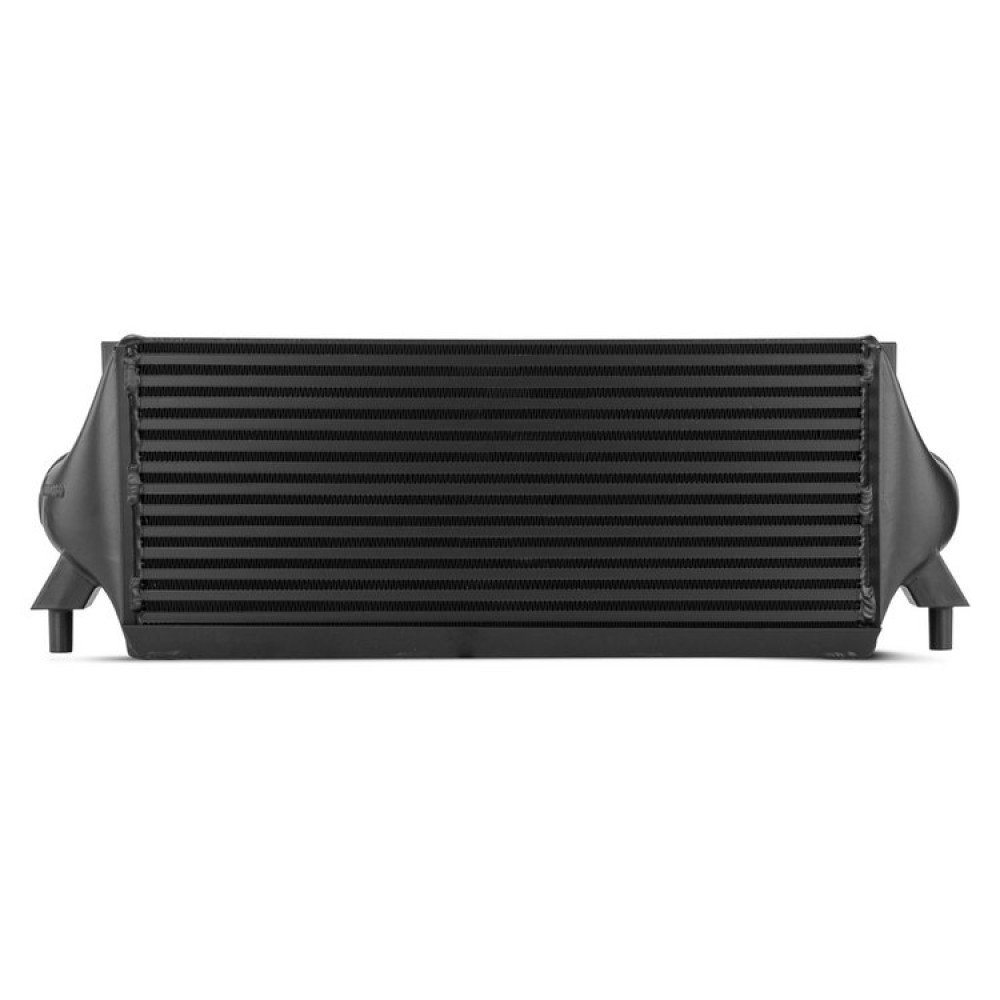

Wagner Tuning Performance Intercooler Kit for Ford Ranger (from 03/2023) and VW Amarok II (from 01/2023). Designed to replace the OEM intercooler and improve charge-air cooling with increased core volume and optimized flow.

Key features

• Bar-and-plate intercooler core with internal turbulators
• Cast aluminum end tanks
• Uniform inlet distribution for consistent cooling
• Low pressure drop design
• Anti-corrosion protective coating
• Direct fit in the OEM installation position

Specifications

• Core size: 480 mm x 209 mm x 110 mm
• Wagner Tuning intercooler dimensions: 550 mm x 300 mm x 110 mm
• Cooling surface area (A): 1080 cm² (+33% vs. OEM 810 cm²)
• Volume (V): 11 L (+69% vs. OEM 6.5 L)
• OEM intercooler dimensions: 450 mm x 180 mm x 80 mm
• Weight: 12.00 kg
• Volume: 22.00 cm³/kg

Vehicle applications

• Ford Ranger 125 kW / 170 PS 03/2023 - XX/XXXX (2.0TDCI EcoBlue 4x4)
• Ford Ranger 151 kW / 205 PS 03/2023 - XX/XXXX (2.0TDCI EcoBlue e-4WD)
• Ford Ranger 177 kW / 240 PS 03/2023 - XX/XXXX (3.0TDCI EcoBlue e-4WD)
• Ford Ranger Raptor 154 kW / 210 PS 03/2023 - XX/XXXX (2.0TDCI EcoBlue e-4WD)
• VW Amarok II 125 kW / 170 PS 01/2023 - XX/XXXX (2.0 TDI)
• VW Amarok II 151 kW / 205 PS 01/2023 - XX/XXXX (2.0 BiTDI)
• VW Amarok II 177 kW / 241 PS 01/2023 - XX/XXXX (3.0 TDI)
• VW Amarok II 222 kW / 302 PS 01/2023 - XX/XXXX (2.3 TSI)

Part number

200001221
