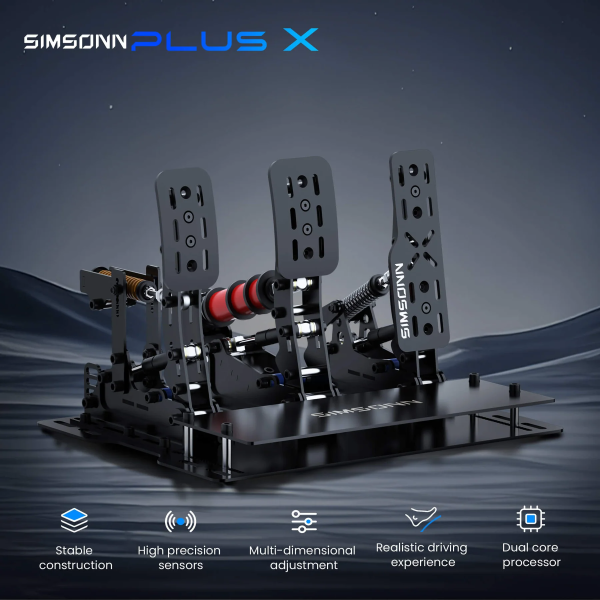

Simsonn Plus X Racing Simulation Pedal – Silver

The Simsonn Plus X Racing Simulation Pedal – Silver is engineered for sim racing enthusiasts and professionals seeking uncompromising realism, durability, and customization. Every component is designed to deliver precision, longevity, and an authentic driving experience.

Premium Construction & Design

• Pedal arms and structure crafted from 3.5 mm high-strength stainless steel for exceptional durability.
• Laser-cut, burr-free surfaces with rust-resistant coating ensure long-lasting quality and appearance.
• 4 mm thick pedal panels provide outstanding rigidity and stability during aggressive use.
• Silver matte sandblasted finish offers a non-slip, professional look and feel.
• Built to withstand intense, long-term use while maintaining precision and comfort.

Precision Engineering

• All key pivot points utilize high-grade ball bearings to eliminate play and wobble.
• Engineered for smooth motion, even after millions of cycles.
• Internal components tested through tens of thousands of compression cycles for consistent performance.

Advanced Braking & Damping System

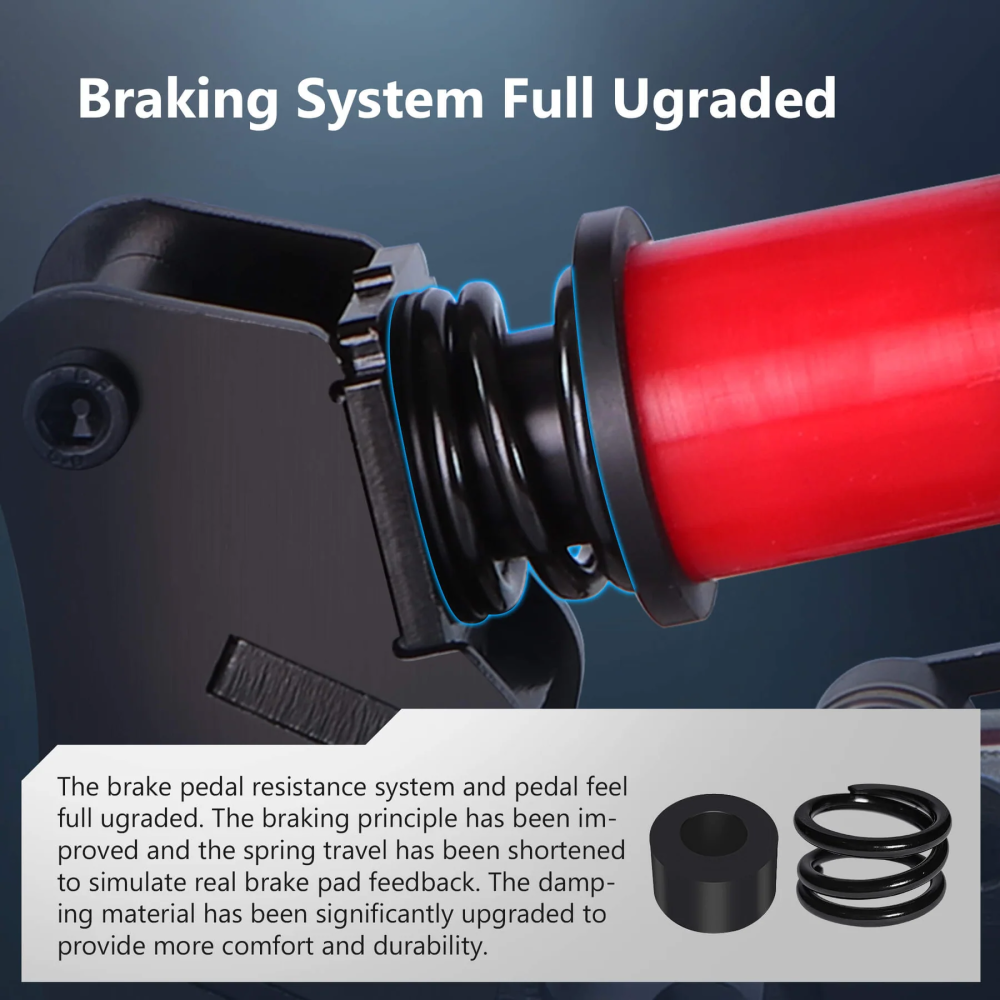

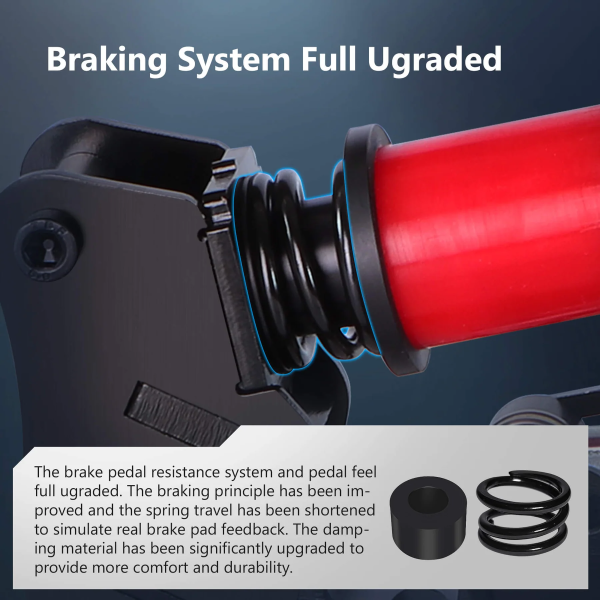

• Dual-stage braking system provides authentic pedal feel:
  • Stage 1: Smooth initial resistance for light braking.
  • Stage 2: Progressive compression mimics real brake pad “bite” and braking pressure.
• Non-linear hydraulic dampers deliver realistic resistance curves.
• Throttle: One-way hydraulic resistance for smooth acceleration.
• Brake & Clutch: Bi-directional hydraulic feedback for realistic pedal resistance and feel.

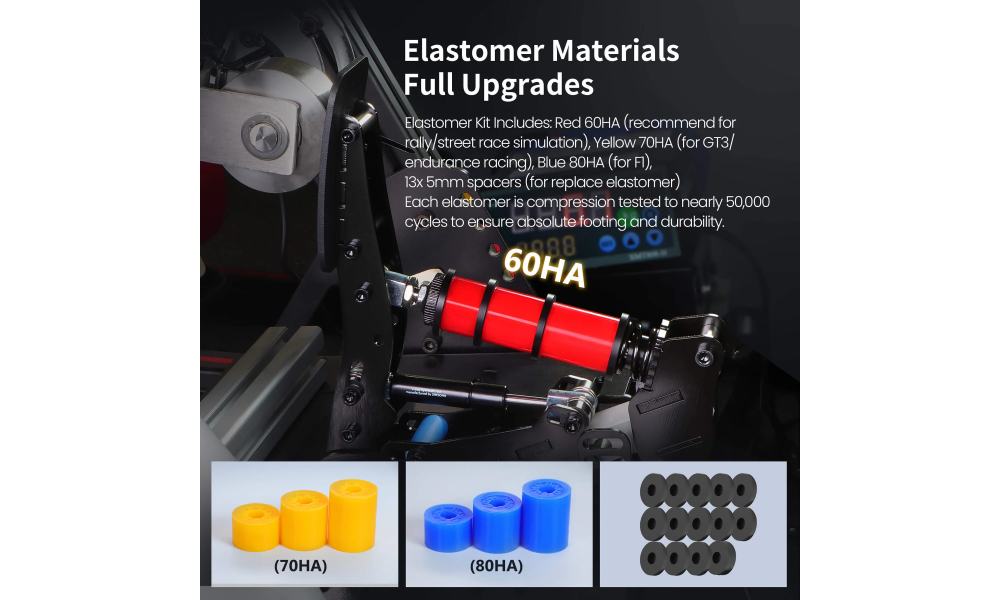

• Includes three elastomers of varying hardness and 13 damping spacers for complete brake customization.
• Snap-on design allows quick elastomer changes for different driving styles or vehicle types.

Fully Adjustable Dynamics

• Adjustable pedal angle, travel, force, and resistance curves.
• Four angle positions (–10° to +12°) for optimal setup with various rigs and seating positions.
• Adjustable preload for fine-tuning throttle and brake response.

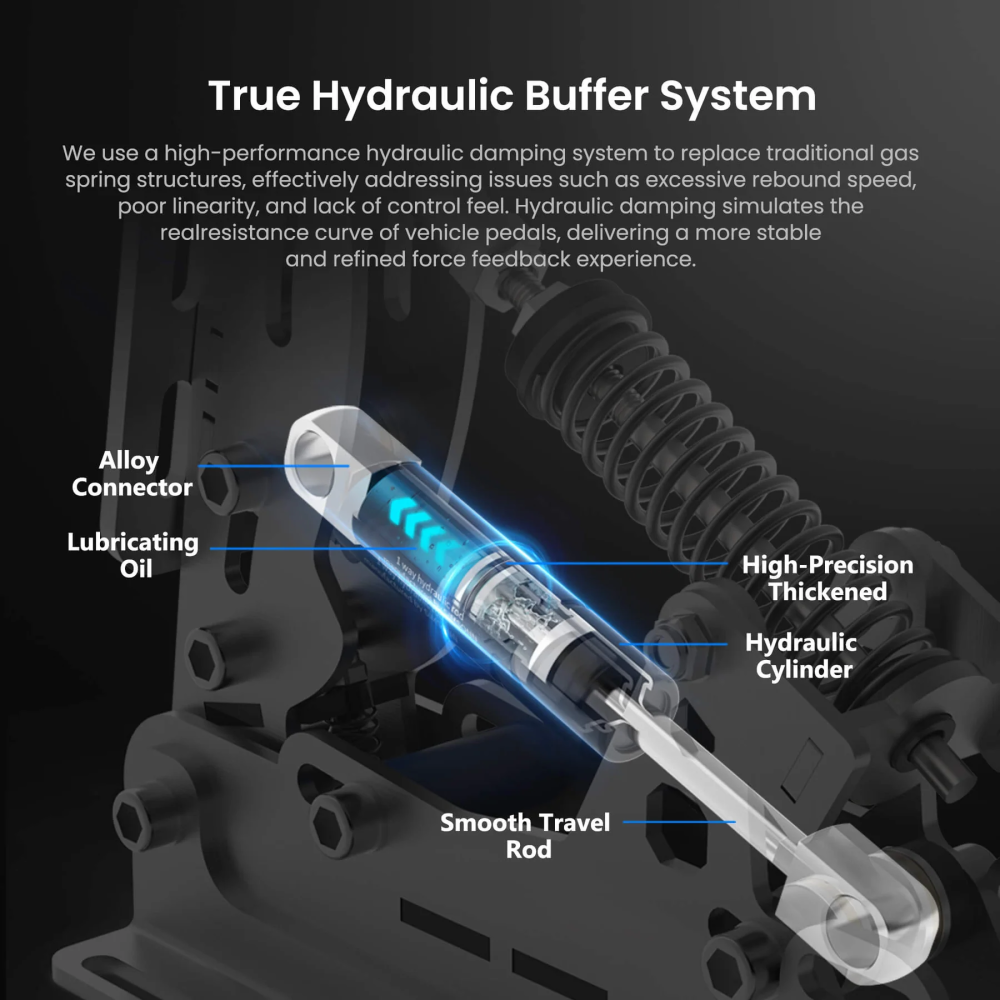

Hydraulic Buffer System

• Throttle: One-way hydraulic damping for smooth, natural control.
• Brake & Clutch: Bi-directional hydraulic feedback provides realistic resistance across full travel.

Native Rumble Module Support

• Fully compatible with Simsonn’s latest Rumble Modules.
• Provides immersive tactile feedback simulating road texture, engine vibration, and brake dynamics.

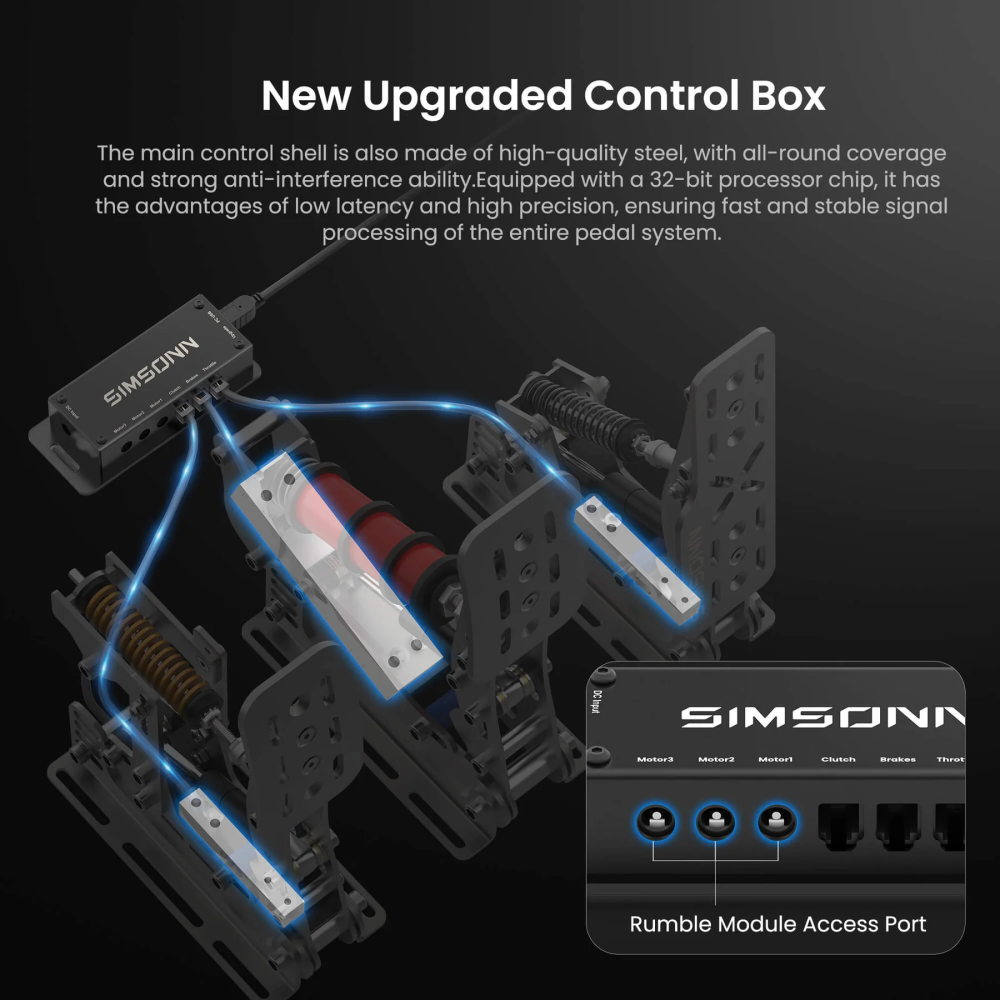

Upgraded Control & Electronics

• 32-bit processor chip delivers low latency and high precision.
• Built-in EMI shielding ensures clean, interference-free signal transmission.
• Integrated mounting points for rumble modules.
• Onboard pedal calibration memory – set once, no need for recalibration.

Software Integration

• Includes Simsonn Manager Software to:
  • Adjust output curves, brake response, and dead zones.
  • Save and switch between multiple driving profiles.
  • Plug-and-Play USB connectivity; no drivers required.

Additional Performance Enhancements

• 80HA Soft Limiter reduces harsh impact at full pedal travel for improved comfort.
• Ergonomic curved pedal design supports natural foot position and reduces fatigue.
• Plug-and-Play USB connection – instantly recognized by PC racing setups.

Durability & Upgrades Over Pro Plus

• Enhanced hydraulic damping system and dual-stage brake resistance.
• Improved control electronics with advanced EMI protection.
• Reinforced elastomer and damping materials, tested for millions of compressions.
• Rumble Module compatibility for an even more realistic experience.

Compatibility & System Requirements

• Compatible with: PC (Windows).
• Not compatible with: PlayStation 4 / 5, Xbox, or macOS systems.

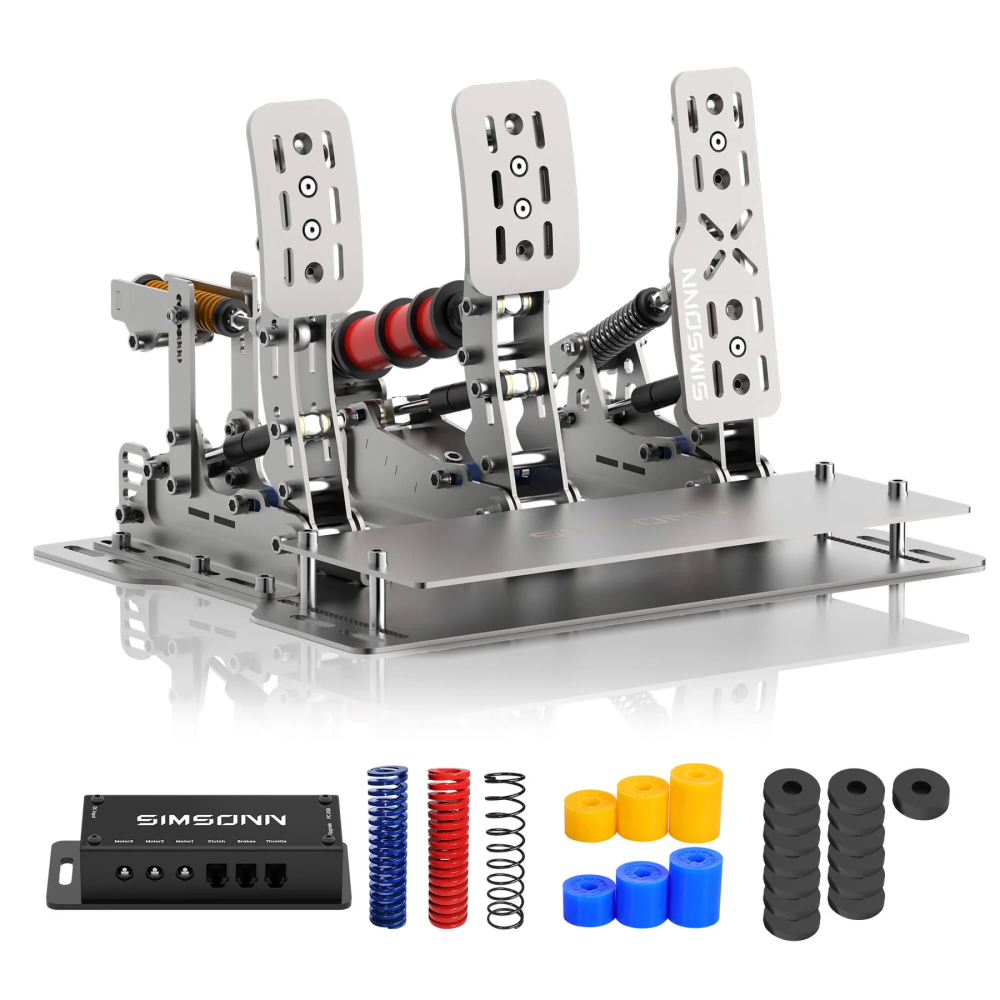

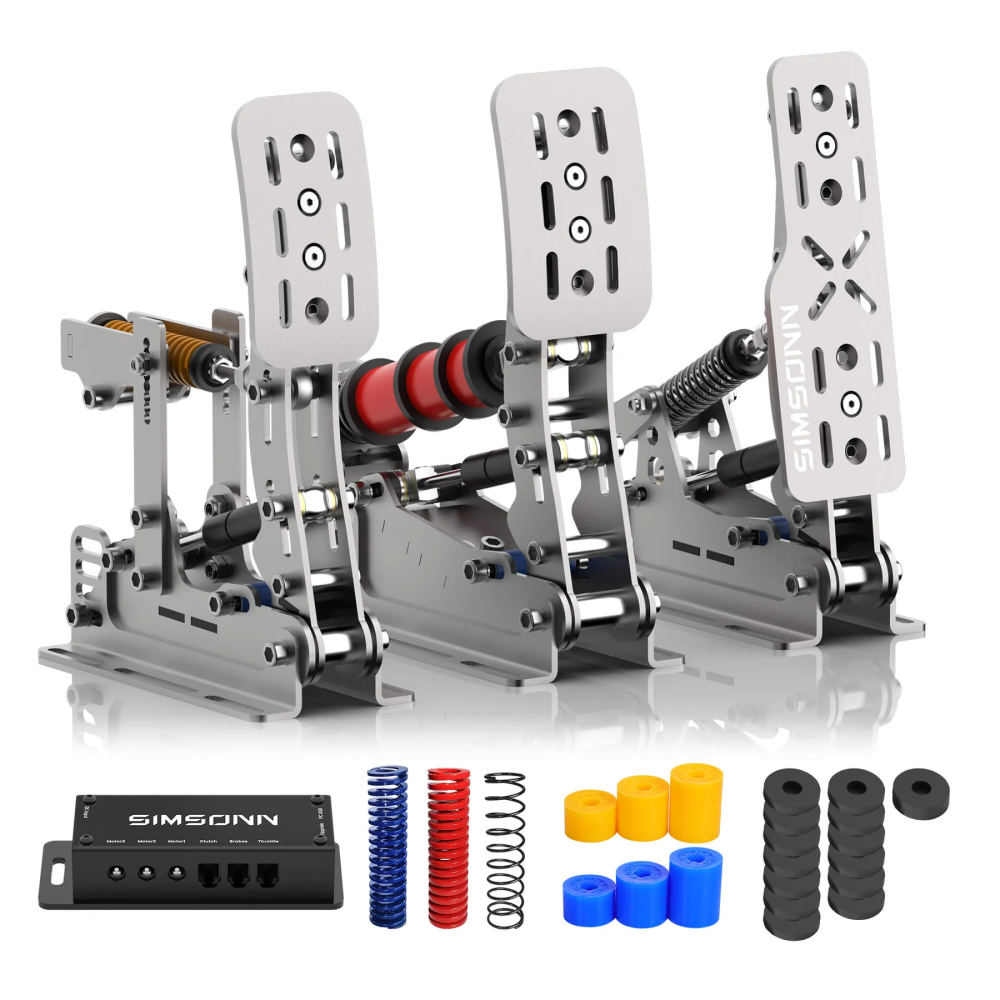

Included Components

• Simsonn Plus X 3-pedal set with standard 60HA red damper.
• Additional yellow and blue dampers.
• 13 damping spacers for customizable brake feel.
• Light red spring (standard), plus extra blue and red springs.

Optional (Sold Separately)

• Haptric Reactor – VAM Rumble Motor
• Haptric Reactor – VAM Pro Linear Motor
• Baseplate XBP-B, XBP-S
• Rumble Modules VAM, VAM-P

Variants

• Black color also available: PLUS X-P3-H3-B (see separate offer).

The Simsonn Plus X Racing Simulation Pedal – Silver is built for serious sim racers who demand precision, durability, and adjustability in every session.
