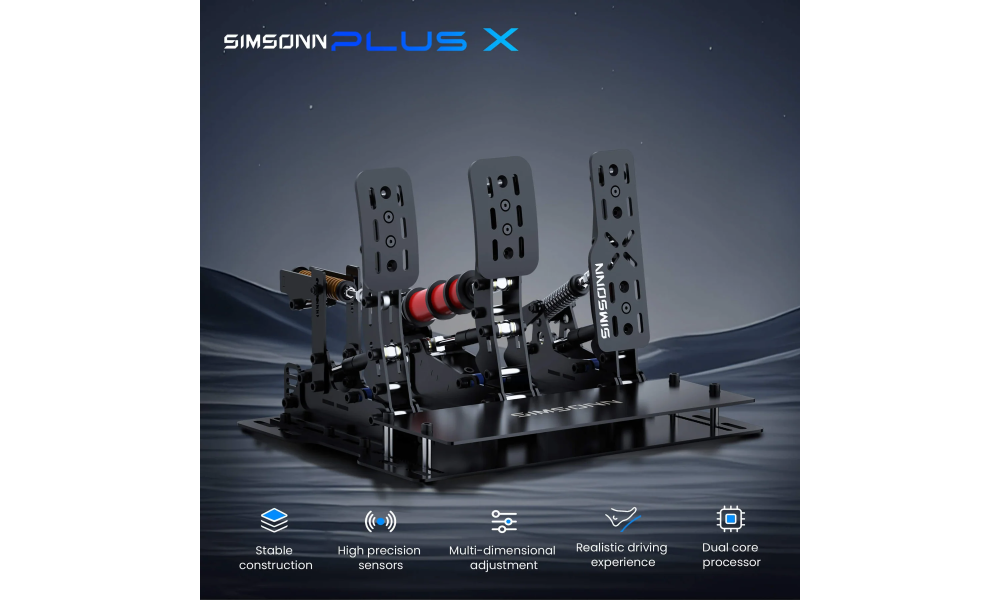

Simsonn Plus X Racing Simulation Pedal – Black

The Simsonn Plus X Racing Simulation Pedal is engineered for sim racing enthusiasts seeking authentic pedal feel, durability, and precise control. Built for long-term, intensive use, this pedal set delivers a realistic driving experience through advanced mechanical and electronic systems.

Construction & Materials

• Pedal frame constructed from 3.5 mm high-strength stainless steel with laser-cut, burr-free surfaces
• Rust-resistant coating for longevity
• 4 mm thick pedal panels for rigidity
• Black matte sandblasted finish for non-slip operation

Mechanical Engineering

• All major pivot points use high-grade ball bearings to eliminate play and ensure smooth movement
• Internal components tested for tens of thousands of compression cycles for consistent performance

Braking & Damping System

• Dual-stage brake system:
  • Stage 1: Smooth initial resistance for light braking
  • Stage 2: Progressive, high-resistance compression simulating brake pad engagement
• Non-linear hydraulic dampers:
  • Throttle: One-way hydraulic damping for controlled acceleration
  • Brake & Clutch: Bi-directional hydraulic feedback for authentic pedal travel and pressure
• Three elastomers of different hardness and 13 damping spacers for customizable pedal response
• Snap-on mechanism for easy elastomer changes

Adjustability

• Adjustable pedal angle (–10° to +12°), travel, force, and resistance curves
• Adjustable preload for brake and throttle

Electronics & Software

• Upgraded 32-bit processor for high-precision, low-latency signal processing
• Built-in EMI shielding for stable throttle and clutch signal transmission
• Integrated mounting points for rumble modules
• Onboard pedal calibration memory—set once, no need to recalibrate
• Simsonn Manager Software for adjusting output curves, brake response, and dead zones; save multiple profiles and switch easily
• Plug-and-play USB connectivity (no drivers required)

Additional Features

• 80HA soft limiter reduces harsh impact at full pedal travel
• Ergonomic curved pedal design for natural foot placement and comfort
• Native compatibility with Simsonn rumble modules for tactile feedback (sold separately)

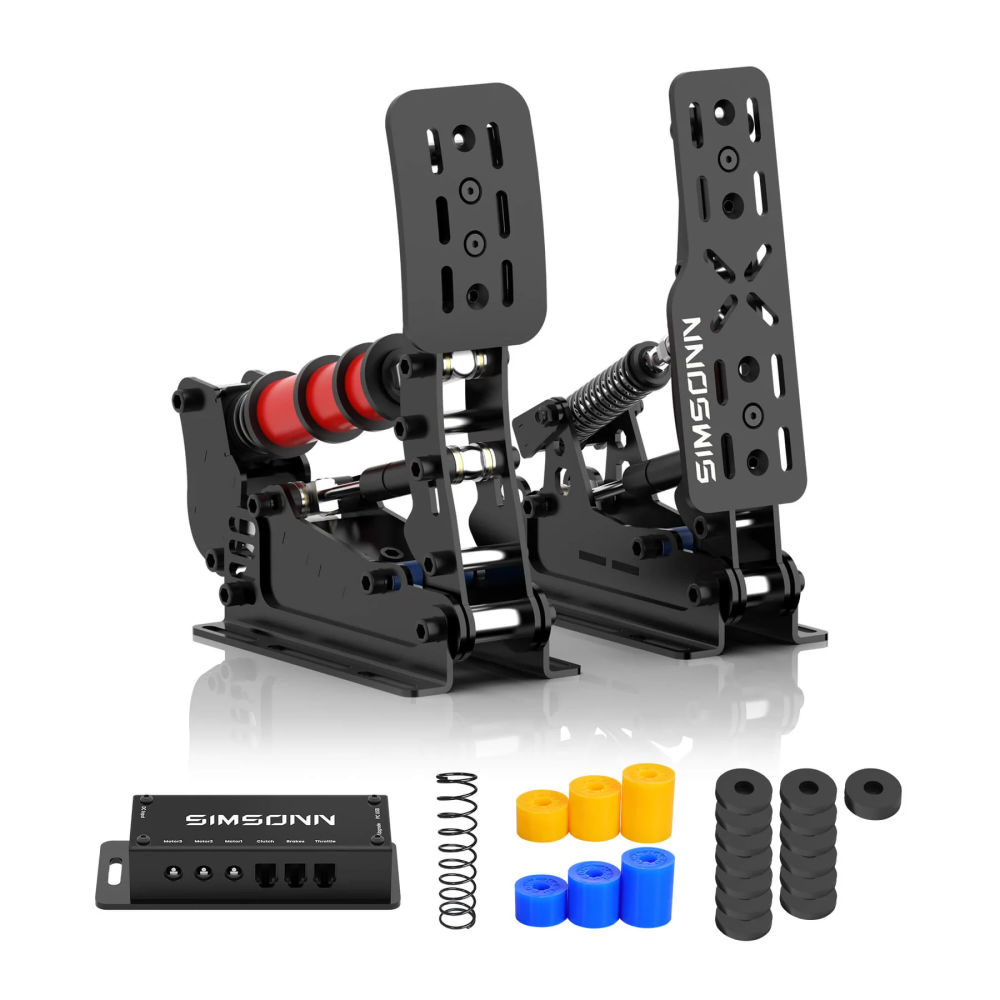

Included Items

• Simsonn Plus X 2-pedal set with standard 60HA red damper
• Additional yellow and blue dampers
• 13 damping spacers for brake customization
• Light red spring (standard) plus extra blue and red springs

Compatibility & Requirements

• Compatible with: PC (Windows)
• Not compatible with: PlayStation 4/5, Xbox, or macOS

Optional Accessories (Sold Separately)

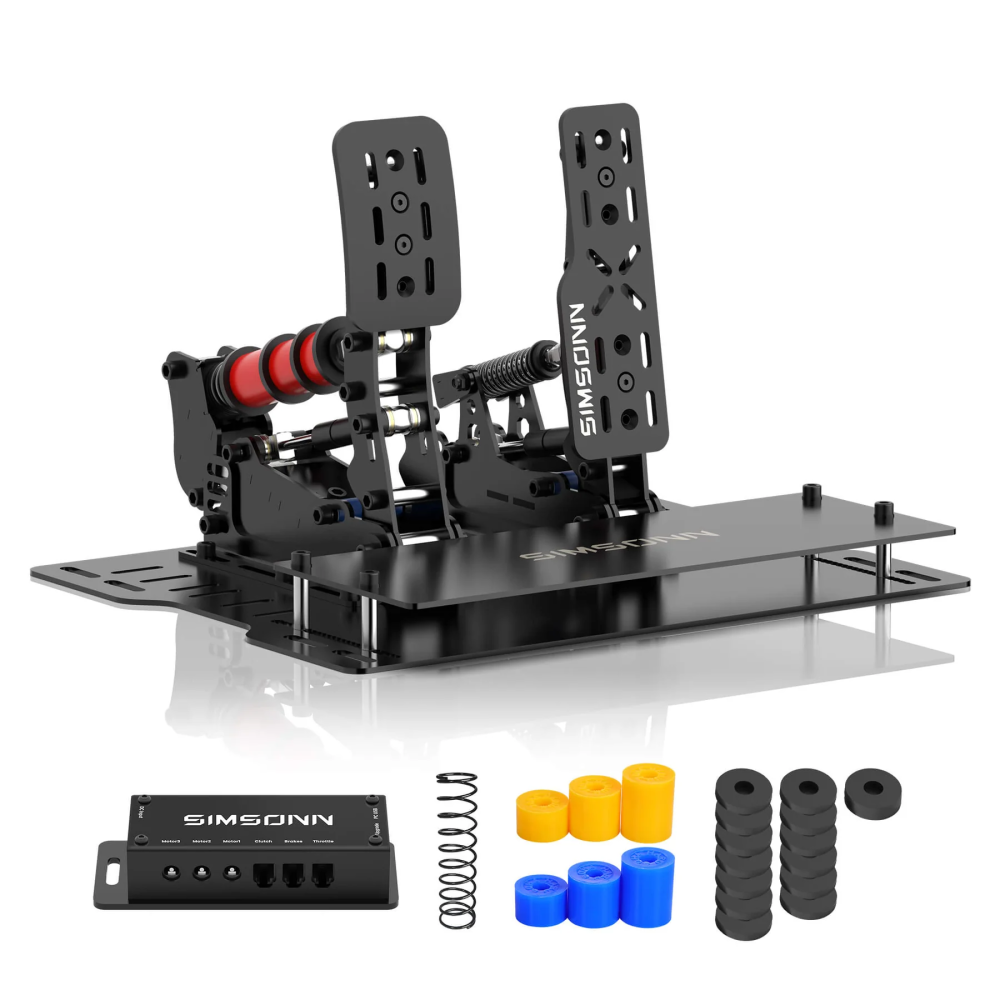

• Baseplate XBP-B, XBP-S
• Rumble modules VAM, VAM-P
• Haptric Reactor – VAM Rumble Motor
• Haptric Reactor – VAM Pro Linear Motor

Also available in silver (model PLUS X-P2-H2-S, sold separately).

The Simsonn Plus X Racing Simulation Pedal is designed for serious sim racers who demand precision, customization, and a true-to-life pedal feel.
