Pedalbox Kart Cross SMG – RacingPedalBoxes

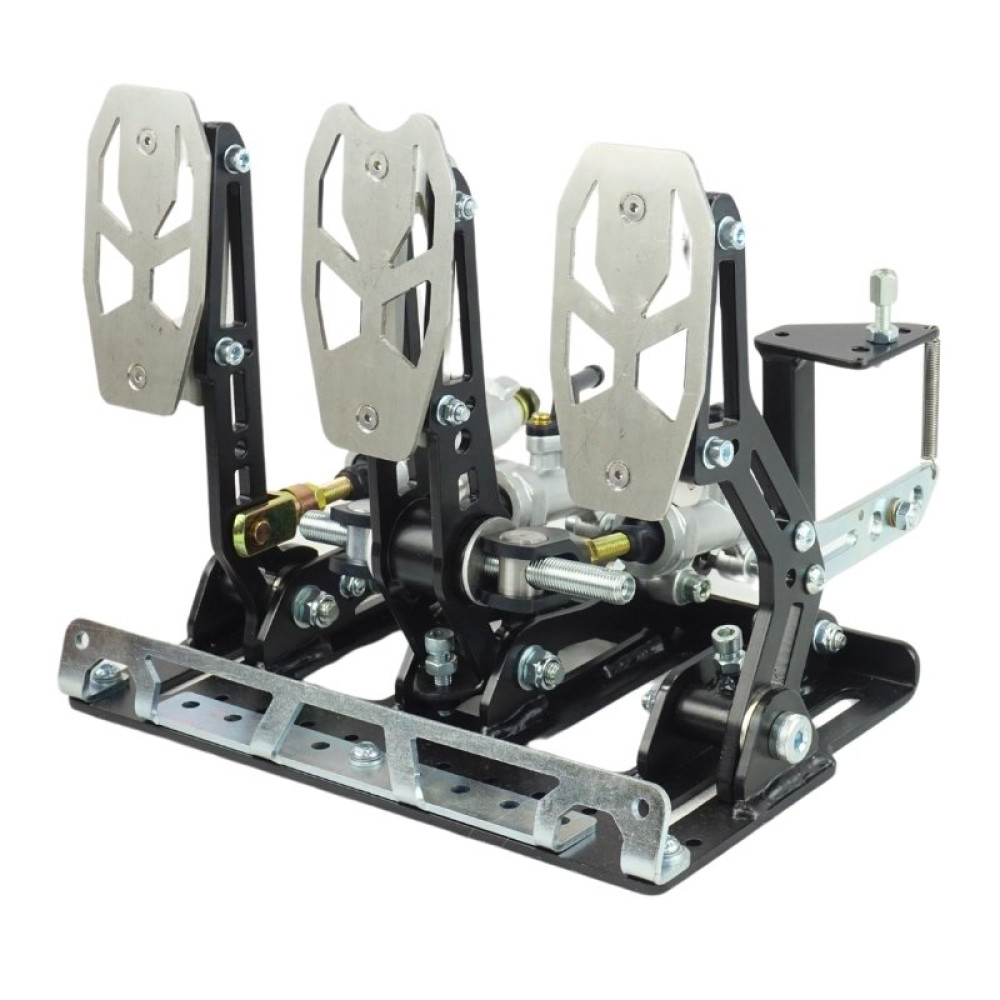

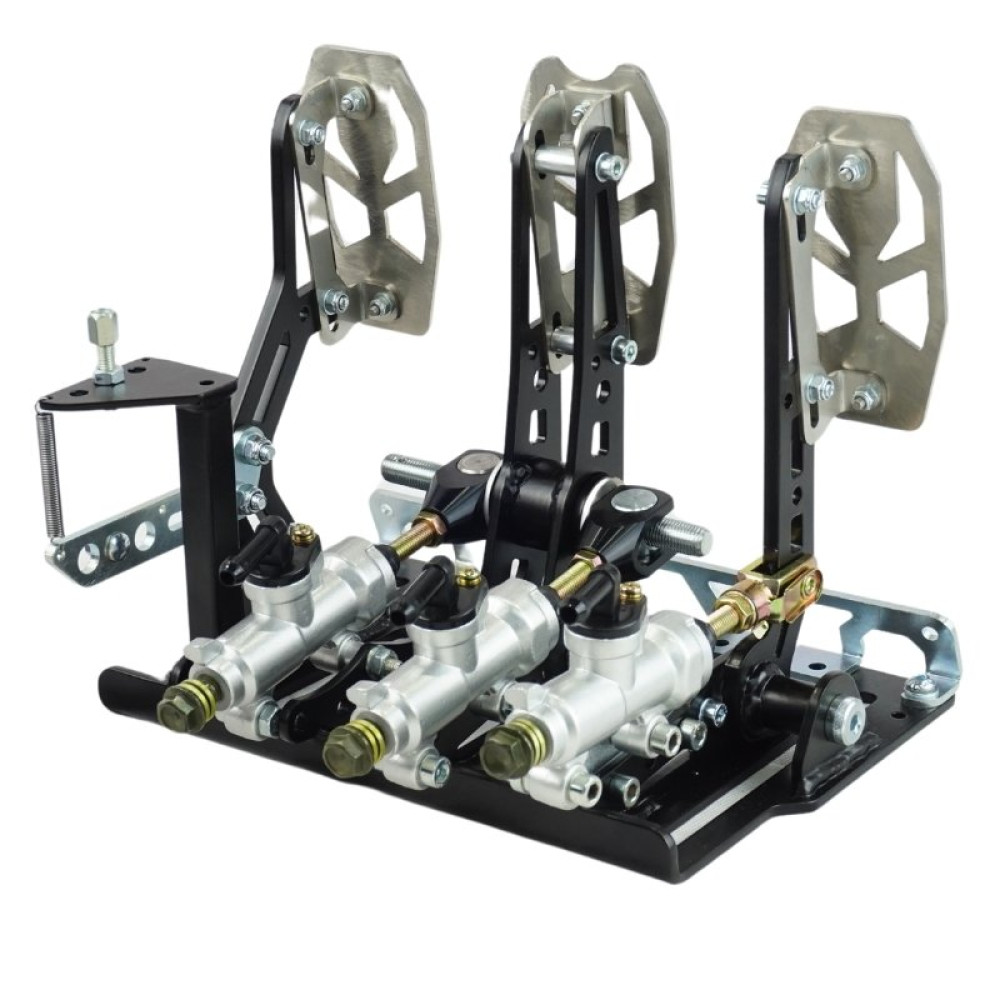

The Pedalbox Kart Cross SMG is engineered specifically for kart cross vehicles and is fully compatible with Semog chassis. It includes two mounting guides for adjusting the pedalbox position to accommodate different drivers. Its compact design ensures easy installation even in confined spaces.

Key Features:

• Specially designed for kart cross vehicles, compatible with Semog chassis
• Two guides for driver position adjustment
• Compact design for easy installation in tight spaces
• Pedal pads adjustable in height and angle

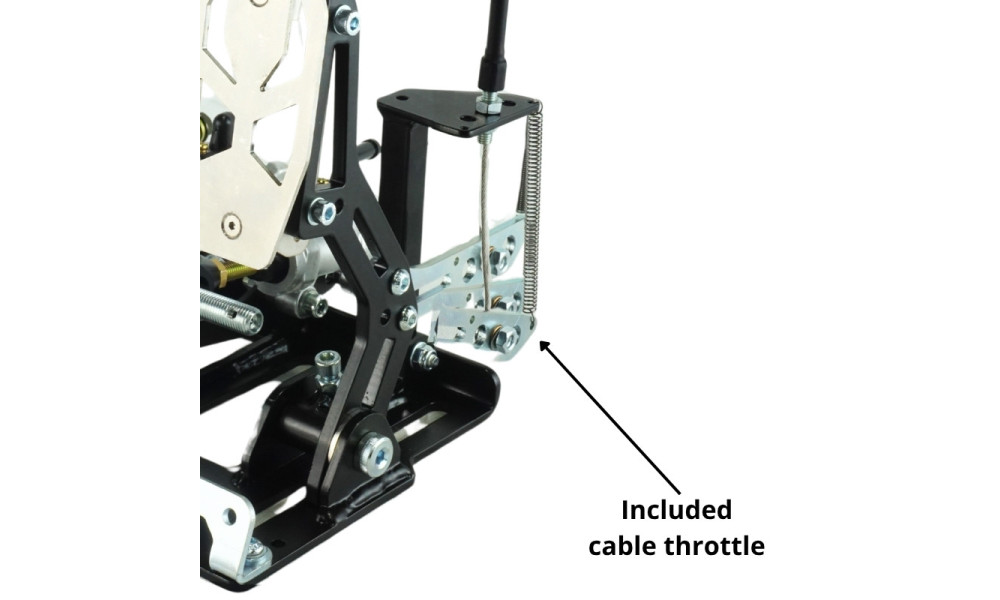

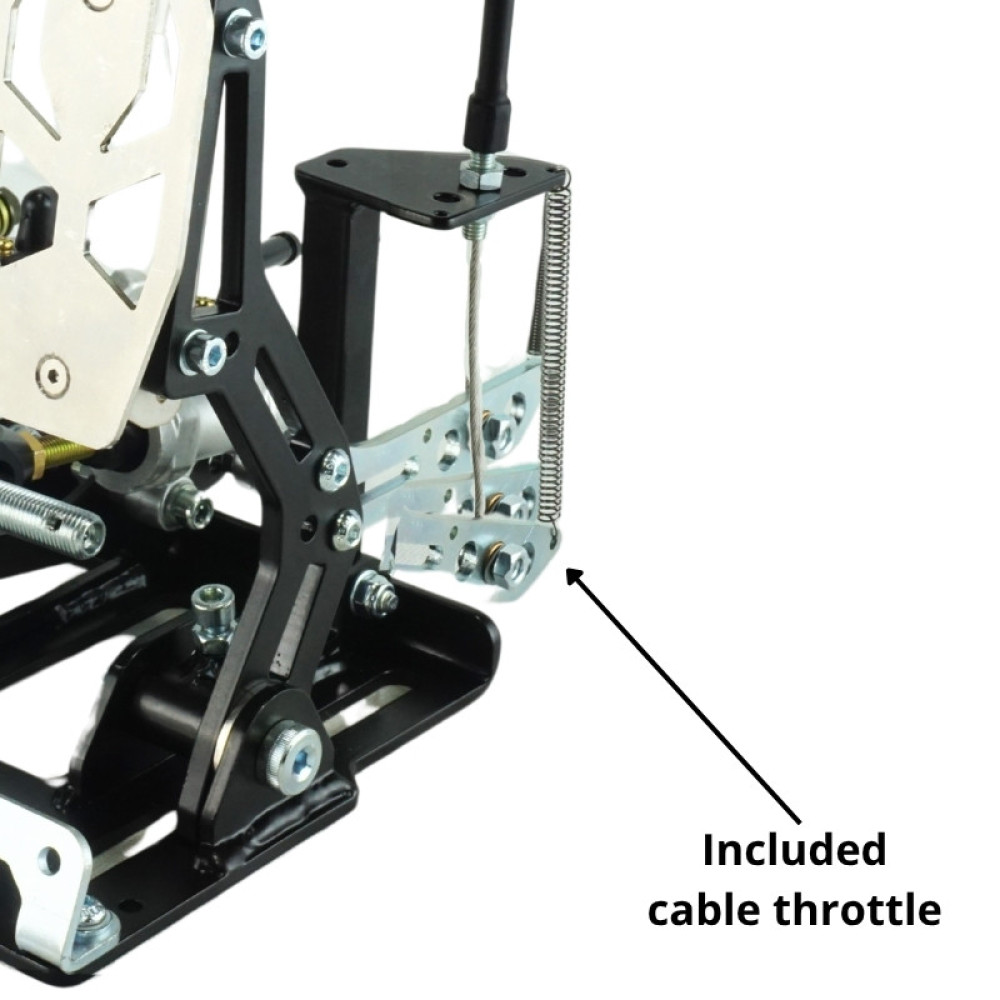

• Throttle pedal with adjustable cable puller, rotation angle, and cable stroke
• Brake pedal with balance bar for dual master cylinders
• Brake pedal ratio: 3.5:1
• Balance bar: 7/16”-20 UNF thread for maximum stiffness
• Master cylinder connections: M8 (motorcycle type)
• Hydraulic clutch pedal, compatible with motorcycle type master cylinders (M8 push rod connection)

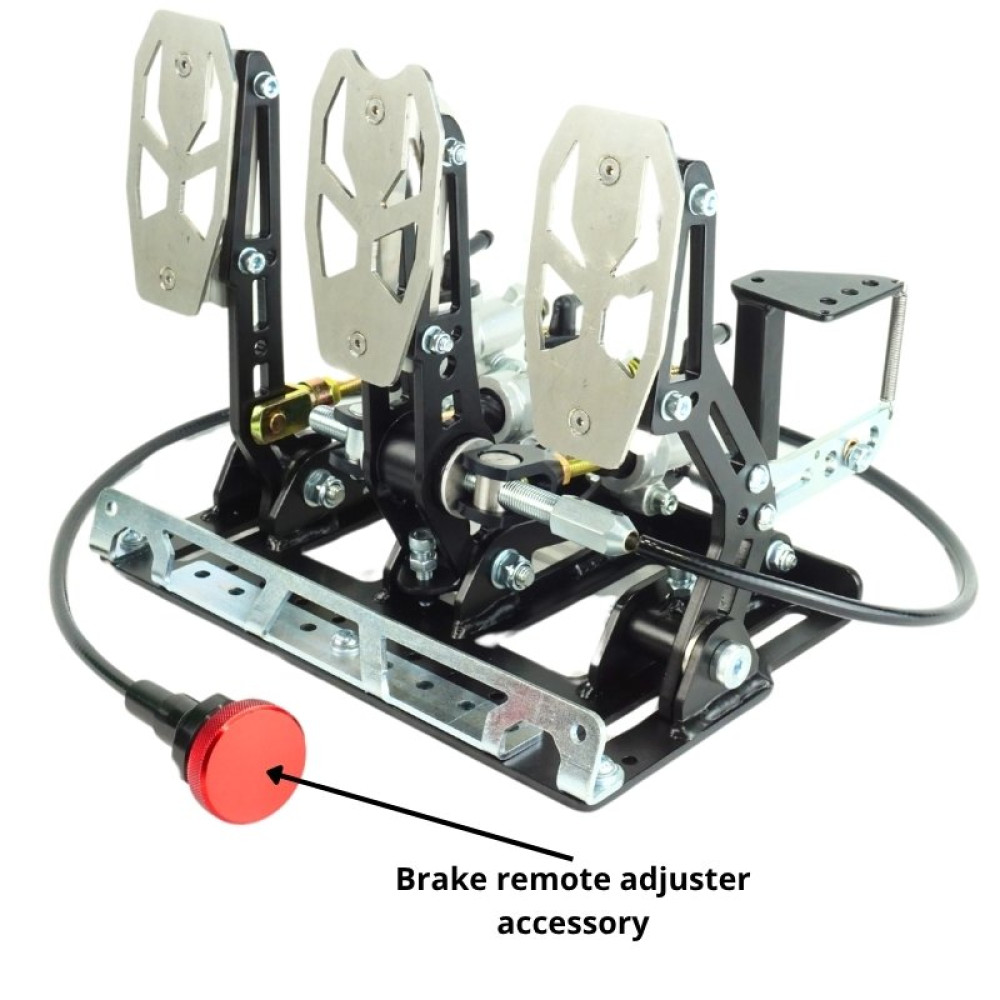

• Optional brake remote adjuster (7/16 UNF, ref. RPBAB03) for cockpit bias control
• High-quality steel pedal axes with nut torque adjustment for lateral movement regulation
• Lightweight welded steel design, optimized stiffness-to-weight ratio
• Anticorrosion coating for maximum durability
• Footrest support for comfortable driving position
• Weight: 3.1 kg (without master cylinders) / 3.6 kg (with master cylinders)
• Master cylinders sold separately
