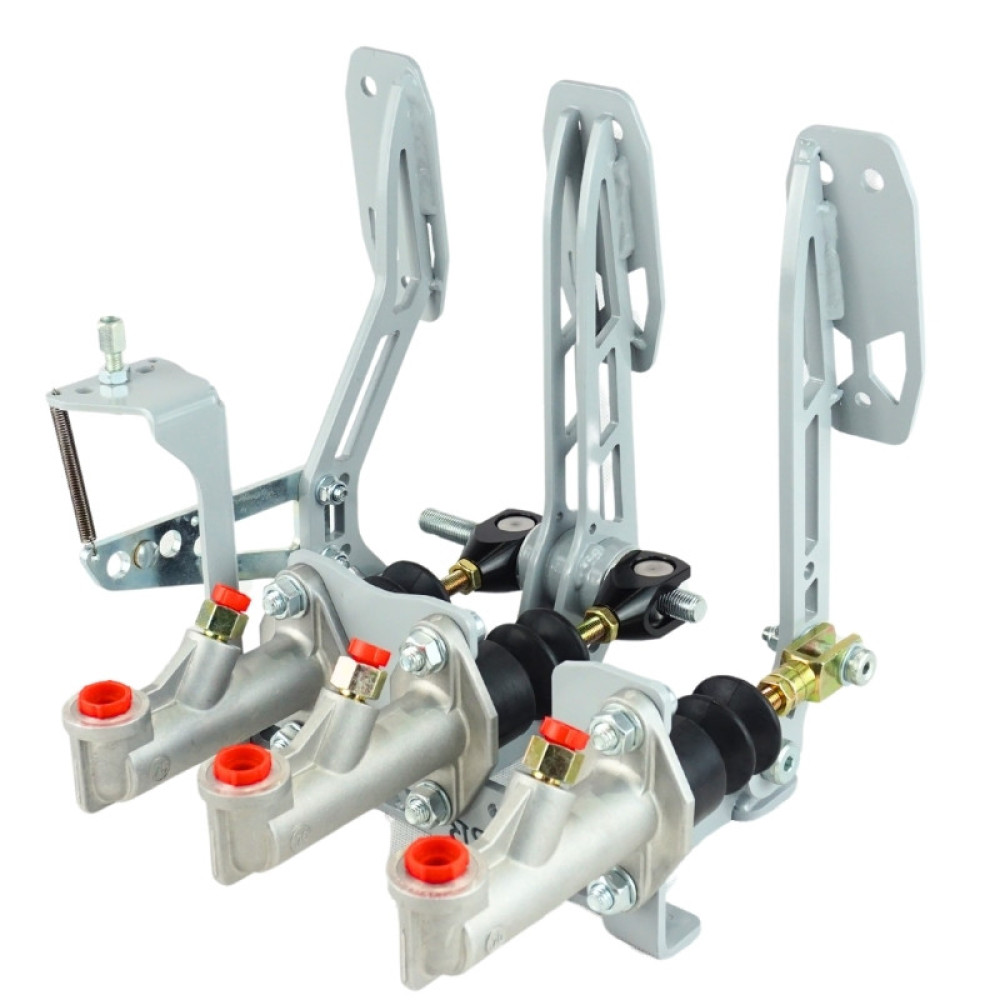

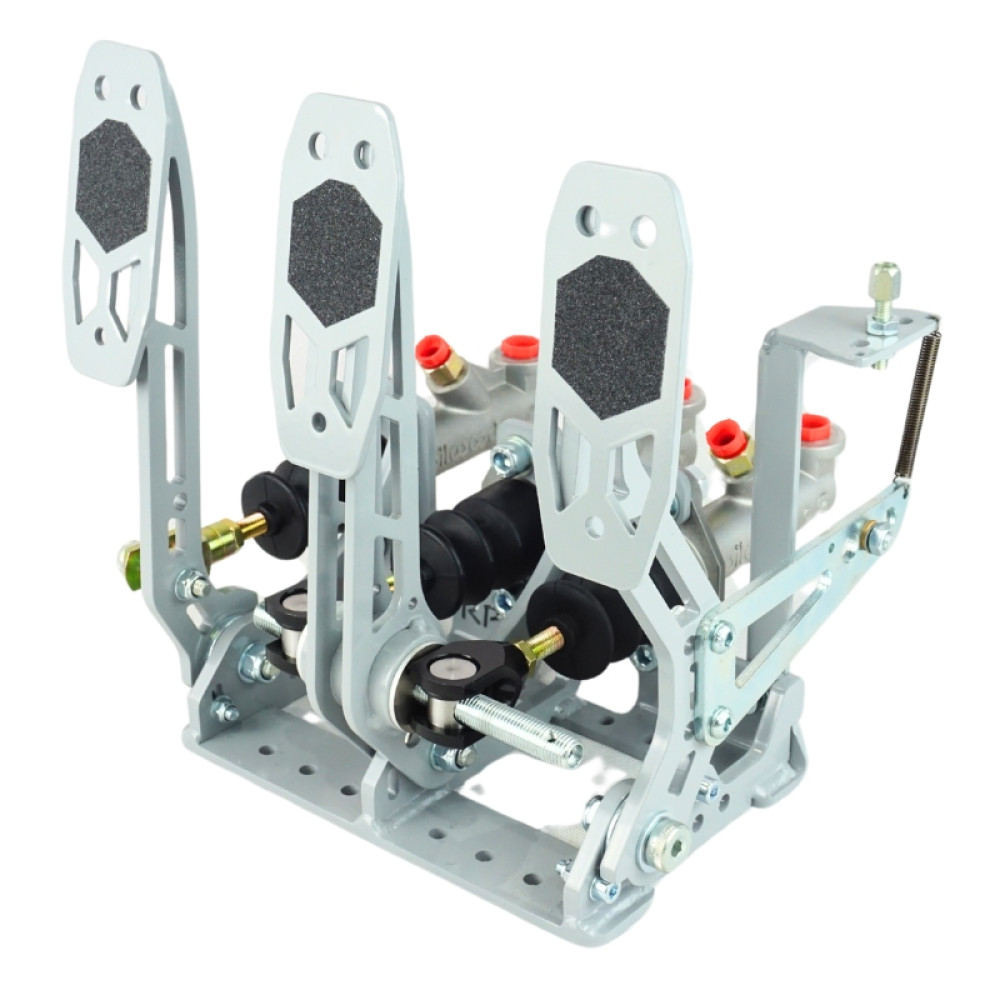

Pedalbox Eco Class RPB0006 Grey
The Pedalbox Eco Class RPB0006 in grey is designed for race applications, featuring a compact design suitable for various vehicles including prototypes, buggies, kart cross, and small cars. It can be mounted directly to the floor or on adjustable guides, allowing for customization based on driver preference.

Key features:

• Compact design suitable for prototypes, buggies, kart cross, and small vehicles
• Floor mount or guide installation for driver position adjustment
• Throttle pedal with adjustable cable puller, pedal rotation angle, and cable stroke
• Brake pedal with balance bar for dual master cylinders
• Brake pedal ratio: 5:1
• Balance bar thread: 7/16”-20 UNF for maximum stiffness
• Master cylinder connections: 5/16”-24 UNF (Wilwood/Girling)
• Hydraulic clutch pedal for master cylinder

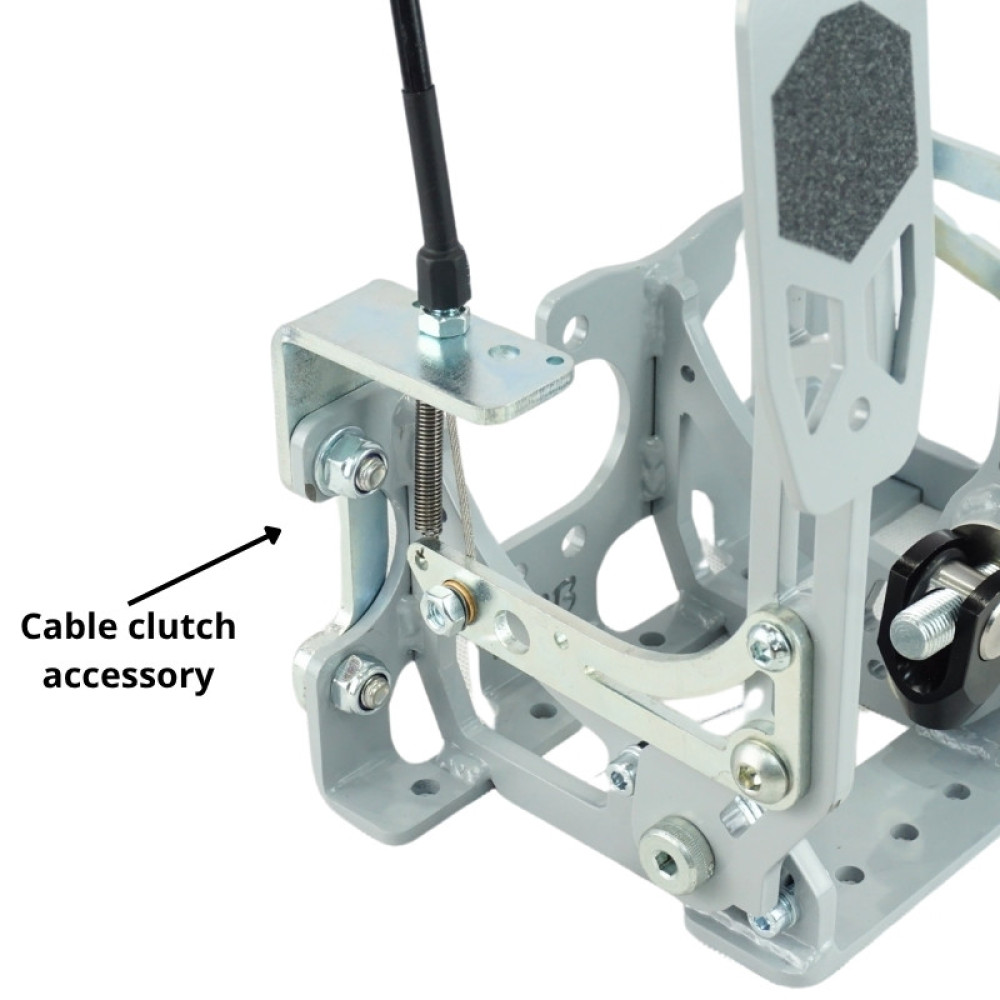

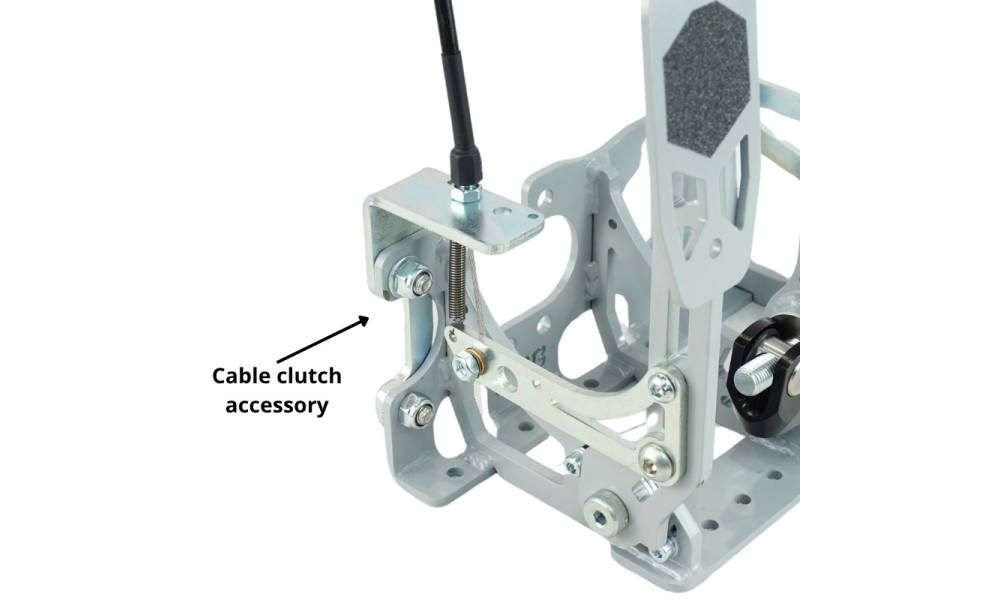

• Optional cable clutch accessory RPBAC03

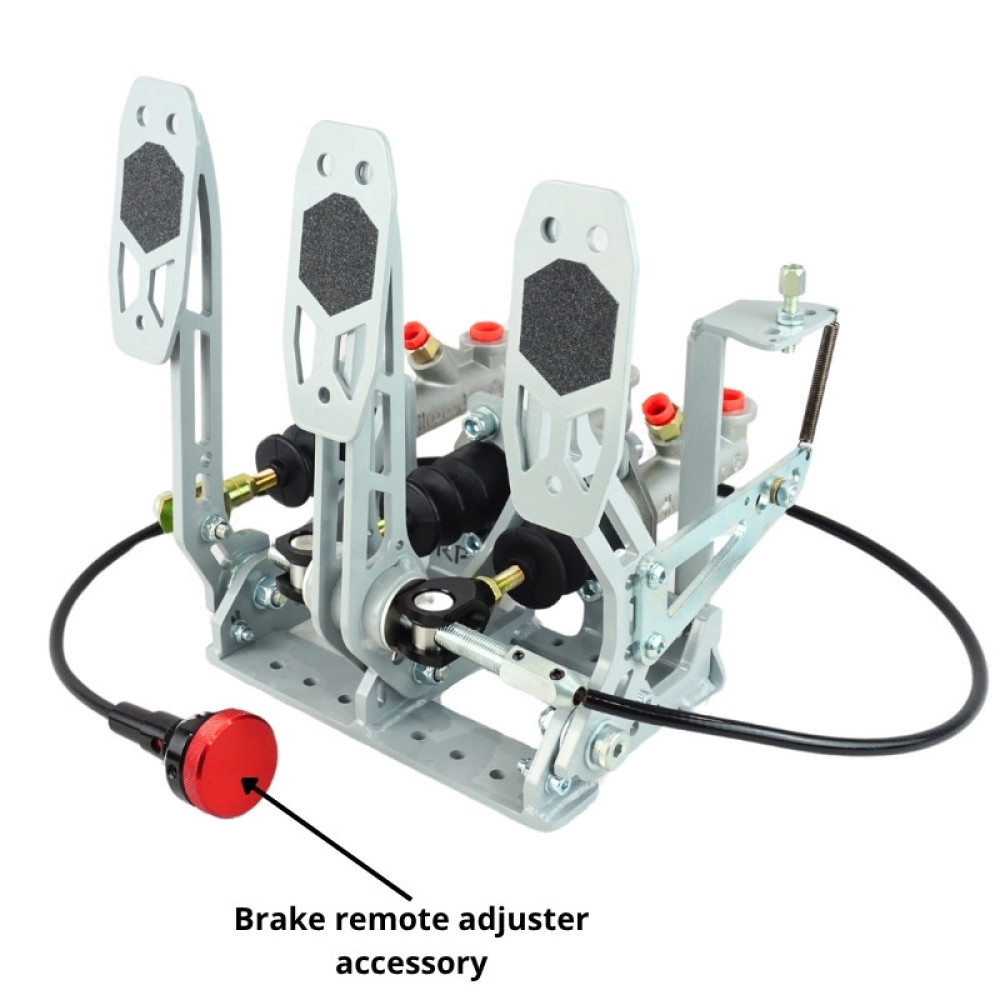

• Optional brake remote adjuster (7/16 UNF, RPBAB03) for cockpit bias control
• Anti-slip surface on all pedals
• Lightweight welded steel construction, optimized stiffness-to-weight ratio
• Anticorrosion coating for maximum durability
• Weight: 2.8 kg (without master cylinders) / 3.5 kg (with master cylinders)
• Colour: Grey (ref. RPB0006)
• Also available in Black (ref. RPB0006B)
• Master cylinders sold separately

Available optional accessories:

• Cable clutch accessory RPBAC03
• Brake remote adjuster RPBAB03
