COMPATIBILITY

• 2019 Chevrolet Corvette ZR1
• 2015-2019 Chevrolet Corvette Z06
• 2017-2024 Chevrolet Camaro ZL1
• 2016-2019 Cadillac CTS-V
• 2022-2024 Cadillac CT5-V Blackwing
• 2023-2025 Cadillac Escalade-V

OVERVIEW

The OEM PCV valve is integrated into the valley of these engines, directing internal crankcase gases into the lower housing of the supercharger. This architecture prevents the option to vent the system or connect an external oil catch can.

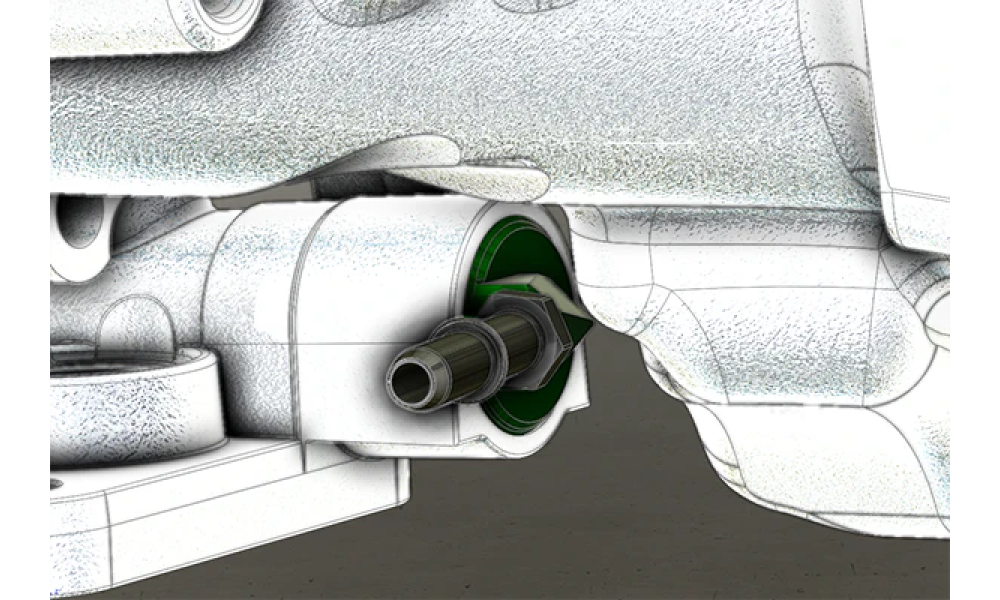

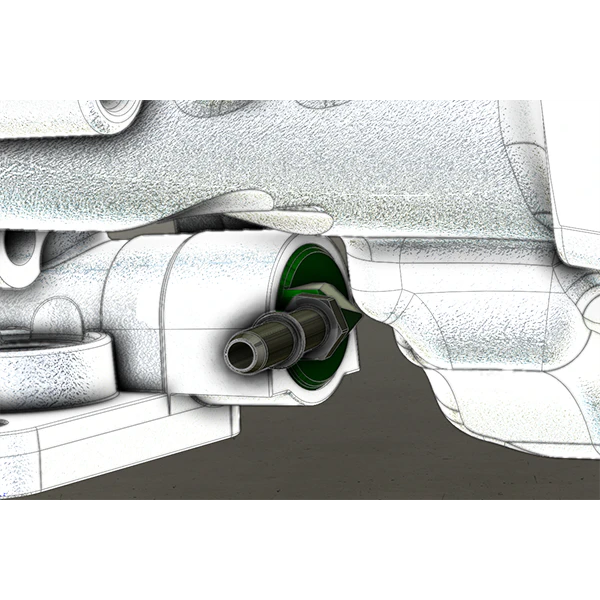

This PCV valve bypass replaces the OEM valve, providing the user with the flexibility to manage crankcase airflow. With modern technology and 3D scanning, a 3/8" (6AN) hose can be routed from this area without obstruction.

The port is tapped for 2AN ORB (5/16"-24), and both male and female 5/16" SAE quick connections are included. A 2AN ORB plug is also provided for capping off the port if necessary.

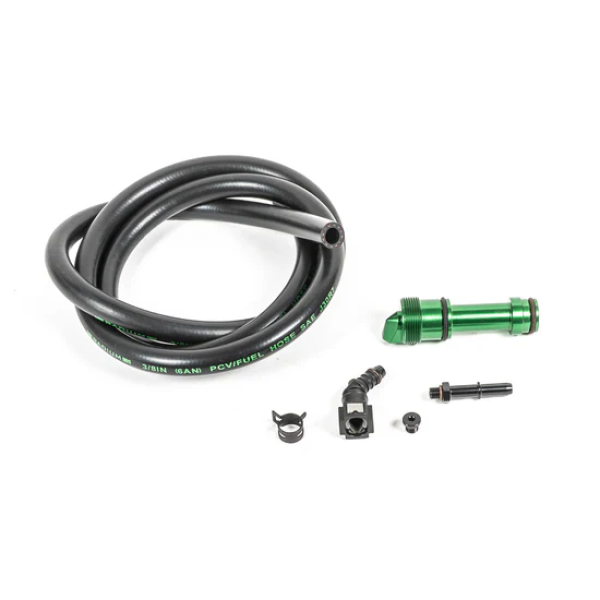

INCLUDES

• PCV Bypass Valve with FKM O-rings
• 5/16" SAE Female Connector
• 2AN ORB to 5/16" SAE Male Connector
• 2AN ORB Plug
• 3/8" PCV Hose, 5ft
• 3/8" Spring Clamp
