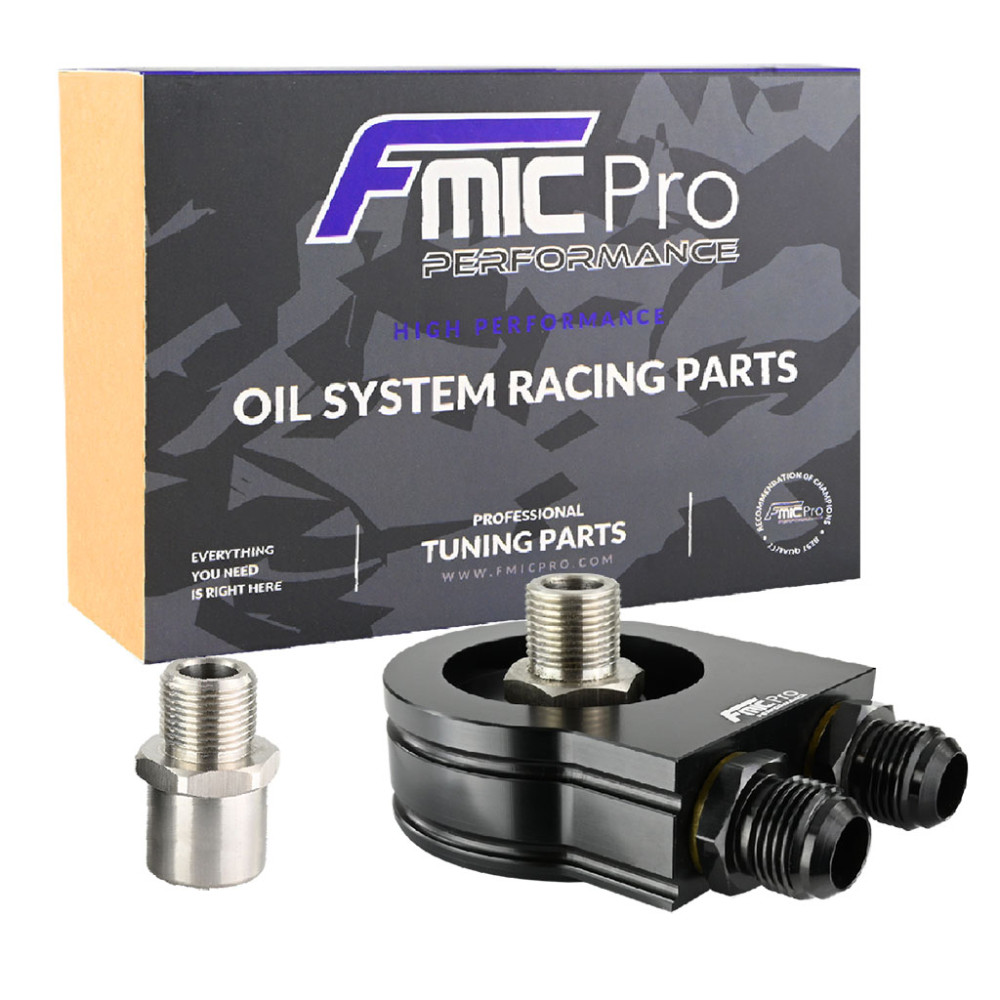

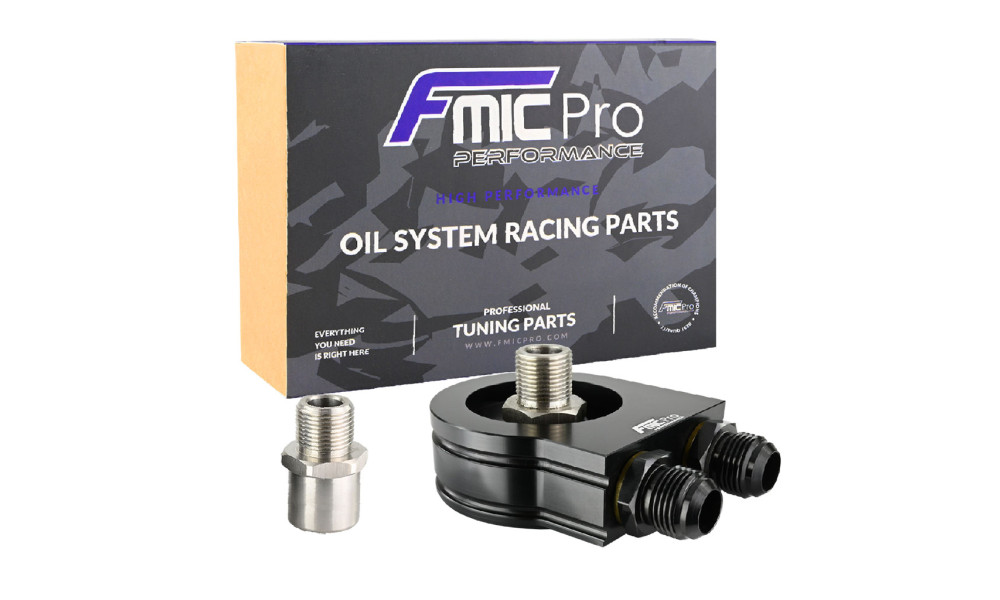

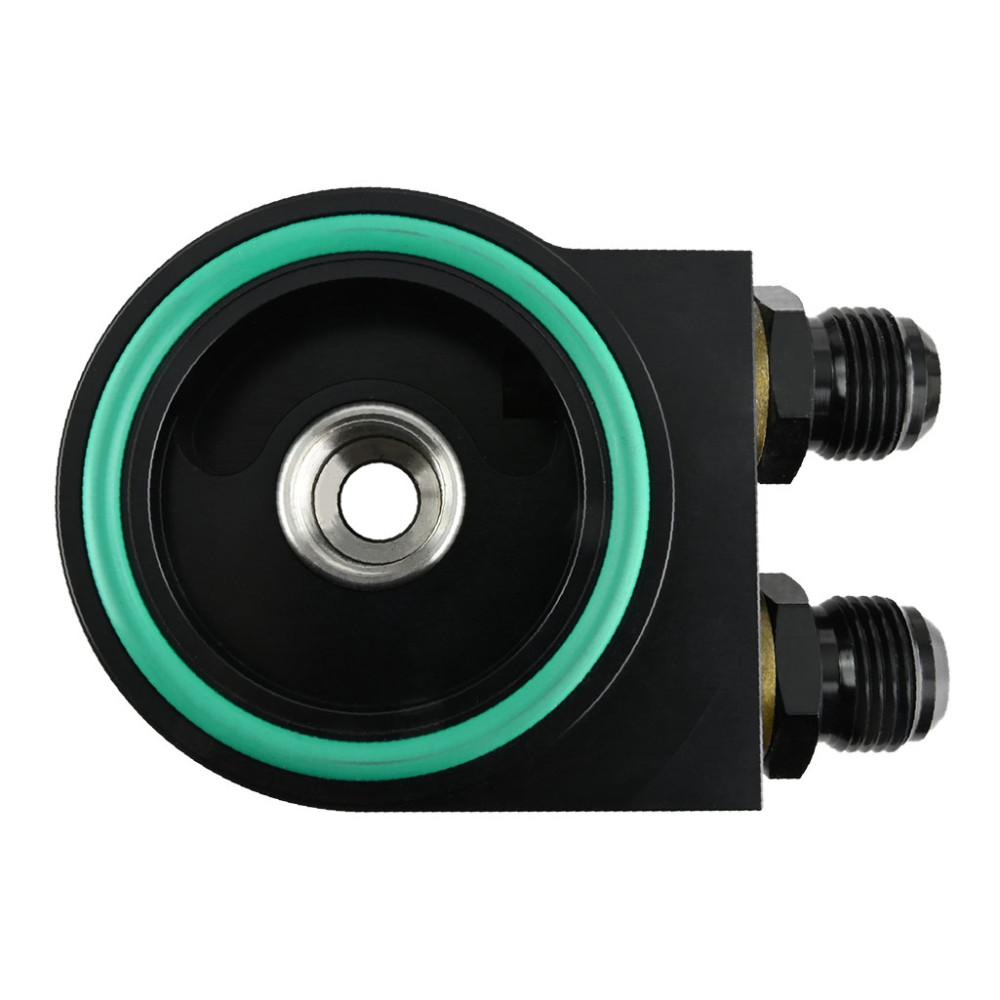

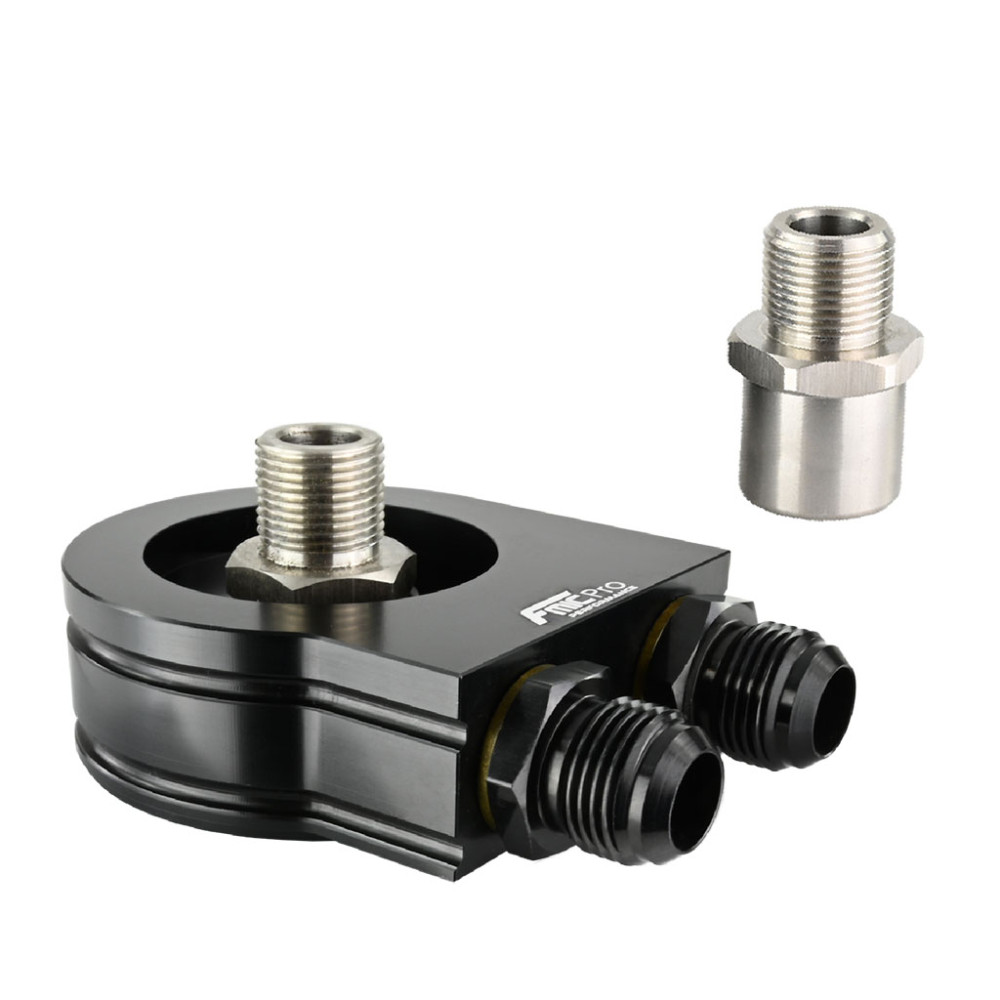

Oil Filter Sandwich Plate Cooler Adapter FMIC.Pro AN10

The FMIC.Pro oil cooler adapter is a high-quality component designed for sports cars, performance builds, and all drivers who demand dynamic driving without compromise. It allows for the installation of an external oil cooler, significantly improving oil cooling efficiency and enhancing the engine’s reliability under stress.

The adapter is fully machined from a single block of 6061-T6 aluminum using CNC technology and finished with anodizing for excellent corrosion resistance, strength, and a precise fit. It’s an ideal choice for performance enthusiasts who expect flawless build quality.

The adapter features four threaded ports:

• Two ports for connecting external oil cooler lines,

• Two side ports with 1/8" NPT thread, allowing installation of oil temperature and pressure sensors.

It is compatible with the most common oil filter types. The set includes mounting adapters with M20x1.5 and 3/4-16 UNF threads, ensuring wide application across various engines.

Also included is a Viton gasket, known for its outstanding resistance to high temperatures, oils, and chemicals. It provides a durable and secure seal, eliminating leakage problems typically seen in cheaper rubber-based solutions.

FMIC.Pro products are motorsport-tested, ensuring proven performance even in the most demanding conditions.

Key Specifications:

• FULL CNC – precisely machined from a solid billet

• Material: 6061-T6 aluminum

• Finish: anodized – corrosion protection

• Gasket: Viton – excellent heat and chemical resistance

• Two 1/8" NPT ports for sensors

• Thread adapters included: M20x1.5 and 3/4-16 UNF

• Includes AN10 fittings

Dimensions: 80 × 90 mm

Thickness: 31.5 mm

O-ring inner / outer diameter: 62 / 72 mm
