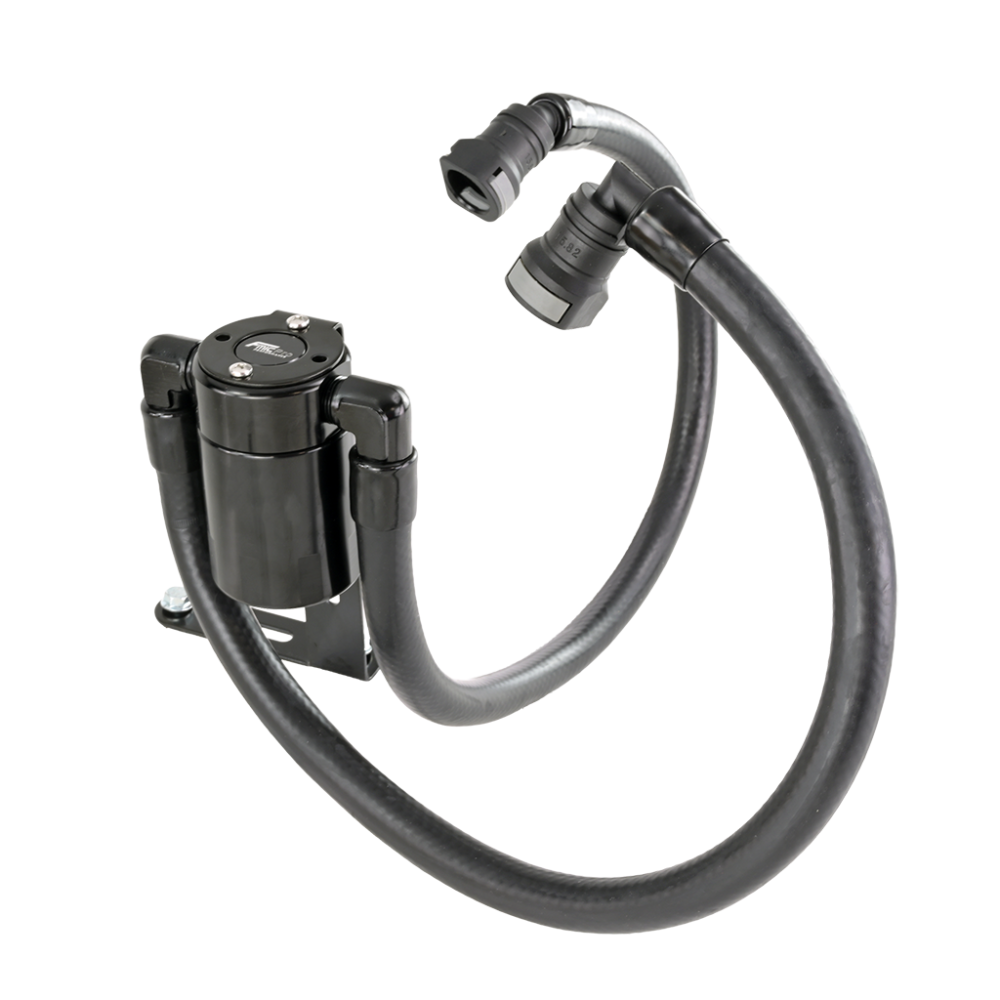

Oil Catch Tank for Ford F-150 5.0L 2.7L 3.5L Ecoboost Raptor 2018–2021

The Oil Catch Tank is a dedicated oil vapor separation system designed specifically for the 5.0L, 2.7L, and 3.5L EcoBoost engines. It effectively captures oil vapors and contaminants before they enter the intake system, significantly improving intake cleanliness and engine stability in turbocharged engines. This system eliminates common issues such as power loss, carbon buildup, intercooler oiling, and boost system leaks. It is easy to install, simple to maintain, and recommended for all stages of modification—from stock vehicles to high boost builds.

During engine operation, some combustion gases pass into the crankcase. With increasing power and boost pressure, more oil vapors are directed through the PCV system. In the factory configuration, they return to the intake, causing:

• lower combustion quality and reduced power
• carbon buildup on intake valves
• oil accumulation in the intercooler reducing efficiency
• reduced octane rating of the air–fuel mixture

The Oil Catch Tank prevents these issues by using multi-stage internal filtration. Cleaned gases return to the intake, while oil and contaminants remain in the tank.

• separates oil vapors, protecting the intake system and fuel mixture
• reduces carbon buildup and improves airflow
• prevents oil accumulation in the throttle body, manifold, and intercooler

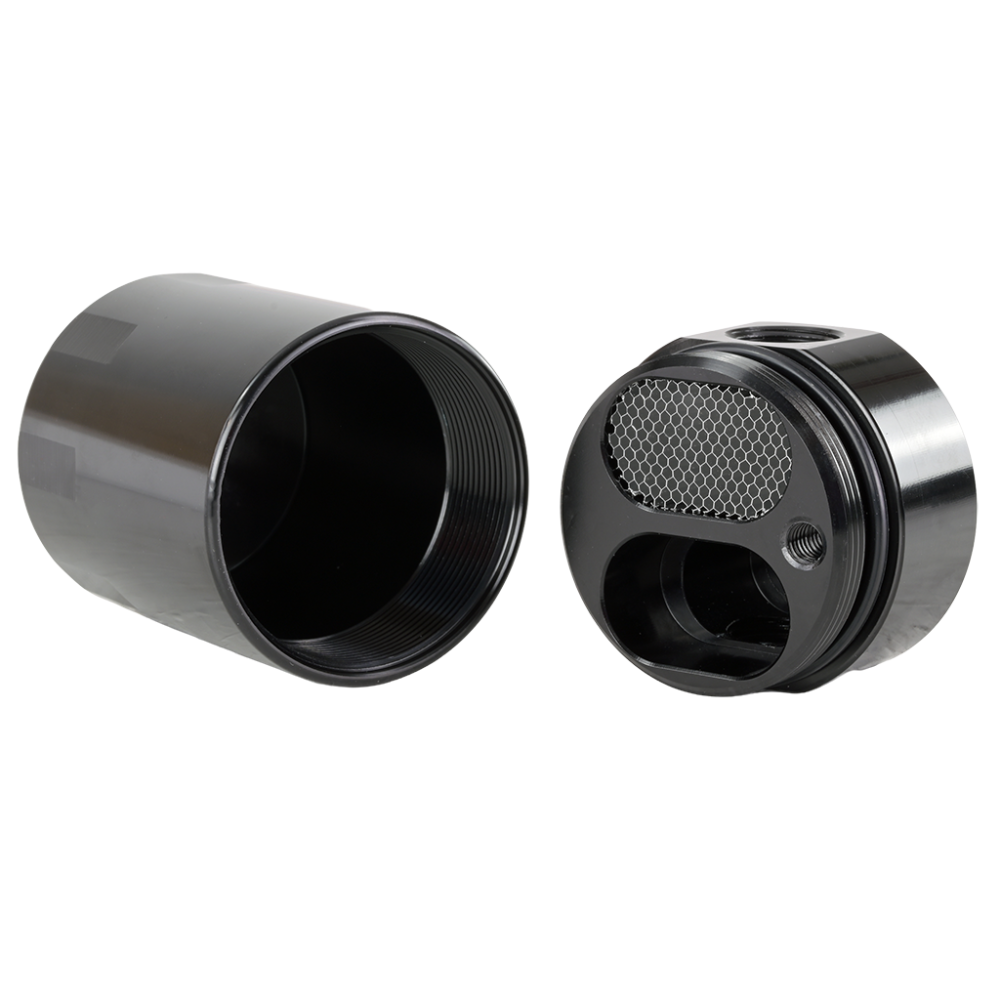

• two-piece tank allows fast draining
• hoses resistant to oil, temperature, and mechanical damage
• tank fully CNC machined from 6061-T6 aluminum
• black anodized finish resistant to oil, temperature, and corrosion
• durable AN10 braided hoses
• CNC crankcase adapter in black anodized finish
• mounting brackets ensure stable installation

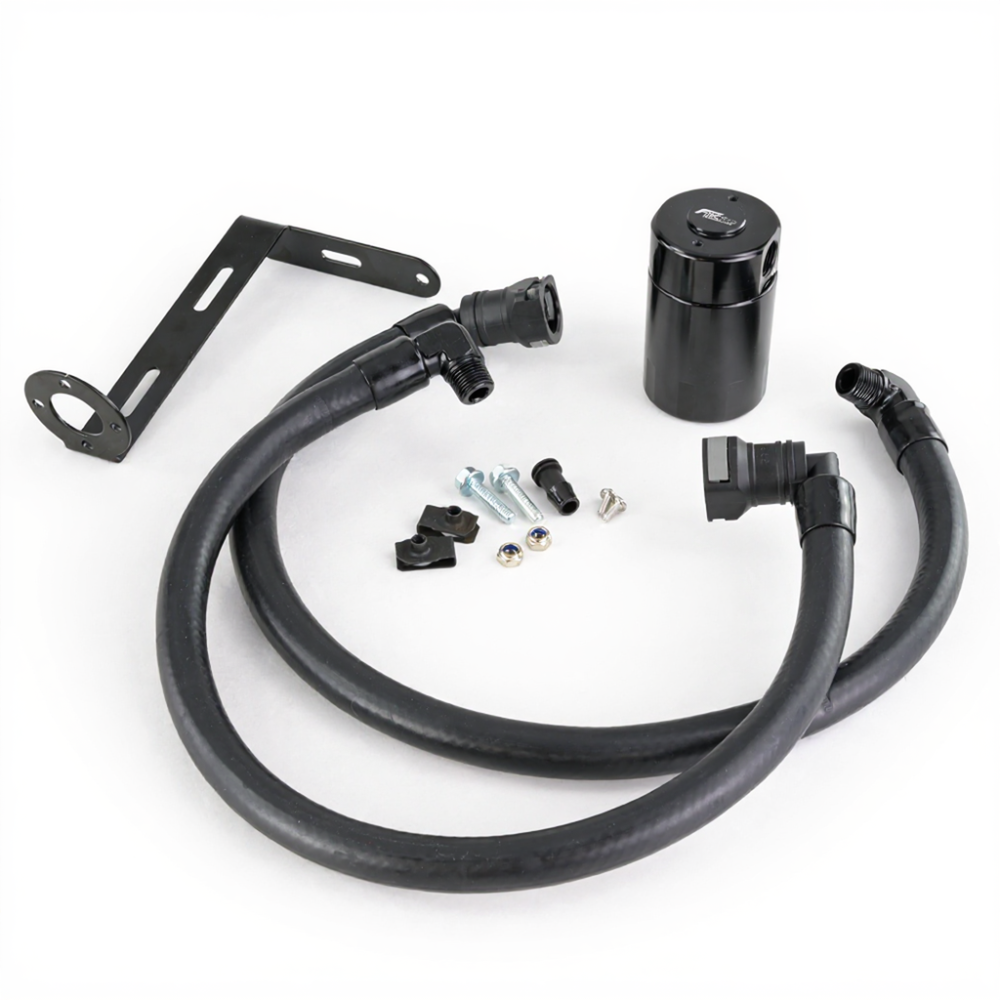

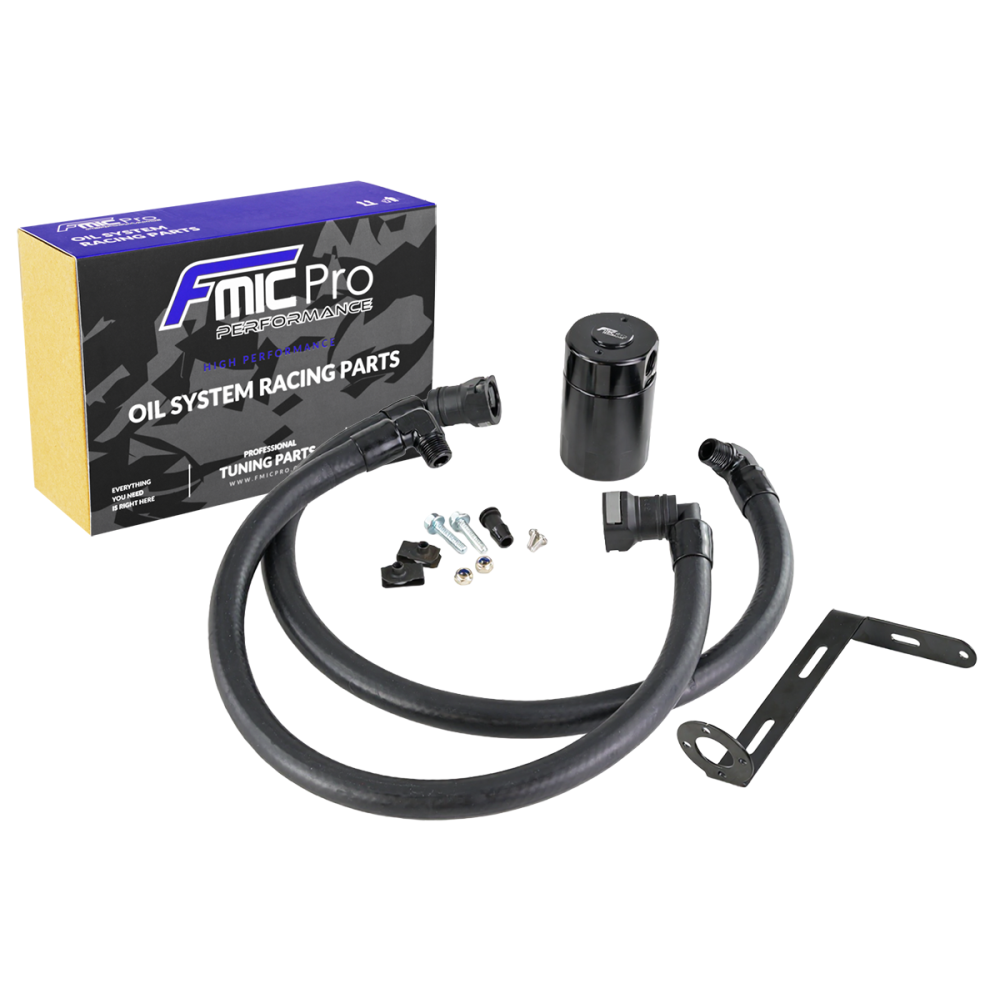

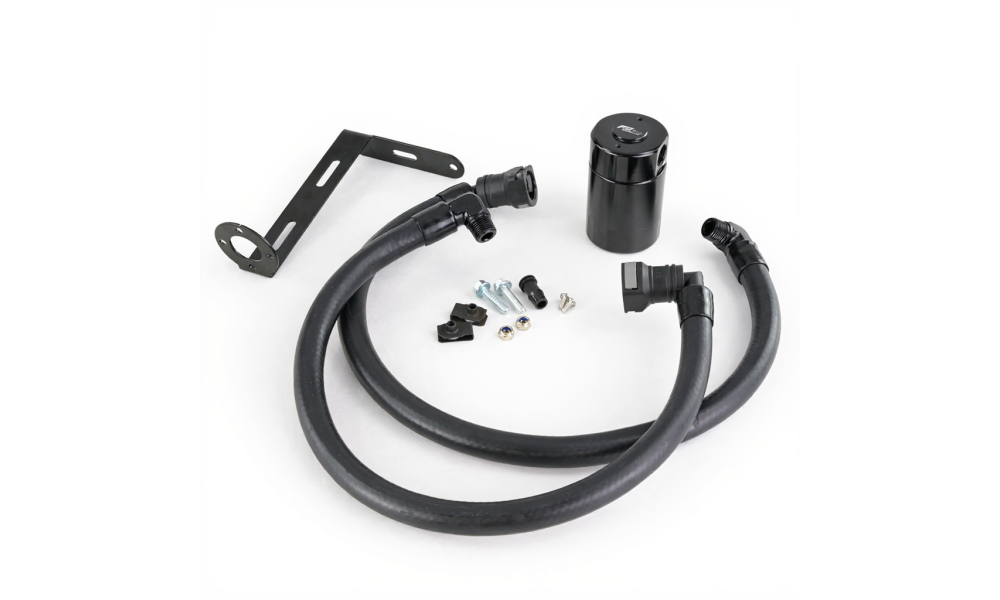

Kit includes:

• tank with dipstick and AN10 fittings
• AN10 braided hoses with quick connectors
• CNC valve cover breather adapter
• mounting brackets
• bolts

Ford F-150 – Engines and production years 2018–2021

• 2.7L EcoBoost V6 – 2018–2021
• 3.5L EcoBoost V6 – 2018–2021
• 3.5L EcoBoost High Output V6 (Raptor / Limited) – 2018–2021
• 5.0L Ti-VCT V8 – 2018–2021
