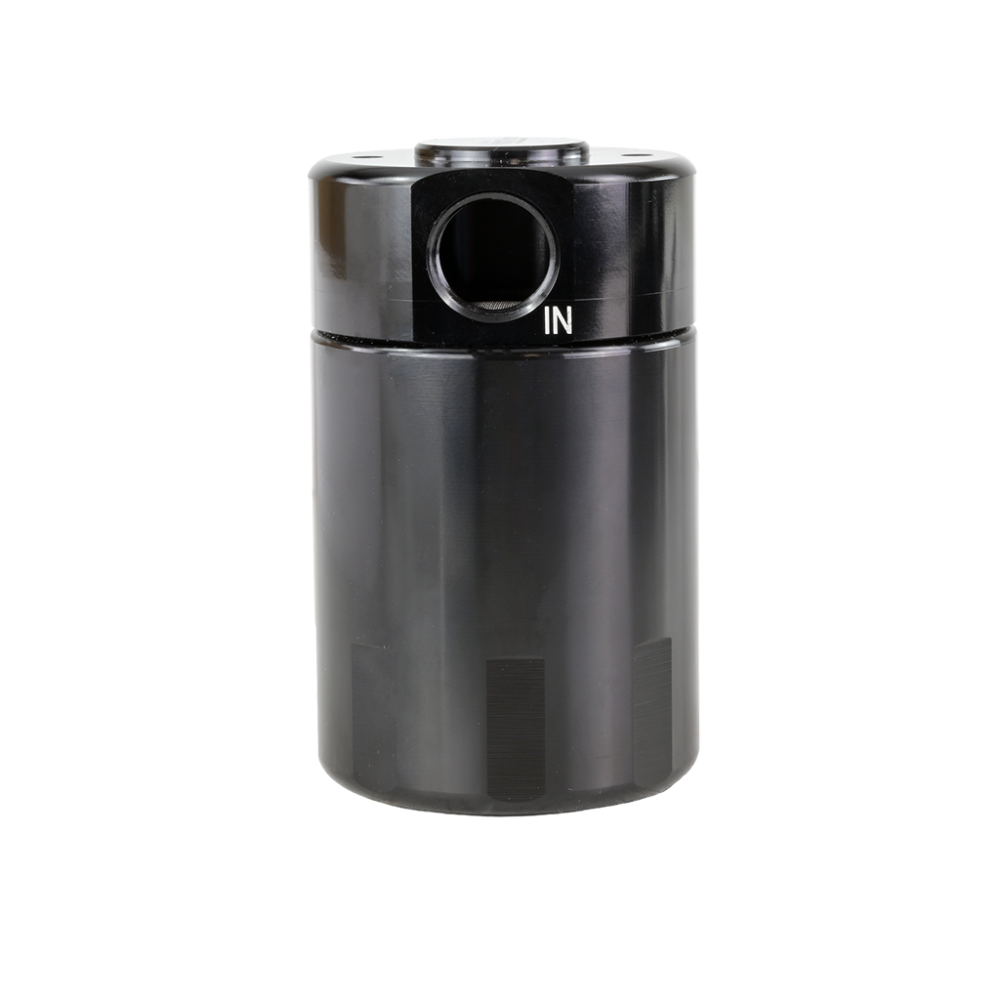

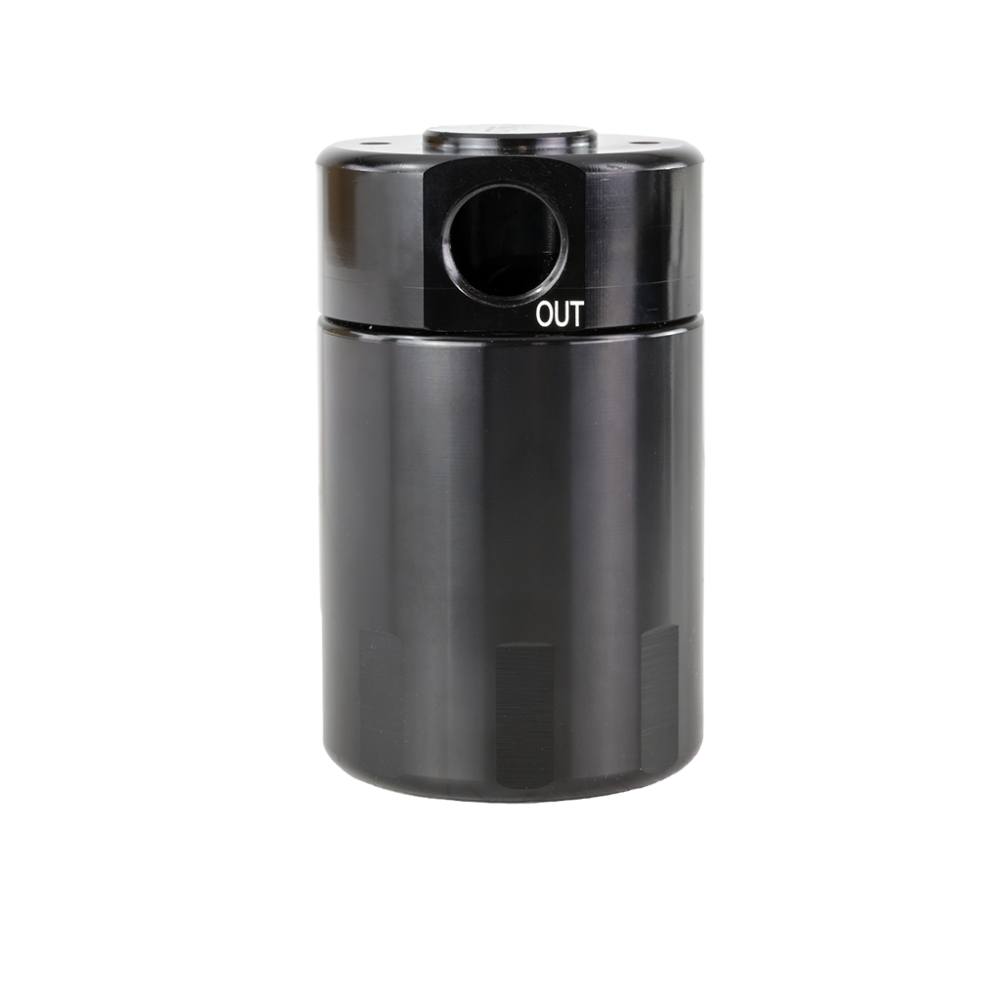

Oil Catch Tank for Dodge Charger Challenger Hellcat 6.2L V8 2015-2022

The Oil Catch Tank is a dedicated oil vapor separation kit designed specifically for Hellcat 6.2L V8 Supercharged engines. Its primary function is to capture oil vapors and contaminants before they enter the intake system, significantly improving intake cleanliness and engine stability. This system addresses common issues such as power loss, carbon buildup, oil contamination of the intercooler, and the risk of boost system leaks.

Easy to install and operate, this catch tank is recommended for all stages of modification, whether for stock vehicles or those with increased boost pressure.

During engine operation, combustion gases enter the crankcase, and as power and boost pressure increase, so does the volume of oil vapors routed through the PCV system. In factory configurations, these vapors are redirected back into the intake, leading to:

• Reduced combustion quality and power loss
• Carbon deposits on intake valves
• Oil accumulation in the intercooler, reducing efficiency
• Lower octane rating of the air-fuel mixture

The Oil Catch Tank eliminates these problems through multi-stage filtration. Cleaned gases are returned to the intake system, while oil and contaminants are trapped in the tank.

• Separates oil vapors, protecting the intake and maintaining high fuel octane levels
• Reduces carbon buildup and improves airflow
• Prevents oil accumulation in the throttle body, intake manifold, and intercooler

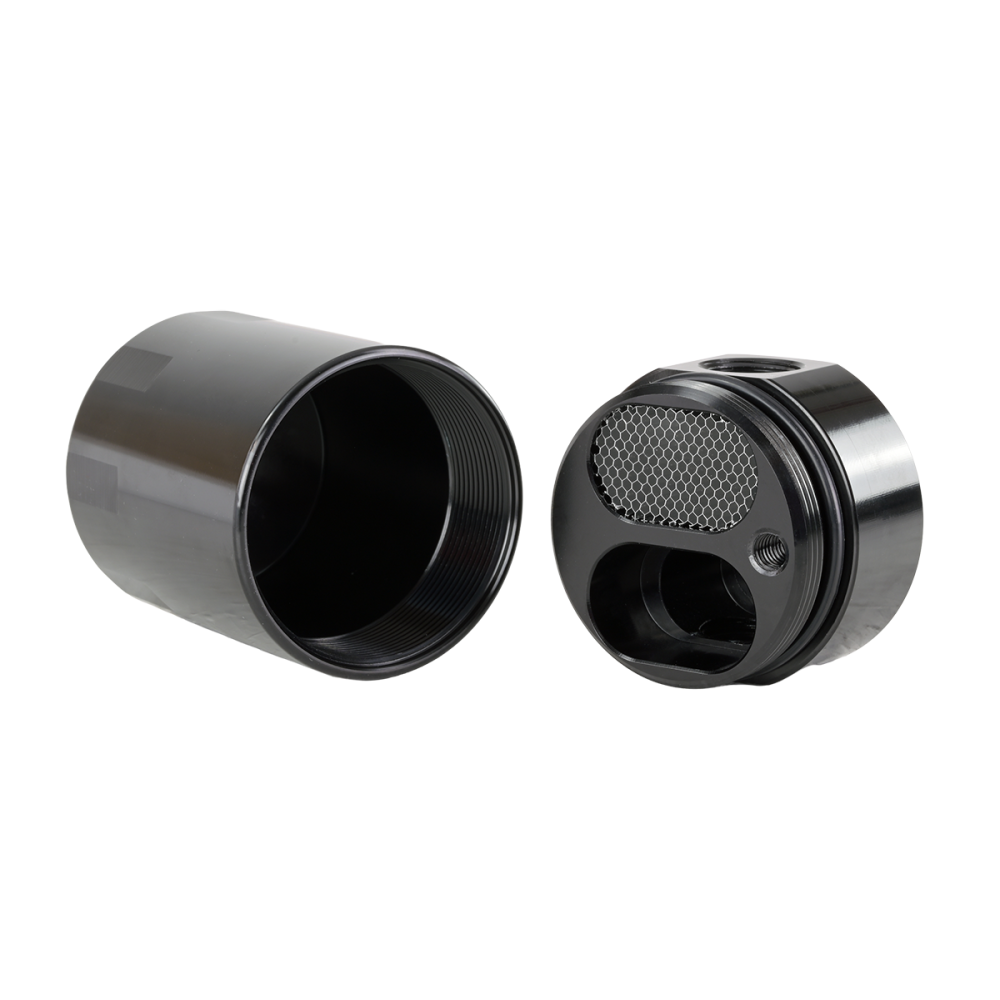

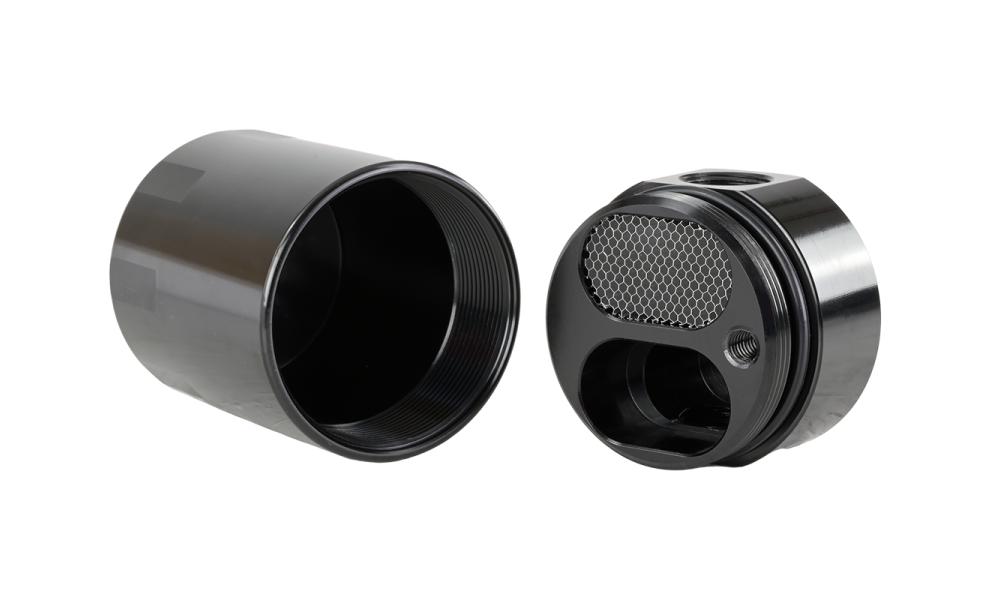

• Two-piece tank design allows for quick draining
• Hoses resistant to oil, temperature, and mechanical damage
• Tank fully CNC-machined from 6061-T6 aluminum
• Black anodized finish resistant to oil, temperature, and corrosion
• Mounting brackets ensure stable installation

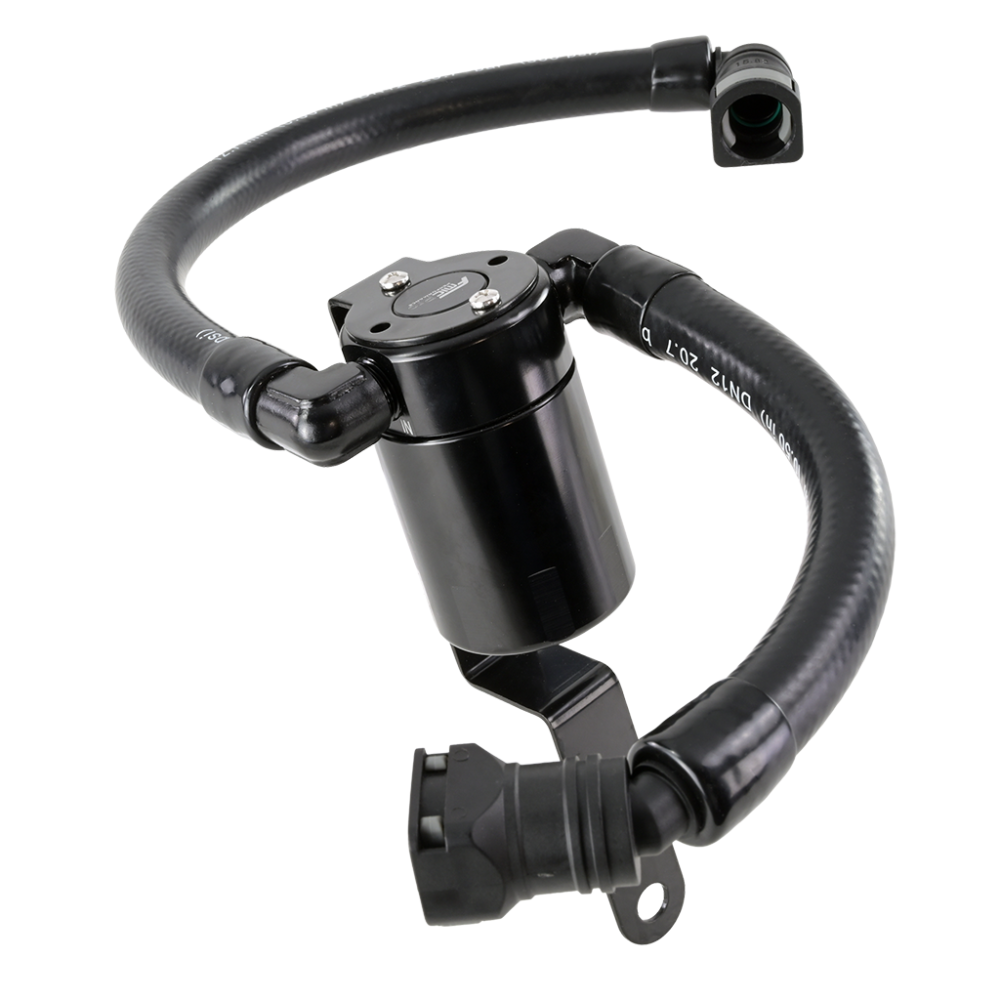

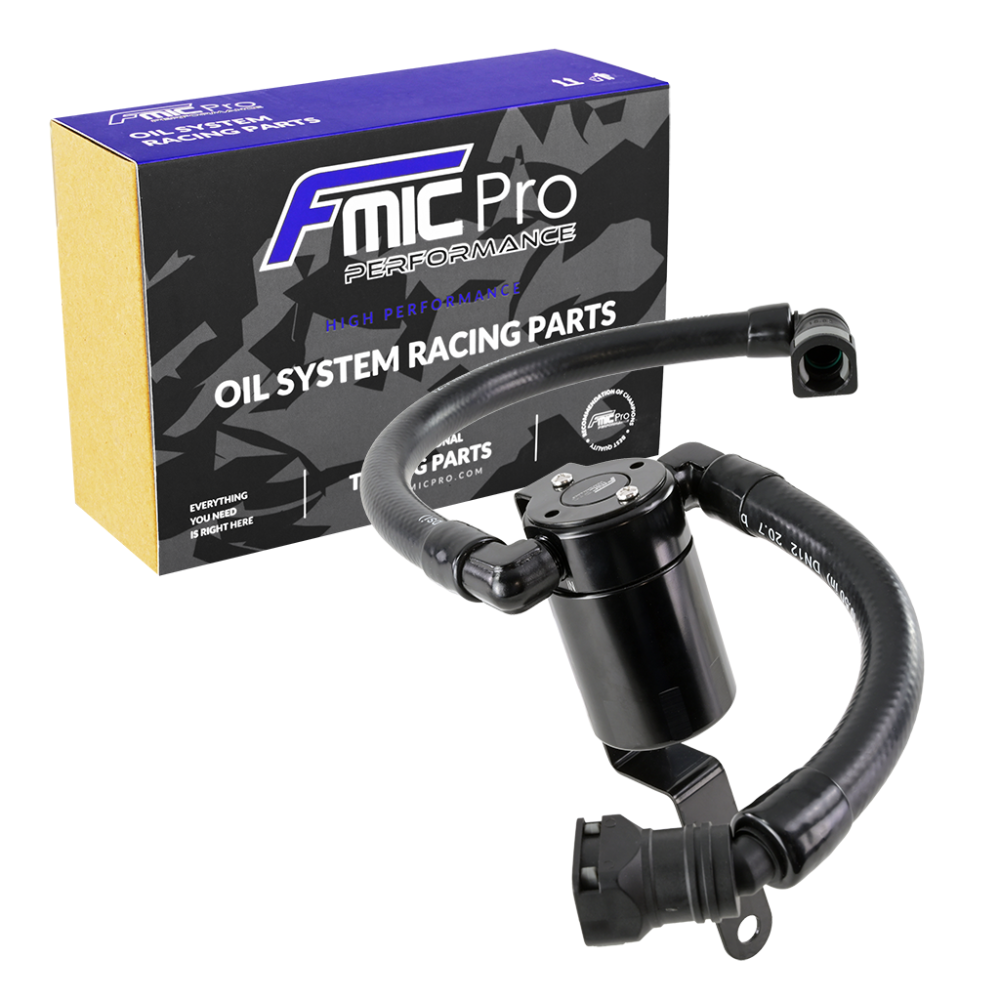

Kit includes:

• Oil catch tank
• Rubber hoses with dedicated quick-connect fittings
• Hose fittings
• Mounting bracket
• Bolts

Dedicated to:

• Dodge Charger Hellcat 6.2L V8 Supercharged - 707-717 KM 2015-2022
• Dodge Challenger Hellcat 6.2L V8 Supercharged - 717 KM 2015-2022
• Dodge Durango Hellcat 6.2L V8 Supercharged - 710 KM 2018-2021
