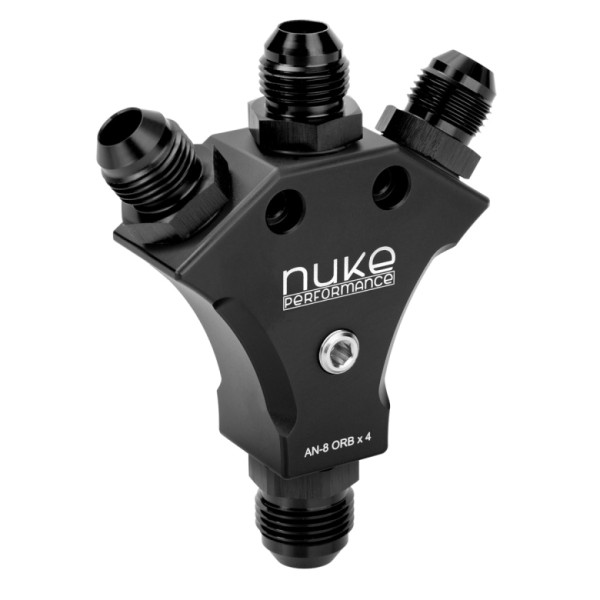

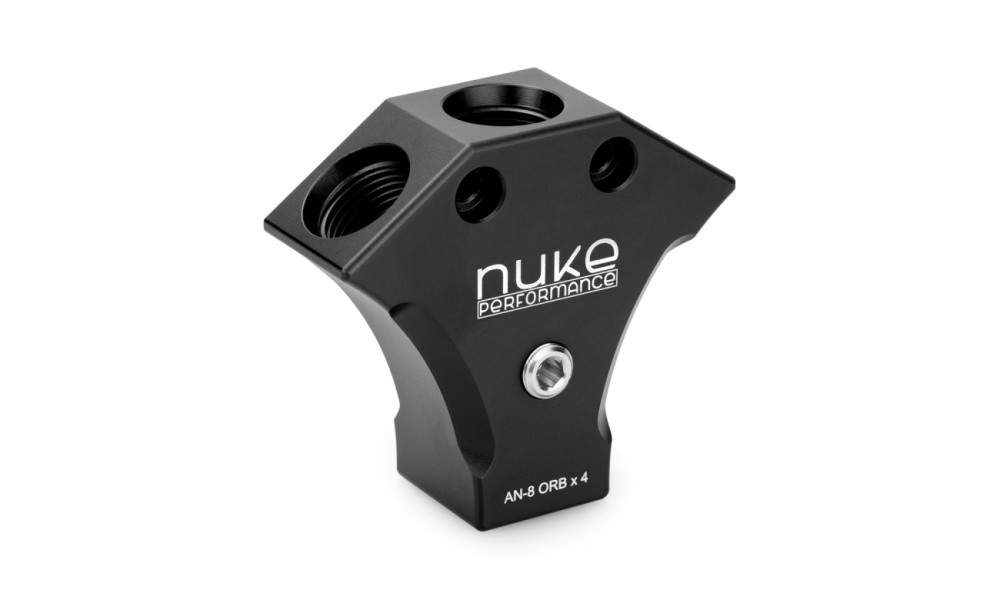

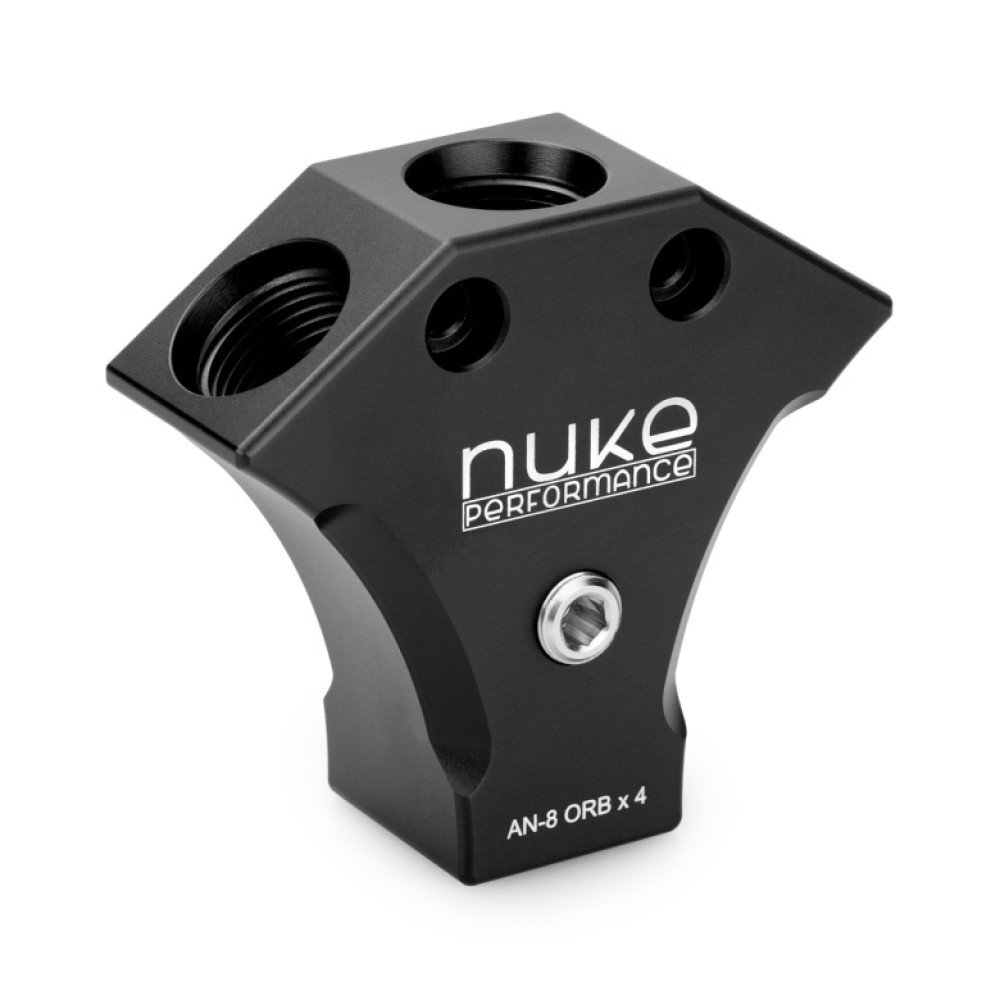

Nuke Performance X-Block Adapter Fitting, AN-8 ORB (4x)
The Nuke Performance X-Block Adapter Fitting is a compact, high-flow distribution block engineered for demanding motorsport and custom applications. Featuring four oversized AN-8 ORB threaded ports and a dedicated 1/8 NPT sensor port, this X-Block delivers maximum flexibility for fuel, oil, or coolant routing in tight engine bays.
- 4 x AN-8 ORB main ports for maximum flow (fittings not included)
- 1 x 1/8 NPT secondary port for pressure or temperature sensors (plug included)
- 35° angled dual ports for compact installations
- Compatible with gasoline, petrol, methanol, ethanol, E85, E100, oil, and coolant
- Allows splitting or combining two lines into one
- Motorsports-grade construction, lightweight at 151g (5.32oz)

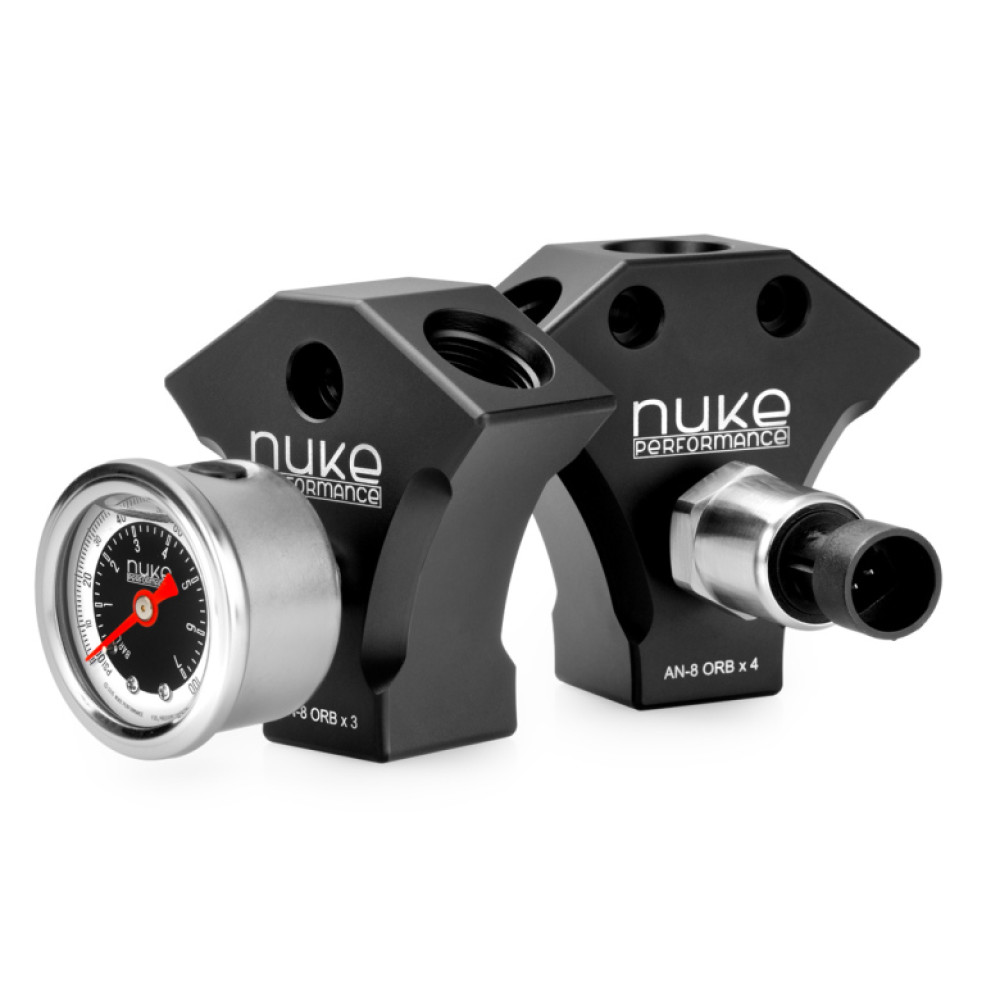

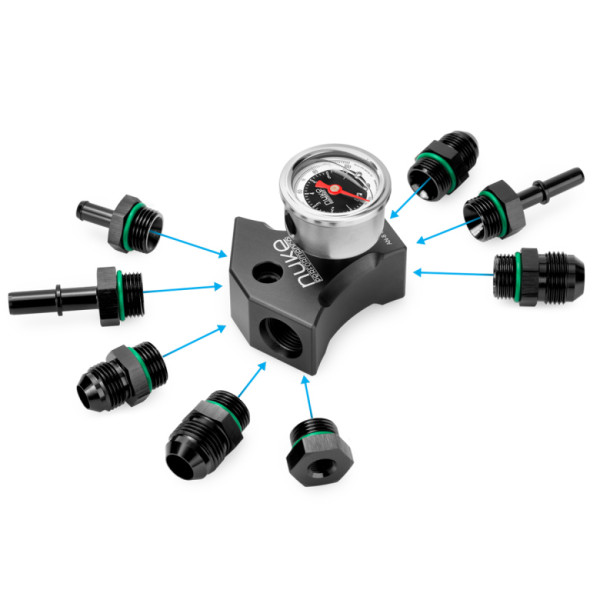

Versatile AN-8 ORB ports accept a wide range of adapters and fittings (sold separately), including AN-4 to AN-12, SAE quick-connect, and barb hose fittings. The integrated 1/8 NPT port is ideal for adding a pressure or temperature sensor, or a gauge for system monitoring.
Compatible Fittings & Accessories (sold separately):
- AN-8 ORB to AN-6 Male, Part #: 700-04-104
- AN-8 ORB to AN-8 Male, Part #: 700-04-105
- AN-8 ORB to AN-10 Male, Part #: 700-04-106
- AN-8 ORB to SAE 7.89 Male, Part #: 150-20-422
- AN-8 ORB to SAE 9.49 Male, Part #: 150-20-425
- AN-8 ORB to 8mm Male, Part #: 700-04-123
- Fuel Pressure Gauge 7 BAR / 100 PSI, Part #: 310-01-101
- 10 BAR (150 PSI) fuel/oil pressure sensor with connector, Part #: 70-1018
- 10 BAR (150 PSI) fuel/oil pressure sensor with 1m cable, Part #: 70-1018C
Specifications:
- Main ports: 4 x AN-8 ORB
- Secondary port: 1 x 1/8 NPT (plug included)
- Port angle: 35° from center
- Width: 79.2mm (3.12")
- Height: 71.5mm (2.81")
- Depth: 29.0mm (1.14")
- Weight: 151g (5.32oz)
- For motorsports use: Yes
- Fuel compatibility: Gasoline, Petrol, Methanol, Ethanol, E85, E100
- Oil / Coolant compatibility: Yes
- Replaces old part #: 400-01-202
- Part #: 410-01-202
- EAN: 7340209509663
For more information about specifications or compatibility, please contact us.
Universal Part: This product fits multiple vehicles (universal application).
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
Nuke Performance
Nuke Performance: High-Performance Fuel Systems for Car Enthusiasts
Elevate your vehicle's performance with Nuke Performance, the ultimate solution for car enthusiasts seeking top-tier fuel systems. Our products are engineered to enhance efficiency and power, ensuring your ride delivers the performance you crave.
Key Features and Benefits:
- Precision Engineering: Each Nuke Performance fuel system is meticulously designed for optimal fuel flow and pressure, maximizing engine performance.
- Durable Materials: Constructed from high-quality, lightweight materials, our systems are built to withstand the rigors of high-performance driving.
- Easy Installation: Our user-friendly designs allow for quick and hassle-free installation, so you can get back on the road faster.
- Enhanced Fuel Efficiency: Experience improved fuel economy without sacrificing power, making your driving experience both thrilling and economical.
- Versatile Compatibility: Nuke Performance products are compatible with a wide range of vehicles, making them the perfect choice for any car enthusiast.
Upgrade your vehicle with Nuke Performance and experience the difference in power and efficiency. Don’t settle for less when it comes to your car’s performance. Visit our website today to explore our full range of high-performance fuel systems and take your driving experience to the next level!
Nuke Performance X-Block Adapter Fitting AN-8 ORB (4x)
101.04€
100.02€
Excl. VAT: 82.67€
EU Shipping — No Import Taxes
This product has universal fitment.
