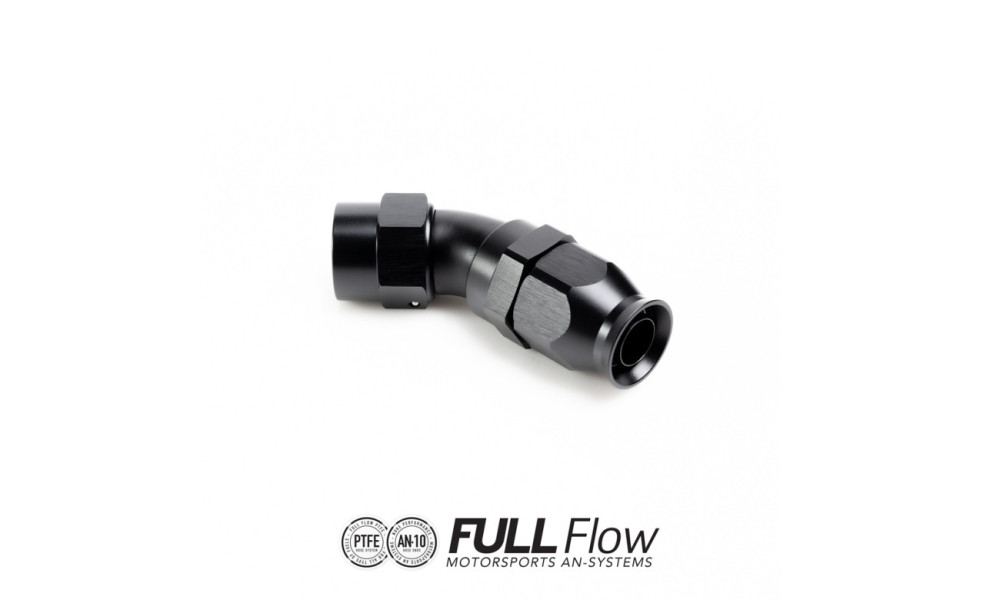

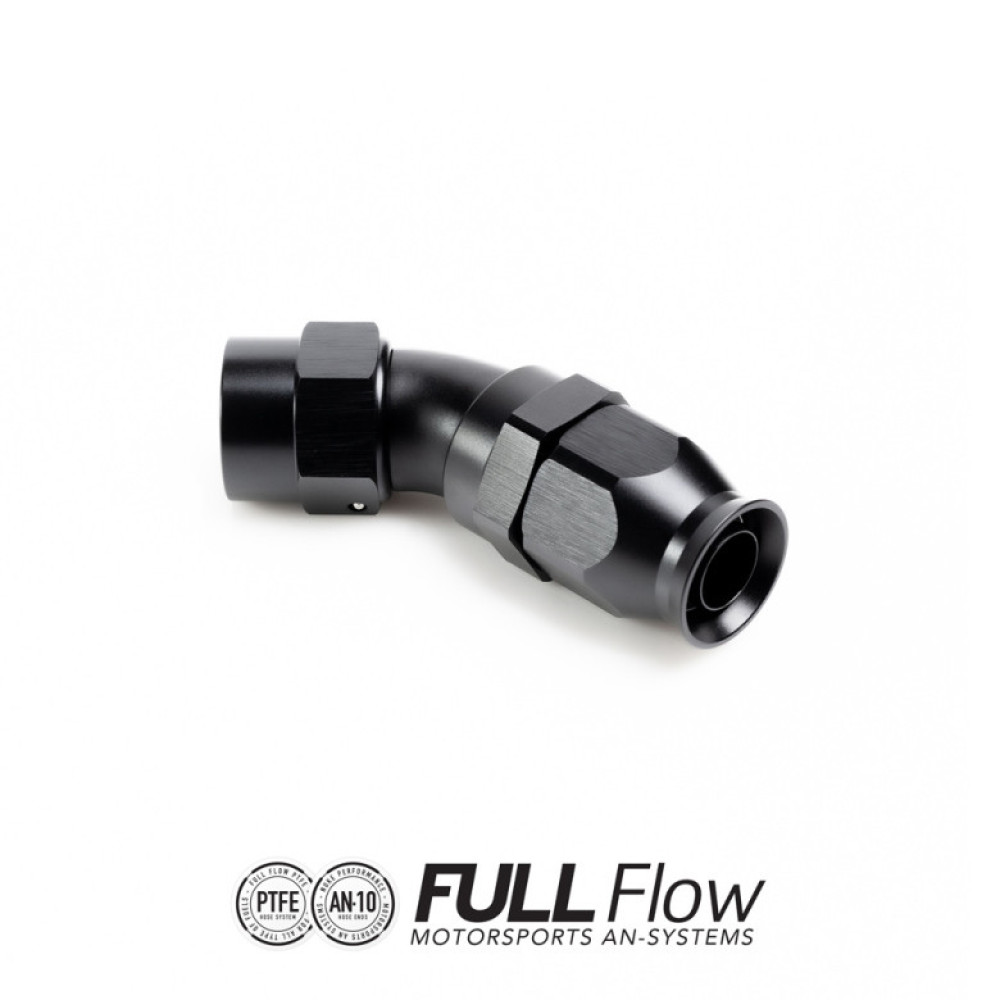

Nuke Performance Full-Flow PTFE Hose End Fittings

Engineered for motorsport and high-performance automotive applications, Nuke Performance Full-Flow PTFE Hose End Fittings deliver uncompromising reliability and superior flow capacity. Designed specifically for use with Nuke Performance Full-Flow PTFE fuel hoses, these fittings are available in AN-6, AN-8, AN-10, and AN-12 sizes, and in configurations ranging from straight to 180 degrees. Each fitting is constructed from anodized aluminum and includes an aluminum olive insert for secure, leak-free assembly.

• Available sizes: AN-6, AN-8, AN-10, AN-12

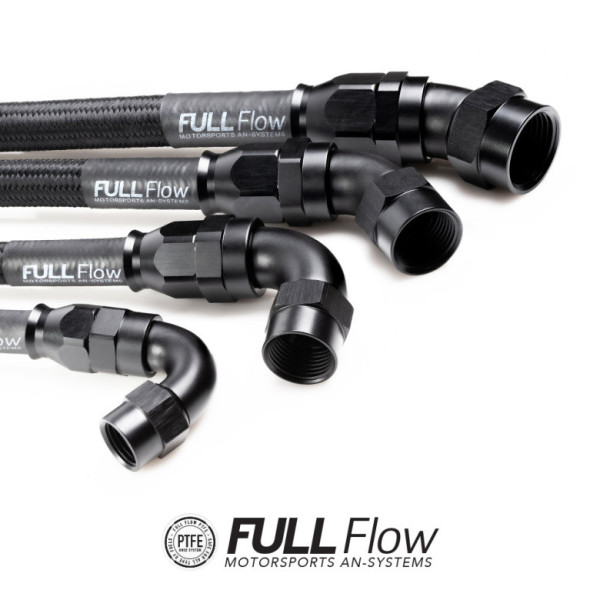

• Available angles: Straight, 30°, 45°, 60°, 90°, 120°, 150°, 180°
• Compatible with gasoline, methanol, ethanol, E85, race fuel, diesel, and oil
• Safe for all fuel types, including alcoholic fuels

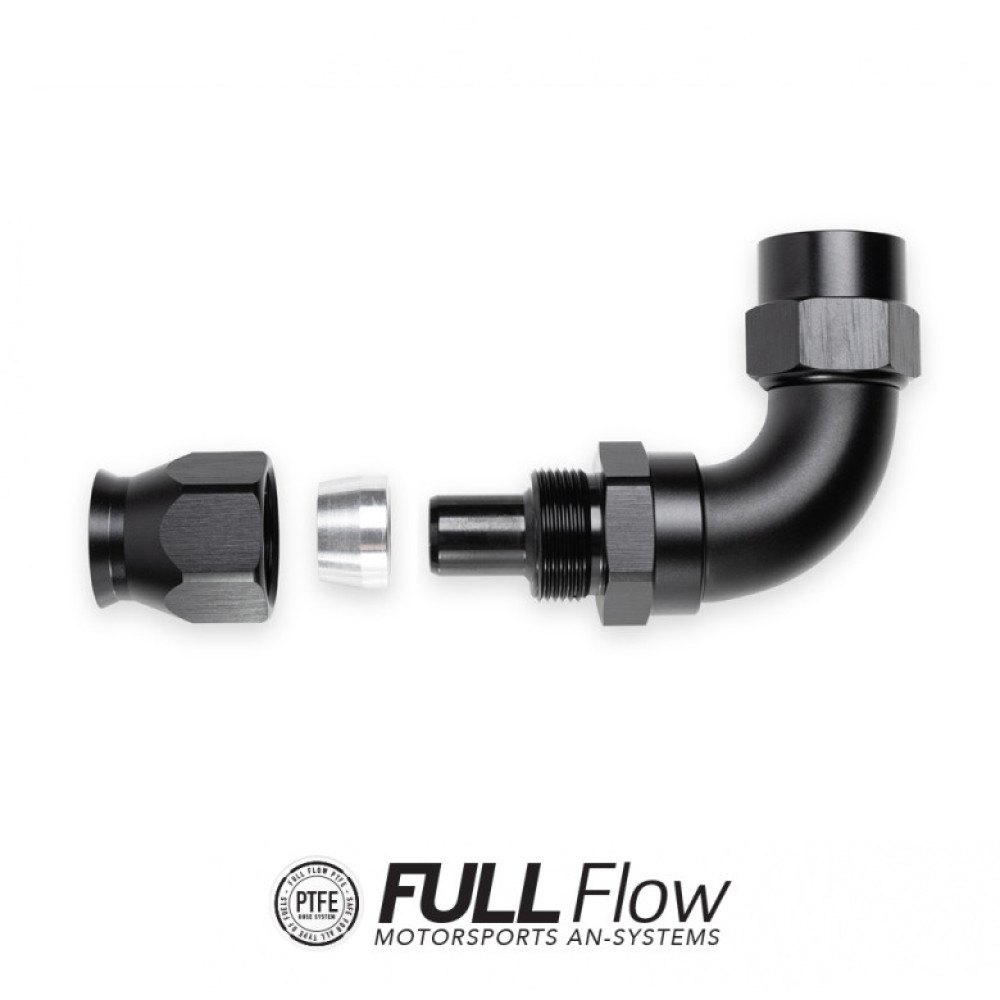

• Includes aluminum olive insert with every hose end
• Constructed from anodized aluminum for strength and corrosion resistance
• Developed for motorsport use

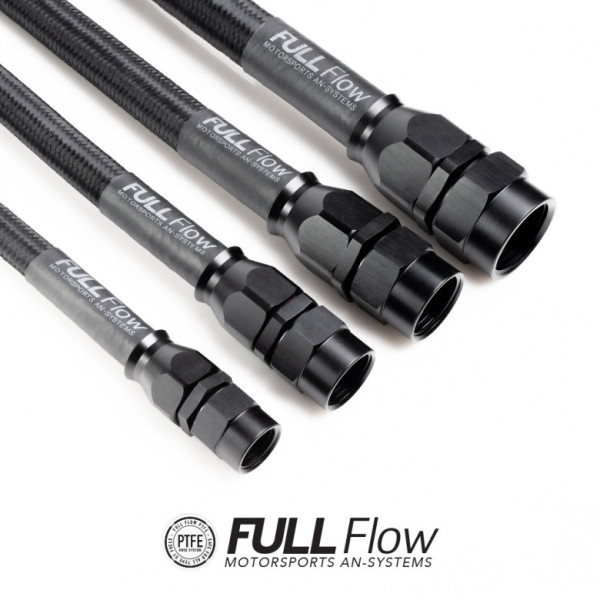

Nuke Performance Full-Flow PTFE Lined Fuel Hose

Pair your hose ends with the Nuke Performance Full-Flow PTFE fuel hose, featuring a black nylon braided exterior with a stainless steel reinforcement and an inner PTFE (Teflon) liner. This hose is designed for maximum durability and chemical resistance, providing an extended lifespan compared to traditional nitrile rubber hoses. The PTFE liner acts as a vapor barrier to prevent fuel permeation and odor, making it ideal for both in-cabin and engine bay routing. The carbonized conductive liner is essential for motorsport fuel systems to prevent static buildup.

• Available sizes: AN-6, AN-8, AN-10, AN-12
• Part numbers: AN-6 (820-02-106 / 820-02-606), AN-8 (820-02-108 / 820-02-608), AN-10 (820-02-110 / 820-02-610), AN-12 (820-02-112 / 820-02-612)
• Inner liner: PTFE (Teflon), carbonized for conductivity
• Braiding: Stainless steel and black nylon
• Temperature range: -70°C to 250°C (-94°F to 480°F)
• Compatible with gasoline, methanol, ethanol, E85, race fuel, diesel, oil
• Prevents fuel vapor escape and odor
• Longer lifespan than nitrile rubber hoses

Accessories and Tools

• Adjustable Aluminum AN Wrench (AN-4 to AN-16): 700-30-105
• Aluminum Vise Jaws for AN fittings: 700-30-201
• AN Aluminum Wrenches (AN-6/8/10/12): 700-30-101 / 700-30-102 / 700-30-103 / 700-30-104
• Spare Aluminum Olive Inserts: 810-20-106 / 810-20-108 / 810-20-110 / 810-20-112

Developed in collaboration with top motorsport teams worldwide, Nuke Performance Full-Flow PTFE hose ends and fuel hoses are built to perform in the most demanding conditions. Choose the right size and configuration for your build and experience leak-free, reliable fuel delivery with extended service life.
