Nuke Performance Full-Flow PTFE Hose End Fittings

Engineered for motorsport and high-performance applications, Nuke Performance Full-Flow PTFE Hose End Fittings deliver superior fuel compatibility and durability. Designed specifically for use with Nuke Performance Full-Flow PTFE fuel hose, these fittings are available in AN-6, AN-8, AN-10, and AN-12 sizes, and in a wide range of angles including Straight, 30°, 45°, 60°, 90°, 120°, 150°, and 180°.

• Safe for all fuel types: gasoline, methanol, ethanol, E85, race fuel, diesel, and oil

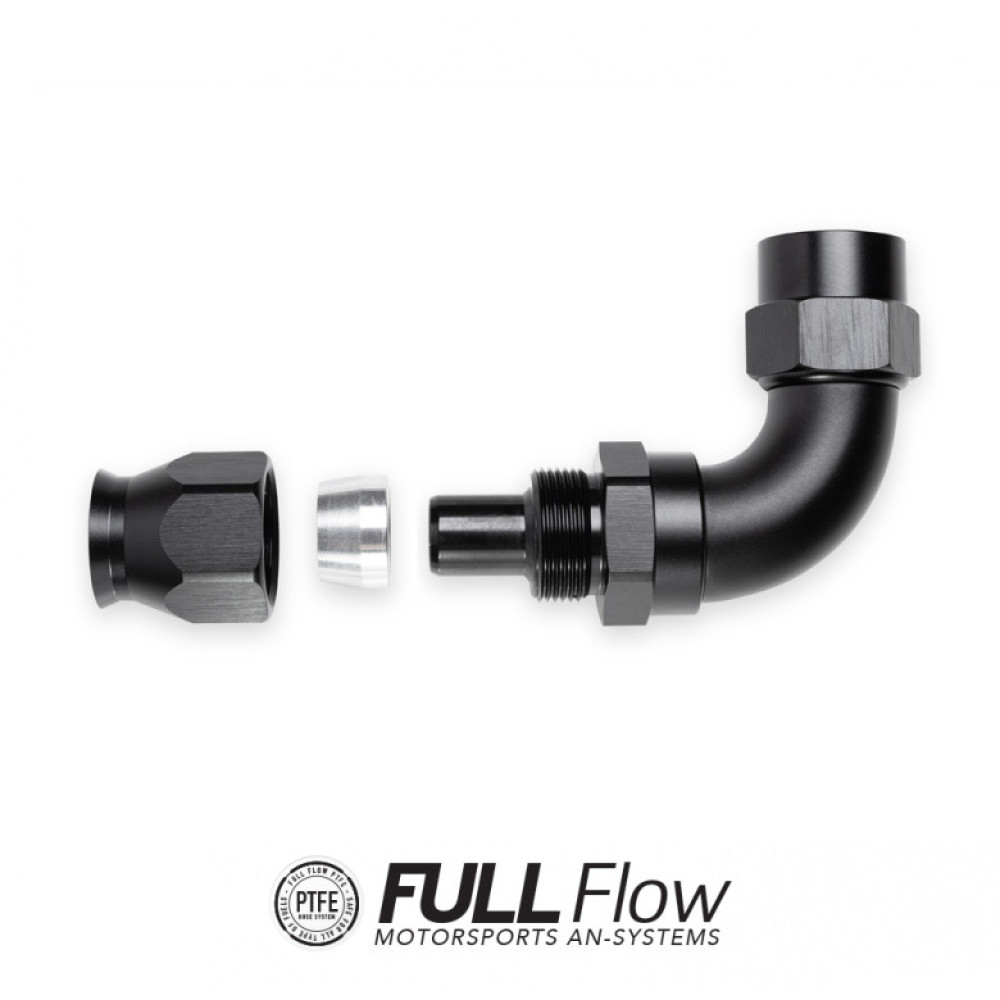

• Constructed from anodized aluminum housing and olive for lightweight strength
• Aluminum olive insert included with every hose end
• Much longer lifespan than standard nitrile rubber fuel hoses
• Operating temperature range: -70°C to 250°C (-94°F to 480°F)
• Conductive PTFE (Teflon) inner liner prevents static buildup

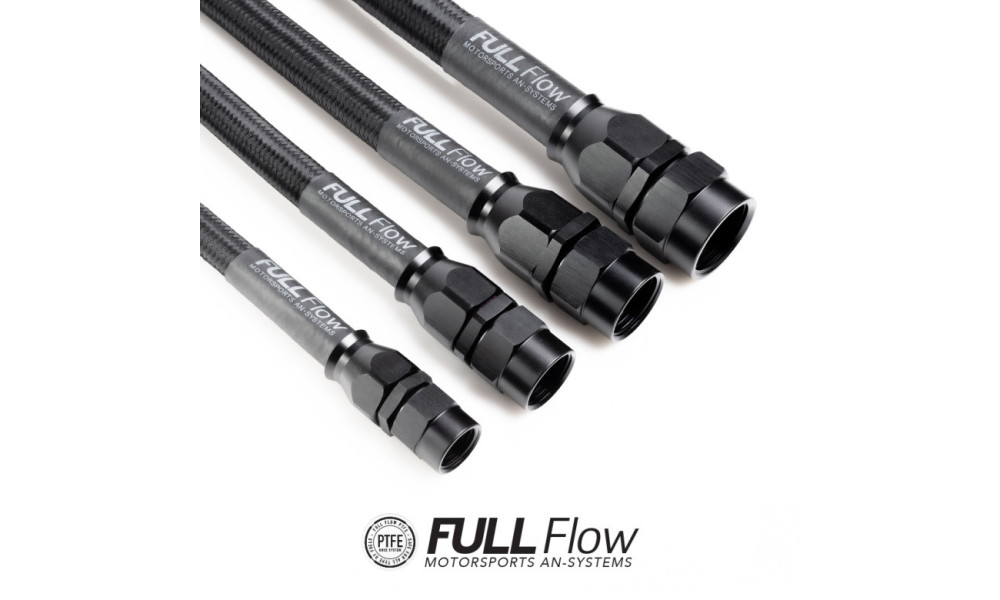

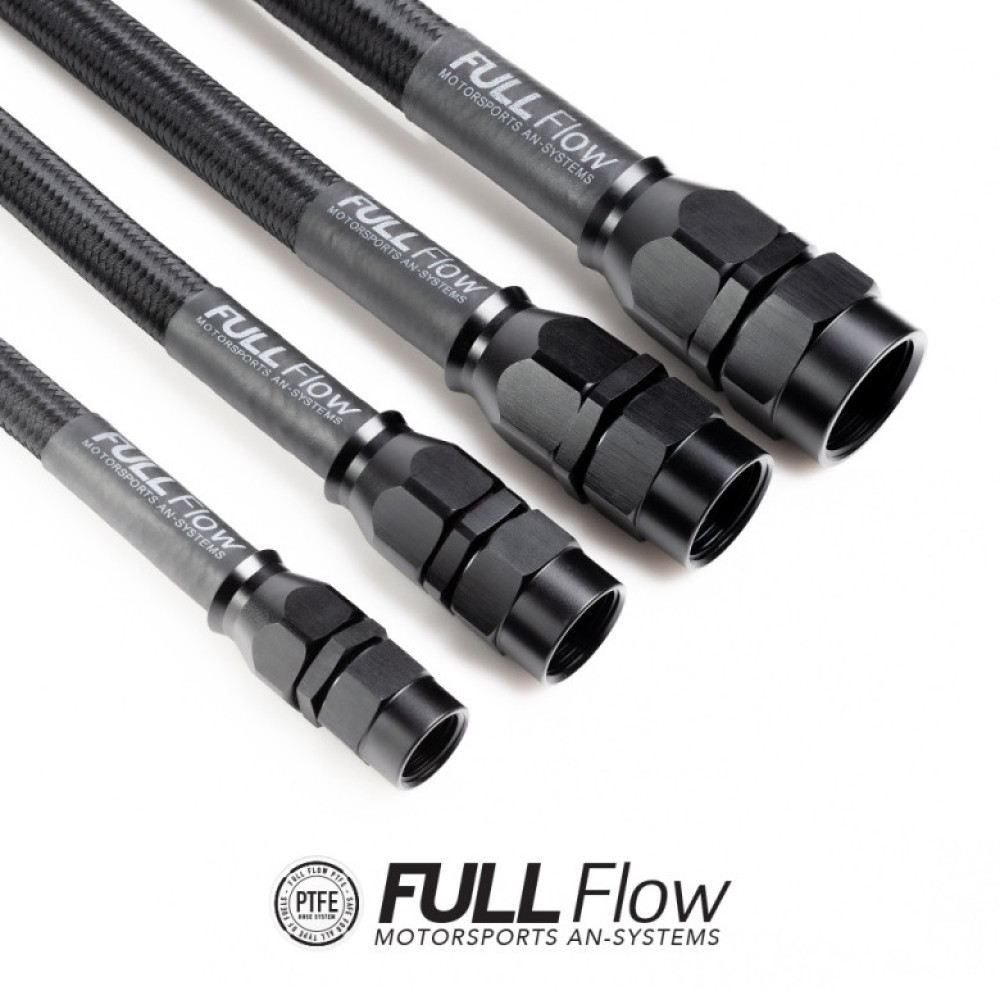

• Stainless steel and nylon braided outer layer for abrasion resistance
• Developed in collaboration with motorsport teams for professional use

The PTFE liner acts as a vapor barrier, making these hoses ideal for use with alcoholic fuels such as ethanol and methanol. This feature is especially beneficial for installations where fuel lines run through the driver’s compartment or where long-term reliability is required.

Each fitting is designed for full-flow performance, minimizing flow loss and protecting your injectors, filters, and fuel pumps from contamination and premature wear. The three-layer hose design also results in a more compact outer diameter compared to traditional nitrile hoses.

Available Hose End Series Numbers: 810-01-106 to 810-18-112

Available Fuel Hose Series Numbers: 820-02-106 to 820-02-612

Available Sizes: AN-6 / AN-8 / AN-10 / AN-12

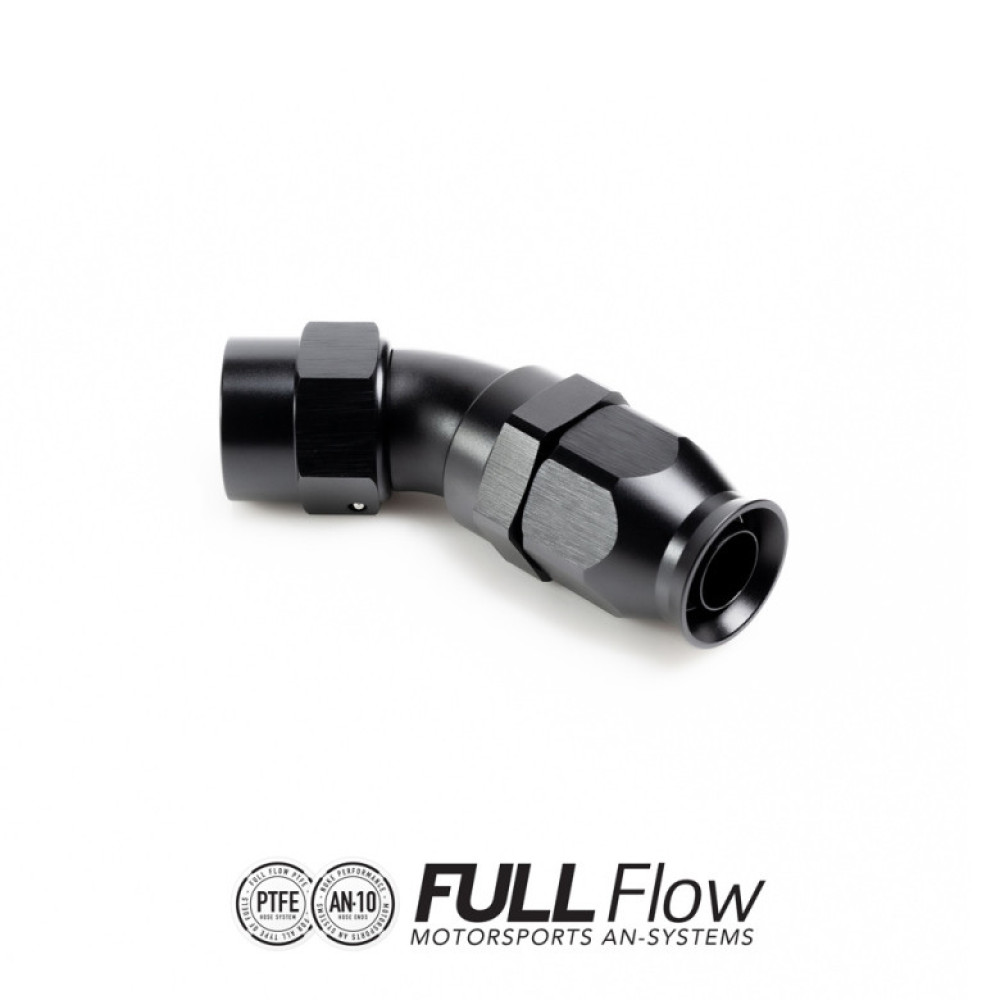

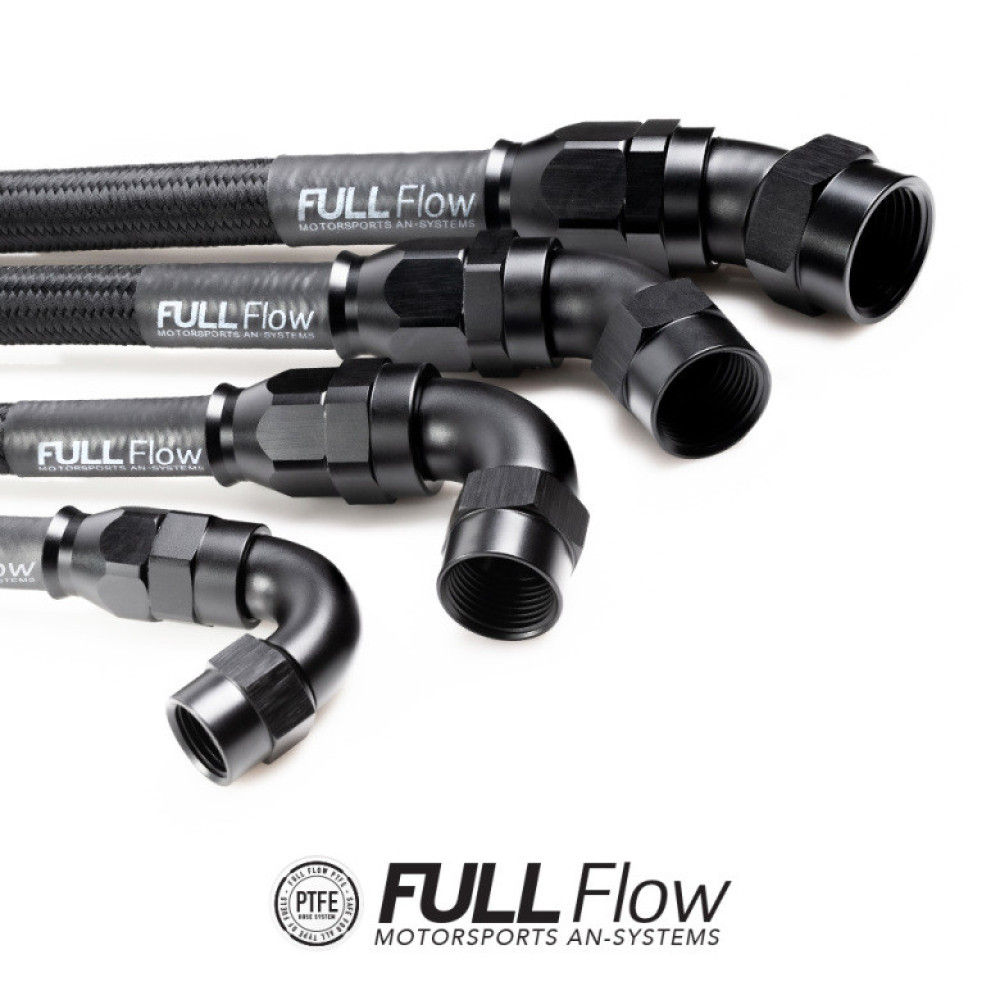

Available Angles: Straight / 30° / 45° / 60° / 90° / 120° / 150° / 180°

For Motorsport Use: Yes

For a complete and reliable installation, Nuke Performance offers compatible tools and accessories including adjustable aluminum AN wrenches, vise jaws for AN fittings, and spare aluminum olive inserts.
