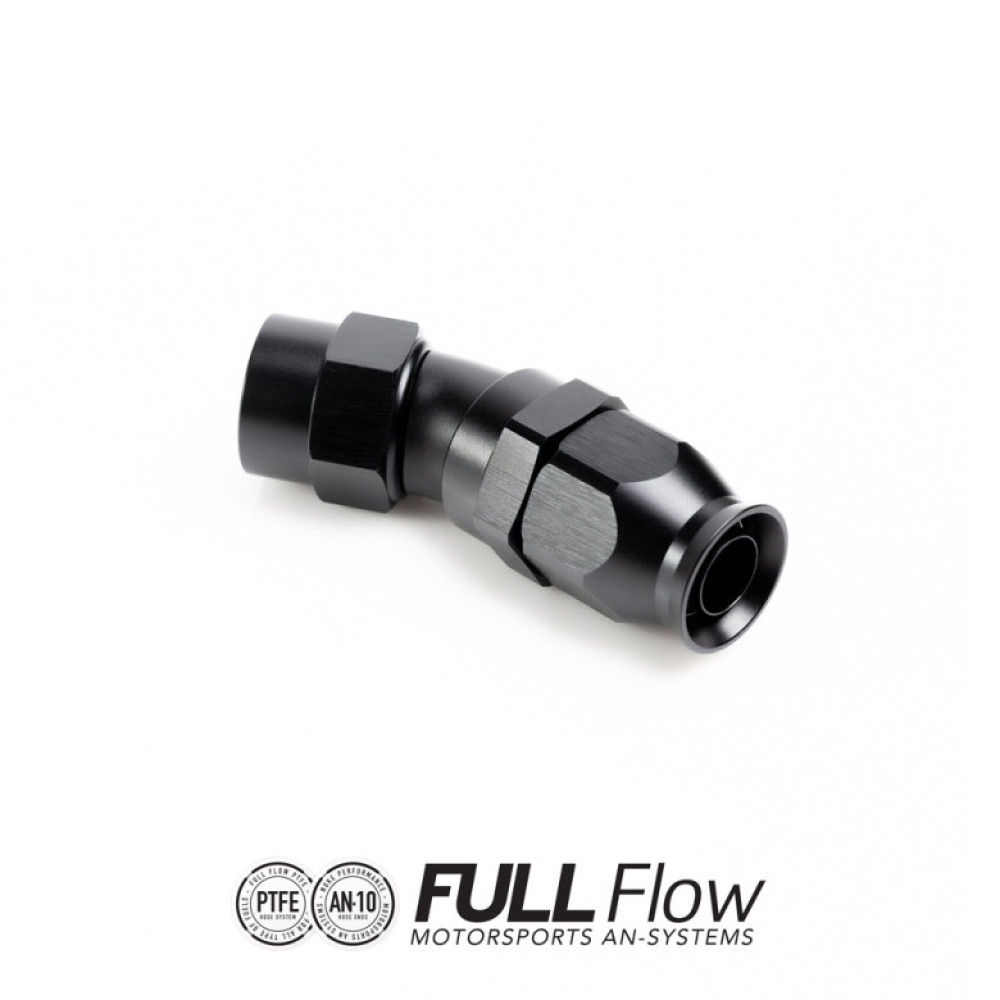

Nuke Performance Full-Flow PTFE Hose End Fittings

Engineered for serious motorsport and performance builds, Nuke Performance Full-Flow PTFE Hose End Fittings deliver unmatched reliability and flow for your fuel system. Designed specifically for use with Nuke Performance Full-Flow PTFE fuel hoses, these fittings are compatible with all fuel types—including gasoline, ethanol, methanol, E85, diesel, race fuels, and oil. Ideal for applications where durability, chemical resistance, and consistent flow are critical.

• Available sizes: AN-6, AN-8, AN-10, AN-12

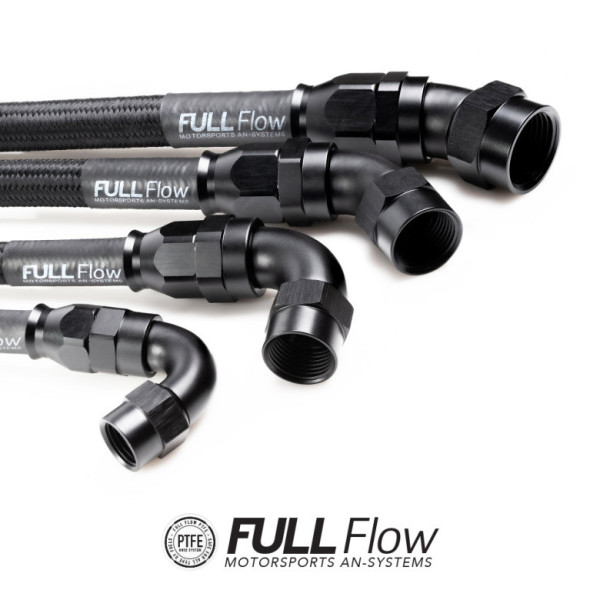

• Available angles: Straight, 30°, 45°, 60°, 90°, 120°, 150°, 180°

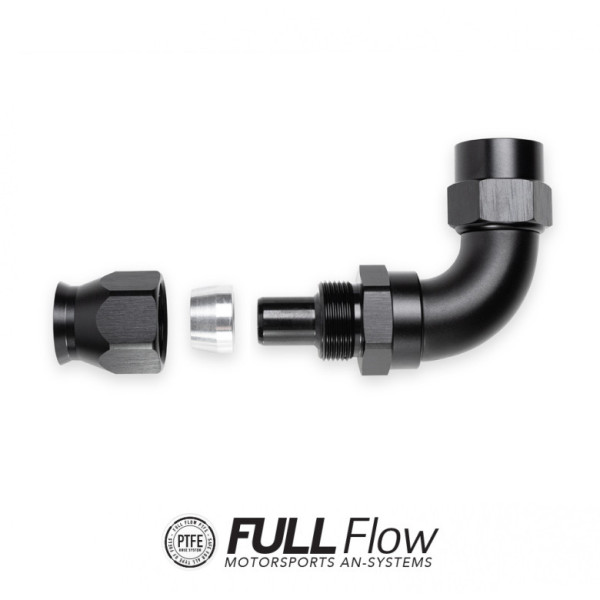

• Material: Anodized aluminum housing and olive
• Aluminum olive insert included with every hose end
• Safe for all fuel types, including alcoholic fuels (ethanol, methanol)
• Developed for motorsport use; extended lifespan compared to conventional fuel hoses and fittings
• Hose end series #: 810-01-106 to 810-18-112

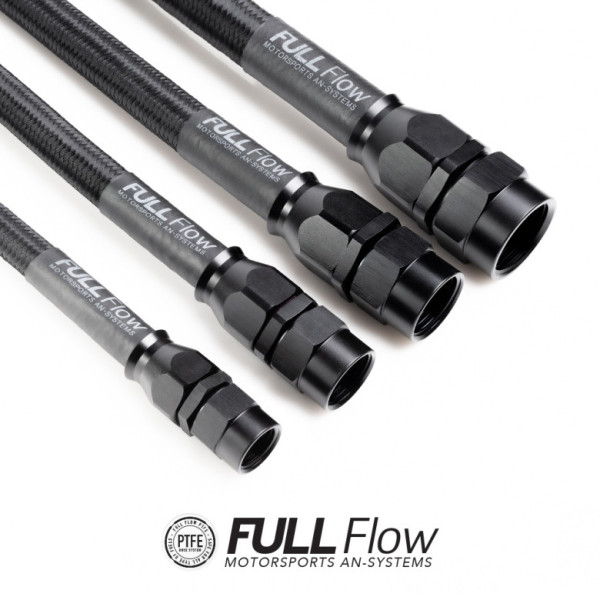

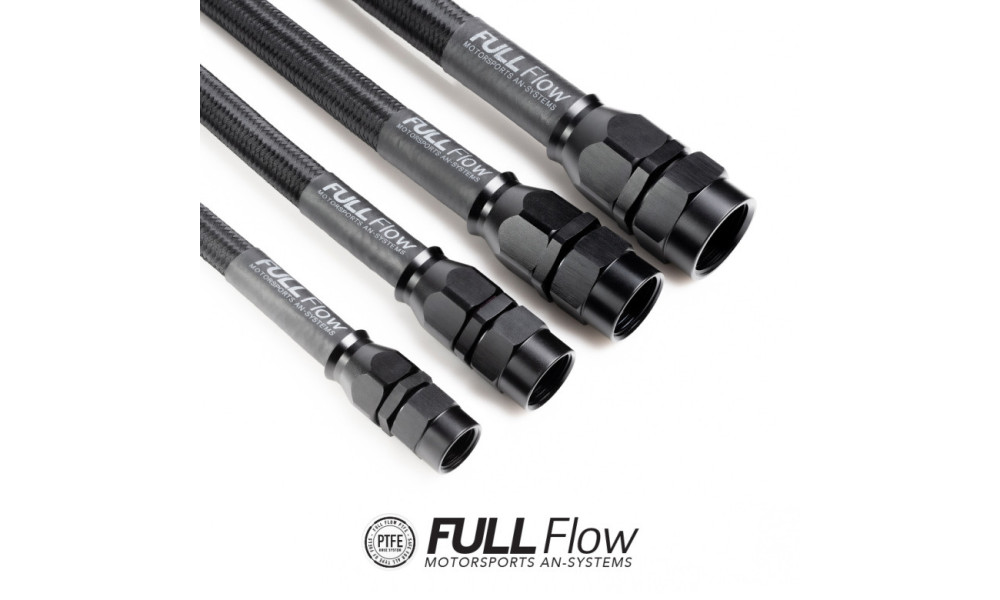

Nuke Performance Full-Flow PTFE Fuel Hose

The Nuke Performance Full-Flow PTFE fuel hose features a black nylon braided outer layer with a stainless steel braid and a PTFE (Teflon) inner liner. The carbonized PTFE liner enhances conductivity, crucial for motorsport fuel systems, and acts as a vapor barrier—making it suitable for all fuel types and ideal for routing inside vehicle cabins. Unlike traditional nitrile rubber hoses, the PTFE liner will not degrade, harden, or crack over time, protecting injectors, filters, and fuel pumps from contamination.

• Available sizes: AN-6, AN-8, AN-10, AN-12
• Inner liner: PTFE (Teflon), carbonized for conductivity
• Braiding: Stainless steel and nylon
• Temperature range: -70°C to 250°C (-94°F to 480°F)
• Fuel compatibility: Gasoline, methanol, ethanol, E85, race fuel, diesel, oil
• Prevents fuel vapor permeation
• Fuel hose series #: 820-02-106 to 820-02-612

Accessories and Tools

• Adjustable Aluminum AN Wrench (AN-4 to AN-16) Part #: 700-30-105
• Aluminum Vise Jaws for AN fittings Part #: 700-30-201
• AN Aluminum Wrenches (AN-6/8/10/12) Part #: 700-30-101/2/3/4
• Spare Aluminum Olive Inserts (AN-6/8/10/12) Part #: 810-20-106/8/10/12

Developed in collaboration with international motorsport teams, Nuke Performance Full-Flow PTFE hose ends and fuel hoses are built to meet the highest standards for demanding racing environments. Choose the right size and angle to build a reliable, high-flow fuel system for your performance project.
