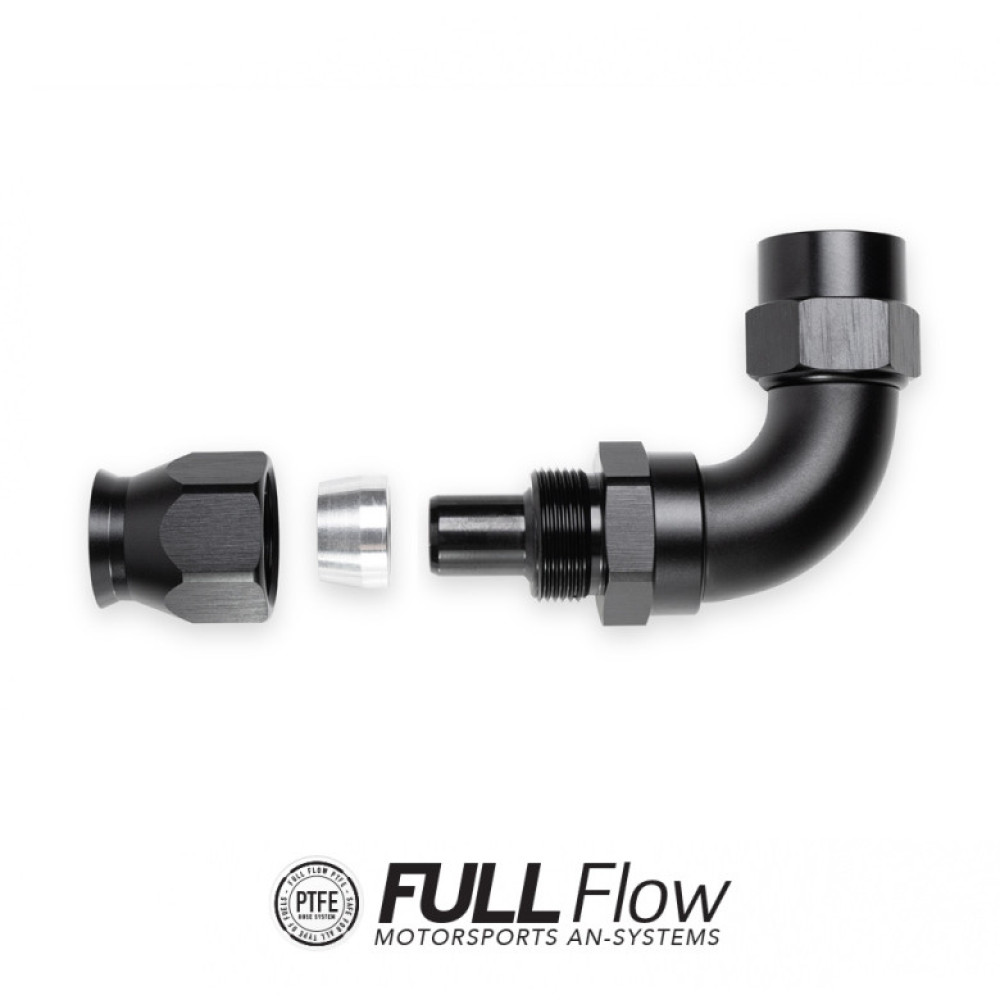

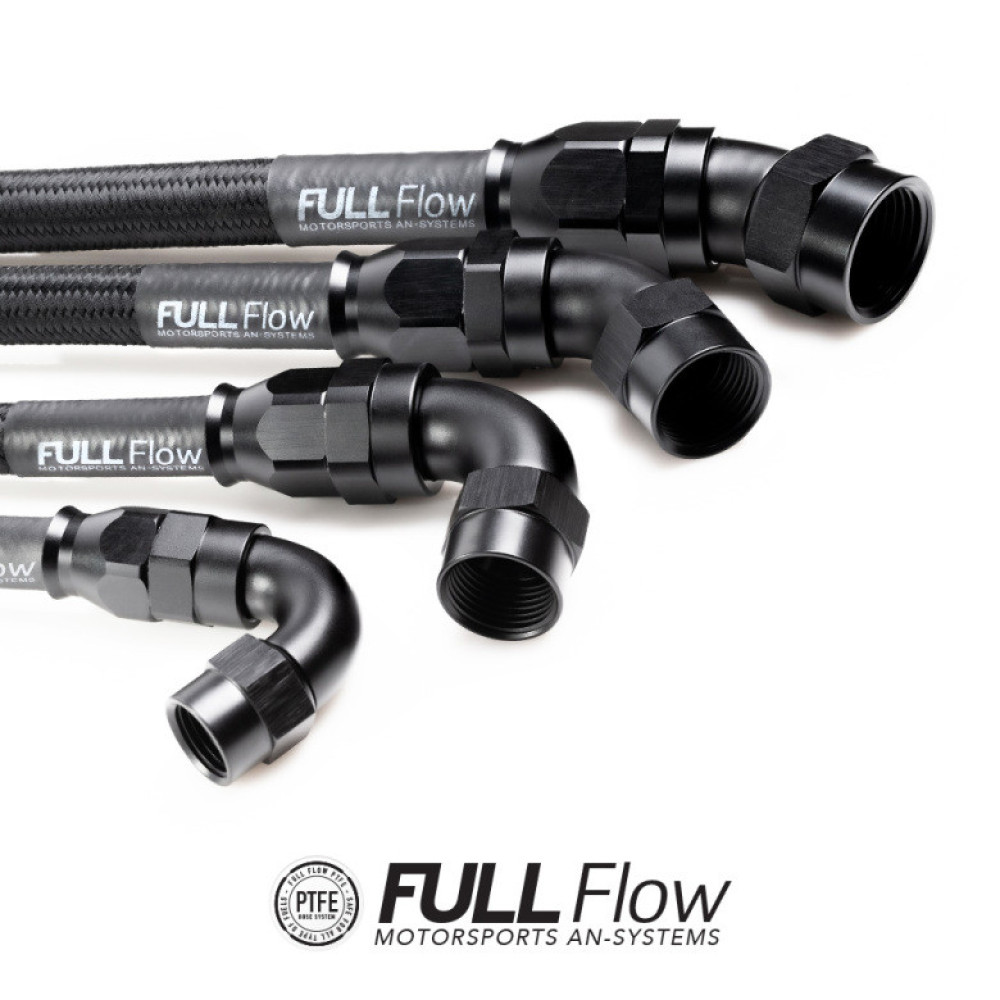

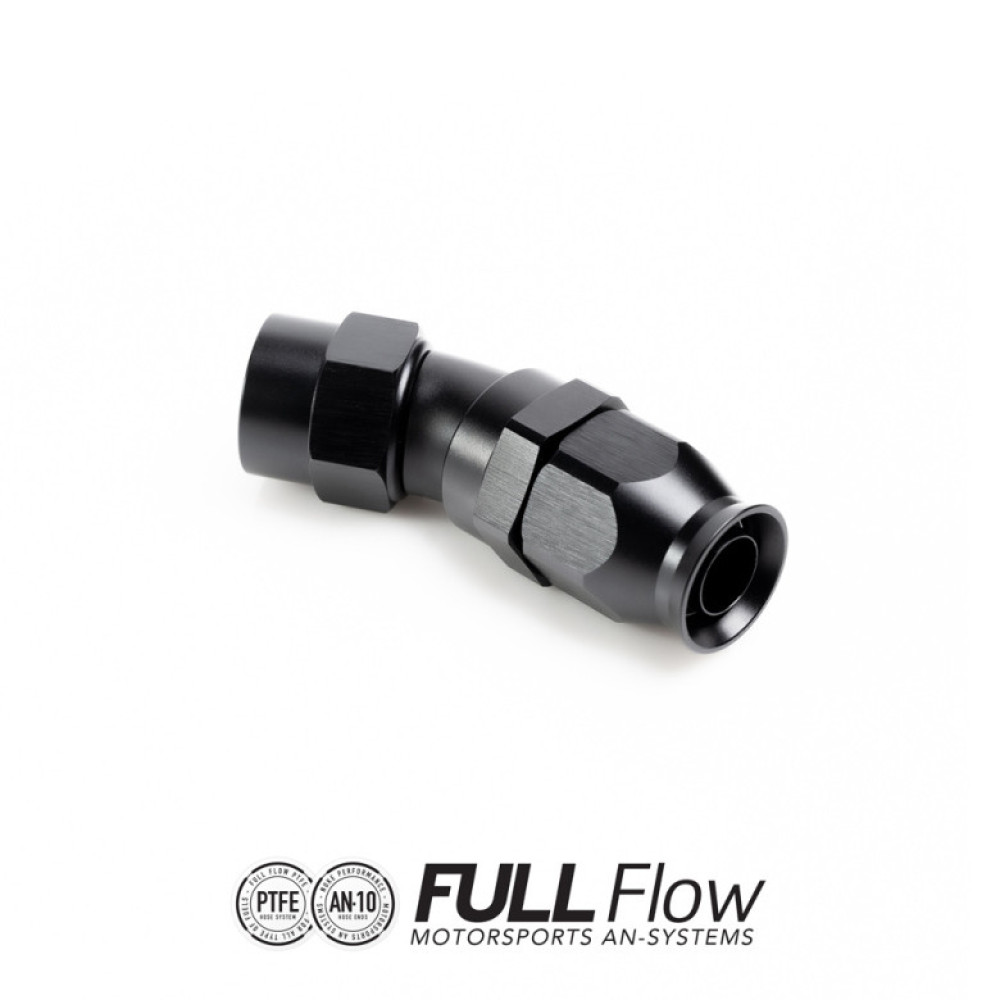

Nuke Performance Full-Flow PTFE Hose End Fittings

Engineered for demanding motorsport applications, Nuke Performance Full-Flow PTFE Hose End Fittings deliver high-quality, lightweight, and reliable connections for PTFE-lined fuel hoses. Designed to handle all fuel types—including gasoline, ethanol, methanol, E85, diesel, race fuels, and oils—these fittings are ideal for enthusiasts and professionals seeking superior performance and safety.

• Available sizes: AN-6, AN-8, AN-10, AN-12
• Available angles: Straight, 30°, 45°, 60°, 90°, 120°, 150°, 180°
• Material: Anodized aluminum housing and olive
• Includes aluminum olive insert for secure, leak-free assembly
• Compatible only with Nuke Performance Full-Flow PTFE fuel hose
• Series #: 810-01-106 to 810-18-112

These hose ends are designed for extended life and outstanding flow capacity, making them suitable for high-performance builds where reliability and fuel compatibility are critical.

Nuke Performance Black Nylon Braided PTFE Lined Fuel Hose

The Nuke Performance PTFE fuel hose features a black nylon outer braid with a stainless steel layer and a PTFE (Teflon) inner liner, providing exceptional resistance to all fuel types, including aggressive alcoholic fuels. The carbonized PTFE liner ensures conductivity for motorsport use and acts as a vapor barrier, minimizing fuel vapor permeation—ideal for installations inside driver compartments and for long-term reliability.

• Available sizes: AN-6, AN-8, AN-10, AN-12
• Available lengths: 1m, 2m, 4m, 6m (3–20 ft)
• Inner liner: PTFE (Teflon), carbonized for conductivity
• Braiding: Stainless steel and nylon
• Temperature range: -70°C to 250°C (-94°F to 480°F)
• Fuel compatibility: Gasoline, Methanol, Ethanol, E85, Racefuel, Diesel, Oil
• Series #: 820-02-106 to 820-02-612

The PTFE liner prevents hardening, cracking, and fuel odor issues associated with traditional nitrile hoses, protecting injectors, filters, and pumps from contamination and wear.

Tools & Accessories for Hose Assembly

• Adjustable Aluminum AN Wrench (AN-4 to AN-16), Part #: 700-30-105
• Aluminum Vise Jaws for AN fittings, Part #: 700-30-201
• AN Aluminum Wrenches (AN-6/8/10/12), Part #: 700-30-101/2/3/4
• Spare Aluminum Olive Inserts, Part #: 810-20-106/8/10/12

All Nuke Performance hose ends and hoses are developed in collaboration with motorsport teams worldwide, ensuring top-level performance, durability, and fitment for competitive and enthusiast builds.
