Nuke Performance Full Flow AN Hose End Fittings

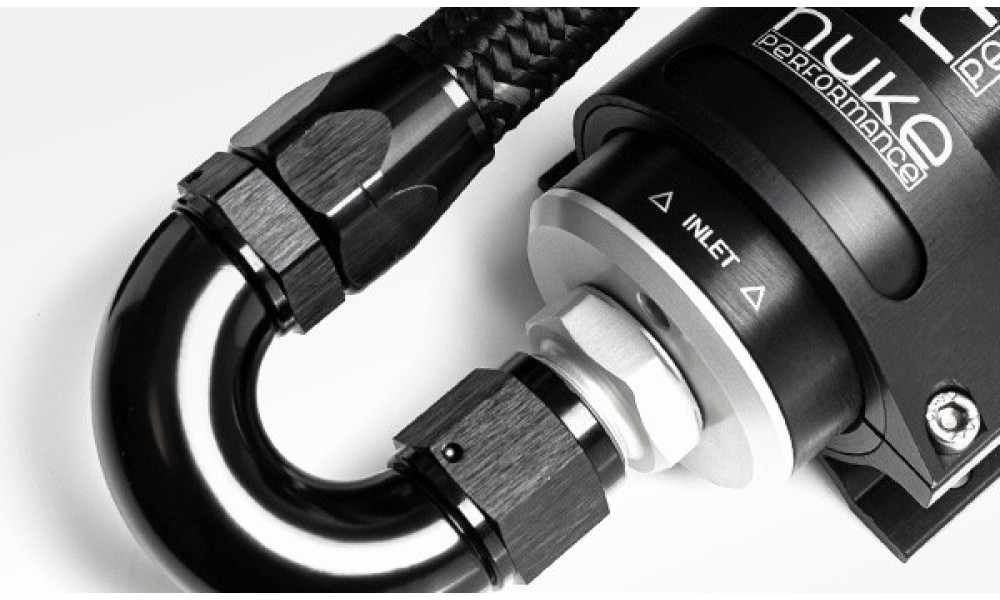

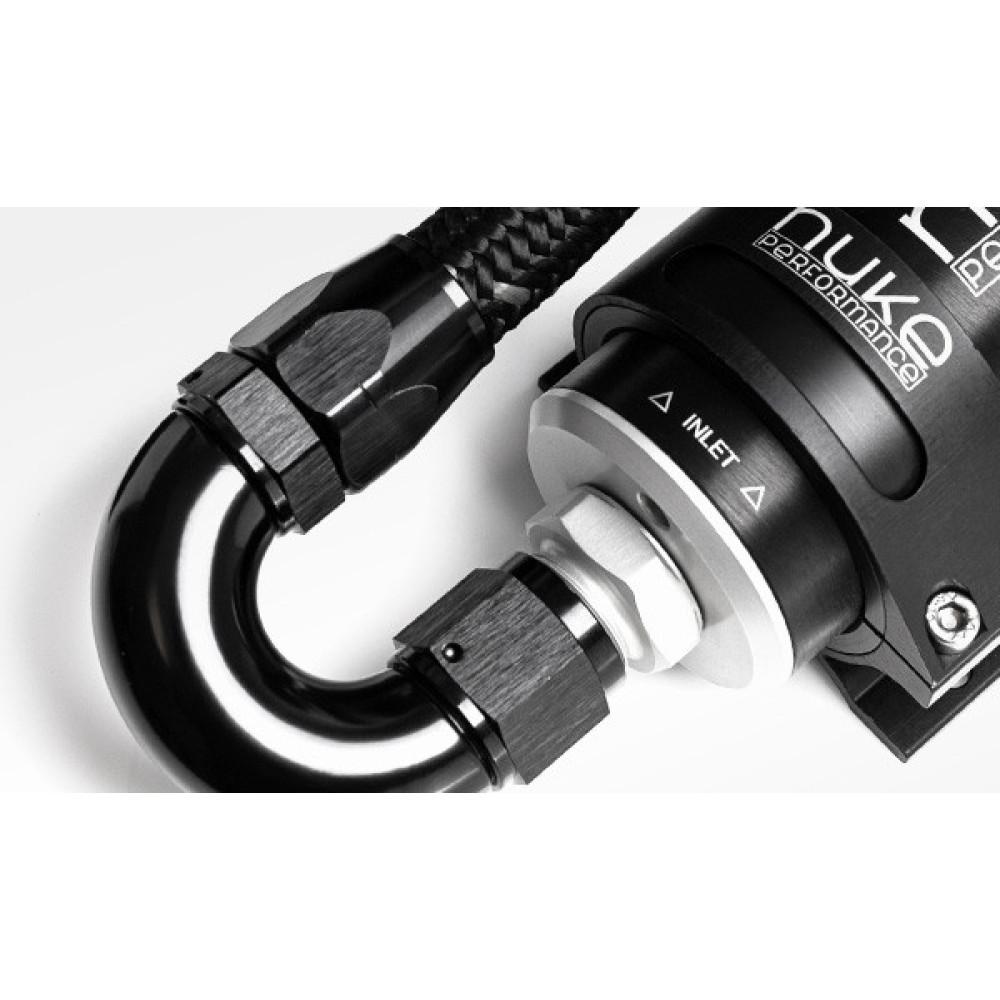

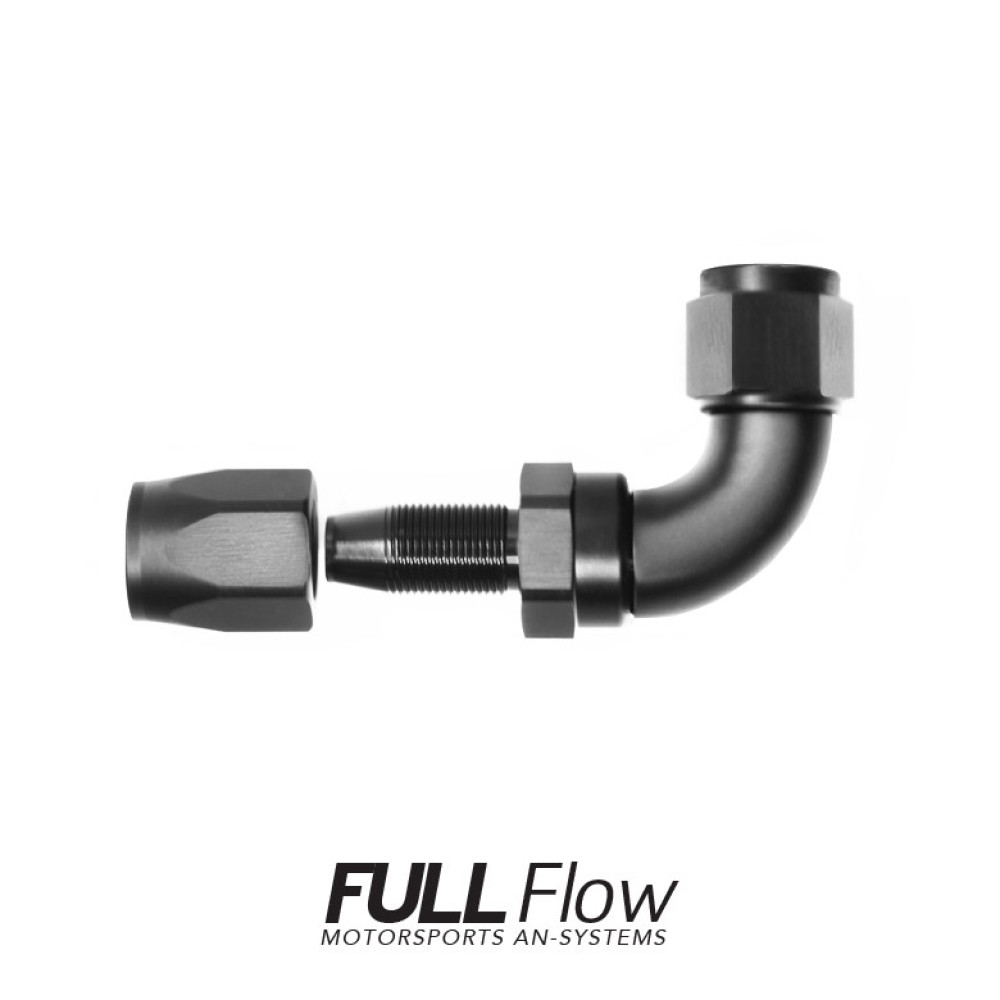

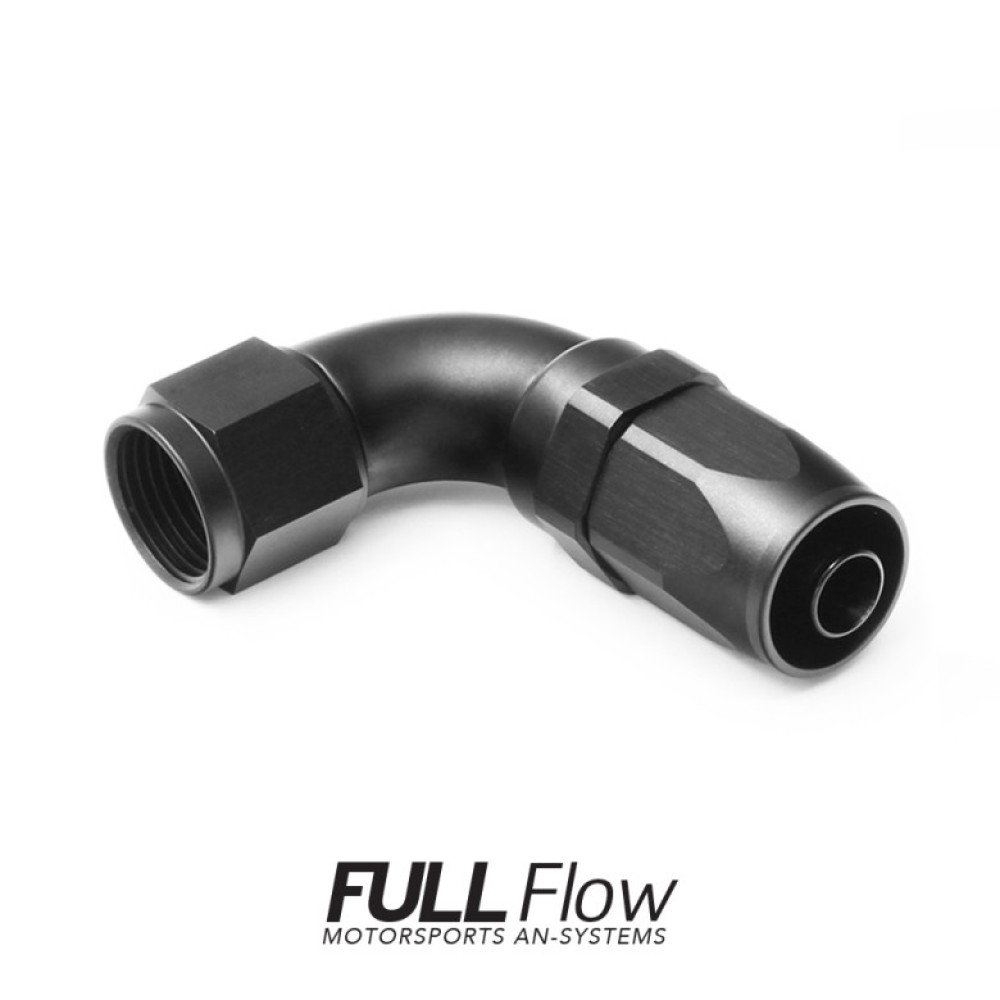

Nuke Performance Full Flow AN hose ends are engineered for high-performance motorsport applications, offering premium quality and reliability. Designed for use with Nuke Performance Full Flow AN fuel hoses, these fittings are ethanol approved and compatible with a wide range of fuels, including gasoline, petrol, oil, and coolant. Available in sizes AN-4, AN-6, AN-8, AN-10, and AN-12, and in multiple angles: straight, 30°, 45°, 60°, 90°, 120°, 150°, and 180°, you can configure your fuel system to suit any setup.

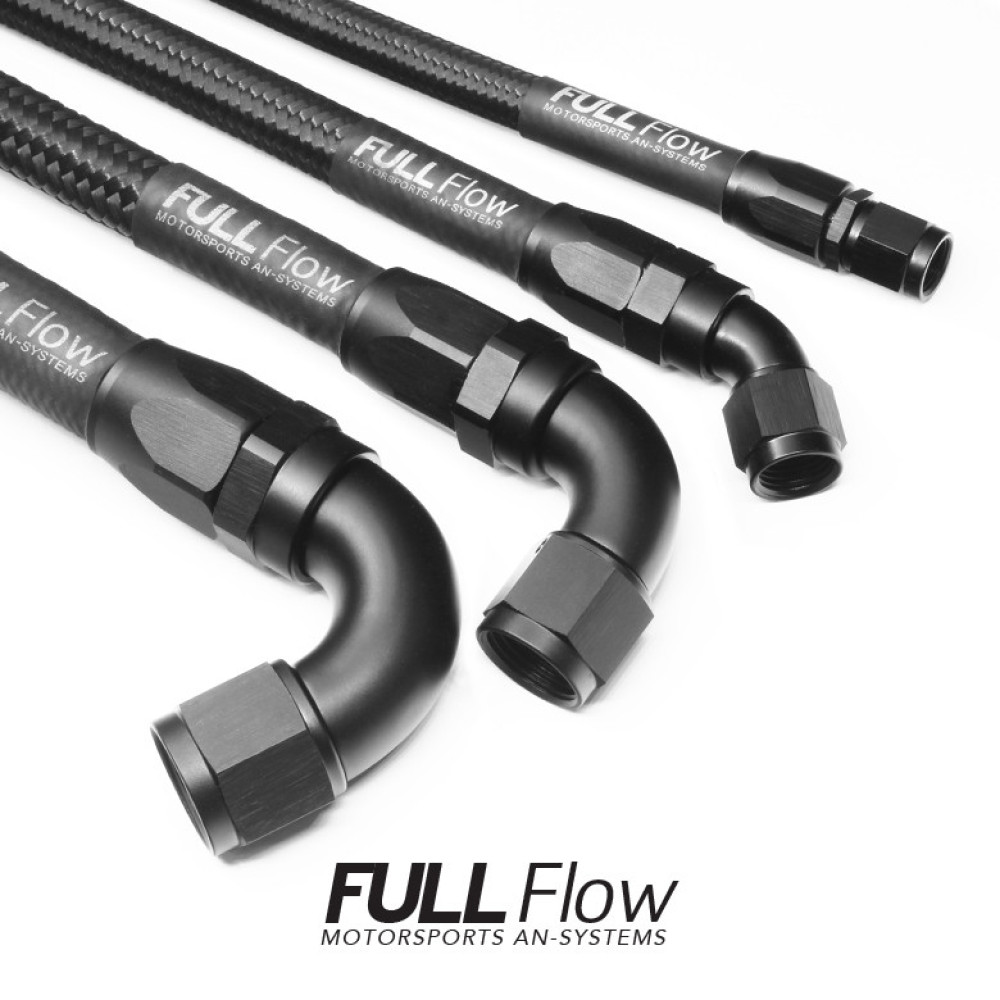

Constructed from anodized aluminum, these hose ends provide lightweight strength and corrosion resistance, ensuring durability under demanding conditions. The matching black nylon braided fuel hose is reinforced with a type 302 stainless steel wire braid, combining flexibility, durability, and an attractive appearance. Operating temperature range is -40°C to 150°C (-40°F to 300°F), making them suitable for a variety of environments.

For long-term use with alcoholic fuels like ethanol and methanol, Nuke Performance recommends their Full Flow PTFE series for increased lifespan. Hose is available in pre-cut lengths of 1m, 2m, 4m, and 6m (3–20 ft).

To assist with installation, Nuke Performance offers a range of tools and accessories:

• Adjustable Aluminum AN Wrench AN-4 to AN-16 (Part #: 700-30-105)
• Aluminum Vise Jaws for AN fittings (Part #: 700-30-201)
• AN Aluminum Wrenches AN-6/8/10/12 (Part #: 700-30-101/2/3/4)

Specifications:

• Fuel Hose Series #: 820-01-104 – 820-01-612
• Hose End Series #: 830-01-104 – 830-18-112
• Available Sizes: AN-4 / AN-6 / AN-8 / AN-10 / AN-12
• Available Versions: Straight / 30° / 45° / 60° / 90° / 120° / 150° / 180°
• Fuel Compatibility: Gasoline, Petrol, Oil, Coolant
• Hose End Material: Anodized aluminum housing
• Temperature Range: -40°C to 150°C (-40°F to 300°F)
• For Motorsport Use: Yes
• Old Part #: AN-08-301

Choose Nuke Performance Full Flow AN hose ends for a reliable, flexible, and high-quality solution for your motorsport fuel system setup.
