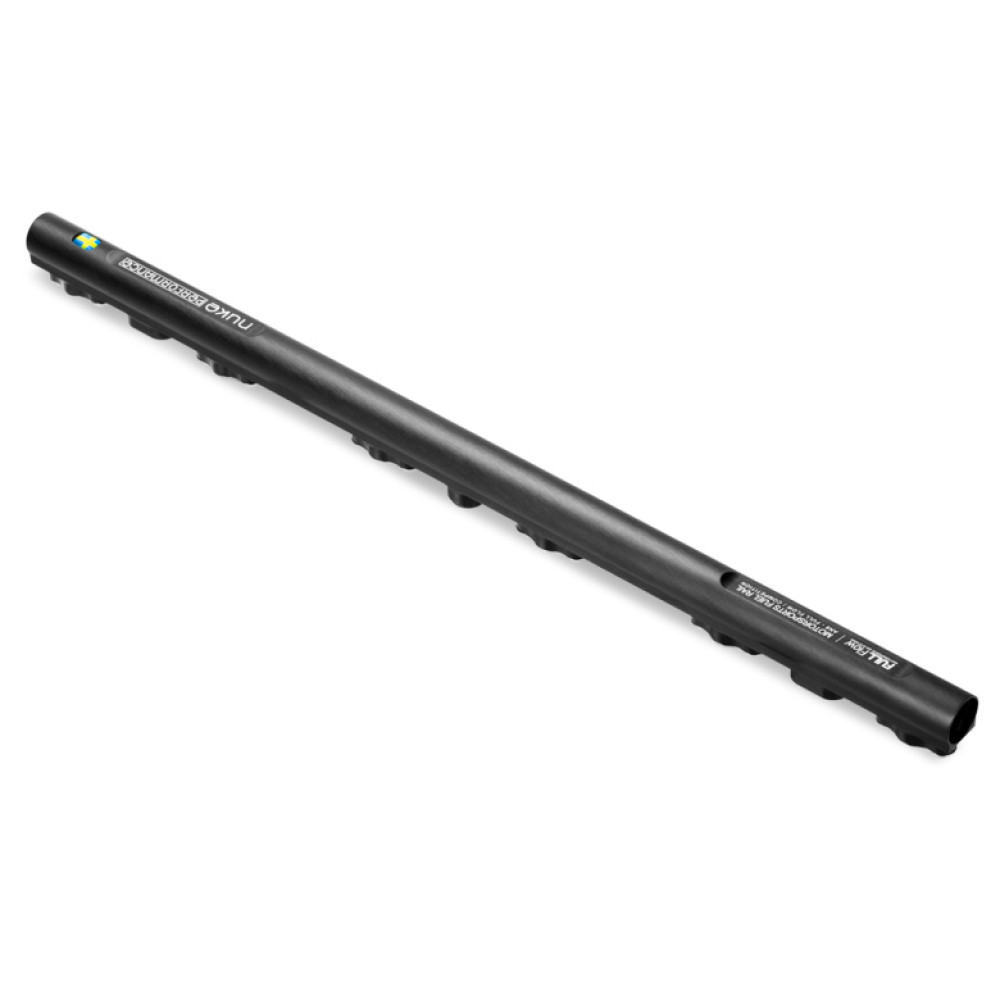

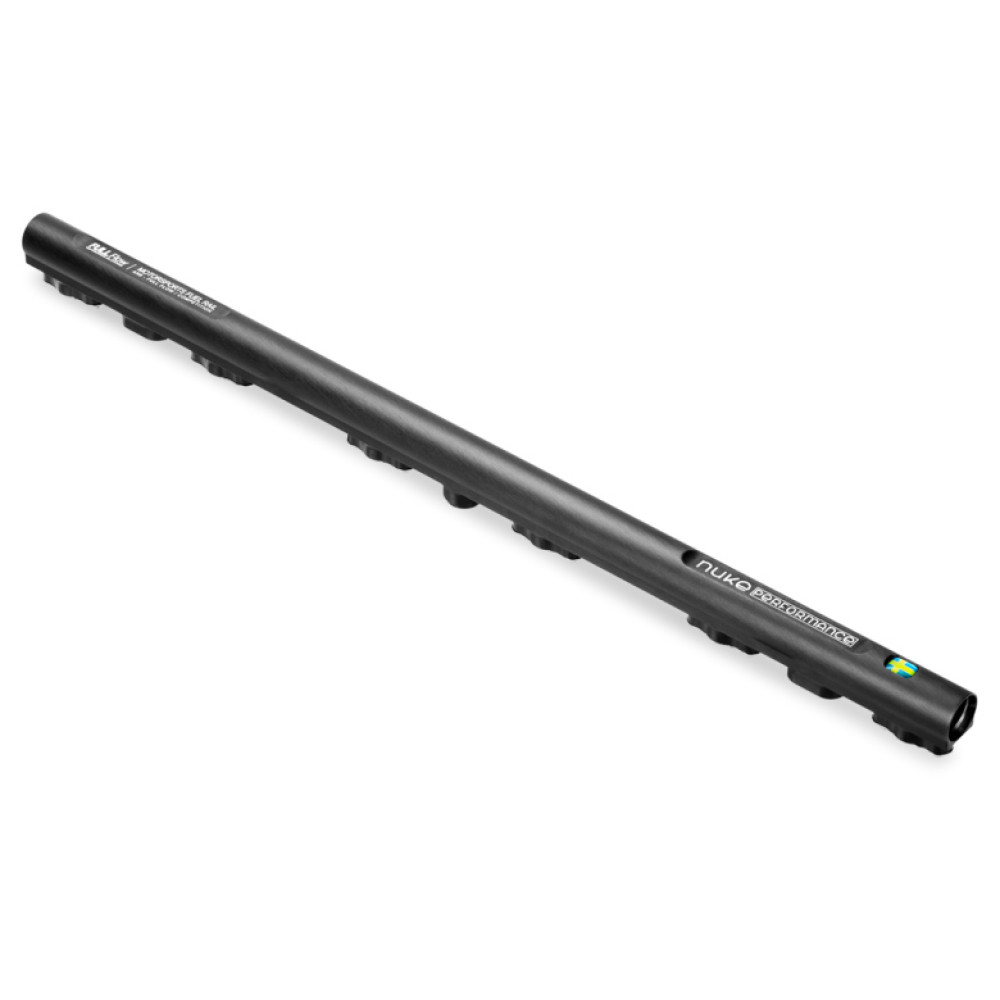

Nuke Performance Fuel Rail for Mercedes 6cyl M104 (1988-1999)

The Nuke Performance fuel rail is engineered specifically for the Mercedes 6-cylinder M104 engine, delivering a lightweight, high-flow solution for motorsports and performance builds. Designed and developed in Sweden, this rail is crafted for those seeking reliability, adaptability, and safety in demanding conditions.

• Fitment: Mercedes-Benz 6cyl M104 engines (1988-1999)
• Injector Compatibility: Bosch EV14 style injectors

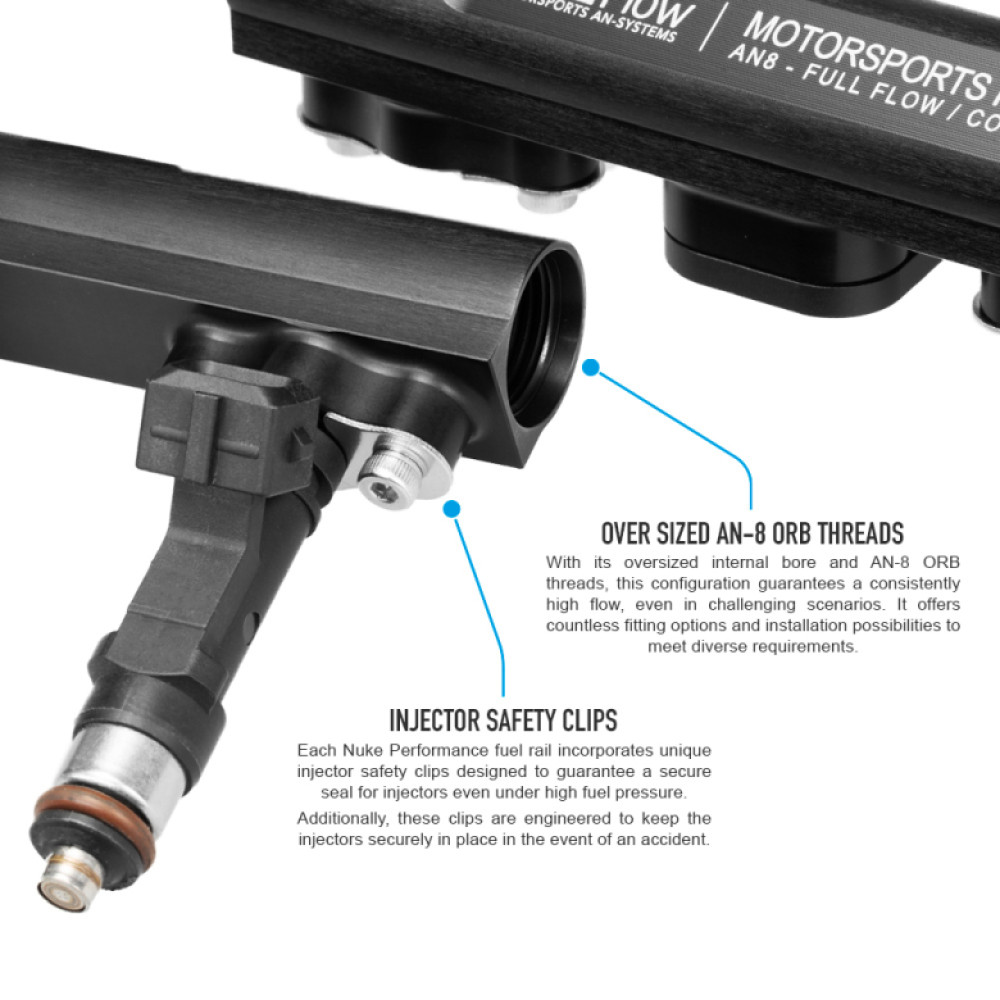

• Main Inlet/Outlet Threads: AN-8 ORB (fittings sold separately)
• Additional Side Port: AN-6 ORB (delivered with AN-6 ORB plug)
• Fuel Compatibility: Petrol, Gasoline, Ethanol, E85, E100, Methanol
• Motorsports Ready: Designed for high-flow and extreme fuel demands

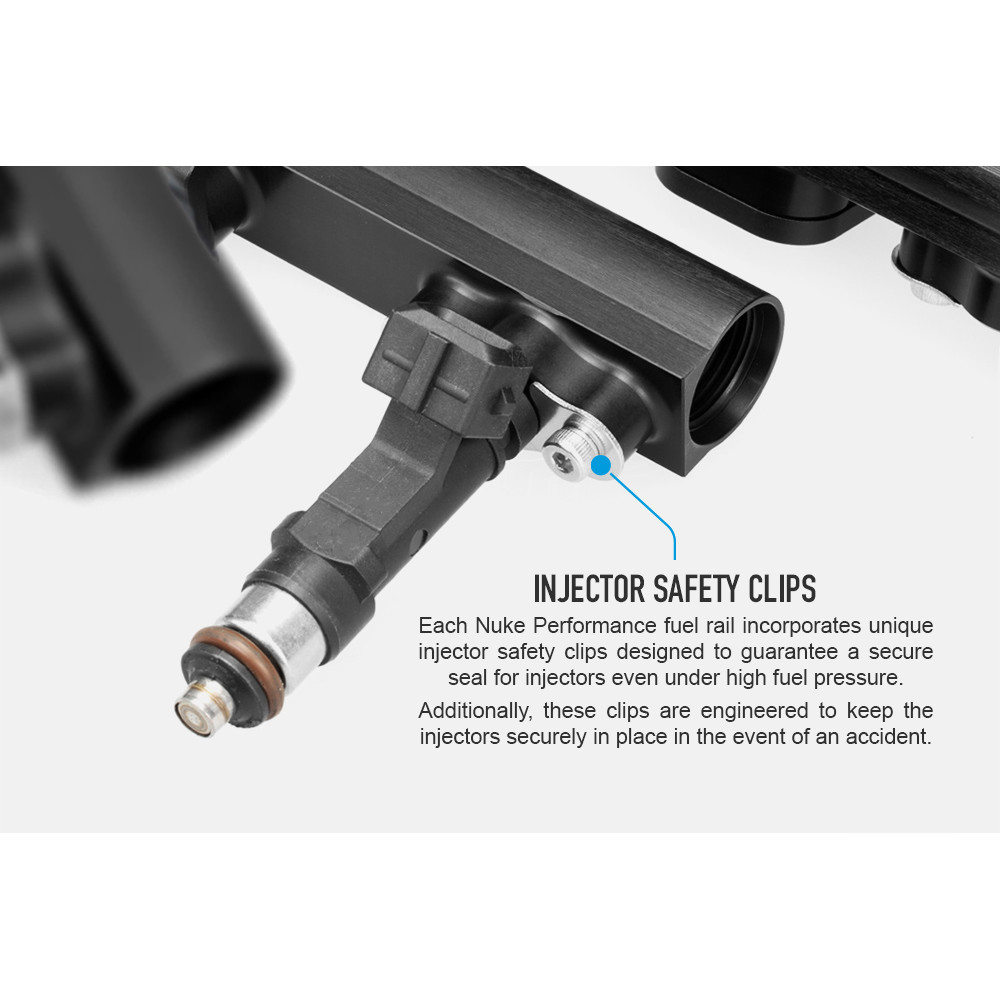

• Injector Safety: Includes 6 Nuke Performance unique injector safety clips for a secure, leakproof seal in all conditions, even under crash loads

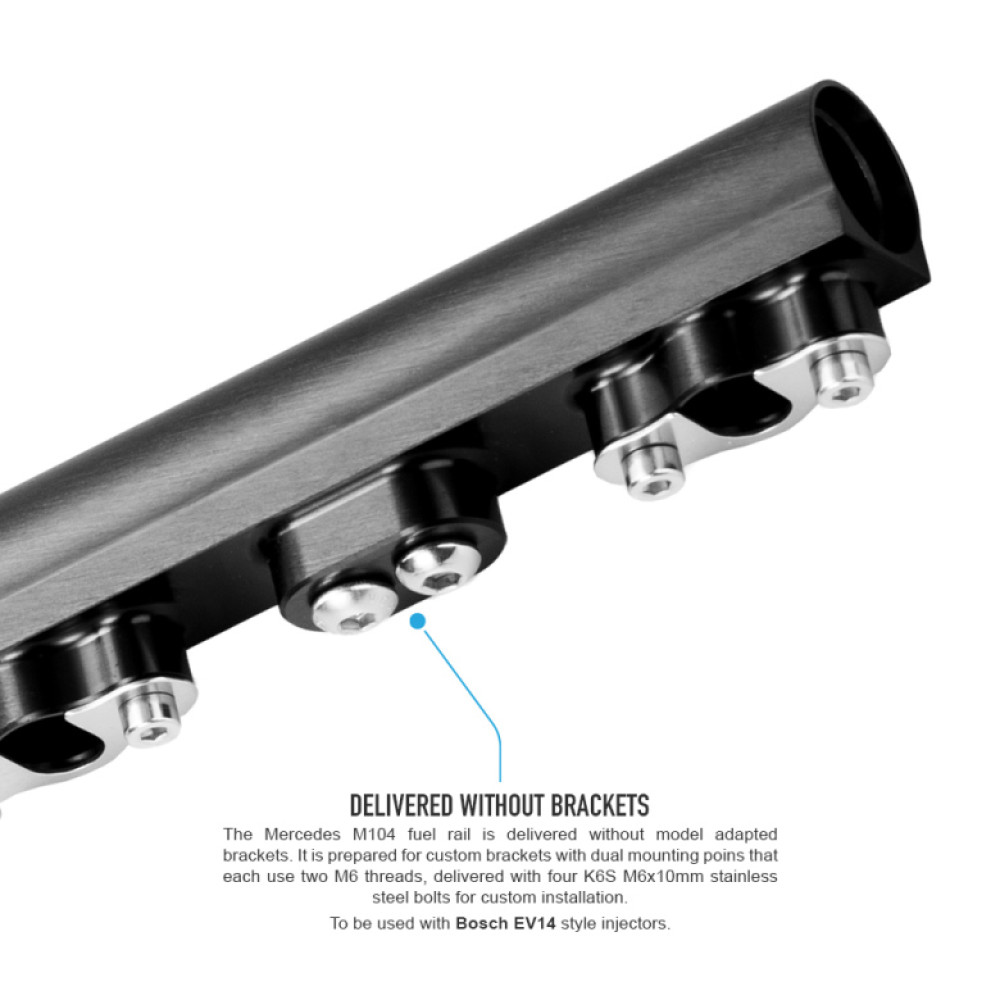

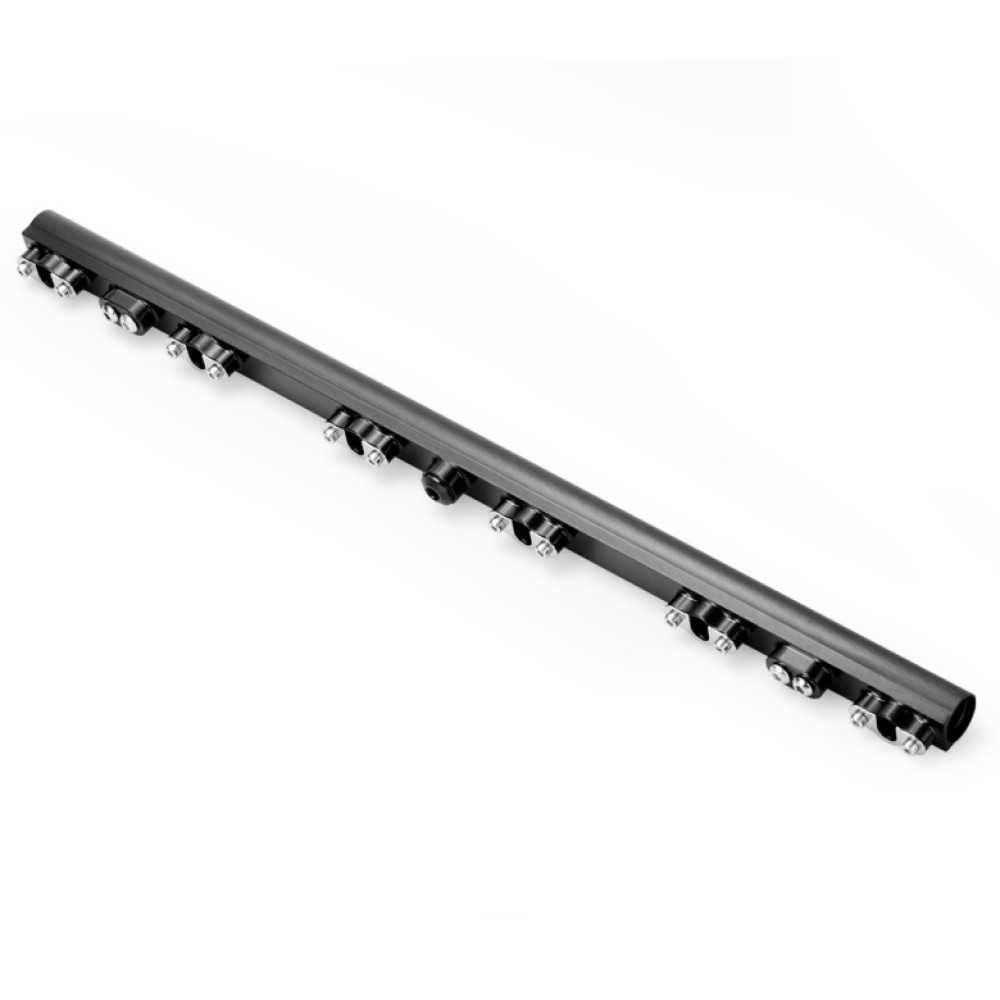

• Brackets: Delivered without mounting brackets; custom brackets must be fabricated by the installer. Two M6 threaded mounting points provided.
• Construction: Extremely lightweight design, 388g (13.68oz)
• Dimensions: Length 530.00mm (20.87"), Height 32.00mm (1.25")

Included in the box:

• 1 x AN-8 ORB Full Flow fuel rail profile for Mercedes M104 engine
• 1 x AN-6 ORB Plug
• 6 x Nuke Performance Injector safety clips
• 12 x MC6S M4x6mm stainless steel bolts
• 4 x K6S M6x10mm stainless steel bolts

Note: This fuel rail is delivered without model-specific mounting brackets; custom fabrication is required for installation. Main port fittings are not included—select the required AN-8 ORB fittings when ordering. Replaces old part #100-04-209 (different design and thread size).

Part Number: 120-14-101
EAN: 7340209509632
