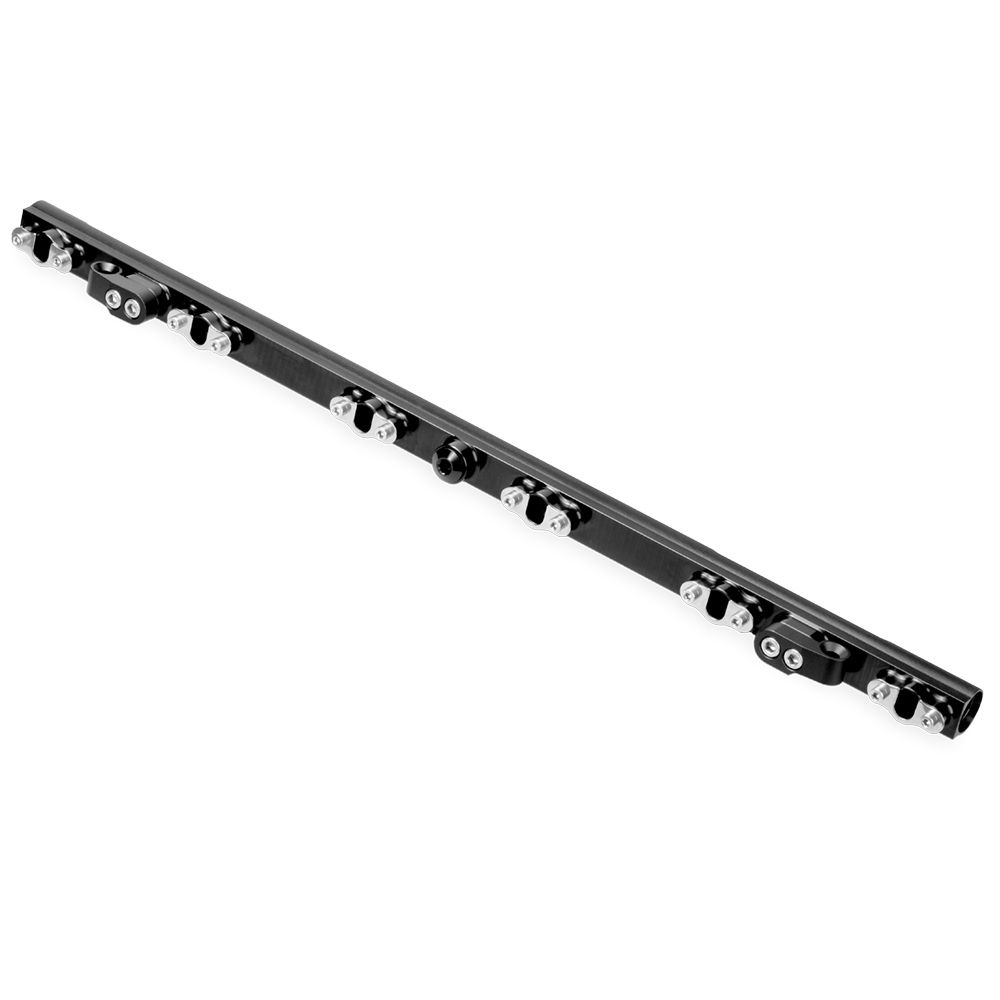

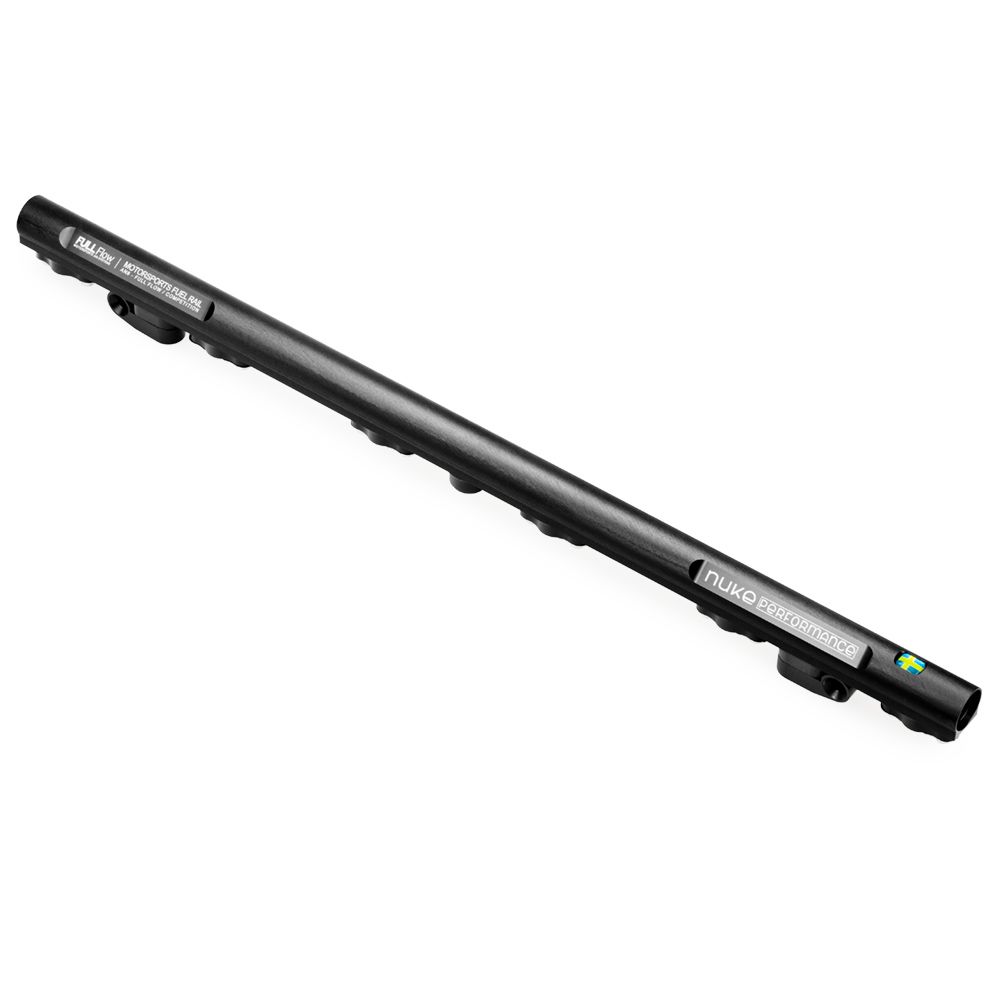

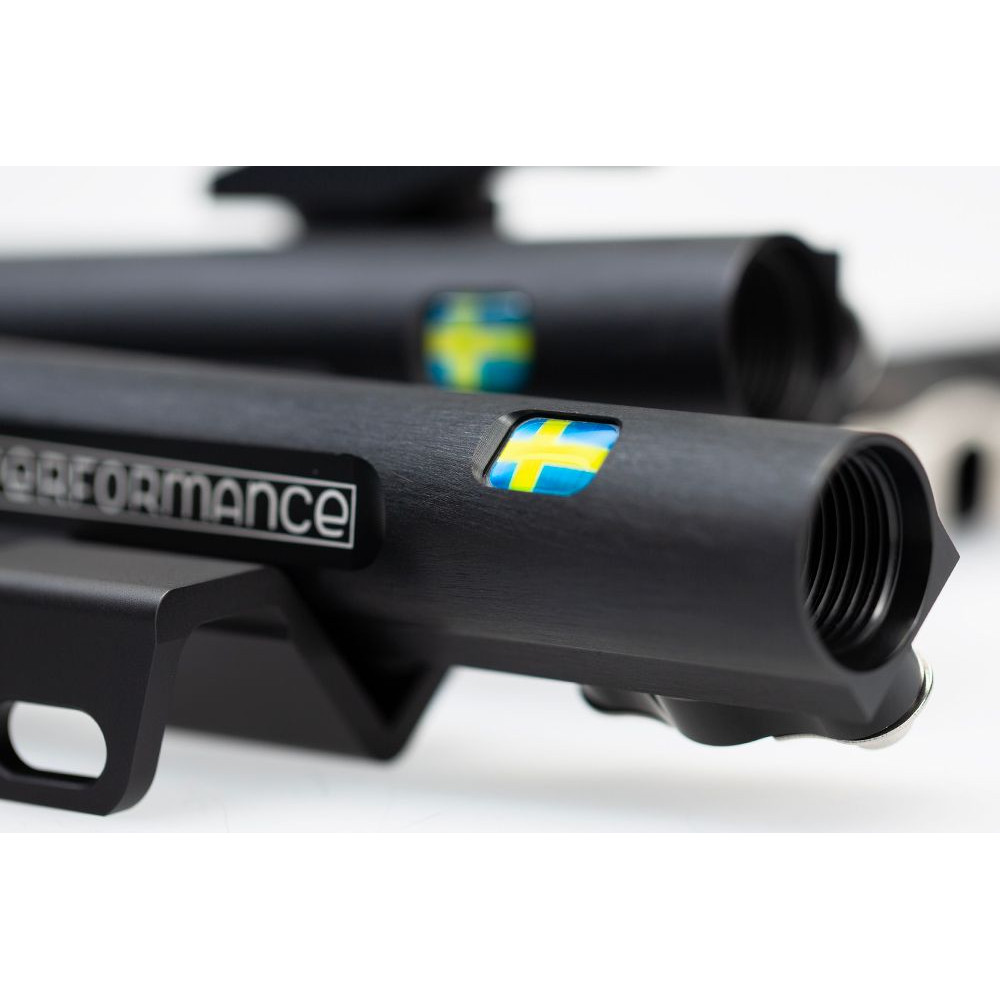

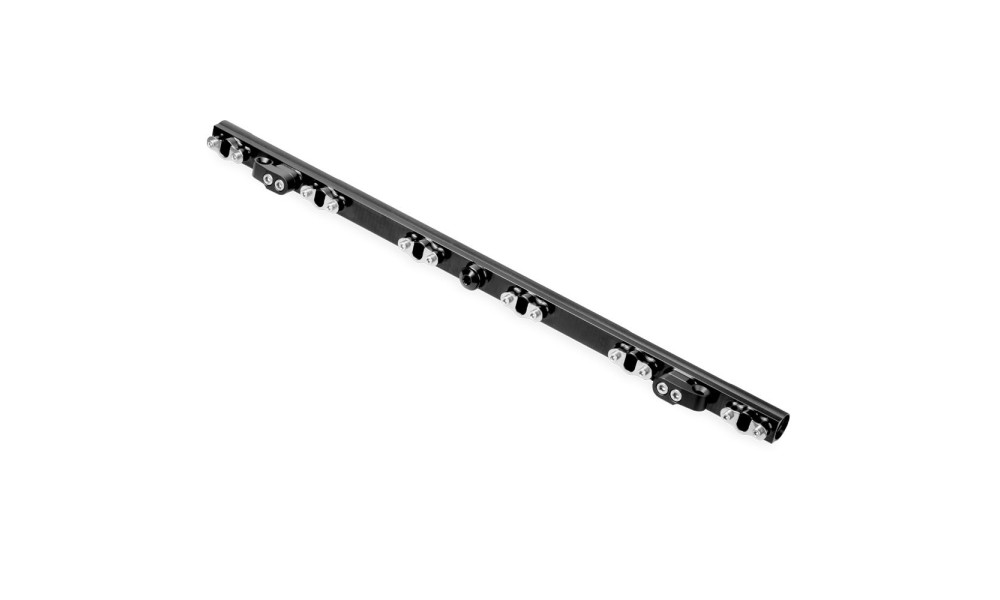

Nuke Performance Fuel Rail for BMW 6cyl M30 Engines

The Nuke Performance fuel rail is engineered specifically for BMW 6-cylinder M30 engines, providing a lightweight, high-flow solution for classic BMW performance builds. Designed and developed in Sweden to the highest standards, this fuel rail is ideal for motorsports and demanding street applications alike.

Key Features

• Perfect fit for BMW 6cyl M30 engines (M30B25 1981-1987, M30B30 1971-1990, M30B32 1977-1986, M30B34 1982-1988, M30B35 1988-1992)
• Compatible with Bosch EV14L type injectors
• Oversized internal bore for maximum fuel flow
• Lightweight aluminum construction (435g / 15.34oz)

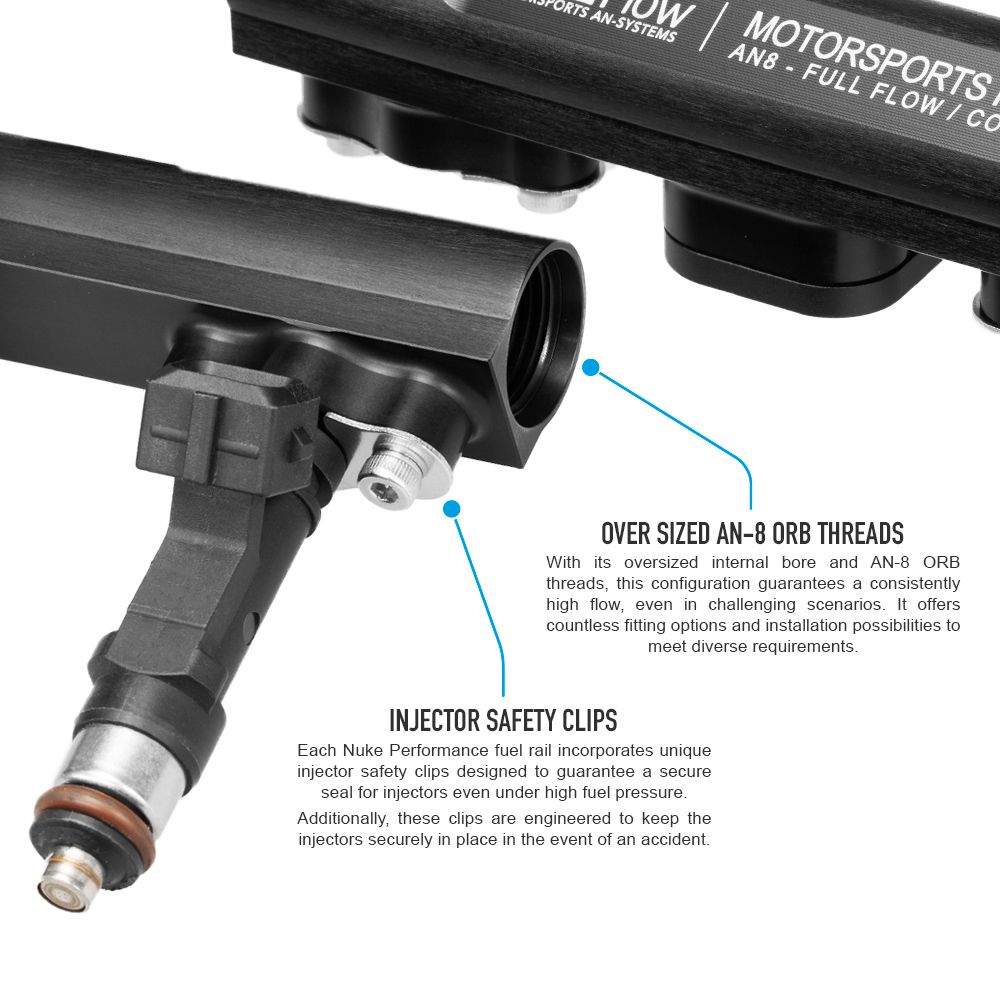

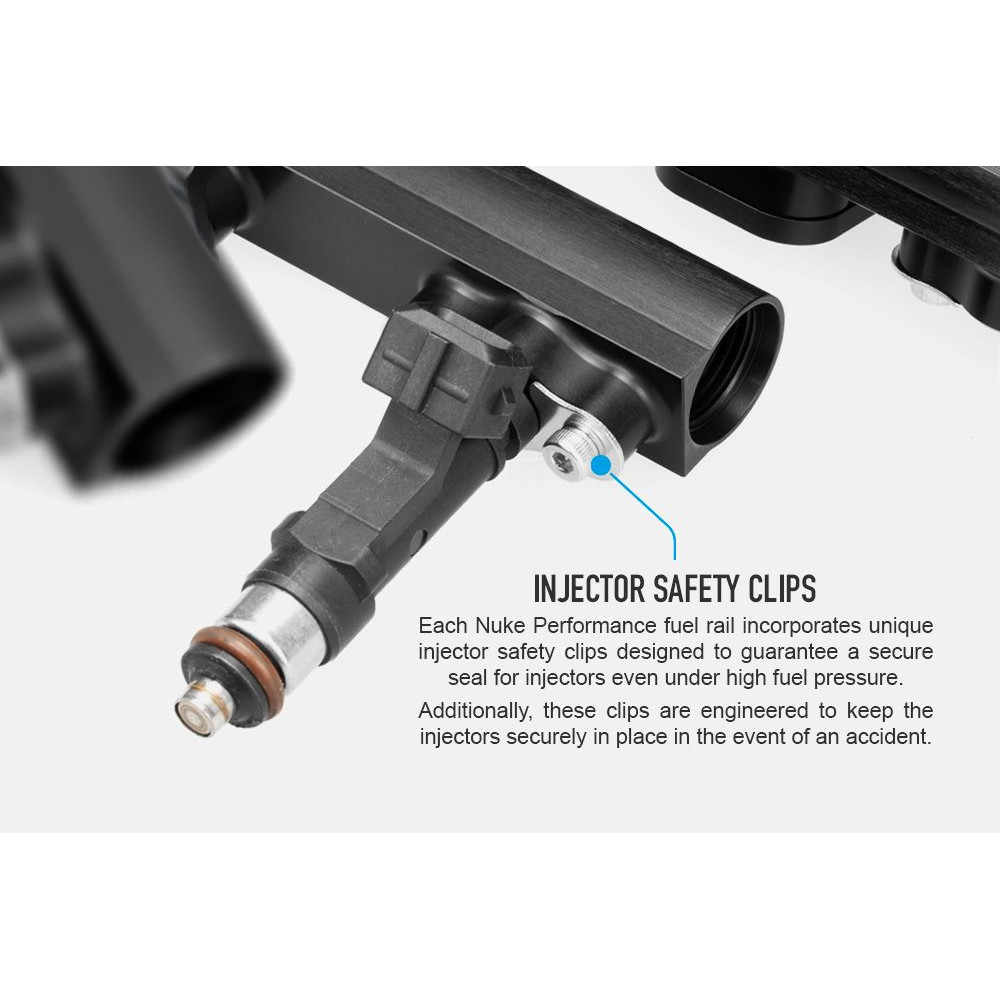

• Equipped with Nuke Performance’s unique injector safety clips for secure, leakproof operation
• AN-8 ORB threaded main ports on each end
• AN-6 ORB threaded additional side port (delivered with AN-6 ORB plug)
• Safe for all fuel types, including petrol, gasoline, ethanol, E85, E100, and methanol

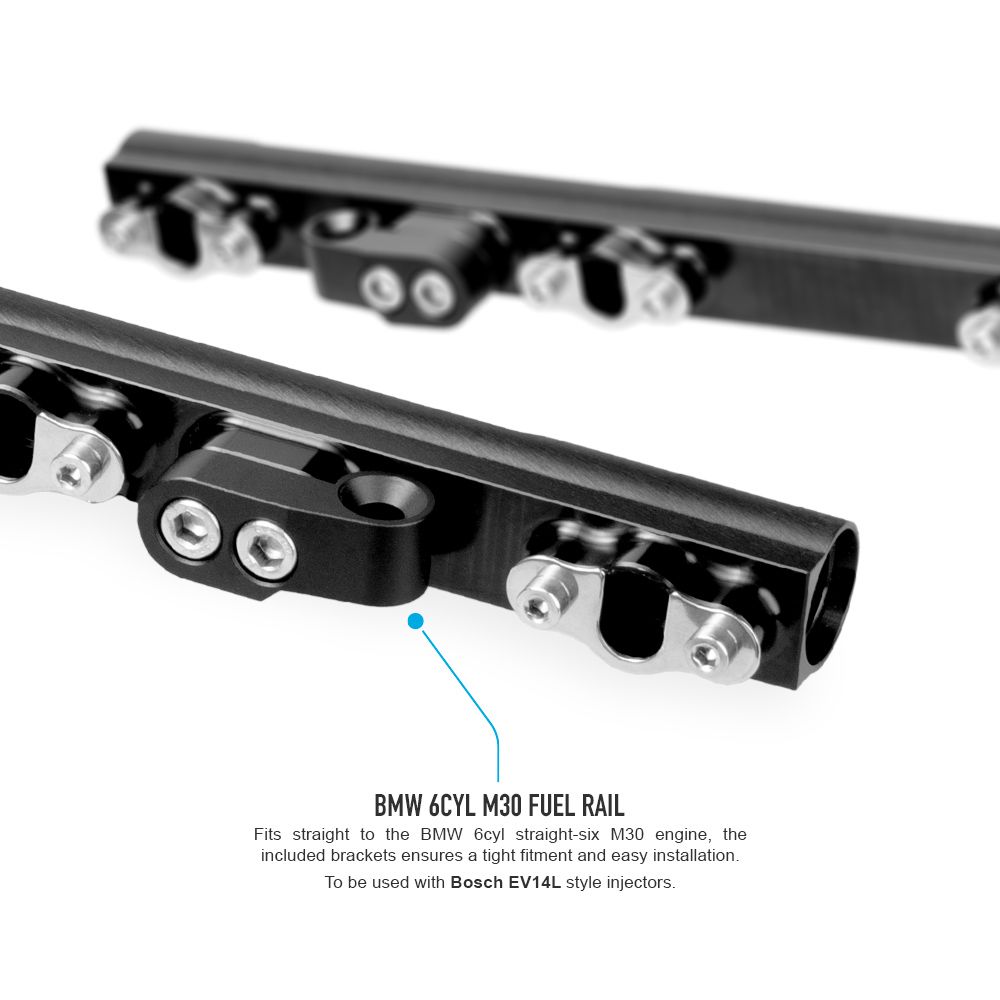

• Delivered with aluminum brackets and all necessary stainless hardware for direct installation to the M30 intake manifold

Technical Specifications

• Application: BMW 6cyl M30 engines (1971-1992)
• Injector Fitment: Bosch EV14L style
• Main Port Threads: AN-8 ORB (fittings sold separately)
• Additional Port Thread: AN-6 ORB (plug included)
• Length: 545.00mm (21.46")
• Height: 32.00mm (1.25")
• Weight: 435.00g (15.34oz)
• Fuel Compatibility: Petrol, Gasoline, Ethanol, E85, E100, Methanol
• Motorsports Use: Yes
• Part Number: 120-02-106 (Replaces old part #100-02-203)
• EAN: 7340209507089

Included in the Box

• 1 x AN-8 ORB full flow fuel rail profile for BMW 6cyl M30 engine
• 2 x Aluminum mounting brackets
• 1 x AN-6 ORB plug
• 6 x Nuke Performance injector safety clips
• 12 x MC6S M4x6mm stainless steel bolts
• 4 x MC6S M6x10mm stainless steel bolts
• 2 x MF6S M6x25mm stainless steel bolts

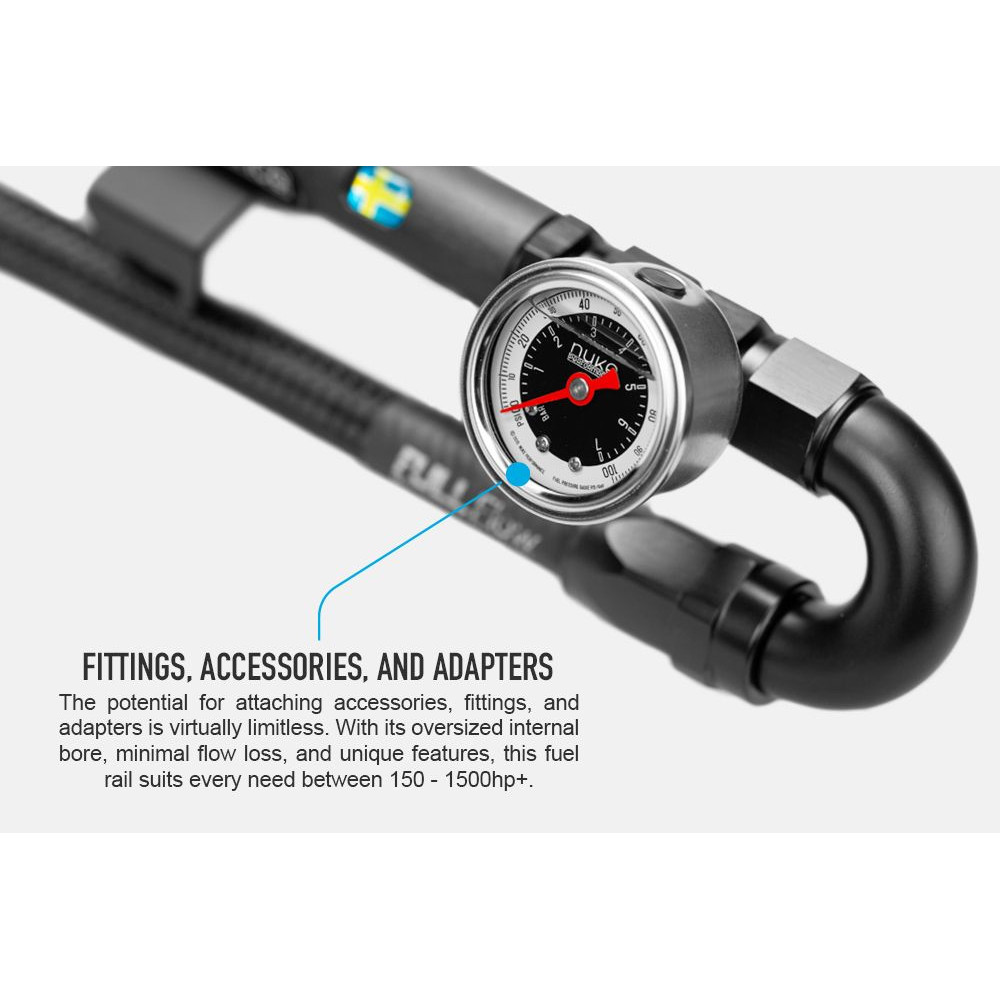

Fitting and Adapter Options (Sold Separately)

• AN-8 ORB to AN-6 Male – Part #700-04-104
• AN-8 ORB to AN-8 Male – Part #700-04-105
• AN-8 ORB to AN-10 Male – Part #700-04-106
• AN-8 ORB to AN-6 Male Full Flow Banjo – Part #710-01-105
• AN-8 ORB to AN-8 Male Full Flow Banjo – Part #710-01-106
• AN-8 ORB to AN-10 Male Full Flow Banjo – Part #710-01-107
• AN-8 ORB Plug – Part #700-04-116
• AN-8 ORB to 1/8 NPT Female Adapter – Part #700-04-129

Note: This fuel rail is designed exclusively for BMW M30 engines. For other BMW straight-six engines (S38, M20, M50, M54, S50), see our full range of Nuke Performance fuel rails.
