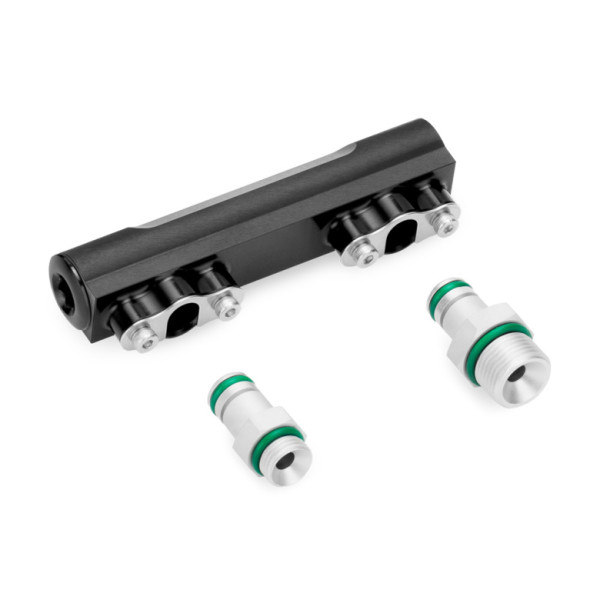

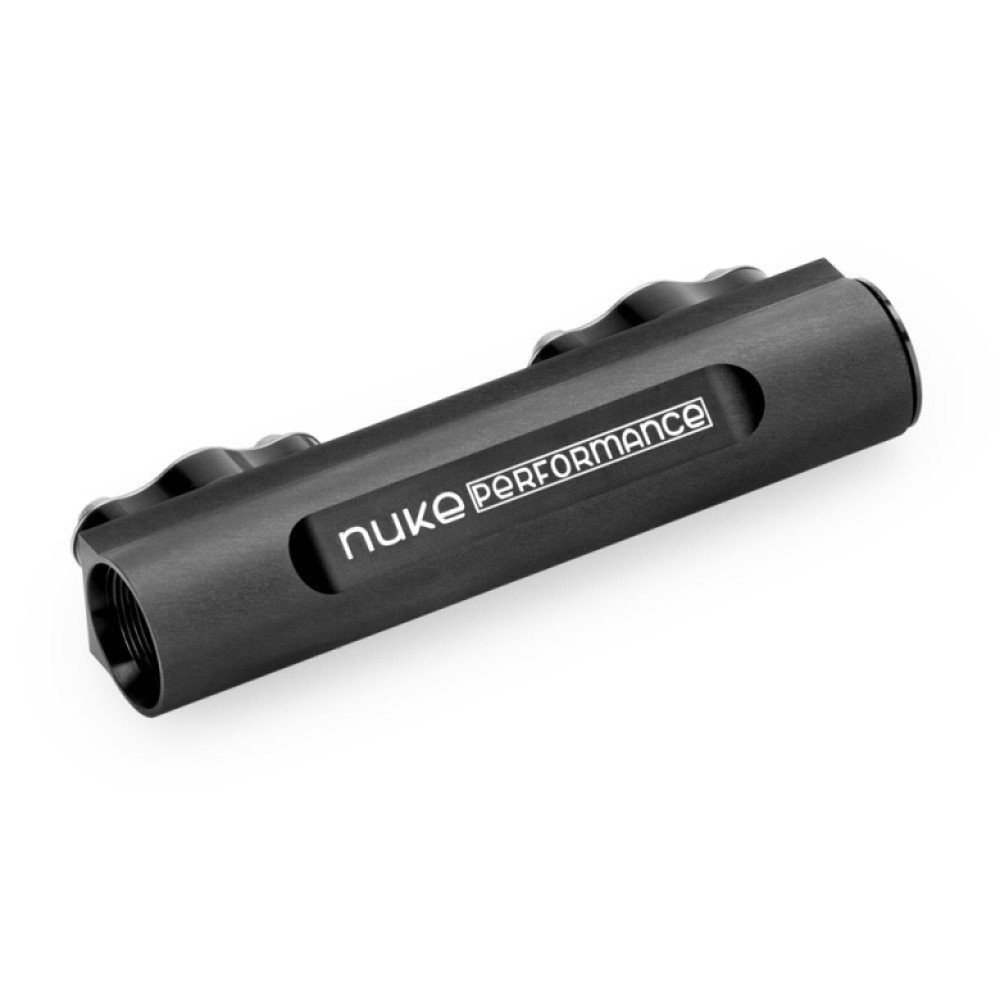

Nuke Performance Fuel Log 4-Port Collector, AN-8 ORB

The Nuke Performance second-generation Fuel Log 4-port collector is engineered for enthusiasts demanding a flexible, space-efficient solution when plumbing in-line fuel pumps or filters. Designed with motorsports in mind, this fuel log streamlines dual or single pump setups and offers robust compatibility with a wide range of fuels, including gasoline, methanol, and ethanol (E85).

• 2 x injector-sized inlet ports (choose adapters separately)
• AN-8 ORB outlet ports on each end
• Delivered with 1x AN-8 ORB plug
• Lightweight design: 95g (3.35oz)
• Length: 115.0mm (4.53")
• Inlet ports center to center: 70.0mm (2.75")
• Safe for all fuel types: gasoline, petrol, methanol, ethanol
• Motorsports rated

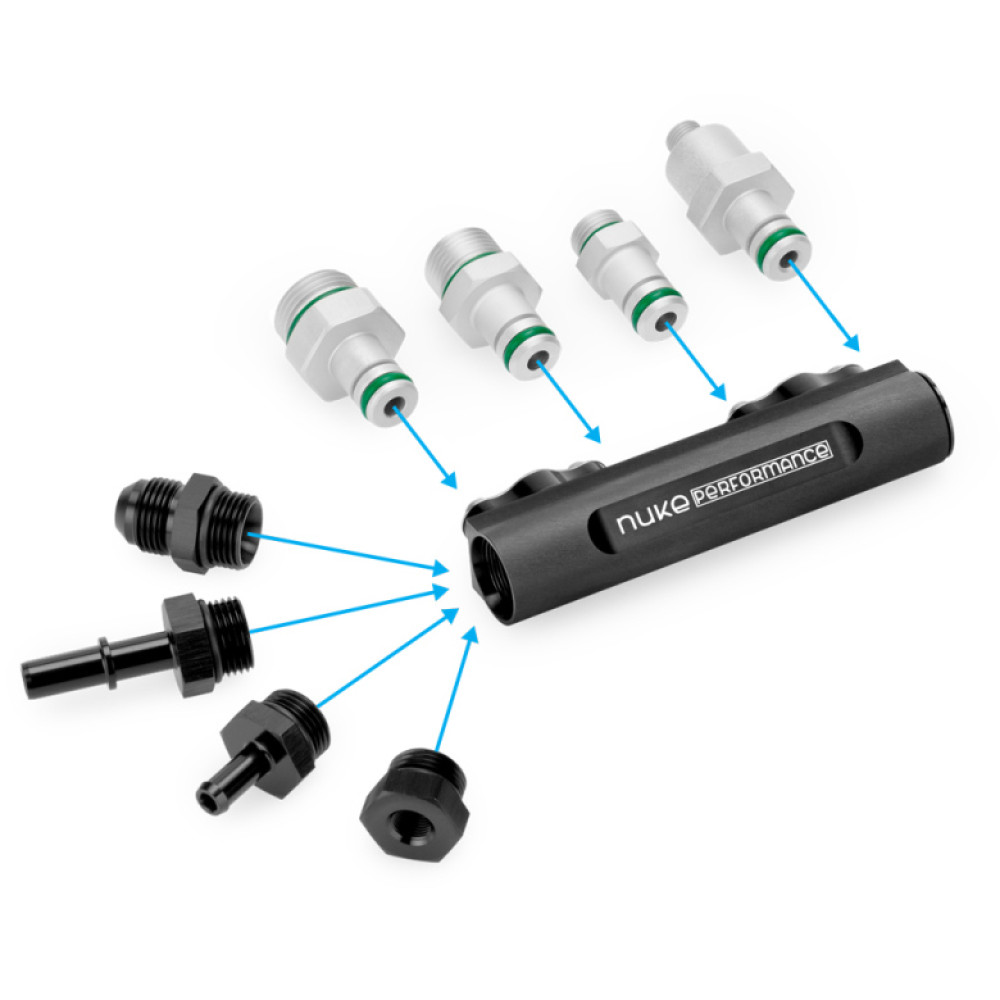

Adapter Compatibility (sold separately):

• AN-6 ORB (Part # 1200-20-003): Deatschwerks DW250il, AEM 400L
• AN-8 ORB (Part # 1200-20-004): Deatschwerks DW350il, DW650il Brushless
• AN-10 ORB (Part # 1200-20-005): Nuke Performance in-line fuel filters
• M10x1.0mm (Part # 1200-20-007): Bosch 200 (no check valve), Bosch 044 (with check valve), Walbro GSL 391/392/393/394/395/396
• M12x1.5mm (Part # 1200-20-006): Bosch 200 (with check valve), Bosch 044 (without check valve)

Note: Fuel log fittings are not included and must be purchased separately. Select the appropriate adapter for your application when ordering.

Bracket and Insert Options (sold separately):

• Dual Universal Bracket with Bosch 044 inserts (Part # 950-02-201)
• Dual Universal Bracket with fuel filter inserts (Part # 950-02-212)
• Single insert for Walbro GSL392, 43mm (Part # 960-01-101)
• Single insert for Nuke Slim fuel filter, 55mm (Part # 960-01-102)
• Single insert for Bosch 044, 60mm (Part # 960-01-103, included with bracket)
• Single insert for Deatschwerks DW250il, 52mm (Part # 960-01-104)

Included in the Box:

• 1 x Fuel Log AN-8 ORB body
• 2 x Stainless steel mounting clips
• 4 x MC6S M4x6mm stainless steel bolts
• 1 x AN-8 ORB Plug

Specifications:

• Inlet ports: 2 x injector-sized ports
• Outlet ports: AN-8 ORB (1x plug included)
• Inlet port spacing: 70.0mm (2.75")
• Length: 115.0mm (4.53")
• Weight: 95g (3.35oz)
• Fuel compatibility: Gasoline, Petrol, Methanol, Ethanol
• Motorsports use: Yes
• Replaces old part numbers: 700-01-110, 700-01-111, 100-10-202, 100-10-203, 100-10-204, 100-10-205, 100-10-206 (old 3/4 UNF generation no longer available)
• Part #: 125-01-201
• EAN: 7340209501391

This fuel log is built for enthusiasts who demand reliability, adaptability, and a clean installation when running multiple in-line fuel pumps or filters. Perfect for custom fuel systems in motorsport, street, or track builds.
