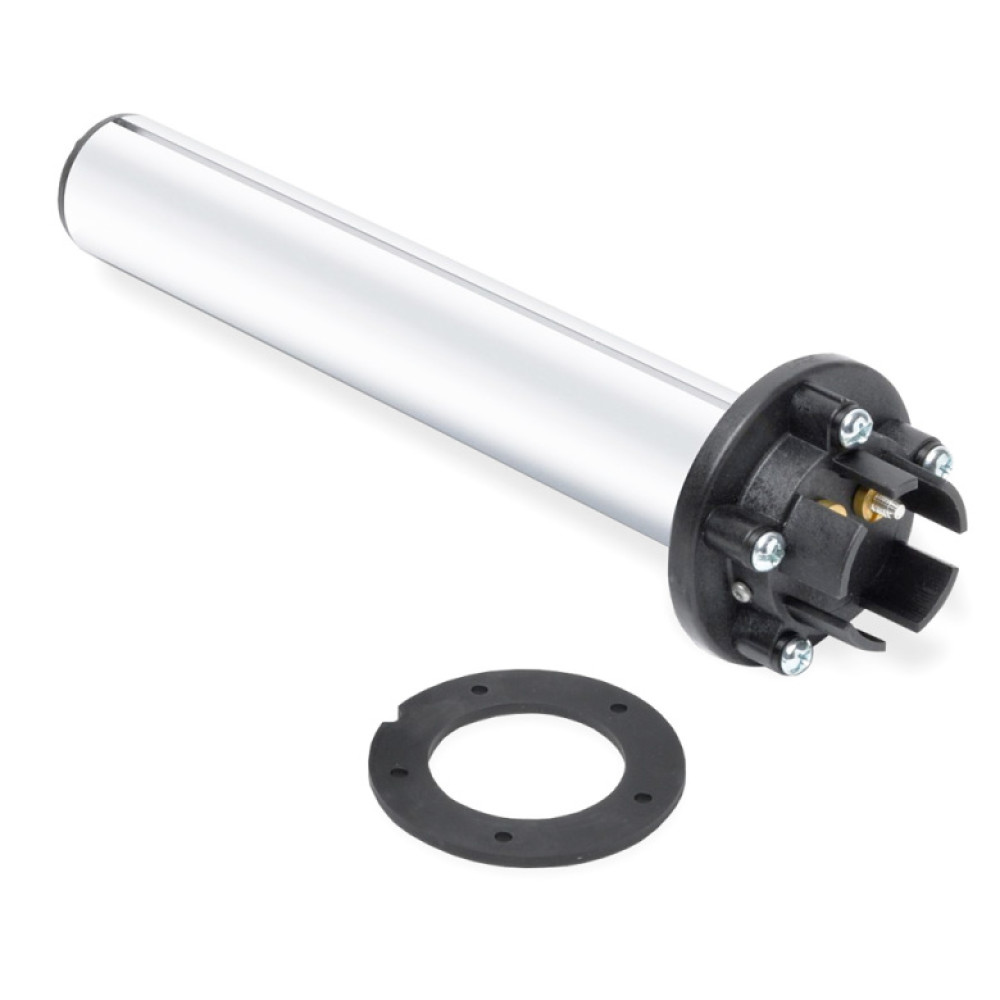

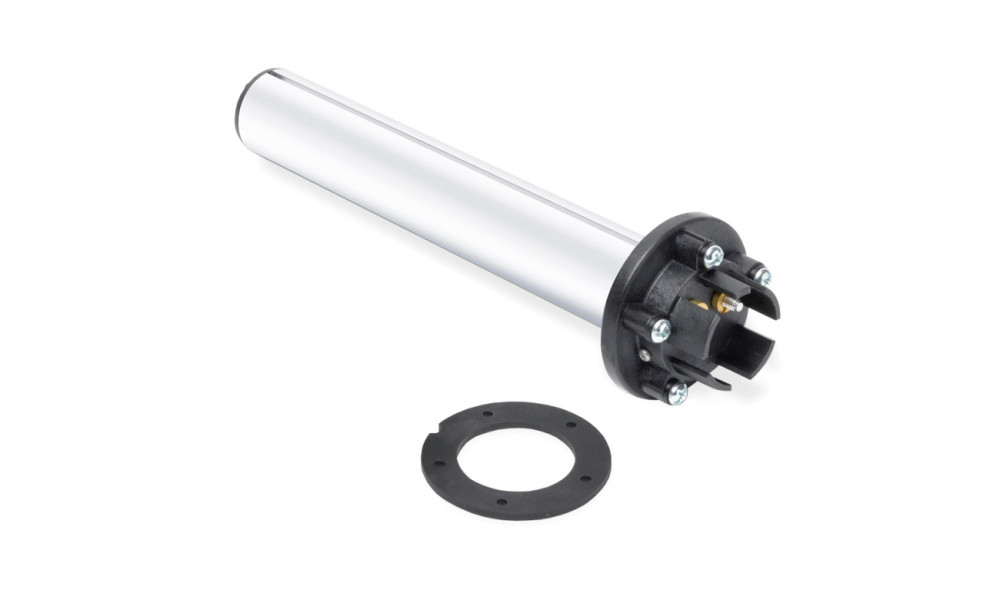

ISSPRO Fuel Level Sending Unit for Nuke Performance CFC Unit

The ISSPRO fuel level sending unit is designed to fit the Nuke Performance Competition Fuel Cell (CFC) Unit, offering precise fuel level monitoring for motorsport and aftermarket applications. Compatible with standard SAE 5-bolt mounting patterns, this sending unit is available in multiple lengths to suit a wide range of popular fuel cells. Choose between 0-90 Ohms or 240-33 Ohms resistance to match your gauge requirements.

Fitment:

• 150-FLS-08 (203 mm / 8"): Pyrotect 6.25 gal, 8 gal; ATL 30L, 45L, 45L Well Cell, 60L, 80L Saver Cells
• 150-FLS-09 (228 mm / 9"): Pyrotect 10 gal, 12 gal, 15 gal, 18 gal, 22 gal; ATL 40L Saver Cell; AluCell 20L, 40L, 45L Wellcell, 60L Aluminum Fuel Cells
• 150-FLS-10 (254 mm / 10"): N/A
• 150-FLS-12 (305 mm / 12"): Pyrotect 17 gal; AluCell 80L Aluminum Fuel Cell
• 150-FLS-13 (330 mm / 13"): Pyrotect 24 gal
• 150-FLS-15 (381 mm / 15"): Pyrotect 26 gal, 32 gal
• 150-FLS-16 (406 mm / 16"): N/A

Technical Specifications:

• Resistance: 0 Ohms (empty) to 90 Ohms (full)
• Optional version: 240-33 Ohms
• Mounting: Standard SAE 5-bolt pattern
• Compatible with petrol, methanol, and ethanol
• Available in several lengths—select size when ordering

Compatibility: Fits most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz, and more. Perfect match for the Nuke Performance CFC Unit.

Adapter Plate / Spacer: An adapter plate (Part #150-10-117) is required if your sender has a wider diameter or uses the asymmetric 5-bolt pattern. This plate is included with all Nuke Performance CFC Units. Replacement plates are available if needed. Refer to the CFC Unit product manual for detailed mounting instructions.

Fuel Level Gauge: The fuel level gauge (0-90 Ohms, Part #150-FLG-01) is available separately for those who already have a sending unit.

Included:

• Fuel level sending unit (select length and resistance)
• Optional fuel level gauge (if selected)
• Adapter plate included with CFC Unit; available separately if needed
