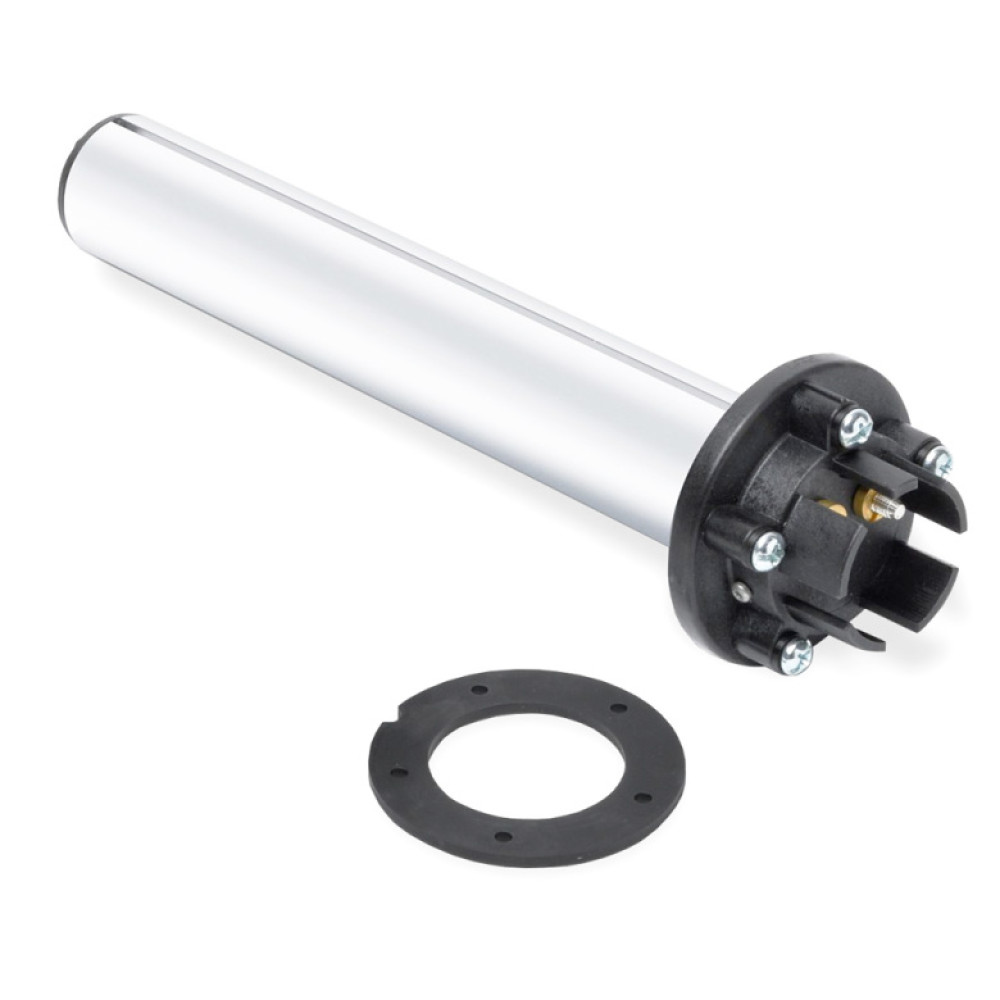

ISSPRO Fuel Level Sending Unit for Nuke Performance CFC Unit

The ISSPRO fuel level sending unit is engineered to fit the Nuke Performance Competition Fuel Cell (CFC) Unit, providing accurate fuel level readings for motorsports and performance applications. Available in 0-90 Ohms resistance (0 Ohms = empty, 90 Ohms = full), this sender fits the standard SAE 5-bolt mounting pattern and can be ordered with or without a matching fuel gauge.

Fitment:

• Direct fit for Nuke Performance CFC Unit
• Compatible with the following fuel cells:
  • 150-FLS-08 (203 mm / 8"): Pyrotect 6.25 gal, 8 gal; ATL 30L, 45L, 45L Well Cell, 60L, 80L Saver Cells
  • 150-FLS-09 (228 mm / 9"): Pyrotect 10 gal, 12 gal, 15 gal, 18 gal, 22 gal; ATL 40L Saver Cell; AluCell 20L, 40L, 45L Wellcell, 60L Aluminum Fuel Cells
  • 150-FLS-10 (254 mm / 10"): N/A
  • 150-FLS-12 (305 mm / 12"): Pyrotect 17 gal; AluCell 80L Aluminum Fuel Cell
  • 150-FLS-13 (330 mm / 13"): Pyrotect 24 gal
  • 150-FLS-15 (381 mm / 15"): Pyrotect 26 gal, 32 gal
  • 150-FLS-16 (406 mm / 16"): N/A

Specifications:

• Resistance: 0-90 Ohms (optional 240-33 Ohms available)
• Mounting: Standard SAE 5-bolt pattern
• Compatible with petrol, methanol, and ethanol
• Available in multiple lengths – select correct size when ordering
• Ordered with or without matching fuel level gauge

Included Items:

• Fuel level sending unit

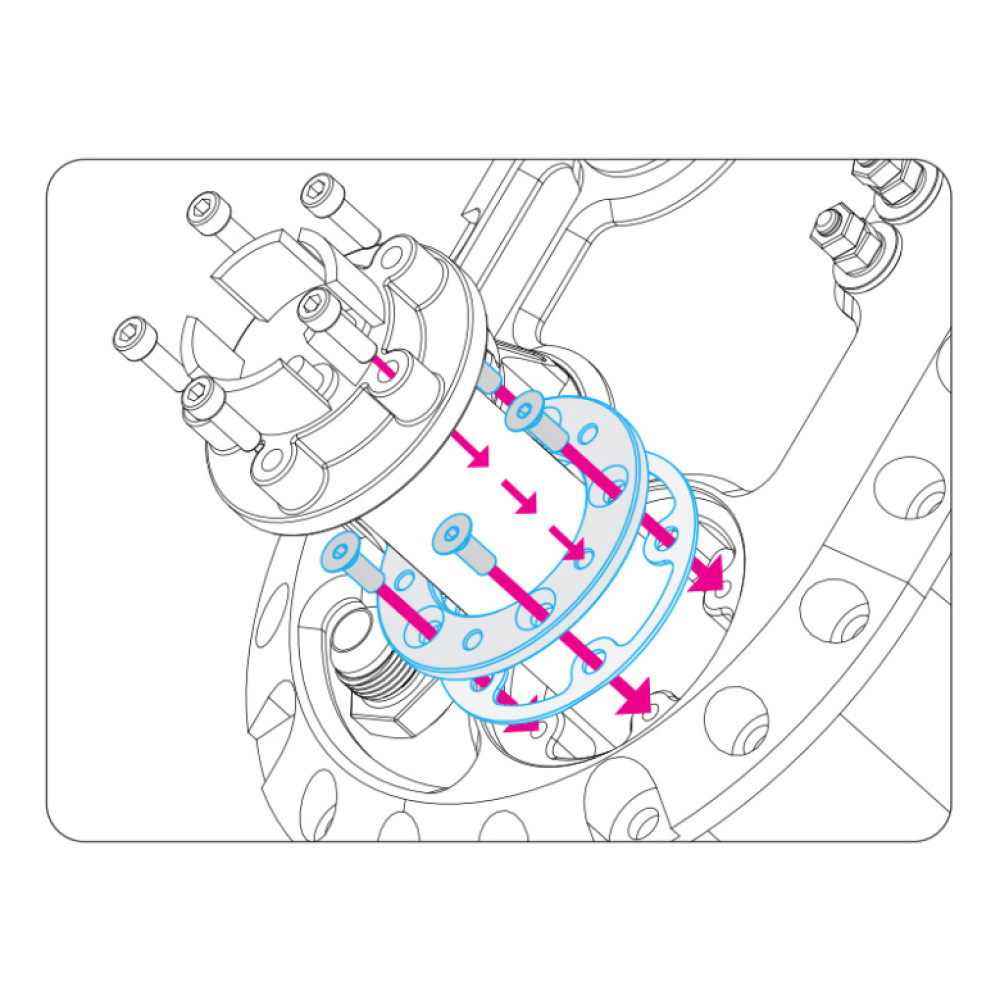

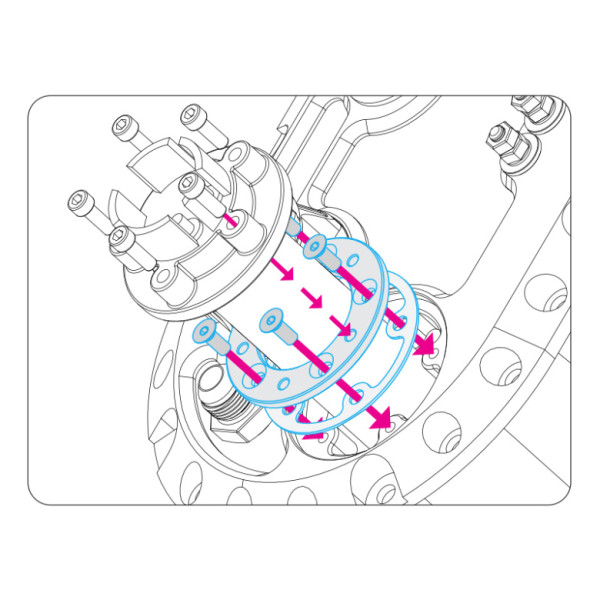

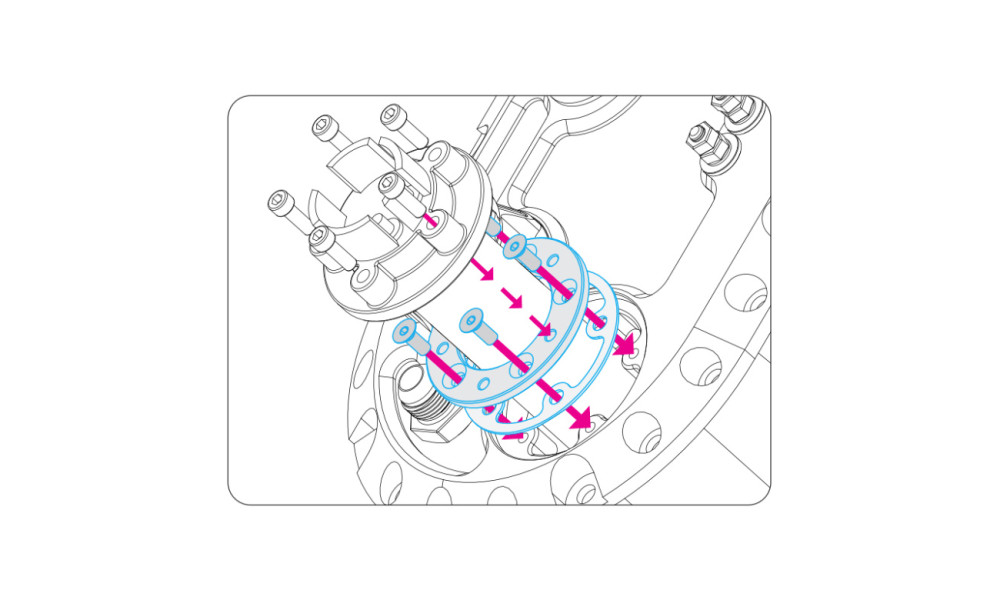

• Adapter plate/spacer is included with all Nuke Performance CFC Units; replacements available (Part #: 150-10-117)

Optional Accessories:

• Fuel Level Gauge 0-90 Ohms (Part #: 150-FLG-01) – available separately

Additional Information:

• Detailed installation instructions available in the CFC Unit product manual
• Fits most common aftermarket fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz, and more
