Nuke Performance 8 BAR / 120 PSI Air Jack 90 Competition – 4 Piece Complete Set

The Nuke Performance Air Jack 90 Competition 4pc set is engineered for motorsport enthusiasts who demand fast, reliable, and lightweight vehicle lifting. Designed to operate with standard 8 BAR (120 PSI) workshop air compressors, this system delivers professional-grade performance for race teams and track day builds.

Key Features

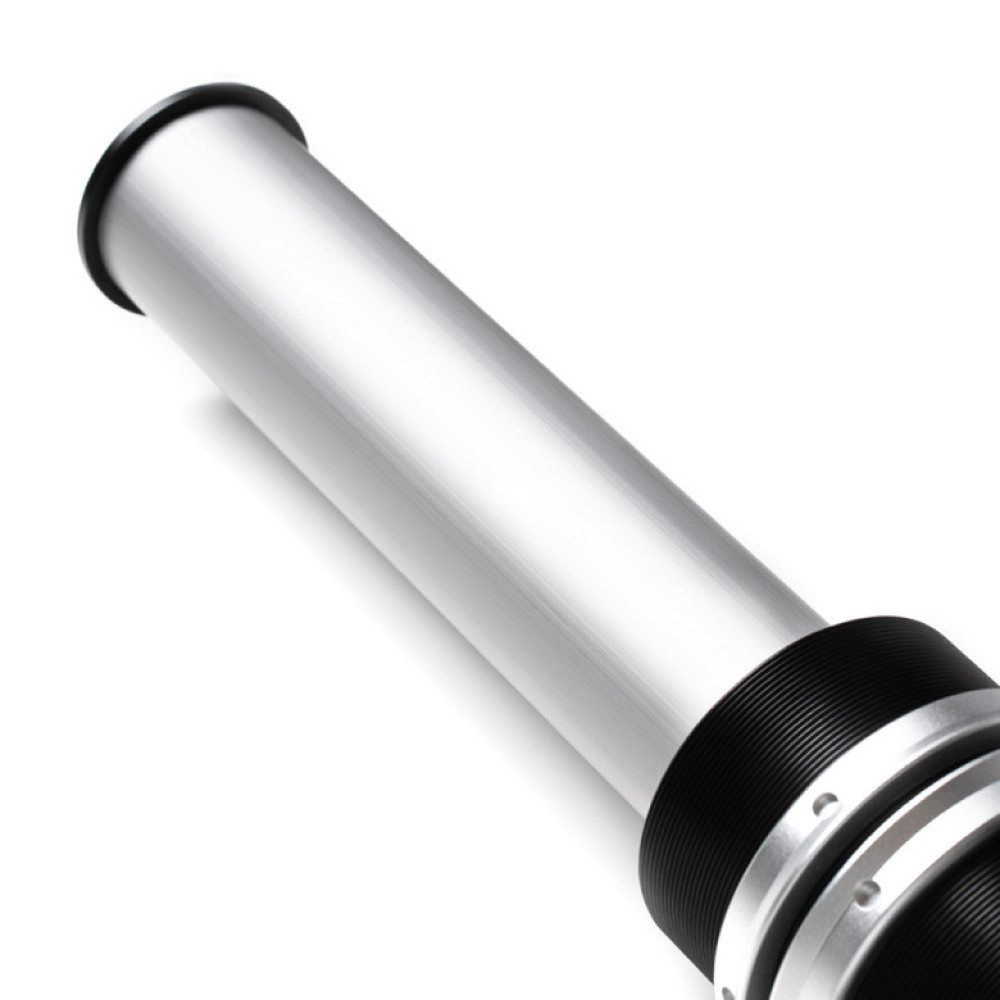

• Lightweight, high-strength aluminum construction for both body and piston rod
• Operates at 8–12 BAR (116–174 PSI) – compatible with standard workshop air compressors
• Each jack lifts 402 kg (886 lb) at 8 BAR, or 603 kg (1329 lb) at 12 BAR
• Total lifting capacity (4 jacks): 1608 kg (3545 lb) at 8 BAR, 2412 kg (5317 lb) at 12 BAR

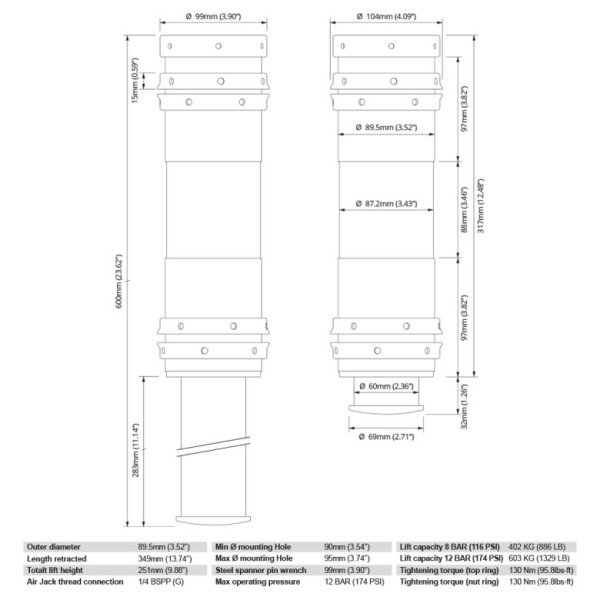

• Total lift height: 251 mm (9.88")
• Retracted length: 349 mm (13.74")
• Outer diameter: 89.5 mm (3.52")
• Mounting hole diameter: 90–95 mm (3.54–3.74")

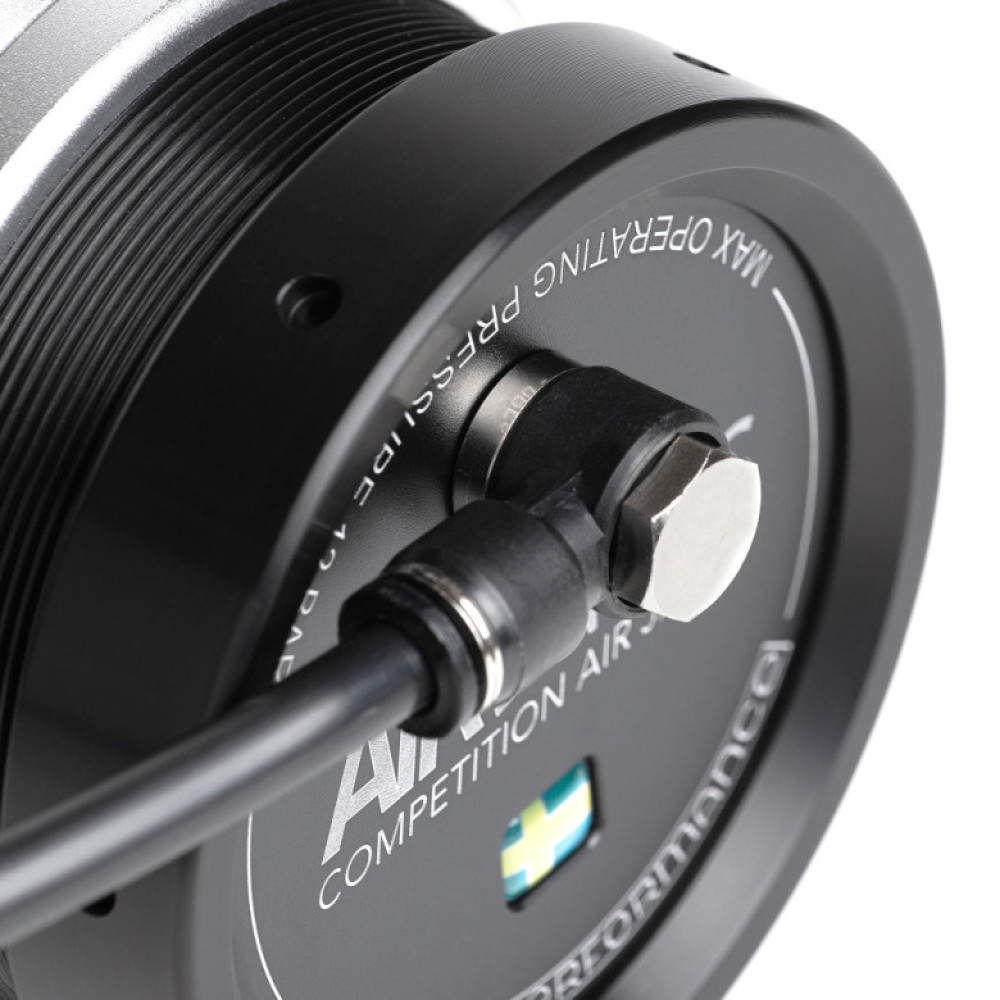

• 1/4 BSPP (G) thread air connection
• Internal high-strength tension spring and low-friction polyoxymethylene bearings
• Hard-anodized finish for durability and corrosion resistance
• Designed, developed, and manufactured in Sweden

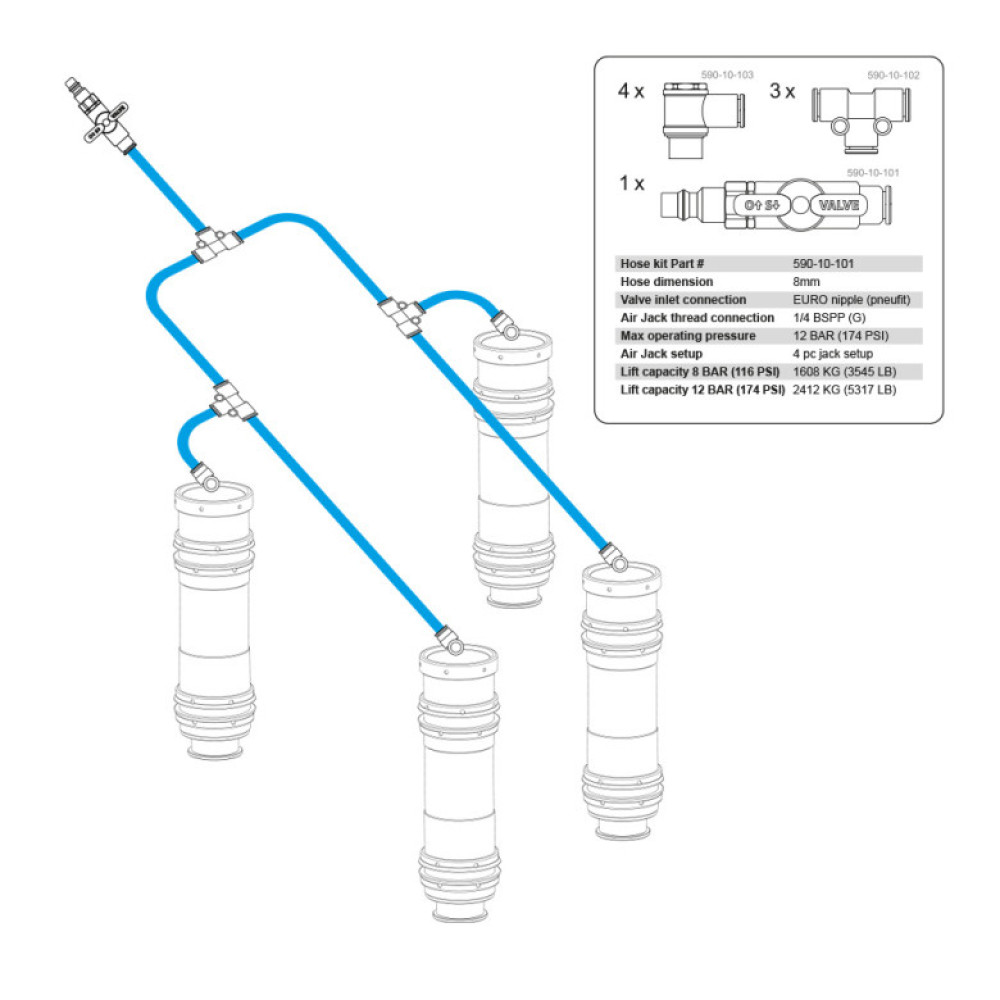

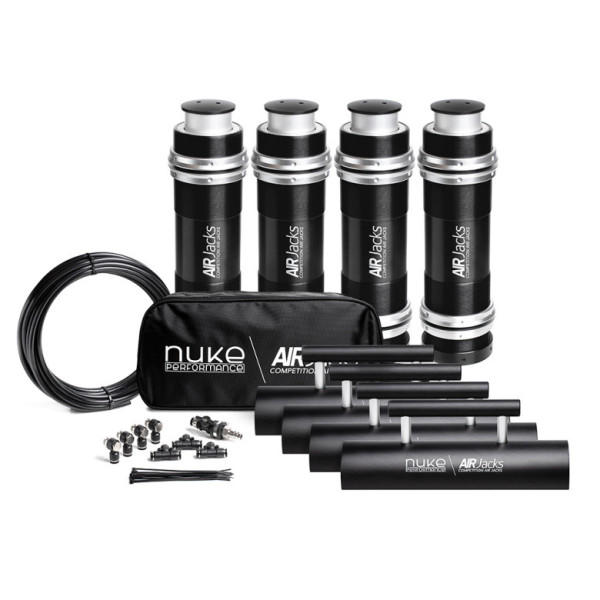

Complete Kit Includes

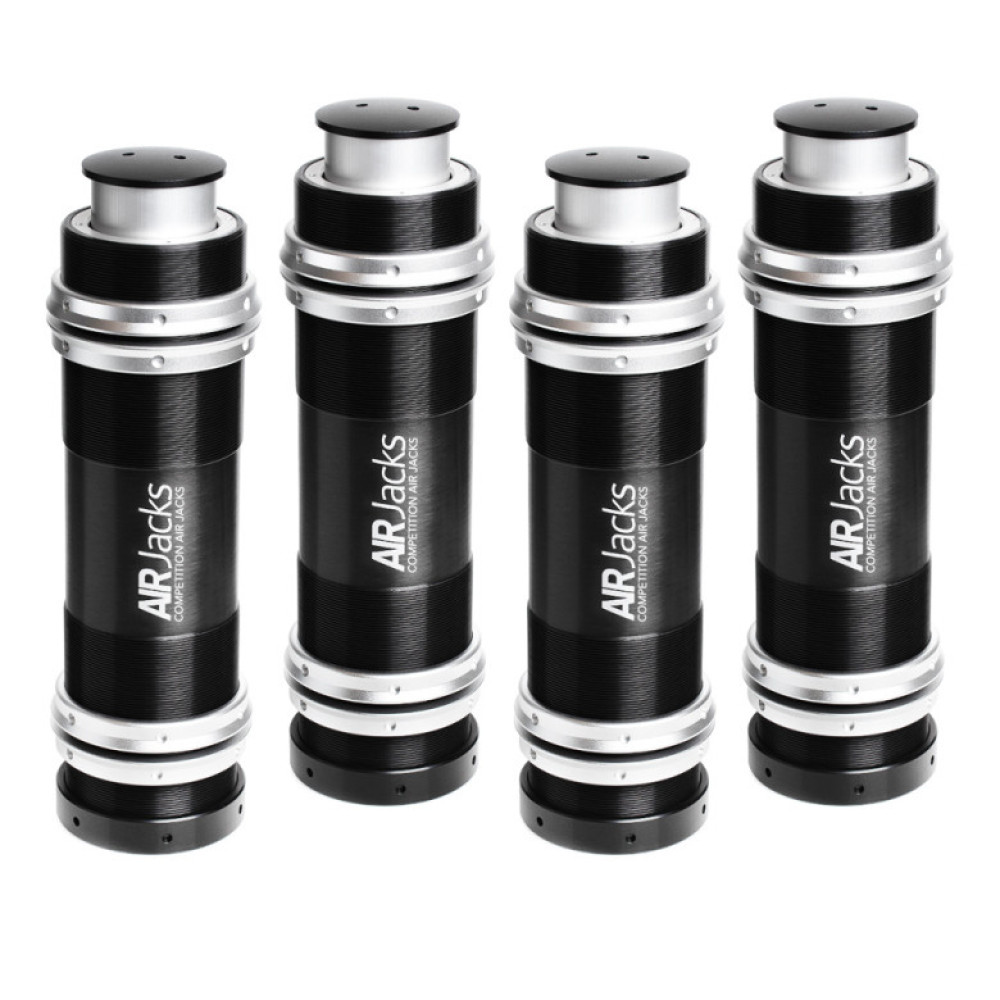

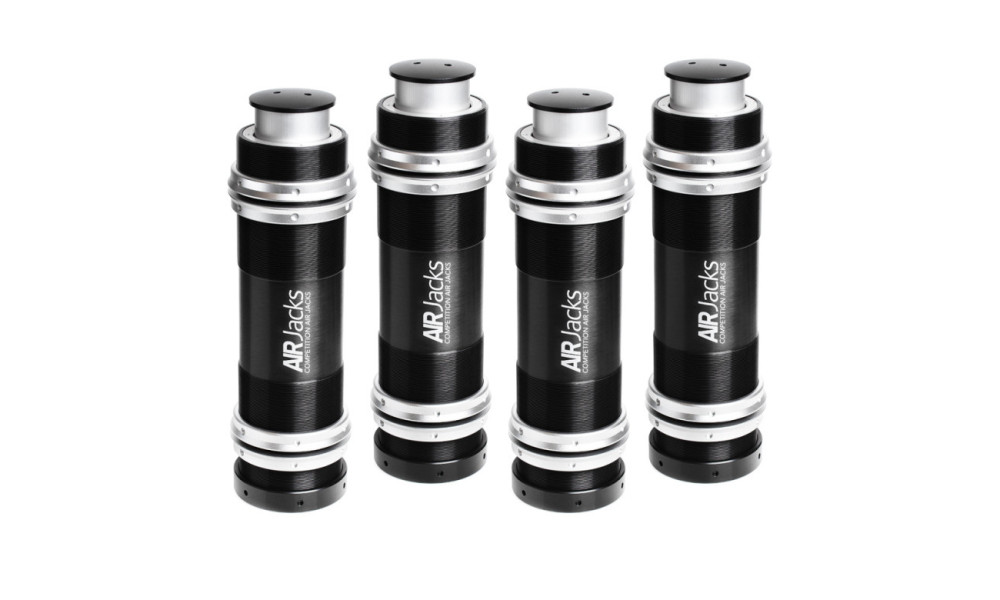

• 4 x Air Jack 90C air jacks
• 4 x Air Jack 90C safety props
• 1 x Safety prop carry bag
• 3 x Quick connect 8mm pneufit T-fittings
• 4 x 1/4" Barb fitting to quick connect 8mm
• 1 x Petcock ball valve with EURO pneufit fitting
• 10 m (32.8 ft) 8mm quick connect pneufit hose
• 10 x Cable ties

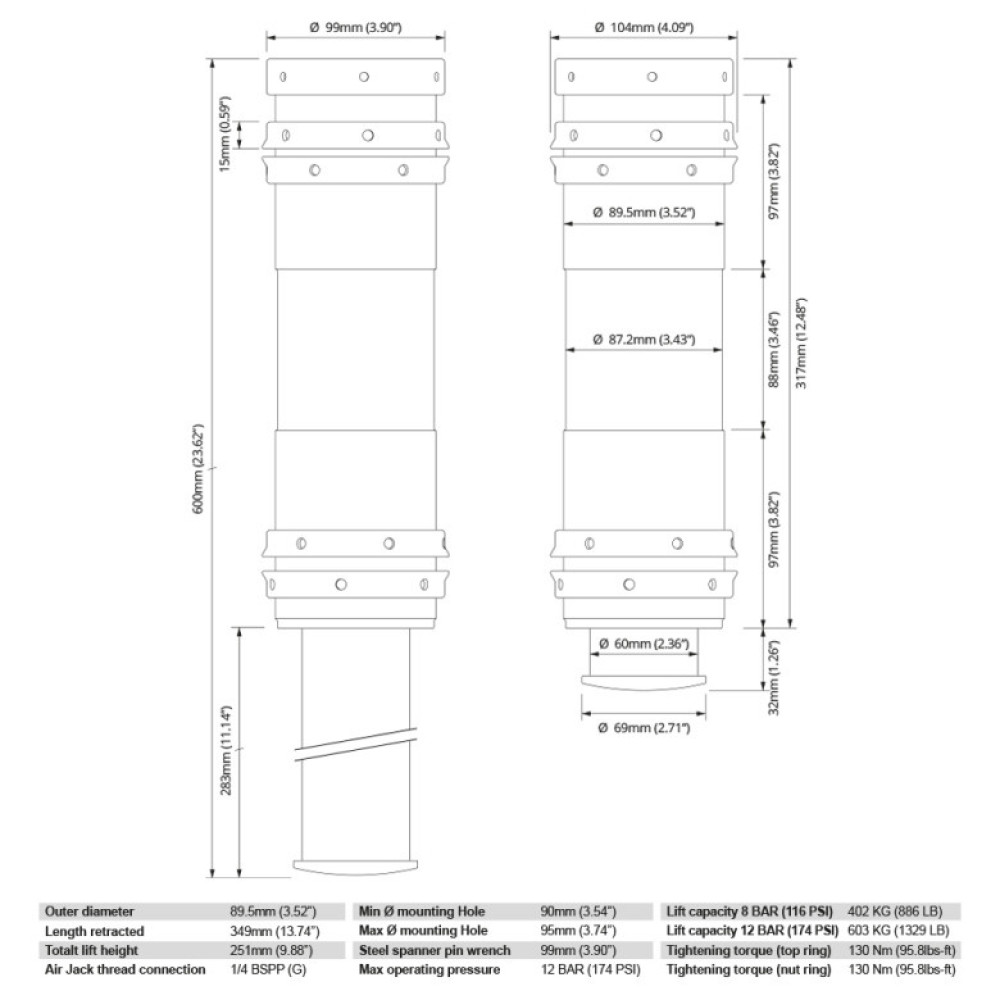

Specifications

• Lift capacity per jack: 402 kg (886 lb) at 8 BAR / 603 kg (1329 lb) at 12 BAR
• Max operating pressure: 12 BAR (174 PSI)
• Weight per jack: 2325 g (4.93 lb)
• Mounting nut diameter: 104 mm (4.09")

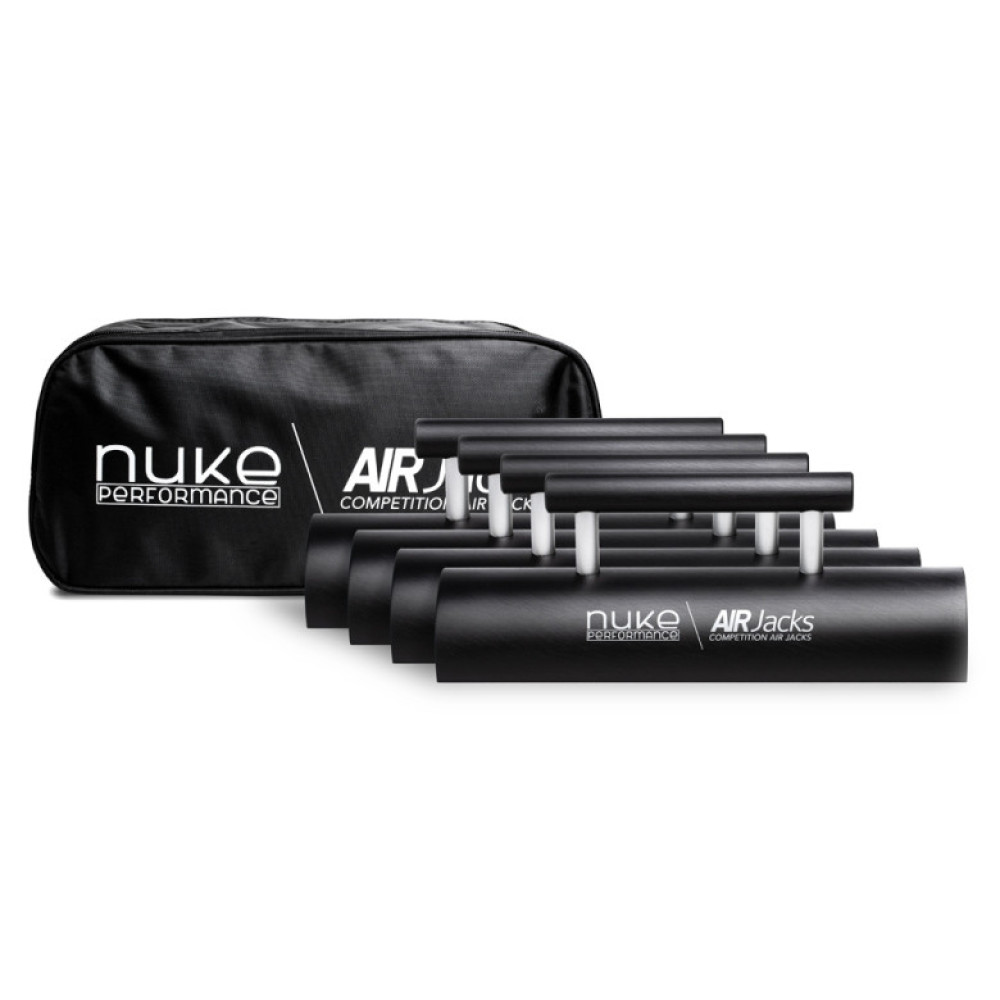

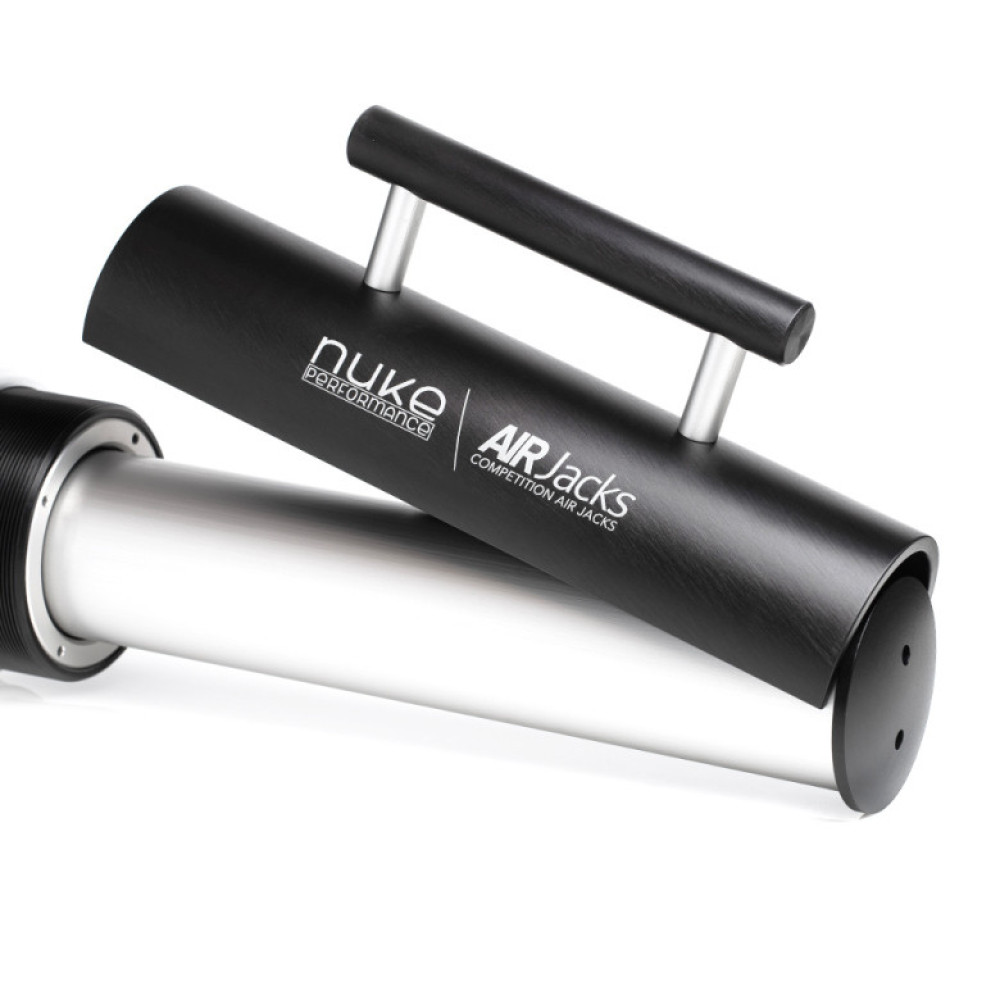

Safety Props

• Length: 258 mm (10.15")
• Grip length: 150 mm (5.90")
• Diameter: 69 mm (2.71")
• Depth: 95 mm (3.74")
• Weight: 530 g (1.16 lb)

Fitment & Installation

Ideal for a wide range of motorsport applications, including drag racing, drifting, touring cars, sports cars, GT racing, and time attack. Mounting accessories such as steel plates, brackets, and tubes are available separately for custom installations. Always use supplied safety props or additional supports when working under a lifted vehicle.
