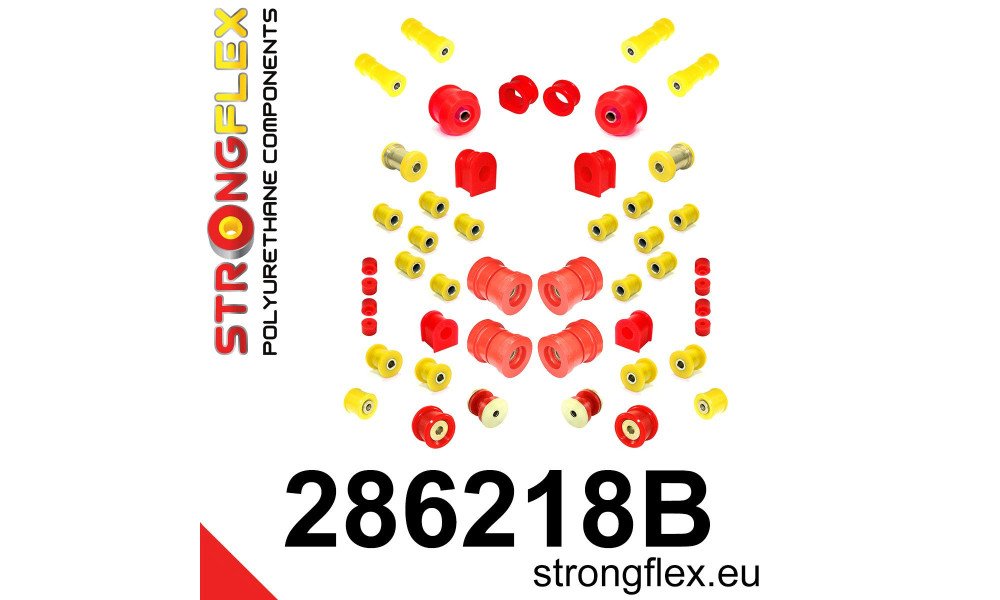

Reference: 286218B

Product Name: Complete Suspension Bushing Kit

Compatibility:

• Nissan Z 300ZX Z32 (1990-1996)

Included Components:

• 2x 281262B: Front Lower Radius Arm to Chassis Bushing
• 2x 281957A: Front Upper Arm - Upper Bushing (SPORT)
• 2x 281958A: Front Upper Arm - Lower Bushing (SPORT)
• 2x 281397A: Front Inner Track Control Arm Bushing 38mm (SPORT)
• 2x 281207B: Front Anti-Roll Bar Bushing

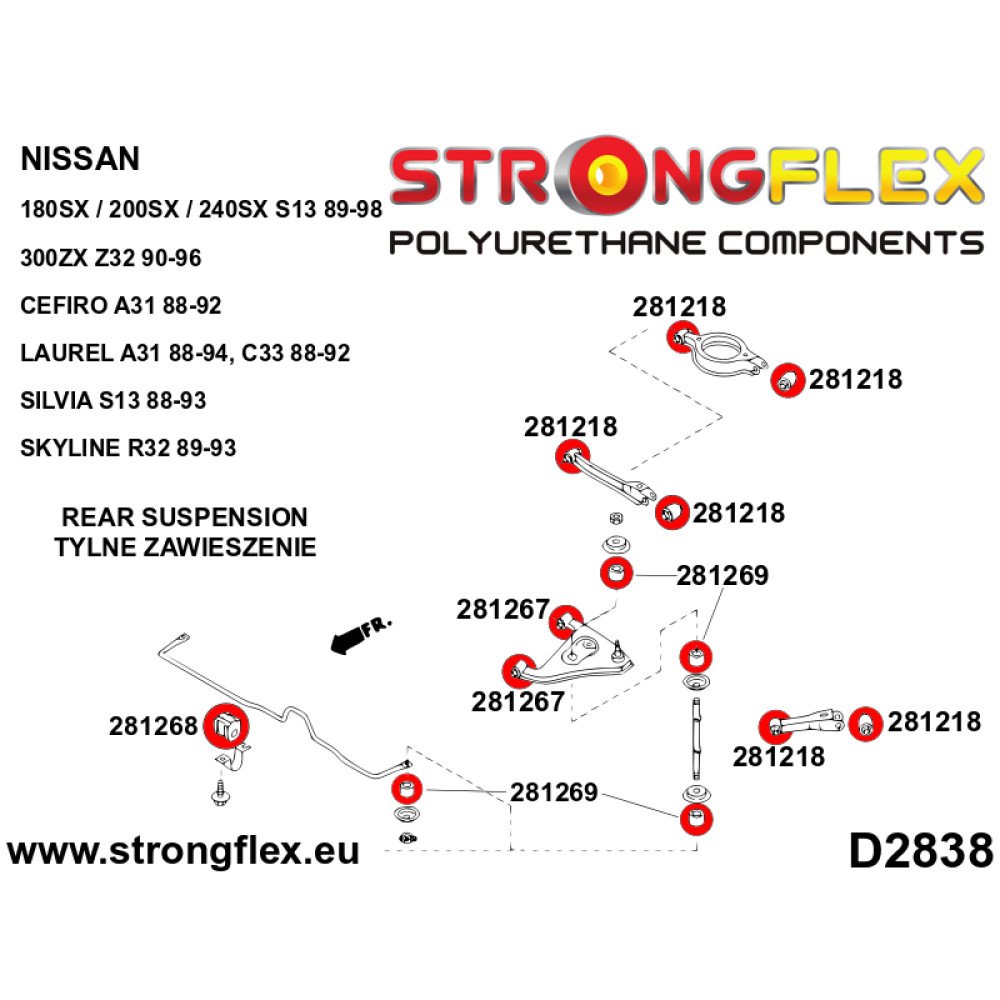

• 8/12x 281218A: Rear Arm Bushing (SPORT)

• 4x 281267A: Rear Lower Control Arm Bushing (SPORT)
• 2x 281268B: Rear Anti-Roll Bar Bushing
• 4x 281269B: Rear Anti-Roll Bar Link Bushing
• 4x 281270B: Rear Beam Mounting Bushing
• 1x 281261B: Steering Rack Mount Bushing

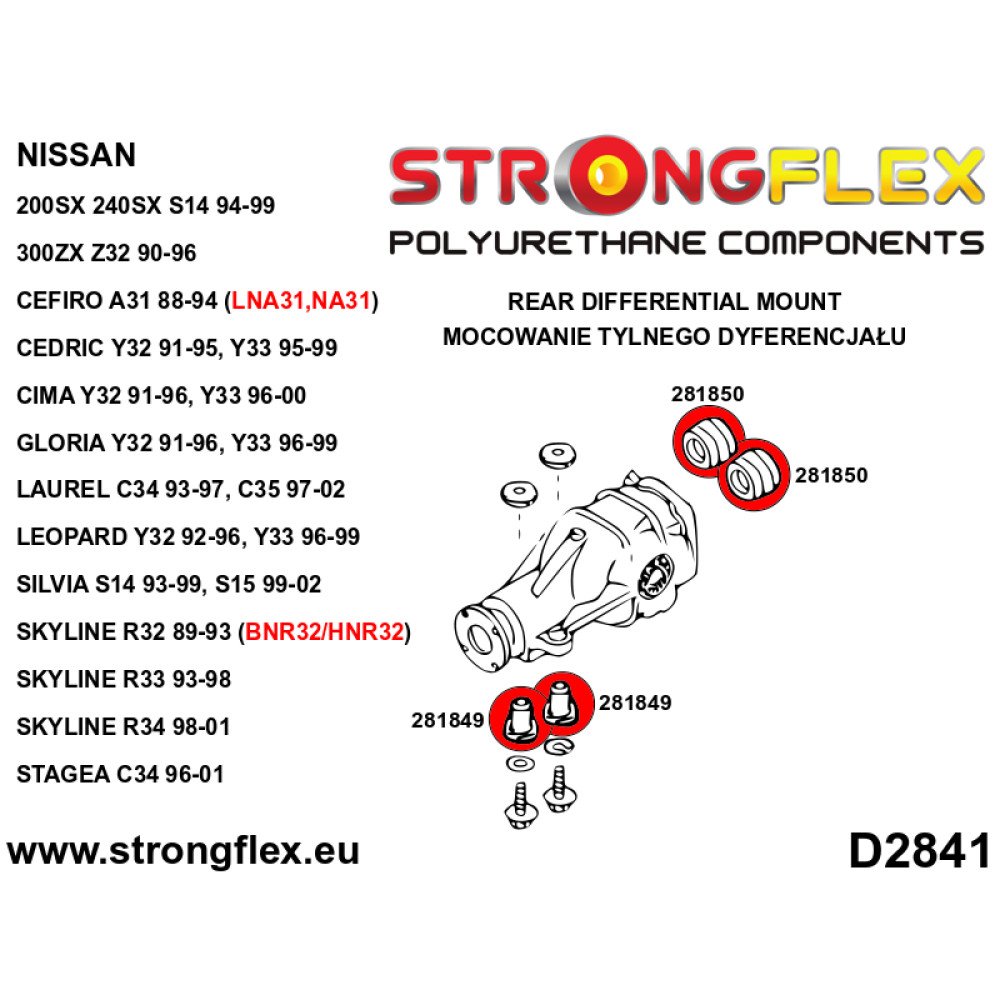

• 2x 281849B: Rear Differential Mount - Front Bushing
• 2x 281850B: Rear Differential Mount - Rear Bushing
• 0/2x 281959A: Rear Lower Shock Mount Bushing 45mm (SPORT)
  or
• 0/2x 281961A: Rear Lower Shock Mount Bushing 55mm (SPORT)

Diagrams:

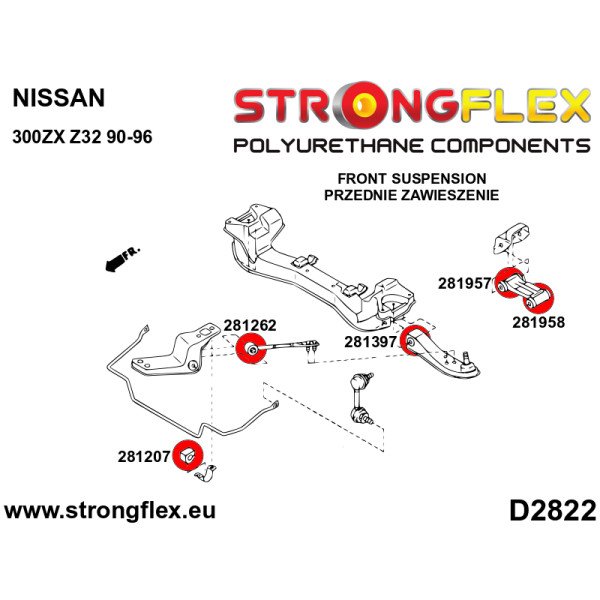

• D2822
• D2823

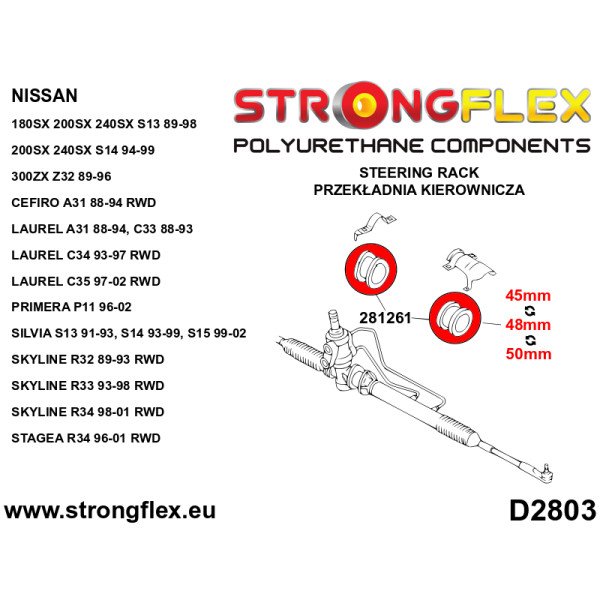

• D2803
• D2805
• D2820

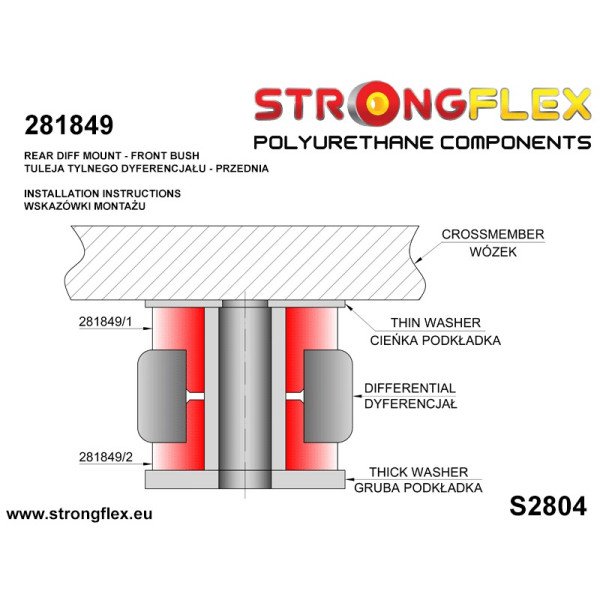

• S2804
• S2805

Important Notes

• 281218A: 8 pieces required with HICAS system; 12 pieces without.
• 281261A: Available in 45mm, 48mm, or 50mm diameter.

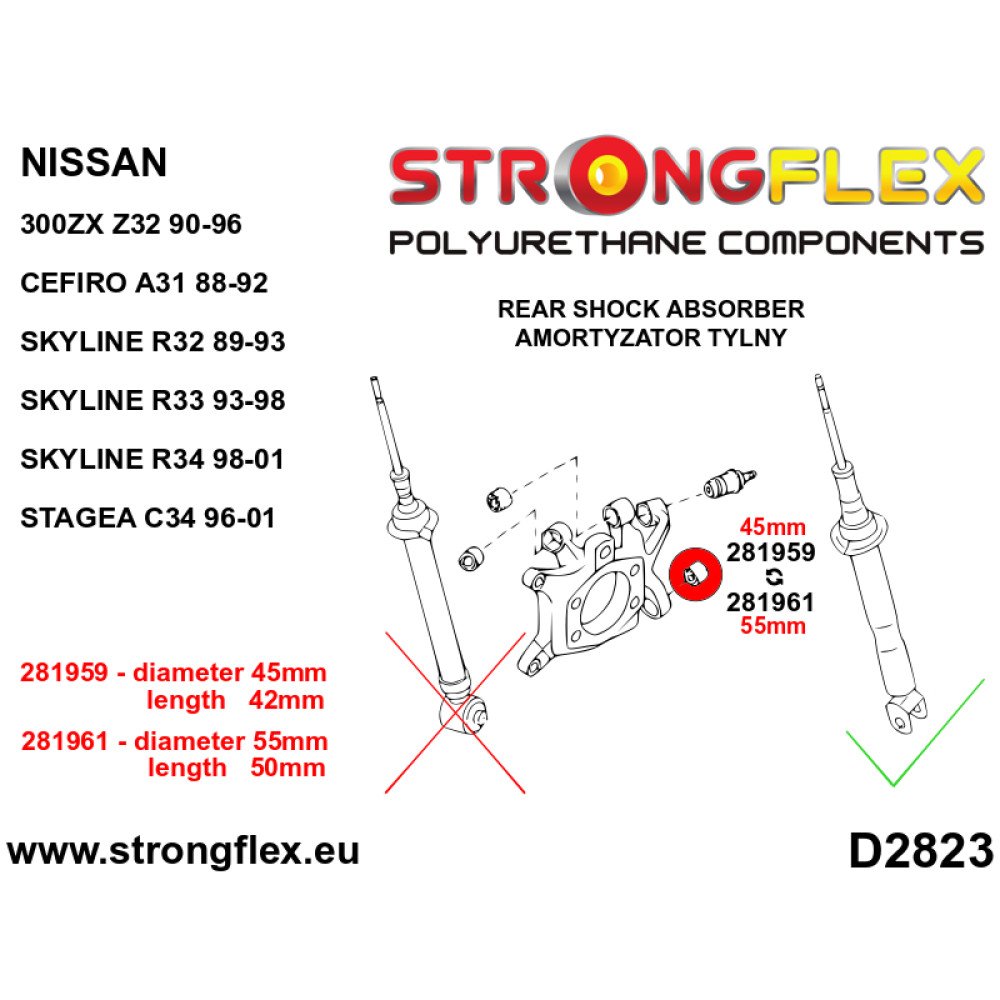

• 281959A or 281961A: Compatible only with aluminum steering knuckles and the appropriate shock absorber mount (refer to D2823).

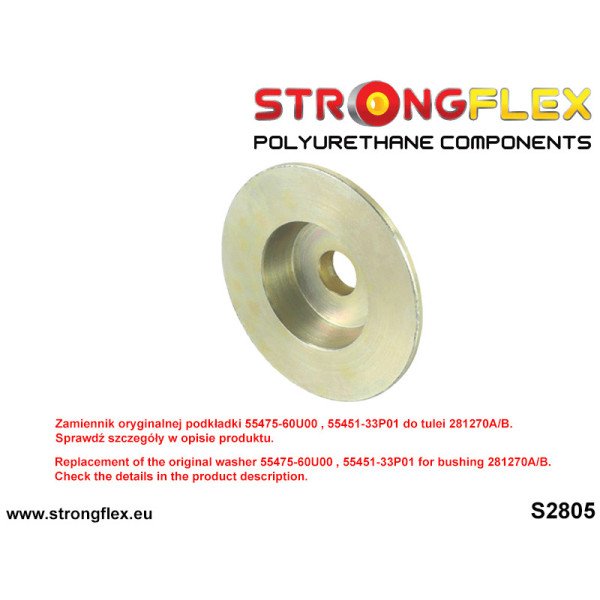

• For rear subframe bush washers, please select the required quantity in the "carriage bush washer" section.

Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 39/41

Hardness Rating: 80 Shore A

Material Composition: Polyurethane (PUR/PU)

Each kit comes with complimentary grease for optimal performance!
