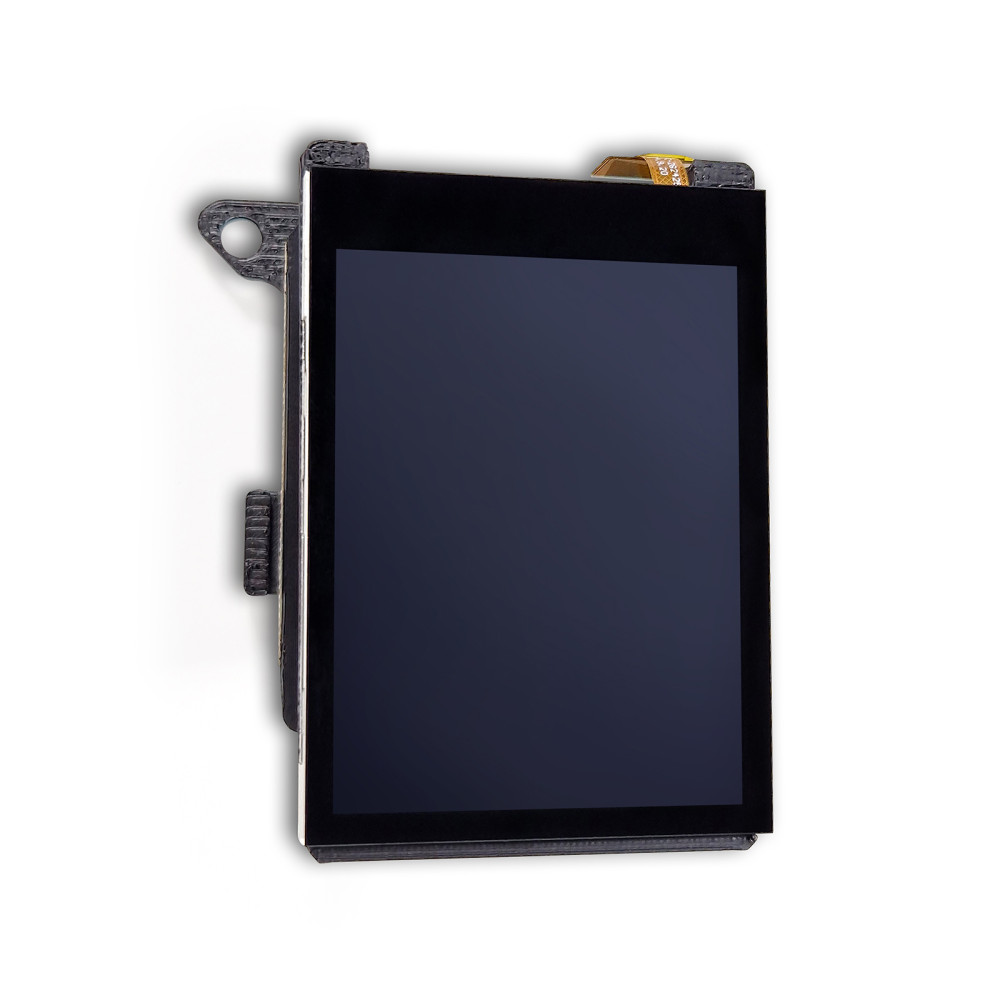

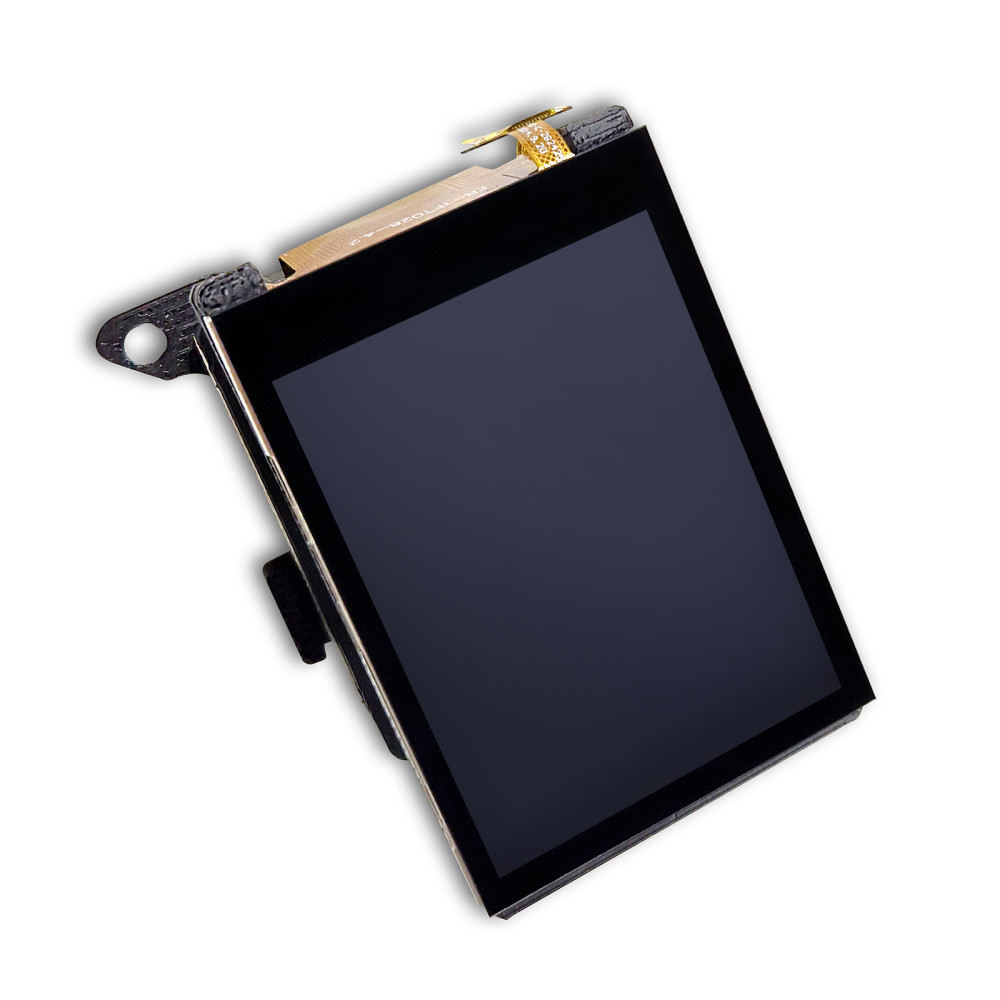

The vehicle-specific CANchecked MFD28 Gen2 for your Audi 80 B4

The MFD28 Gen2 transforms your speedometer unit into an intelligent display with essential features. Designed for easy installation, most displays come with illustrated instructions, allowing for a DIY setup without the need for a workshop.

Key Features

• Perfect integration: Vehicle-specific construction
• Can Bus: Readout of in-depth vehicle data similar to manufacturer diagnostic tools
• Gear display: Directly via Can Bus or calculated from speed and RPM
• Touchscreen: Navigate through pages using intuitive swipe gestures
• Customization: Design your own pages, add pictures, or start animations
• Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
• Can Switching: Use your display as a keypad to send custom CAN messages
• Customizable Alarms: Easily configure alarms, such as a warning for exhaust gas temperatures above 900 degrees
• Logging: Log and save data to the internal SD card for later analysis
• Performance Meter: Measure your 0-100, 100-200, and 0-200 times without additional hardware
• DTC: Read and clear errors from the engine control unit, transmission, ABS, and all-wheel drive
• Dimming: Automatic dimming in sync with the instrument panel

Different Views

Configure your own page or choose from several predefined views:

• Predefined sample pages included
• Creation of custom pages possible
• Up to ten pages available
• 20 different widget types (e.g., sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Widgets can be scaled and positioned using drag and drop
• Fully adjustable widget colors
• Up to 64 widgets per page

Display Setup Software - DSS

With the CANchecked DSS, you can fully customize your display. The integrated log viewer allows you to download and view log files, and a Can-Logger is included. The TRI Editor enables sensor adjustments, including assigning min/max values for warnings and renaming sensors.

Supported Values

The display supports a comprehensive range of values from your ECU, including:

Temperatures:

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature

Pressures:

• Boost pressure, ambient pressure, fuel pressure pre-feed pump, rail pressure actual/target

Lambda/Mixture:

• Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment

Other:

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing in %, terminal 30 voltage, torque, gear, diesel-specific values

If any values are missing, they can be added later.

Scope of Delivery

• MFD28 Gen2 data display integrated in the ventilation insert for OEM Dash vehicles

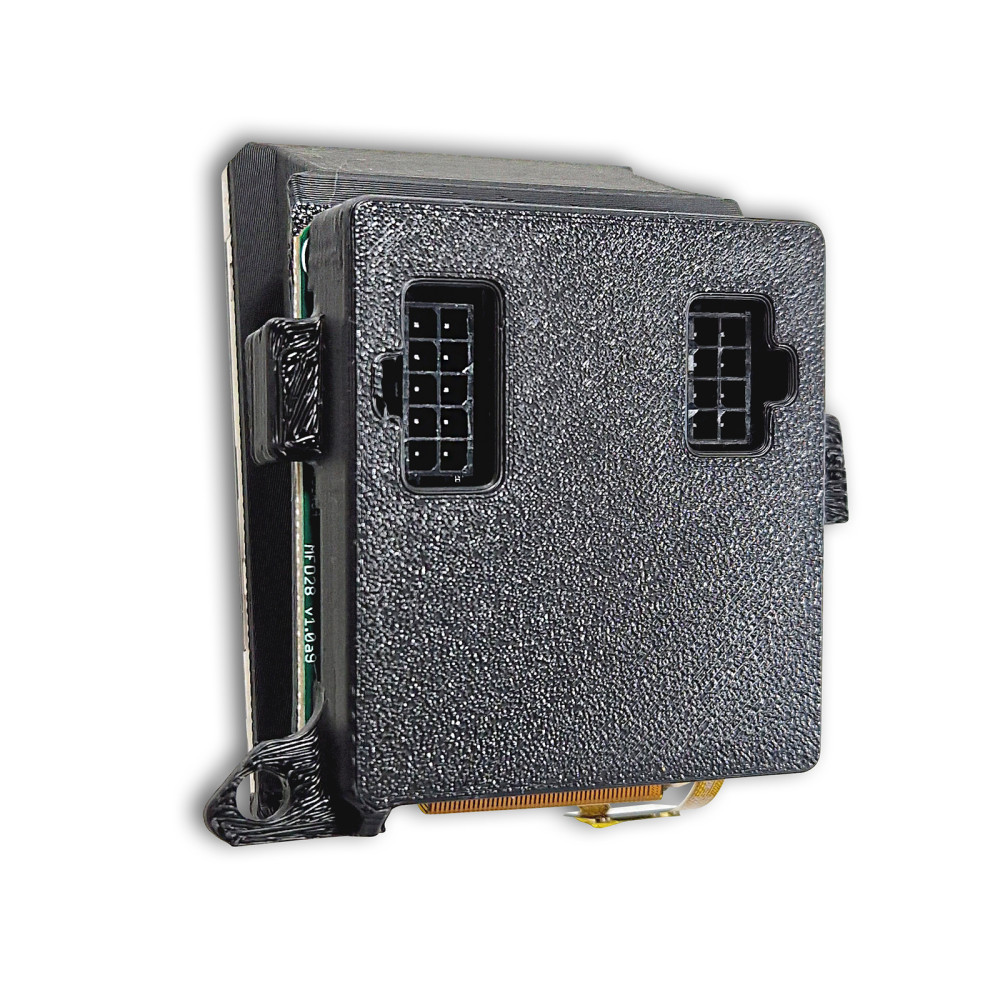

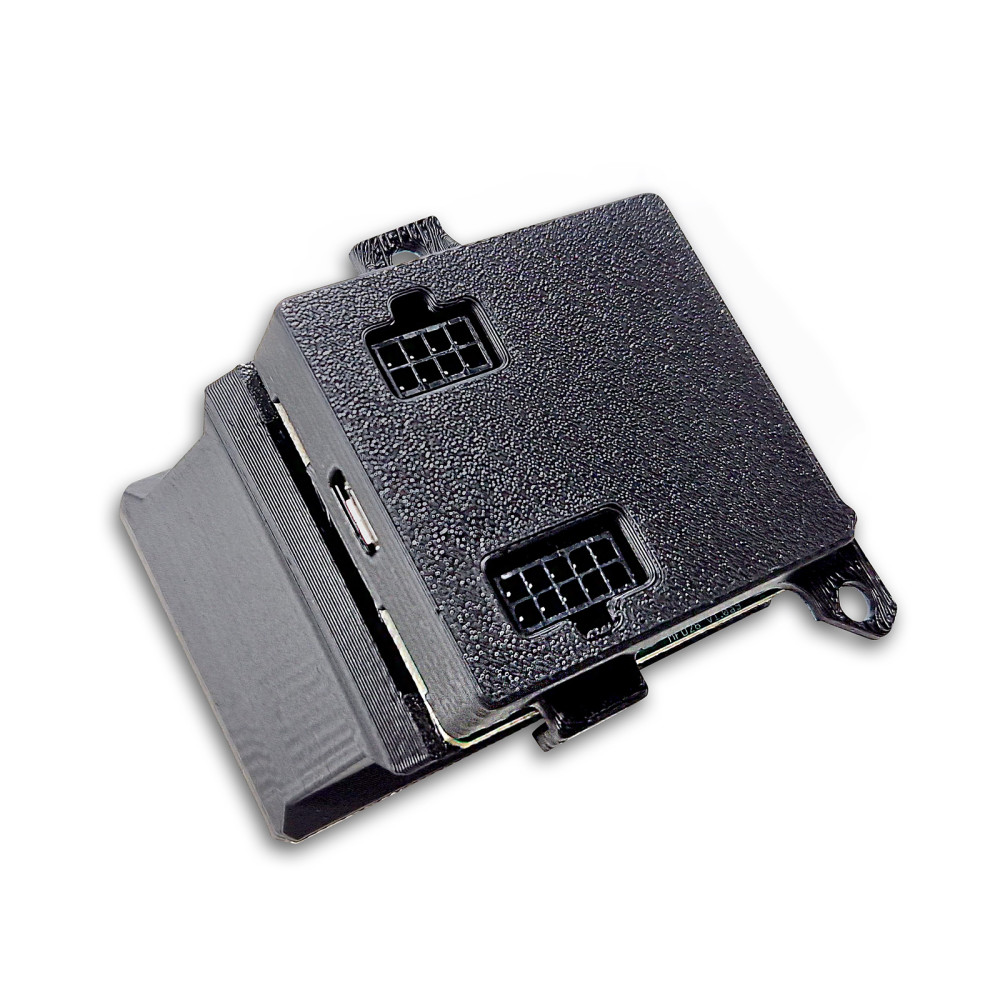

• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Pre-assembled connection cables (length: 20 cm, intended for power supply, Can Bus, analogue inputs, 5V, sensor ground)
• Pins for crimping
• Two 1K resistors (for connecting external NTC sensors)
• Quickstart Guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display foil (to prevent reflections)

Connection and Extension

Connect any sensors via the four analog inputs, supporting linear 0-5V and NTC sensors. The following CANchecked sensors are stored in the TRI/TRX files by default:

• AIN1: Temperature sensor (NTC01)
• AIN2: Transducer for exhaust gas temperature sensor type K (TCC01)
• AIN3: Pressure sensor 0-10 Bar (FLP01)
• AIN4: Boost pressure sensor 0-5.5 Bar absolute (BST10)

For connection, use the pre-assembled AIN wiring harness. Additionally, an external shift light with eight LEDs can be connected, configurable directly on the display. An ethanol sensor can also be connected directly to the display, requiring a pull-up resistor (10K) between 5V and the signal.

Advanced Functions

Utilize Math-Channels to calculate sensors against each other. The User-Table allows for generating additional sensors using 2D or 3D maps.
