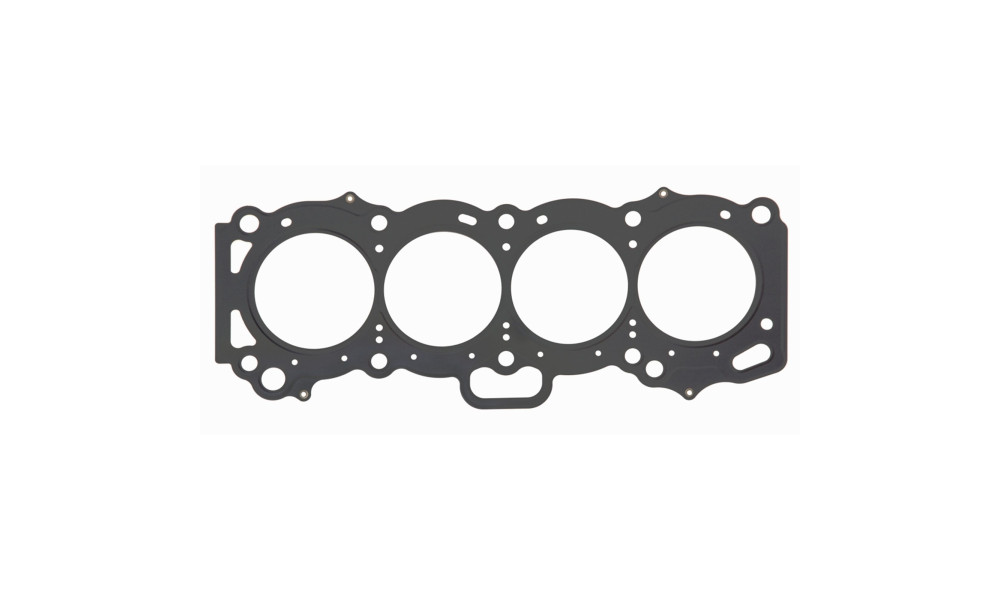

ATHENA (MLS) Multi Layer Gasket

Material

ATHENA MLS gaskets consist of 3 to 5 layers made from various raw materials. The combination of outer and inner layers is engineered to perform at higher compression levels than stock configurations, with the type of steel varying based on engine requirements. These gaskets ensure an even torque load across the sealing surface, compensating for any bore distortion. They are suitable for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.

Manufacturing Process

Athena MLS Head Gaskets are crafted from high-grade 301 stainless steel full hard material. Each layer is individually formed using advanced laser cutting technology and is embossed through an optimized formation process. Two head gasket layers undergo a stress-relieving process to significantly reduce stress induced by embossment forming. A proprietary two-part polymer coating is applied post-stress relief, ensuring uniform coverage of the outer layers without breaks in the coating, which guarantees a micro seal for engine coolant and oil fluids. Athena MLS gaskets are rigorously tested on Engine Dynos and endurance performances.

Gas Stopper Technology

Gas stopper technology is a crucial design feature of racing MLS head gaskets. The stainless-steel stopper layer incorporates an innovative “active fold” that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. This gas stopper is positioned around the combustion chamber, allowing for tighter clamping of the cylinder head and engine block, thereby preventing gas leaks from the combustion chamber. It also mitigates component distortion by facilitating quicker temperature equalization among various components.

Benefits

• Superior sealing properties under high pressure conditions
• Higher elasticity and constant load resistance
• Optimized load balance
• Improved engine performance
• Longer durability

Proprietary Coating Technology

The two-part polymer coating is applied after the stress-relieving process, ensuring uniform coverage of the outer layers without breaks in the coating. This process provides a micro seal for engine coolant and oil fluids, meeting the demands of various harsh environments. The first layer is a high-temperature compound that conforms to fill surface irregularities of the engine block deck and cylinder head. Athena’s gaskets can seal surface finishes up to 60 Ra, compared to the typical requirement of 30 Ra for MLS head gaskets. The second layer releases easily and will not adhere to mating surfaces during engine disassembly.

Fits:

TOYOTA 4A-GE 1587cc 85kw
TOYOTA 4A-GEL 1587cc 85kw
TOYOTA 4A-GELC 1587cc 80kw
TOYOTA CELICA Coupe (_T16_) 1.6 GT 16V (AT160_, AT160R) 1587cc 91kw
TOYOTA CELICA Hatchback (_T16_) 1.6 GT (AT160_, AT160R) 1587cc 85kw
TOYOTA CELICA Hatchback (_T16_)
