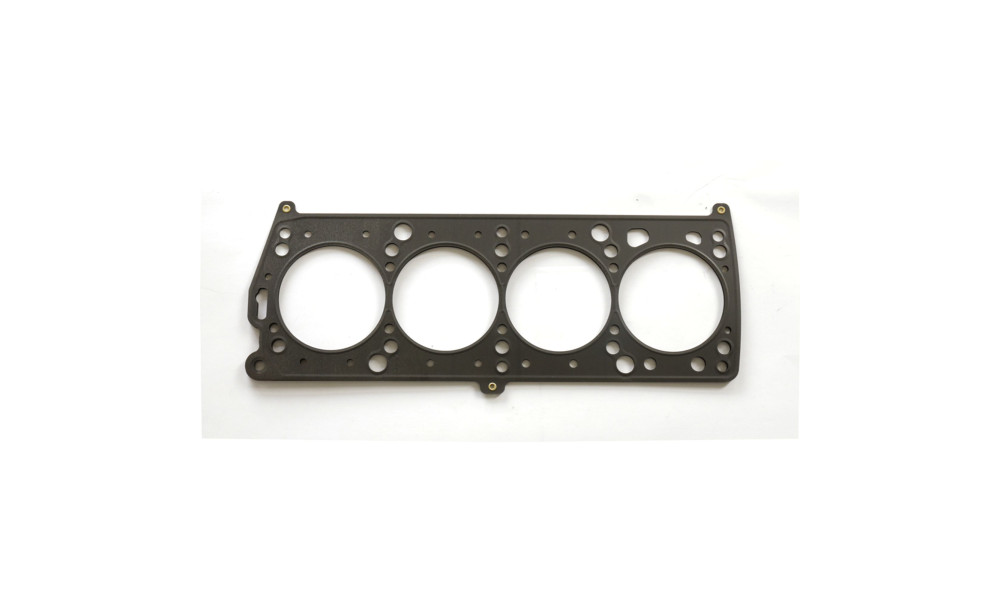

ATHENA (MLS) Multi Layer Gasket

Material

ATHENA MLS gaskets consist of 3 to 5 layers made from various raw materials. The combination of outer and inner layers is engineered to withstand higher compression levels than standard configurations, with the type of steel varying based on engine requirements. These gaskets ensure an even torque load across the sealing surface, compensating for any bore distortion. They are suitable for both aluminum heads paired with cast iron blocks and aluminum heads with aluminum blocks.

Manufacturing Process

Athena MLS Head Gaskets are crafted from high-grade 301 stainless steel in a full hard state. Each layer is precisely formed using advanced laser cutting technology and is embossed through an optimized formation process. Two of the head gasket layers undergo a stress-relieving process to minimize stress induced by embossment. A proprietary two-part polymer coating is applied post-stress relief, ensuring uniform coverage of the outer layers without any breaks in the coating, which guarantees a micro seal for engine coolant and oil fluids. Athena MLS gaskets are rigorously tested on engine dynos and for endurance performance.

Gas Stopper Technology

This technology is a crucial design element of racing MLS head gaskets. The stainless-steel stopper layer features an innovative “active fold” that provides a high-pressure seal around the cylinder bore when the cylinder head is tightened. The gas stopper is strategically placed around the combustion chamber, allowing for a tighter clamp between the cylinder head and engine block, effectively preventing gas leaks from the combustion chamber. This design also mitigates component distortion by facilitating quicker temperature equalization among the various components.

Benefits

• Superior sealing properties under high-pressure conditions
• Higher elasticity and constant load resistance
• Optimized load balance
• Improved engine performance
• Longer durability

Proprietary Coating Technology

The two-part polymer coating applied after the stress-relieving process ensures uniform coverage of the outer layers, maintaining a continuous seal. The first layer is a high-temperature compound that conforms to fill surface irregularities of the engine block deck and cylinder head. Athena MLS gaskets can seal surface finishes up to 60 Ra, while typical MLS head gaskets require a finish of 30 Ra. The second layer releases easily and does not adhere to mating surfaces during engine disassembly.

Fits:

FIAT 131 (131_) 1.6 Super 1585cc 71kw
FIAT 131 C3.000 1585cc 71kw
FIAT 131 Familiare/Panorama (131_) 1.6 Super 1585cc 72kw
FIAT 132 (132_) 1.6 1585cc 66kw
FIAT 132 C6.000 1585cc 66kw
FIAT 132 D.000 1585cc 66kw
FIAT 138 AR.000 1585cc 66kw
FIAT ARGENTA (132_) 1600 1585cc 72kw
