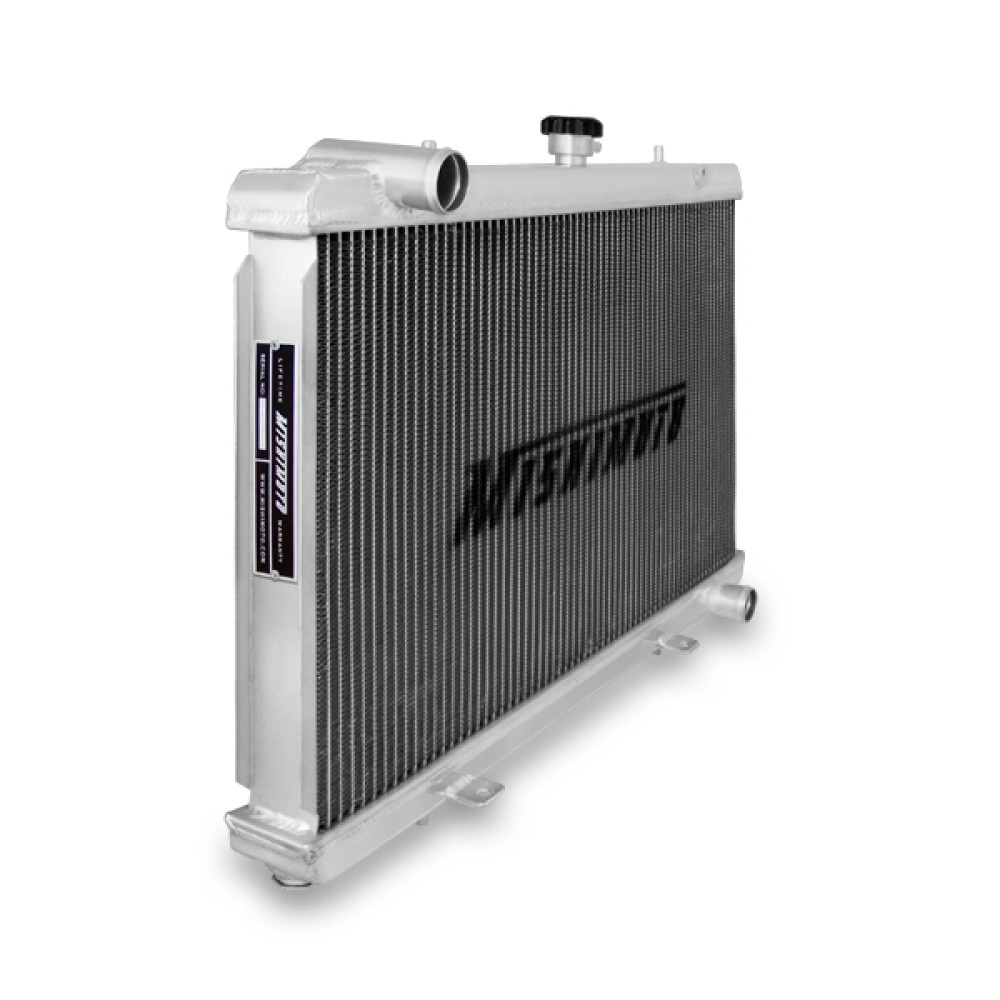

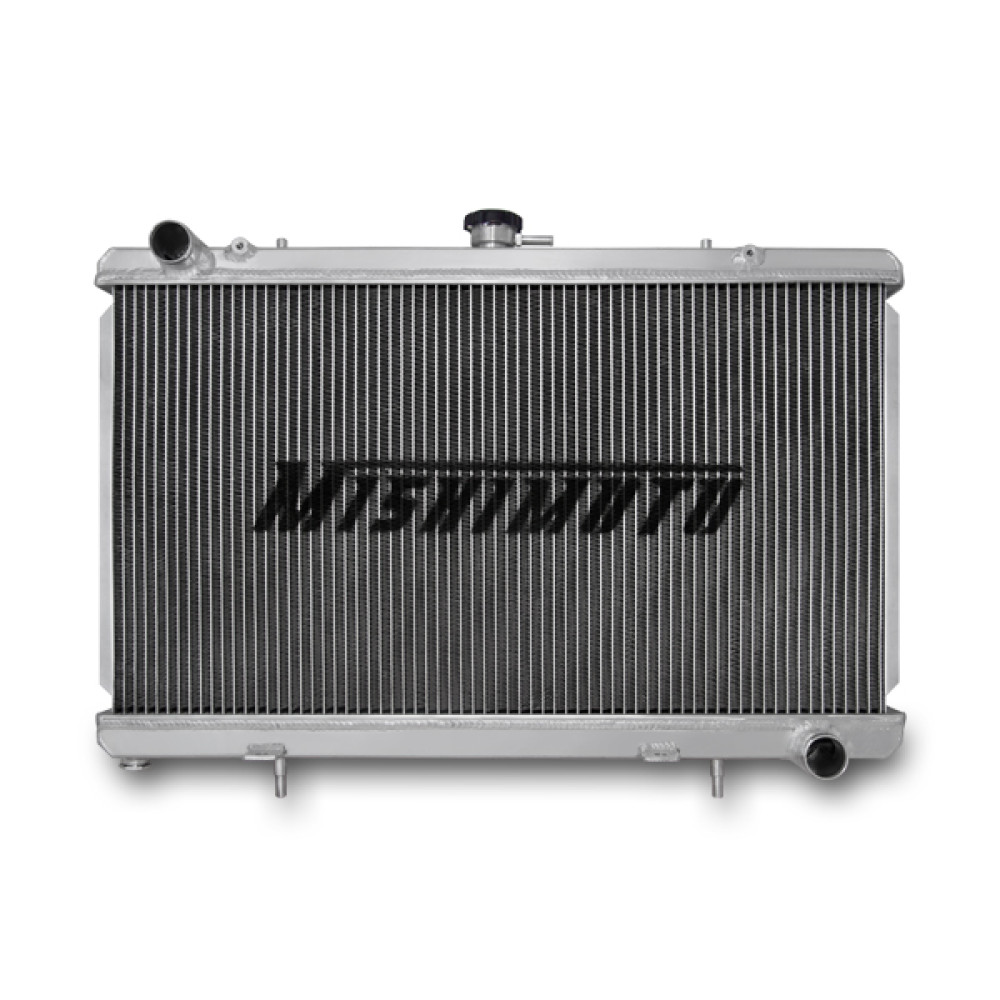

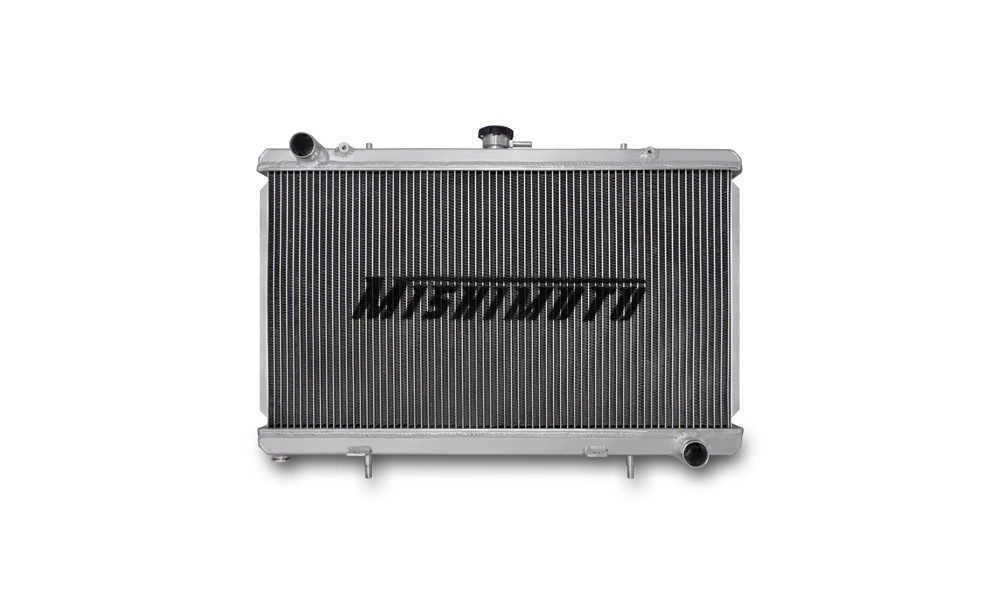

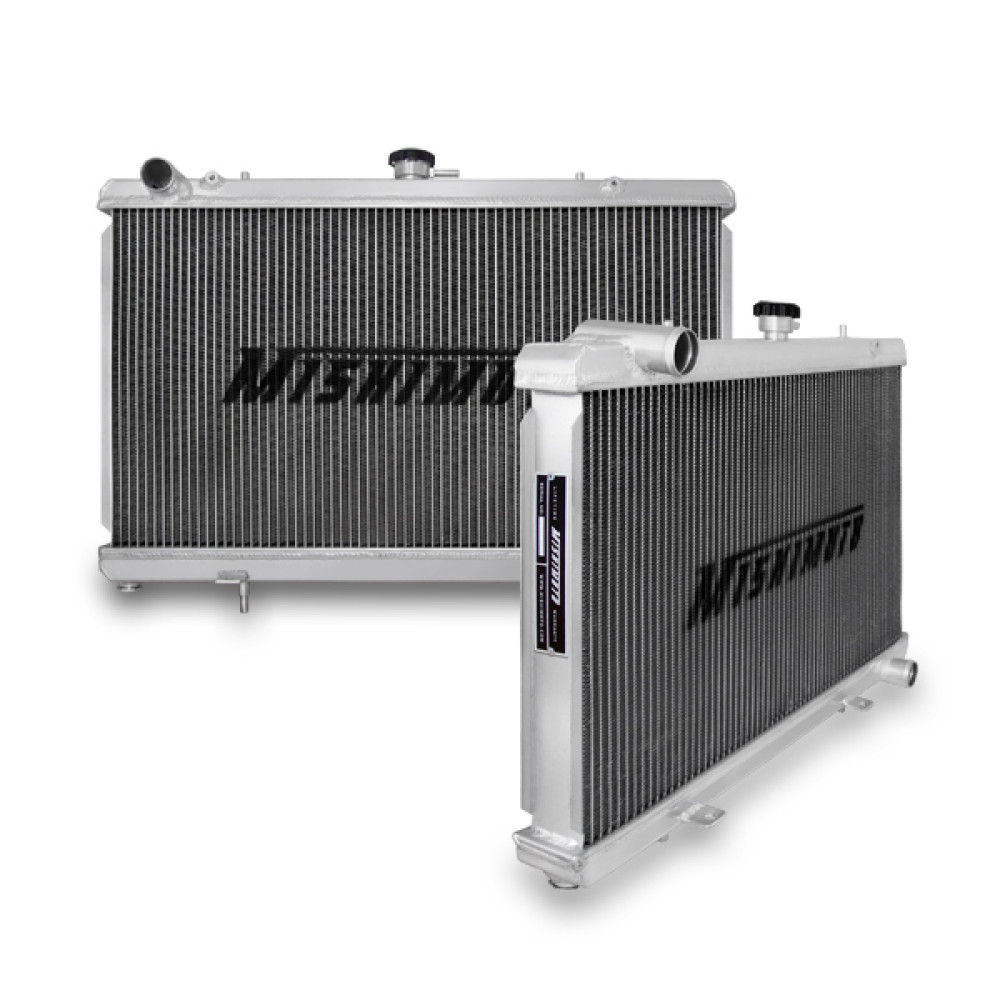

Mishimoto X-Line Performance Aluminum Radiator (1989–1994 Nissan 240SX SR20)

The Mishimoto X-Line Performance Aluminum Radiator is a direct OEM-fit replacement for the 1989–1994 Nissan 240SX with an SR20 engine. Built with a lightweight triple-core design and 100% brazed aluminum construction, it’s engineered to improve cooling efficiency and help prevent overheating. Polished end tanks and TIG-welded construction round out a durable, clean install with no cutting or modification required.

Key Features

• Direct fit for 1989–1994 Nissan 240SX SR20
• 3-row, triple-core aluminum radiator
• 100% brazed aluminum with polished end tanks
• TIG-welded construction
• Includes high-pressure 1.3 bar Mishimoto radiator cap
• Includes magnetic drain plug
• Mishimoto Lifetime Warranty

Specifications

• Overall size: 26.4" x 19.5" x 2.5"
• Core size: 14.17" x 25.29"
• Rows: 3
• Inlet & outlet: 1.48"
• Core thickness: 2"
• Tank wall thickness: 0.08"

For additional cooling efficiency, consider the S13 fan shroud kit.
