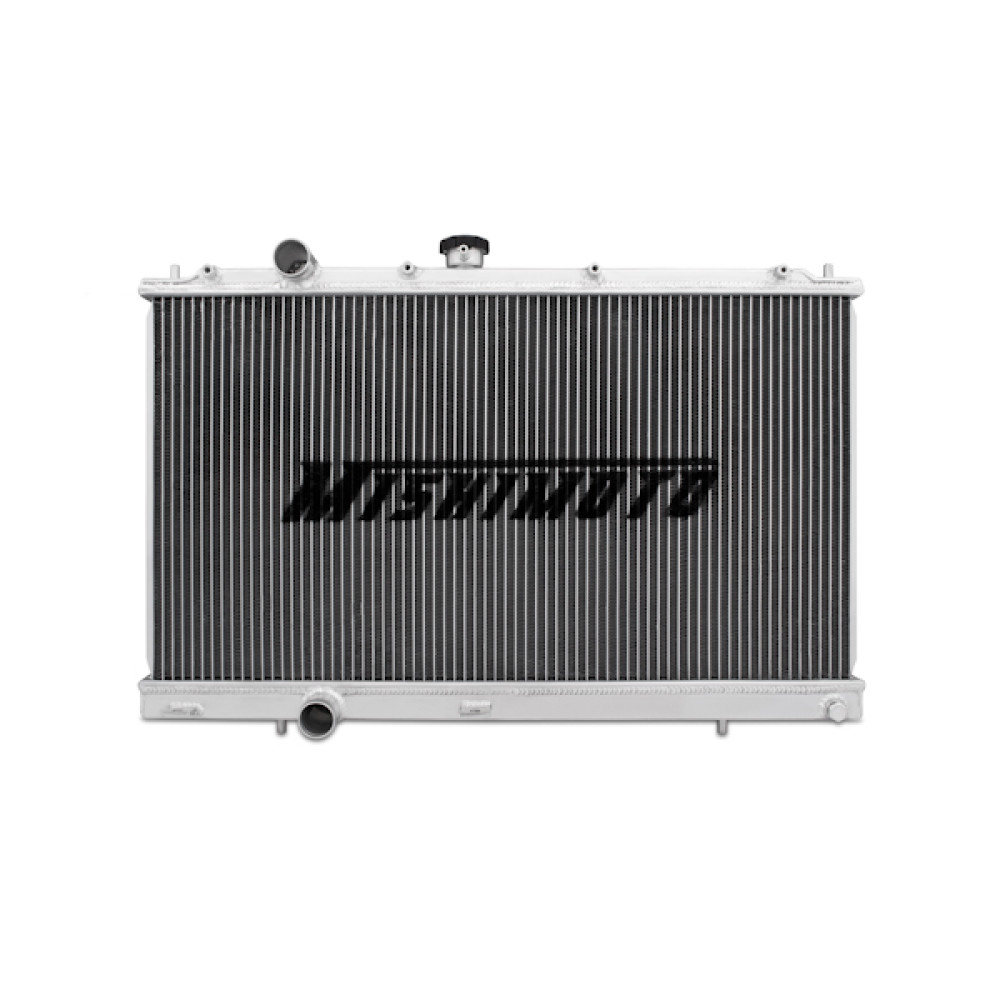

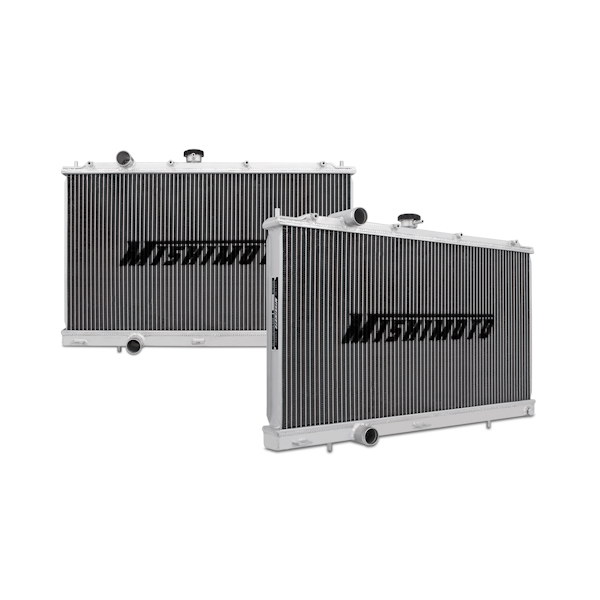

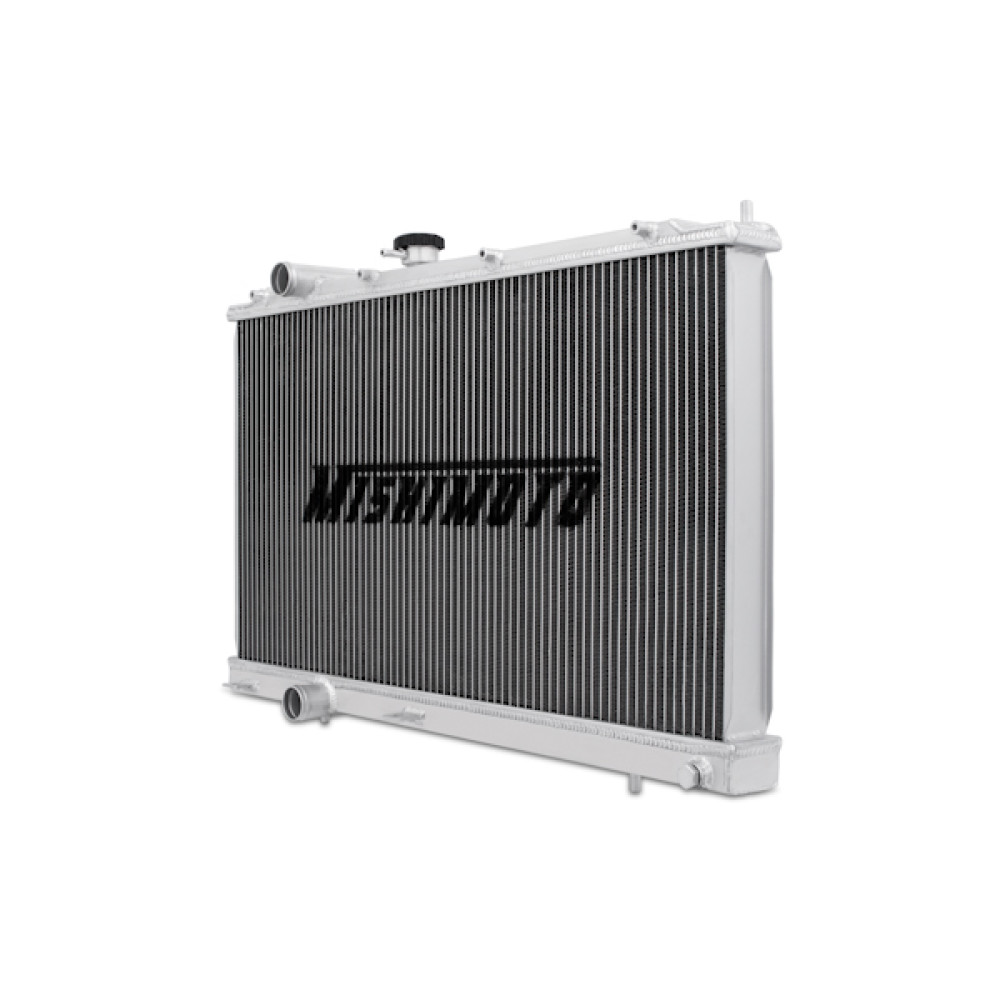

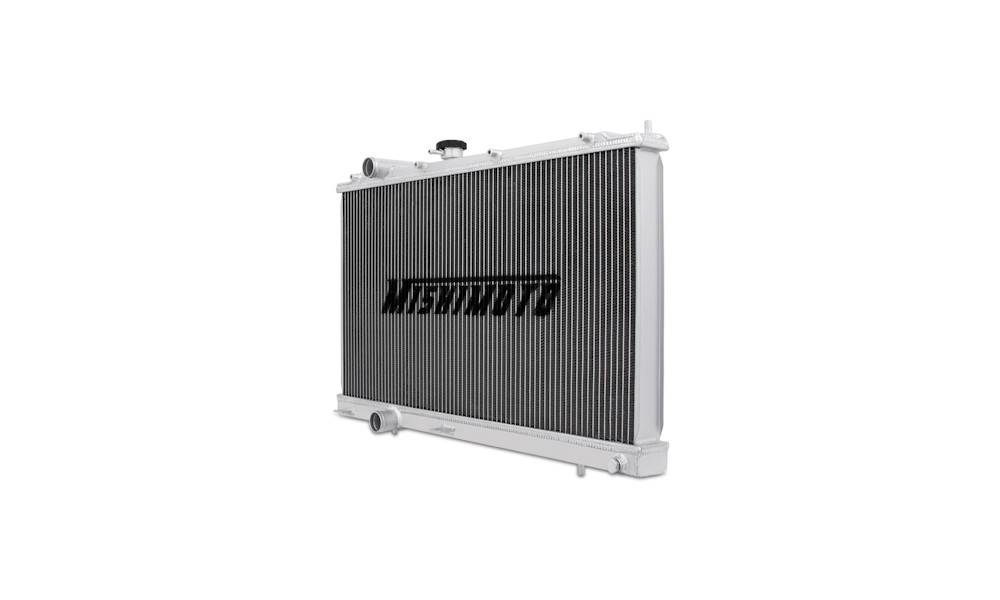

Mishimoto Performance Aluminum Radiator for Mitsubishi Lancer Evolution 4/5/6 (1996–2001)
Engineered for the demands of competitive driving and extreme environments, the Mishimoto Performance Aluminum Radiator is a direct fit upgrade for the 1996–2001 Mitsubishi Lancer Evolution IV, V, and VI. This radiator features durable all-aluminum construction, including a high-efficiency, brazed aluminum core designed to deliver superior coolant temperature reduction and long-term reliability.
- Direct fitment: 1996–2001 Mitsubishi Lancer Evolution 4/5/6
- Overall size: 28.1" x 19.3" x 2.55"
- Core size: 14.8" x 27.24"
- Core thickness: 2.05"
- Rows: 2
- Inlet/Outlet diameter: 1.4"
- Tank wall thickness: 0.08"
- Construction: Robotically TIG-welded aluminum end tanks and core
- Included: Mishimoto 1.3 Bar High-Pressure Radiator Cap (raises boiling point for improved cooling system efficiency)
- Included: Magnetic drain plug with dowty seal and durable threads for leak protection and easy maintenance
- Sensor port: 1/8" NPT port for additional coolant temperature sensor installation
- Warranty: Mishimoto Lifetime Warranty
This radiator is ideal for Evo owners seeking reliable cooling performance, whether for spirited street use, track days, or rally stages. Every unit is built for precision fitment and consistent quality, keeping your Evolution running cool under pressure.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Mitsubishi | LANCER EVOLUTION | 4/5/6 (1996–2001) | - |
