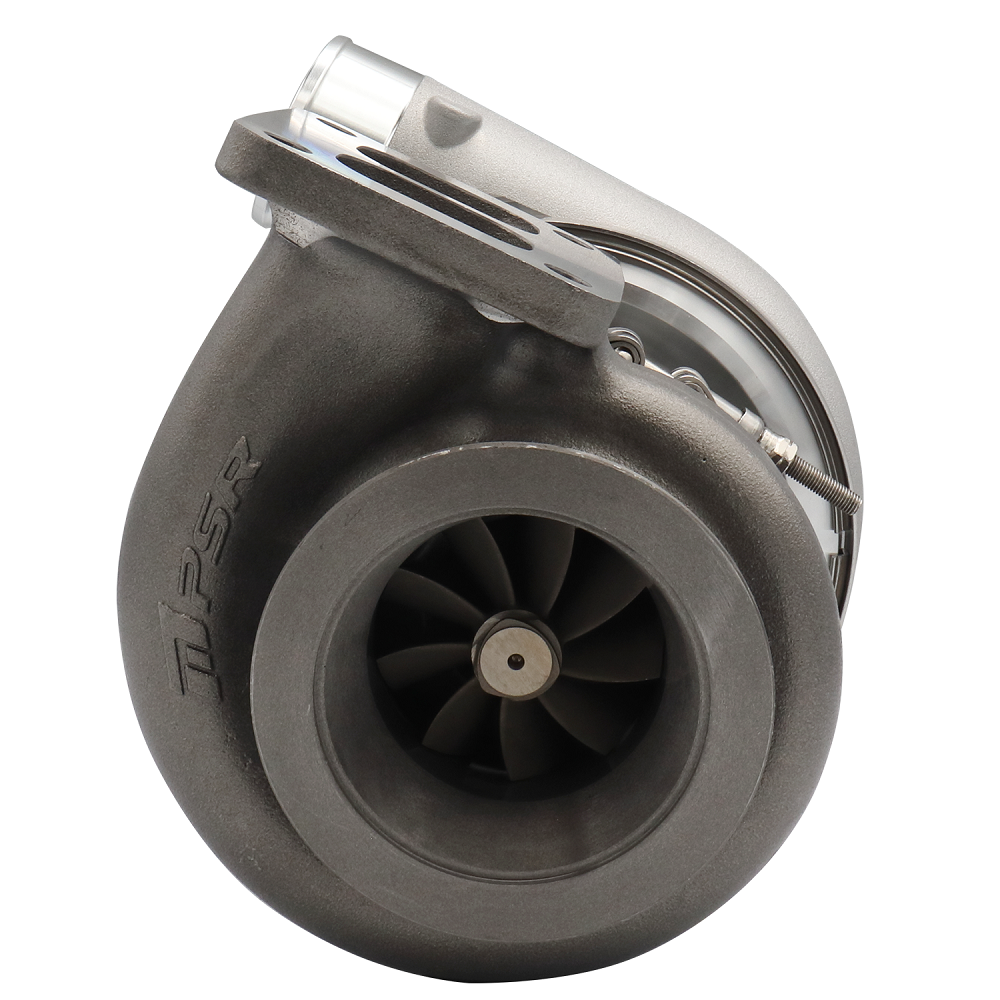

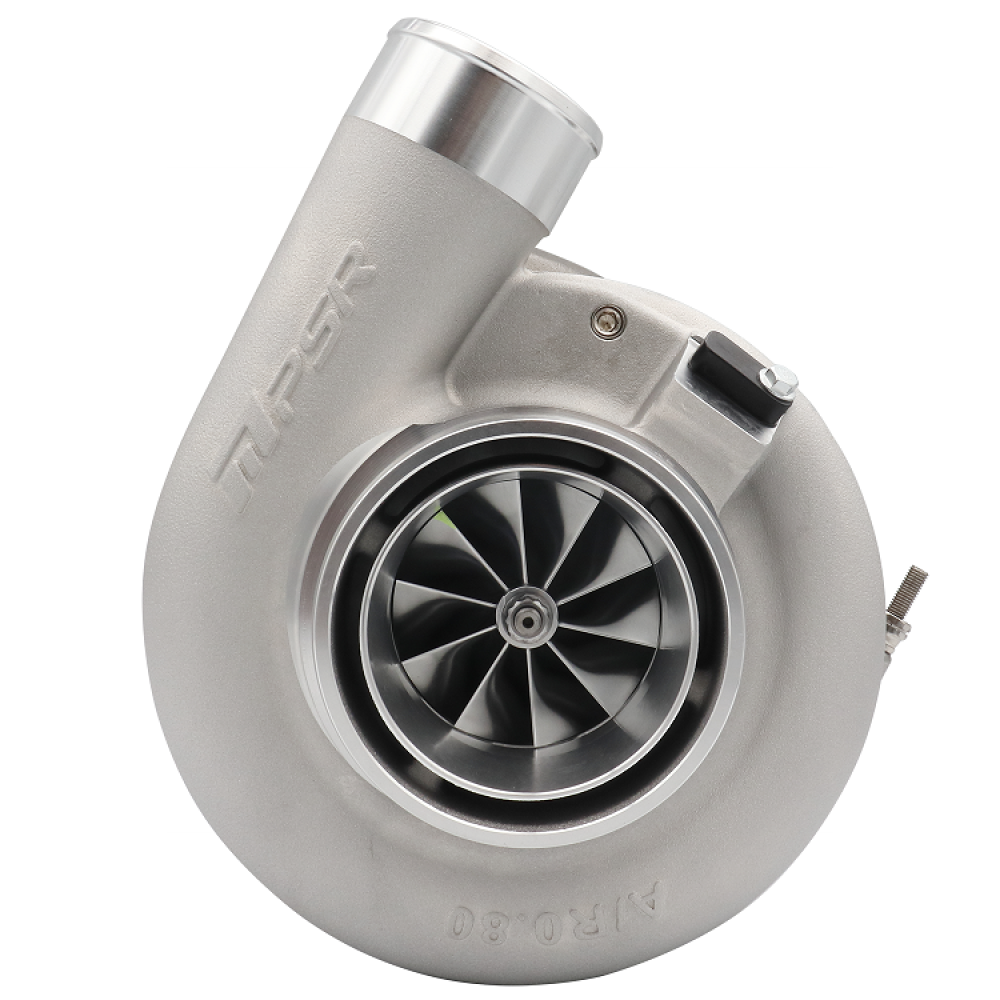

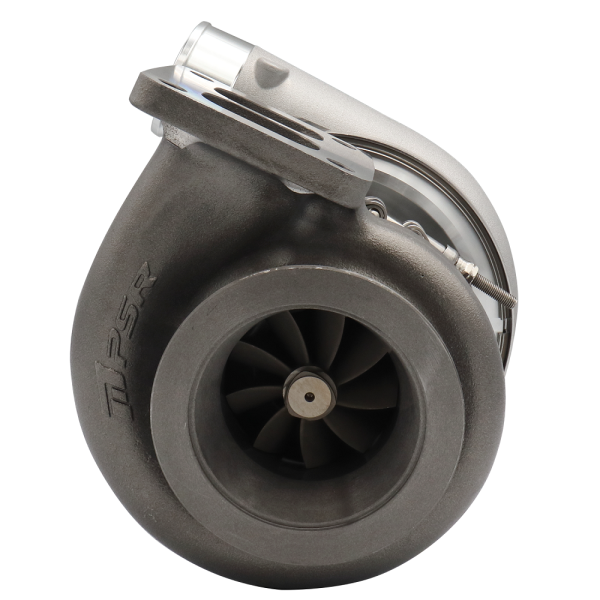

Pulsar PSR 7170G Turbocharger – 1150HP, 1.06 A/R, T4 Twin Scroll, Ball Bearing

Take your build to the next level with the Pulsar PSR 7170G, engineered for serious performance applications up to 1150 horsepower. This turbo features a robust dual ceramic ball bearing system for improved spool and durability, making it ideal for high-power street and race setups.

• Bearing System: Dual Ceramic Ball Bearing
• Compressor Wheel: 71mm inducer / 88mm exducer
• Turbine Wheel: 77mm exducer / 70mm inducer
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ Hose

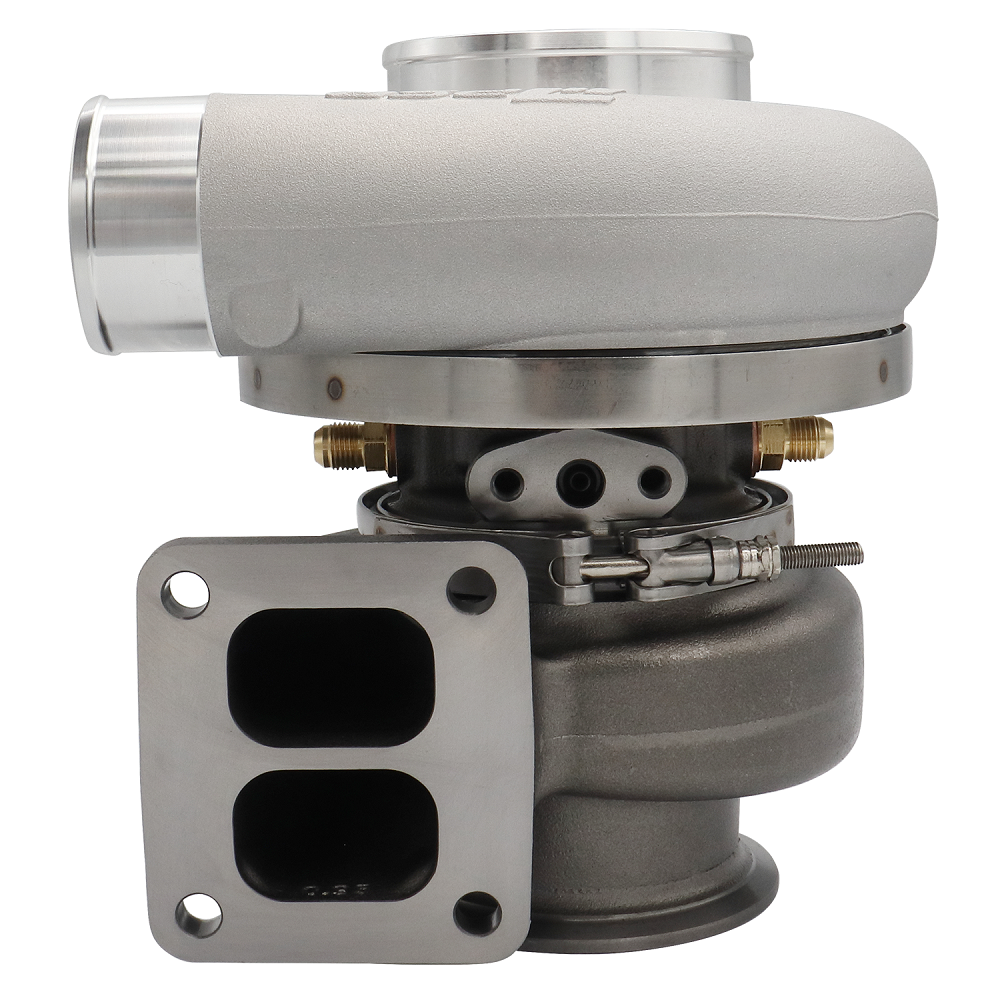

• Turbine Inlet: T4 Twin Scroll (Divided)
• Turbine Outlet: 4″ V-band (see details after housing selection)
• Turbine Housing Option: T4 Divided 1.06 A/R
• Water Ports: -6AN
• Oil Feed (excluded): Flange required (Recommended: -4AN Std T4 Flange)
• Oil Drain: -12AN (O-Ring sealed flange kit included)

Related Product: Oil Feed Flange Kit: 912357001 | -4AN ∅ 1.65mm (0.065″) Orifice

This turbocharger is designed for enthusiasts seeking reliable, high-output forced induction with the flexibility of a T4 twin scroll setup. Ideal for custom builds, drag racing, or high-performance street cars requiring efficient spool and top-end power.
