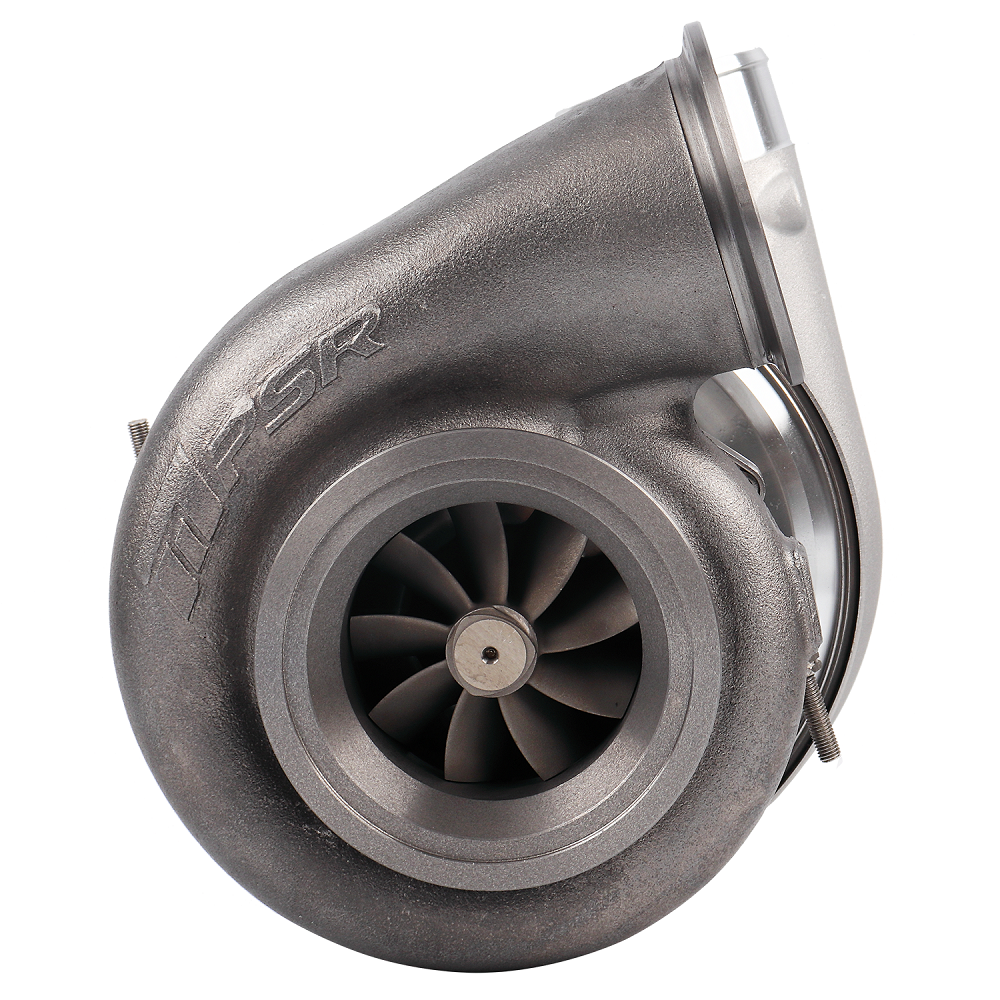

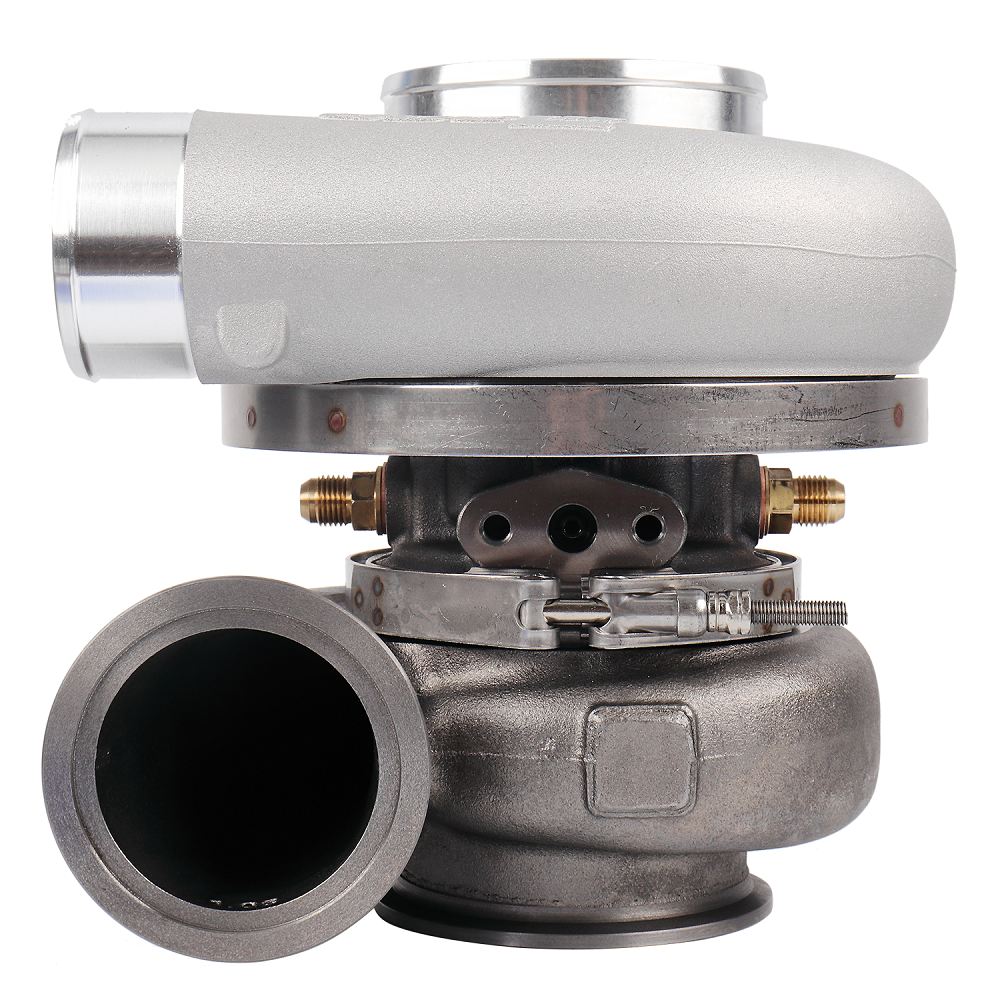

Pulsar PSR 7170G Turbocharger – 1150HP, 1.06 A/R, T4 Inlet, 3.5" V-Band Outlet, Ball Bearing

The Pulsar PSR 7170G turbocharger is engineered for high-performance applications demanding reliable power and efficiency. Featuring a dual ceramic ball bearing system, this turbo offers enhanced spool characteristics and durability for street and track builds targeting up to 1150 horsepower.

• Bearing System: Dual Ceramic Ball Bearing
• Compressor Wheel: 71mm inducer x 88mm exducer
• Turbine Wheel: 77mm exducer x 70mm inducer
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ Hose
• Turbine Inlet: T4 Divided
• Turbine Outlet: 3.5″ (refer to housing selection for details)
• Water Ports: -6AN
• Oil Feed (not included): Flange required (Recommended: -4AN Std T4 Flange)
• Oil Drain: -12AN (O-ring sealed flange kit included)
• Turbine Housing Options:
  • T4 (Divided) 0.95 A/R
  • T4 (Divided) 1.06 A/R
  • Dual V-band 1.06 A/R
• Related Product: Oil Feed Flange Kit (Part #: 912357001) | -4AN ∅ 1.65mm (0.065″) Orifice

This turbocharger is ideal for enthusiasts building high-powered street or race engines requiring robust flow and fast response. Confirm fitment and required accessories before ordering.
