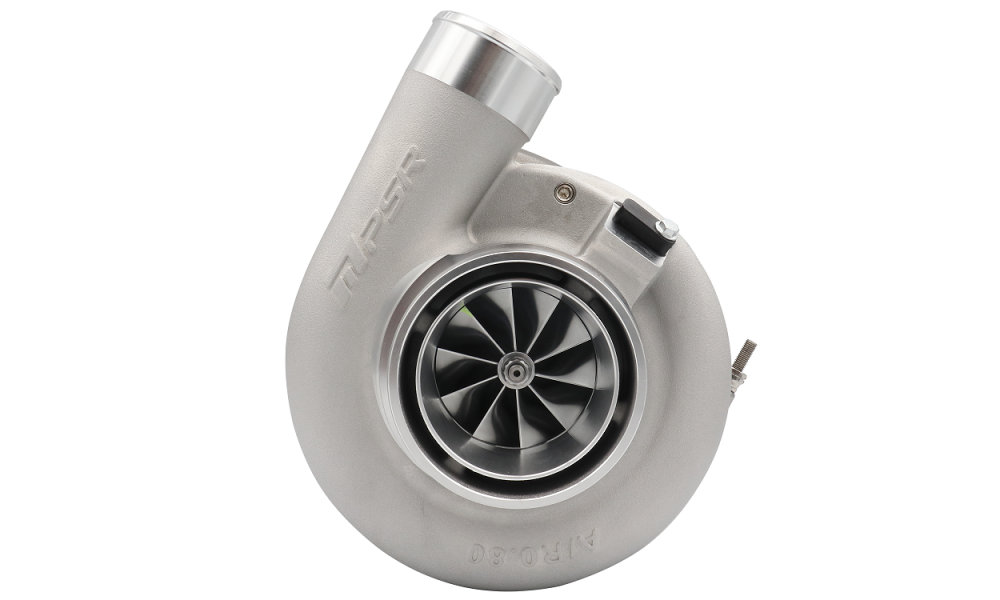

Pulsar PSR 7170G Turbocharger – 1150HP, 1.06 A/R, Ball Bearing

The Pulsar PSR 7170G is engineered for serious performance enthusiasts seeking reliable, high-flow boost for motorsport or high-powered street builds. Its advanced dual ceramic ball bearing system ensures fast spool and long-term durability under demanding conditions.

• Bearing System: Dual Ceramic Ball Bearing
• Compressor Wheel: 71mm inducer x 88mm exducer
• Turbine Wheel: 77mm exducer x 70mm inducer
• Maximum Rated Power: 1150 HP
• Compressor Inlet: 4" hose connection
• Compressor Outlet: 2.5" hose connection
• Turbine Inlet: 3" V-band
• Turbine Outlet: 3.5" V-band (confirm fitment after housing selection)
• Water Ports: -6AN
• Oil Feed: Flange required (recommended size: -4AN, standard T4 flange)
• Oil Drain: -12AN (O-ring sealed flange kit included)
• Turbine Housing: T4 (divided), 1.06 A/R

Related Product: Oil Feed Flange Kit (Part No. 912357001) – -4AN with 1.65mm (0.065") orifice.

This turbocharger is ideal for high-performance street or race applications requiring robust power and quick spool characteristics. Ensure proper oil and coolant lines for optimal reliability and performance.
