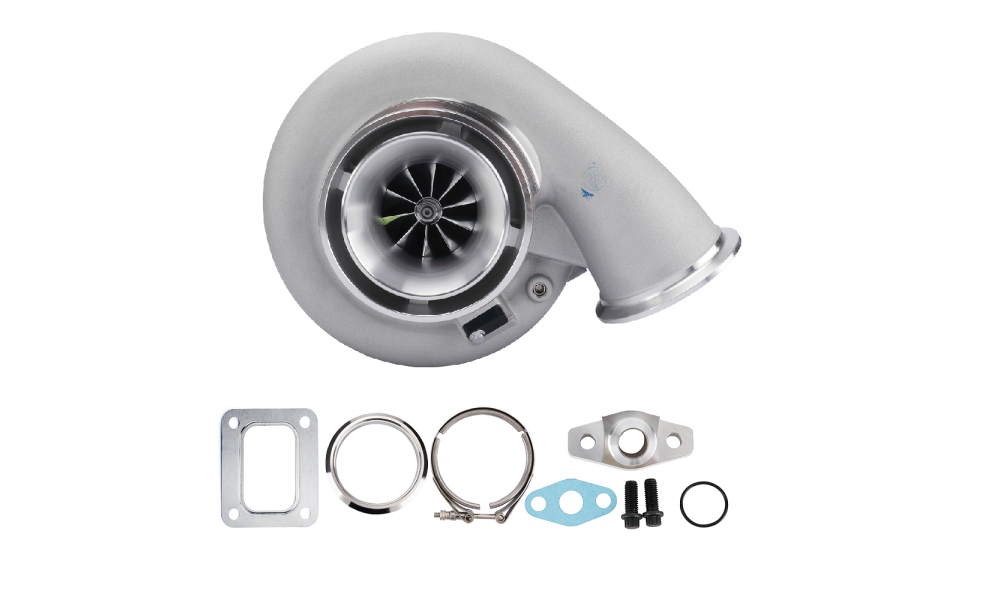

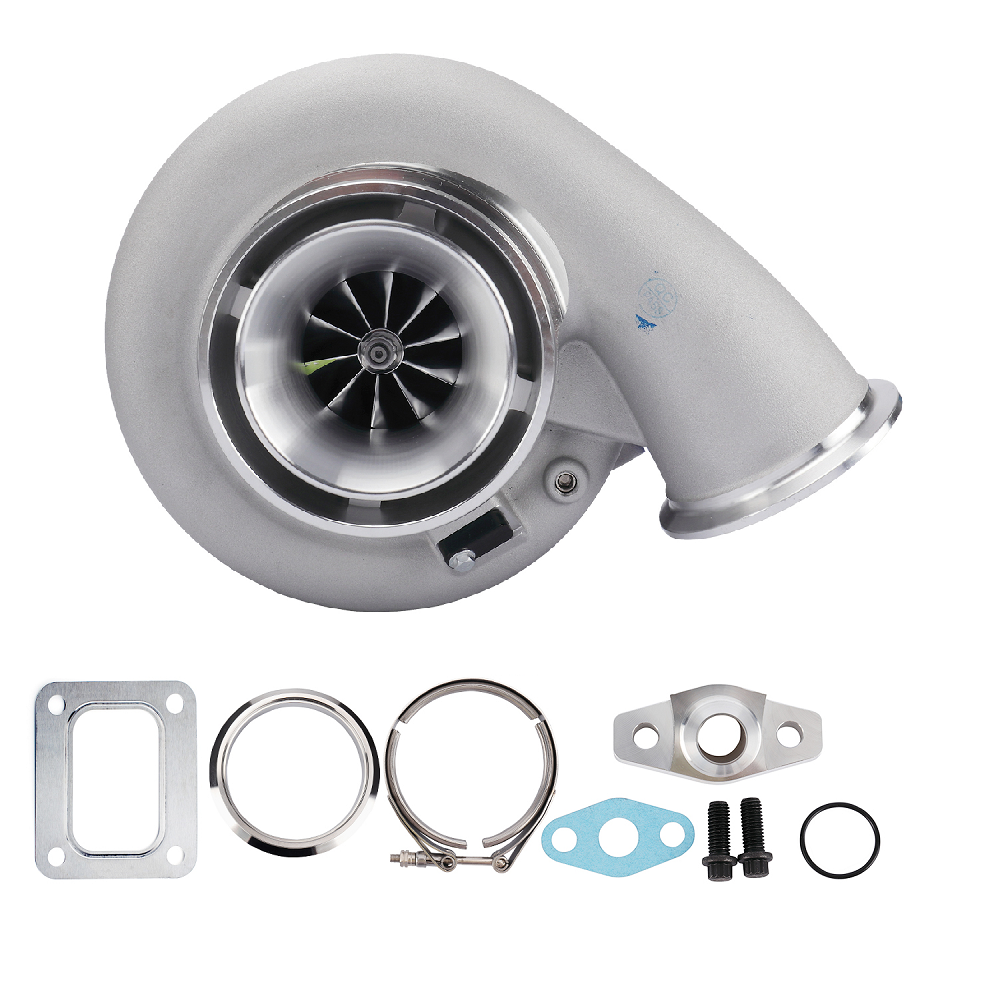

Pulsar PSR 6775G Turbocharger – 1100HP, 1.15 A/R, T4 Inlet, 3.5" V-Band Outlet, Ball Bearing

The Pulsar PSR 6775G is a high-performance turbocharger designed for serious enthusiasts aiming for up to 1100 horsepower. Featuring a robust ball bearing center section for improved spool and durability, this unit is engineered for demanding street and track applications.

• Compressor Wheel: 67mm inducer / 98mm exducer
• Turbine Wheel: 82mm exducer / 75mm inducer
• Compressor Inlet: 5″ hose connection
• Compressor Outlet: 3″ V-Band
• Turbine Inlet: T4 open flange
• Turbine Outlet: 3.5″ V-Band
• Water Ports: -6AN fittings
• Oil Feed: Flange required (recommended size: -4AN, standard T4 flange, non-restricted)
• Oil Drain: 15° angle, -12AN with O-ring sealed flange kit included

This turbo is ideal for high-powered builds seeking reliable, efficient boost delivery. All critical fittings and flanges are specified for straightforward installation. Perfect for experienced builders looking to maximize performance with proven hardware.
