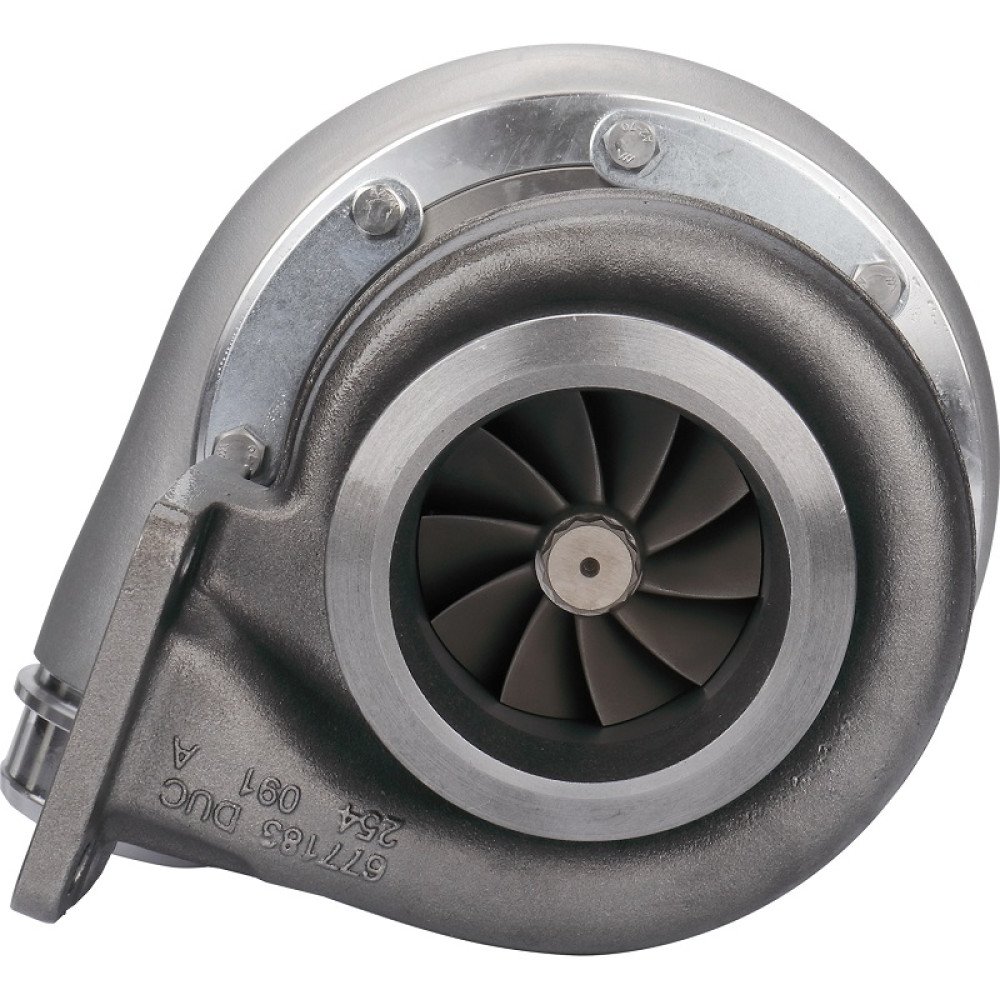

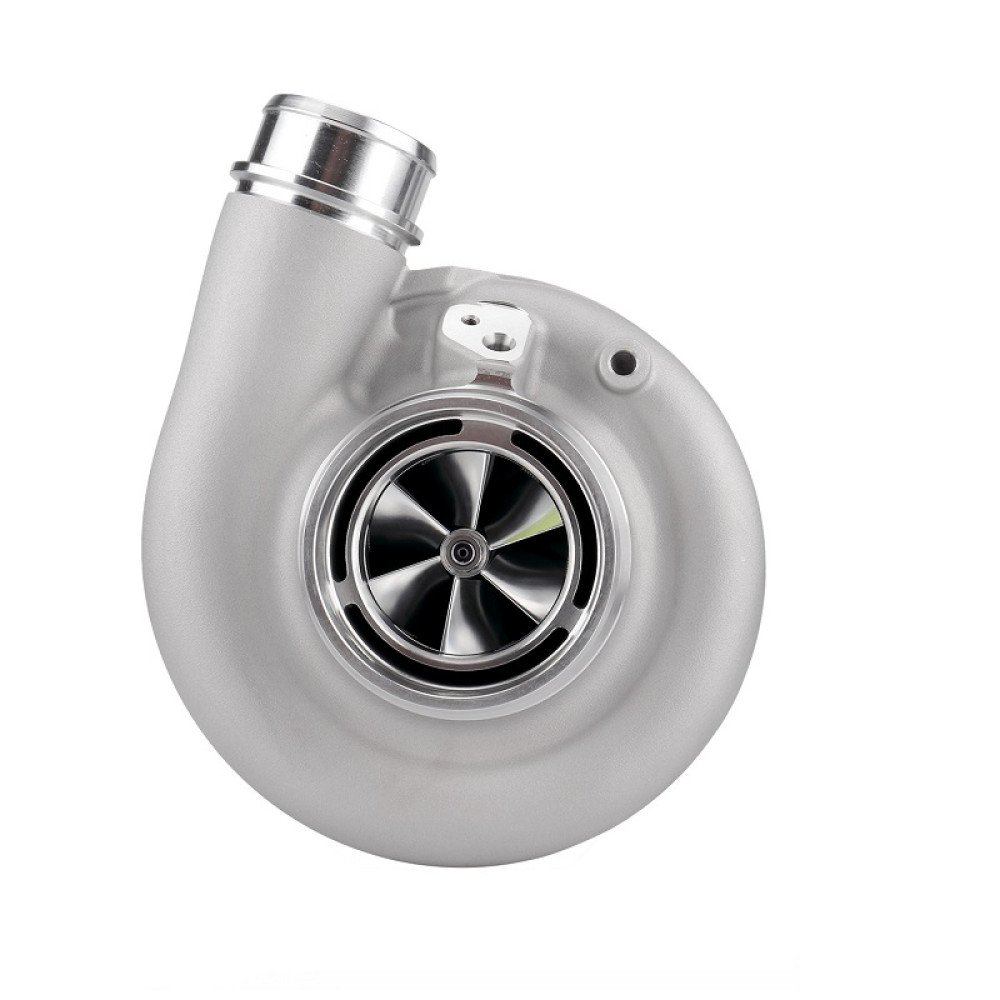

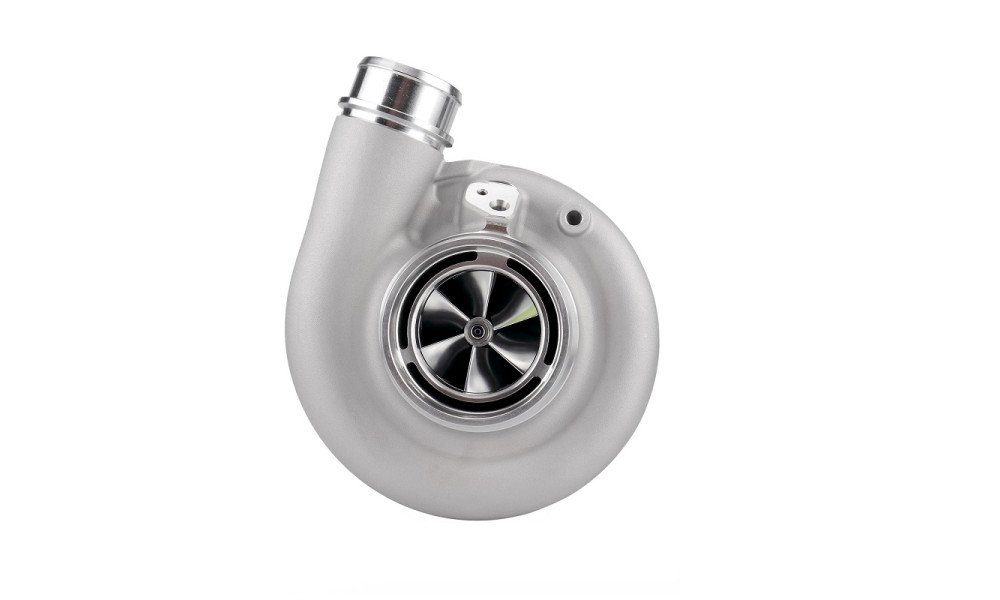

Pulsar PSR 369 Turbocharger – 1000HP, .91 A/R, T4 Twin Scroll

The Pulsar PSR 369 is engineered for serious performance builds demanding robust power and reliability. This turbocharger features a journal bearing system for proven durability under high boost conditions. The compressor wheel measures 69mm inducer by 94mm exducer (6+6 blade design), paired with an 80mm x 73mm turbine wheel for efficient exhaust flow.

• Bearing System: Journal Bearing
• Compressor Wheel: 69mm inducer x 94mm exducer (6+6 blades)
• Turbine Wheel: 80mm x 73mm
• Compressor Inlet: 4.0" Hose
• Compressor Outlet: 2.5" Hose

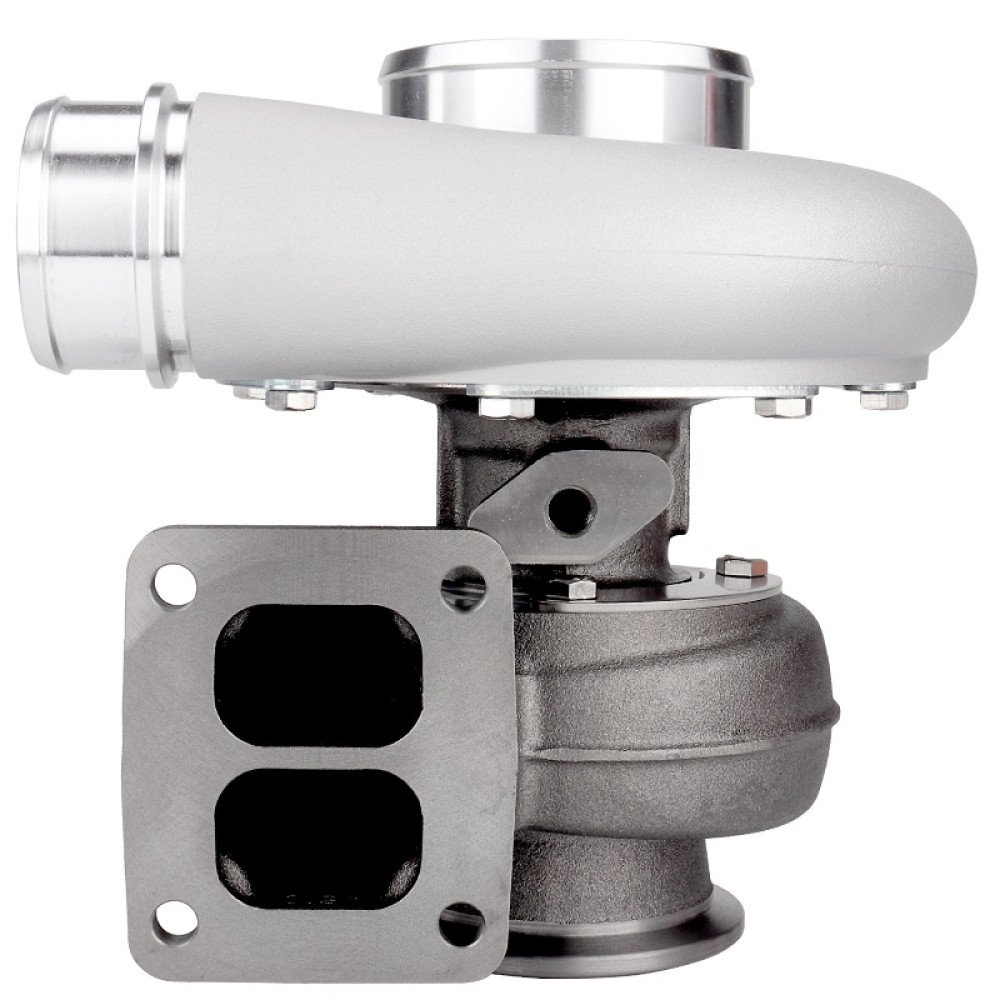

• Turbine Housing: T4 Divided, 0.91 A/R
• Turbine Inlet: T4 Twin Scroll
• Turbine Outlet: 4.21" Marmon V-Band
• Oil Feed: 1/4" NPT
• Oil Drain: Standard T4 Flange
• Maximum Power Rating: 1000HP (manufacturer rated)

Ideal for high-horsepower street and track applications that require a T4 twin scroll fitment and a robust journal bearing design. Designed for builders seeking a balance of spool and top-end power with a reliable, proven platform.
