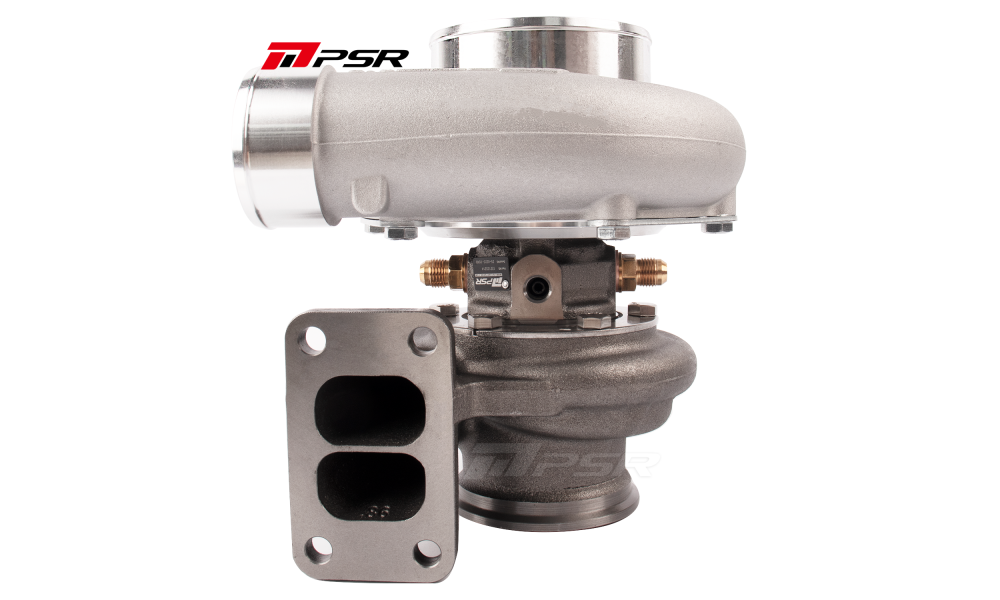

PSR3584 Gen3 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 10-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10-Blade Turbine Wheel designed for high horsepower applications
• Compressor housing integrated with speed sensor port
• Multiple turbine housing options available: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82 v-band outlet; T4 0.82 v-band outlet
• V-Band flange kit(s) for the exhaust housing included
• Maximum airflow rate: ~90 lb/min, rated at 1000 flywheel horsepower
• Larger turbine wheel for increased exhaust flow

Compressor Housing: Standard

Turbine Housing: T3 Divided 0.86 A/R

• Compressor Wheel: 67mm inducer / 84mm exducer
• Turbine Wheel: 74mm exducer / 66mm inducer
• Compressor Inlet: 4.0" hose
• Compressor Outlet: 2.5" hose
• Turbine Inlet: T3, T4, or 2.5" V-Band
• Turbine Outlet: 3" V-Band (3.55" OD)
• Oil Feed: -4 AN fitting (connects to oil restrictor)
• Oil Drain: Standard T3 flange
• Water Inlet/Outlet: M14x1.5
• Water cooling is highly recommended for optimal durability

The PSR3584 Gen3 Turbocharger is engineered for enthusiasts seeking high flow and reliable performance. Featuring advanced dual ceramic ball bearings, billet compressor technology, and multiple fitment options, it's built for serious power and durability. Ideal for custom builds and high-performance applications where maximum airflow and precise fitment are required.
