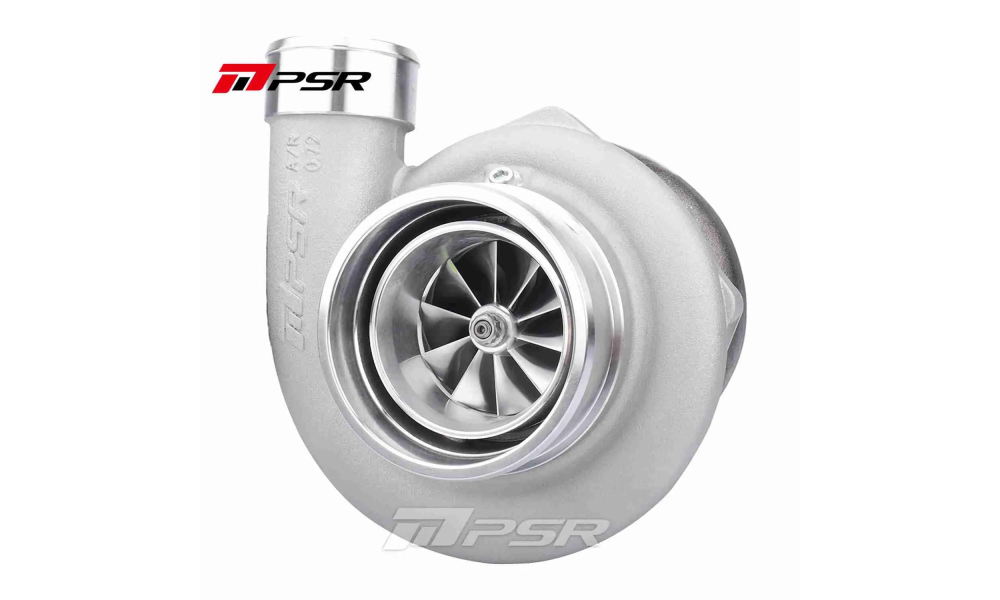

PSR3582 GEN2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 10-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology for efficient airflow
• Inconel 713c Gen2 9-Blade Turbine Wheel for high-temperature reliability
• Gen2 Compressor Cover integrated with Speed Sensor Port
• Available turbine housings: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82 with V-Band outlet options
• V-Band Flange kit(s) for exhaust housing included
• Max Air Flow Rate: ~85 lb/min, rated at 880 FWHP
• Horsepower Range: 450–900 HP
• Engine Displacement Compatibility: 2.0L – 4.5L

Compressor Housing: Standard

Turbine Housing: T3 Divided 0.86 A/R

• Compressor Wheel: 66mm inducer / 82mm exducer
• Turbine Wheel: 68mm exducer / 62mm inducer
• Compressor Inlet: 4.0" Hose
• Compressor Outlet: 2.5" Hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connects to oil restrictor)
• Oil Drain: Standard T3 Flange
• Water Inlet/Outlet: M14 x 1.5

For optimal durability, water cooling is highly recommended.
