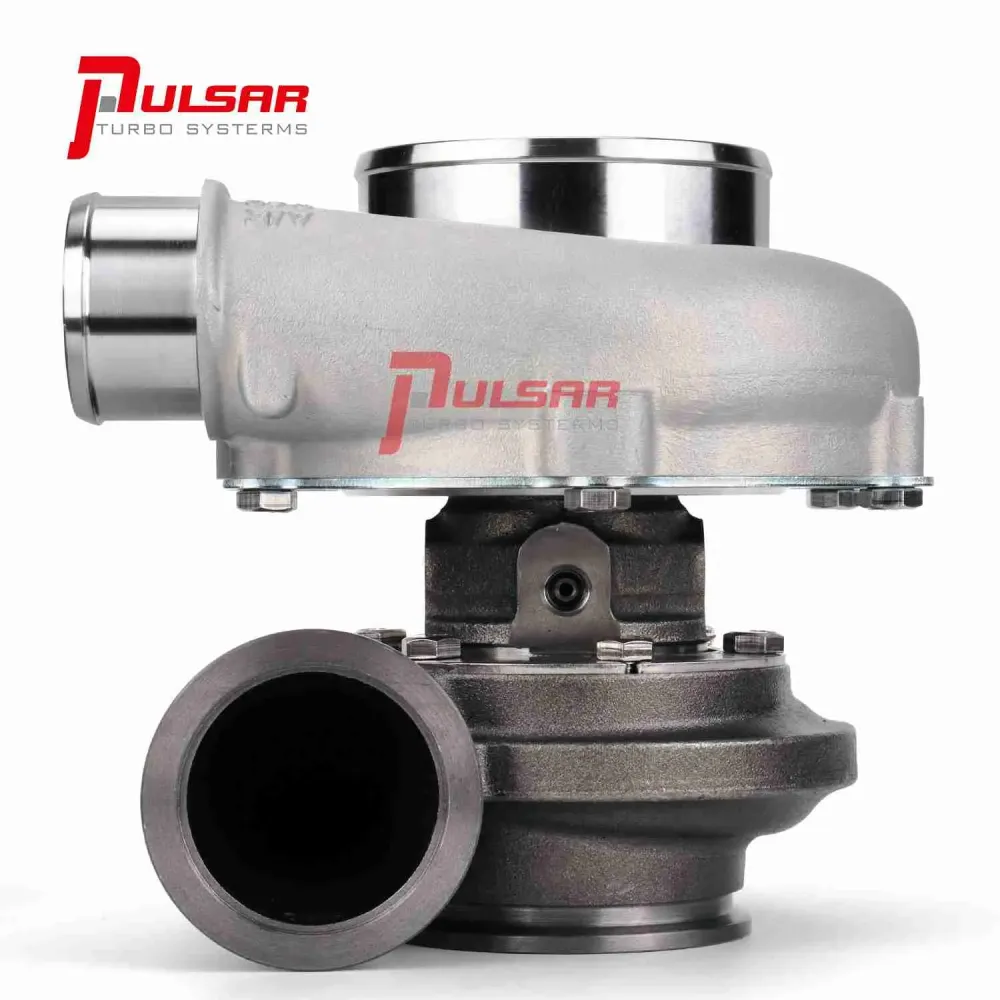

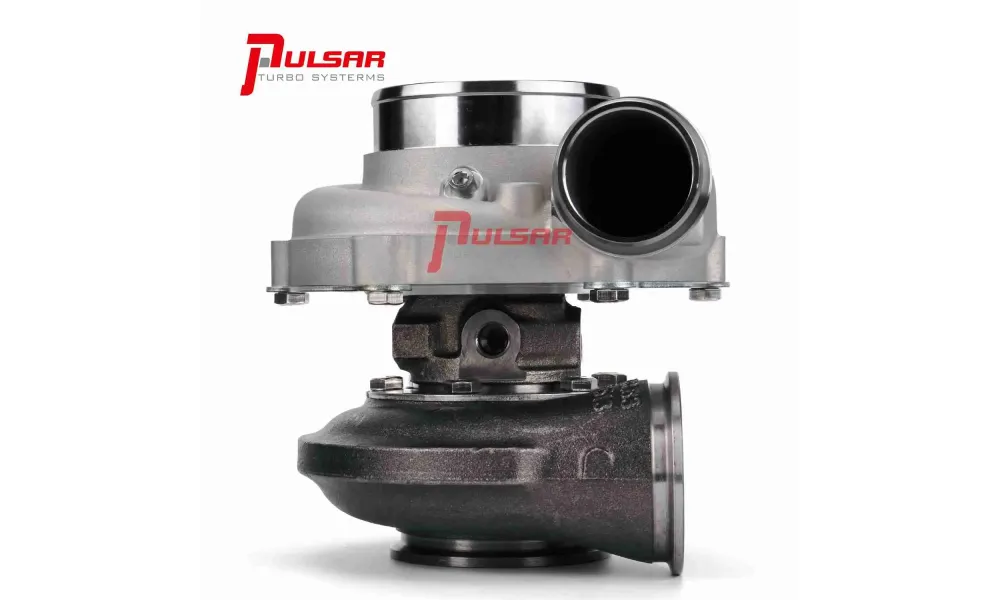

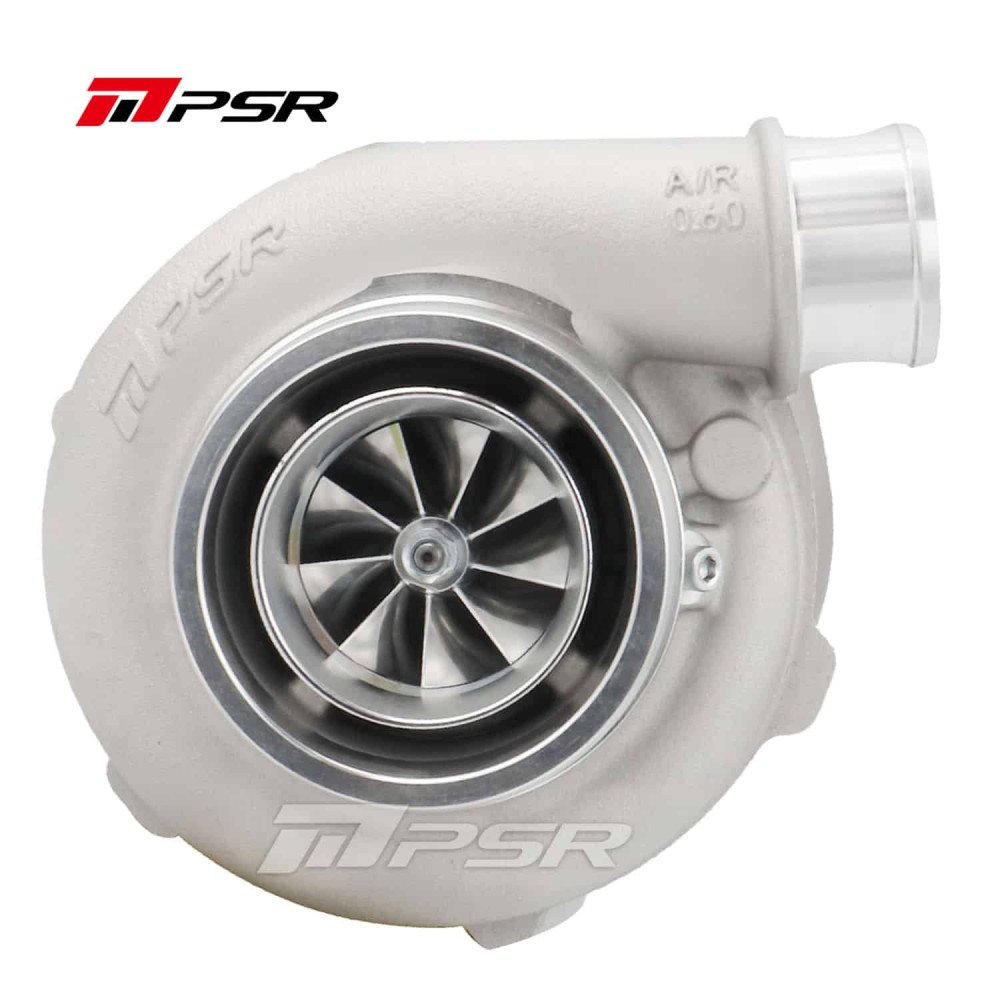

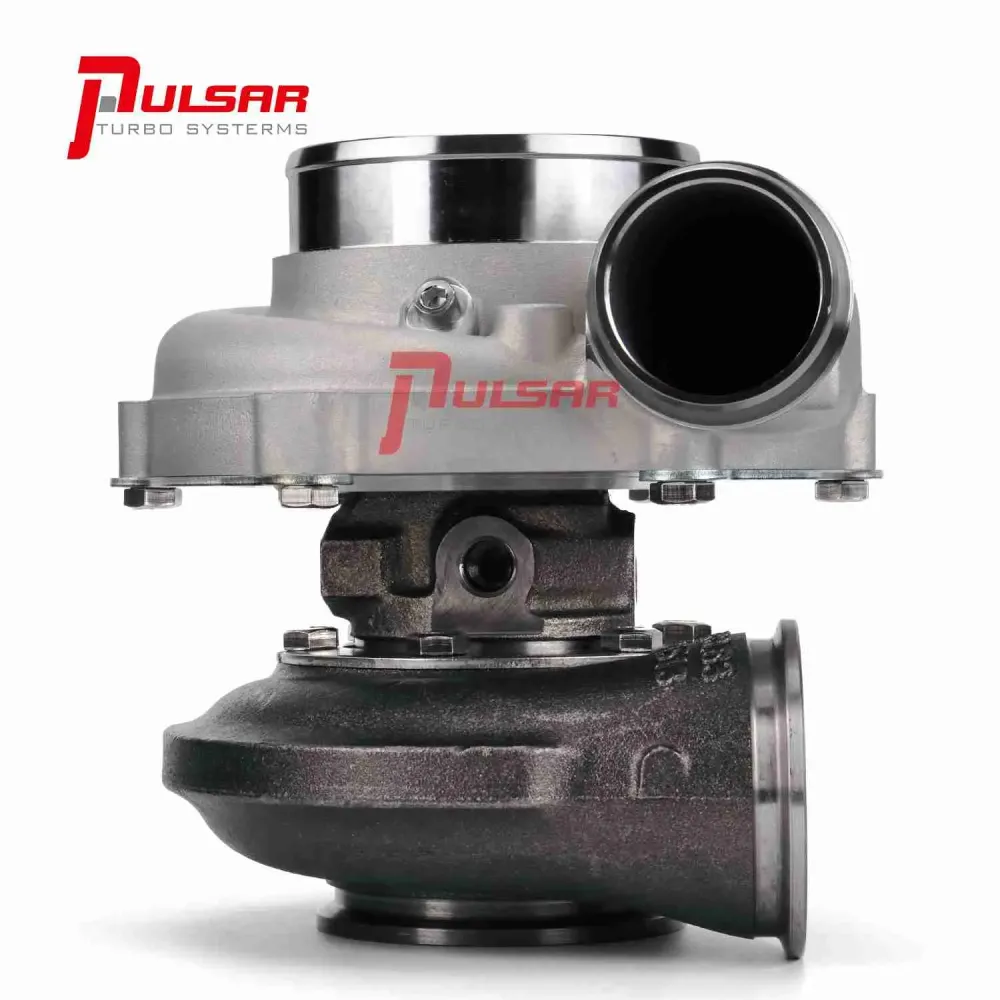

PSR3576 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and reliability

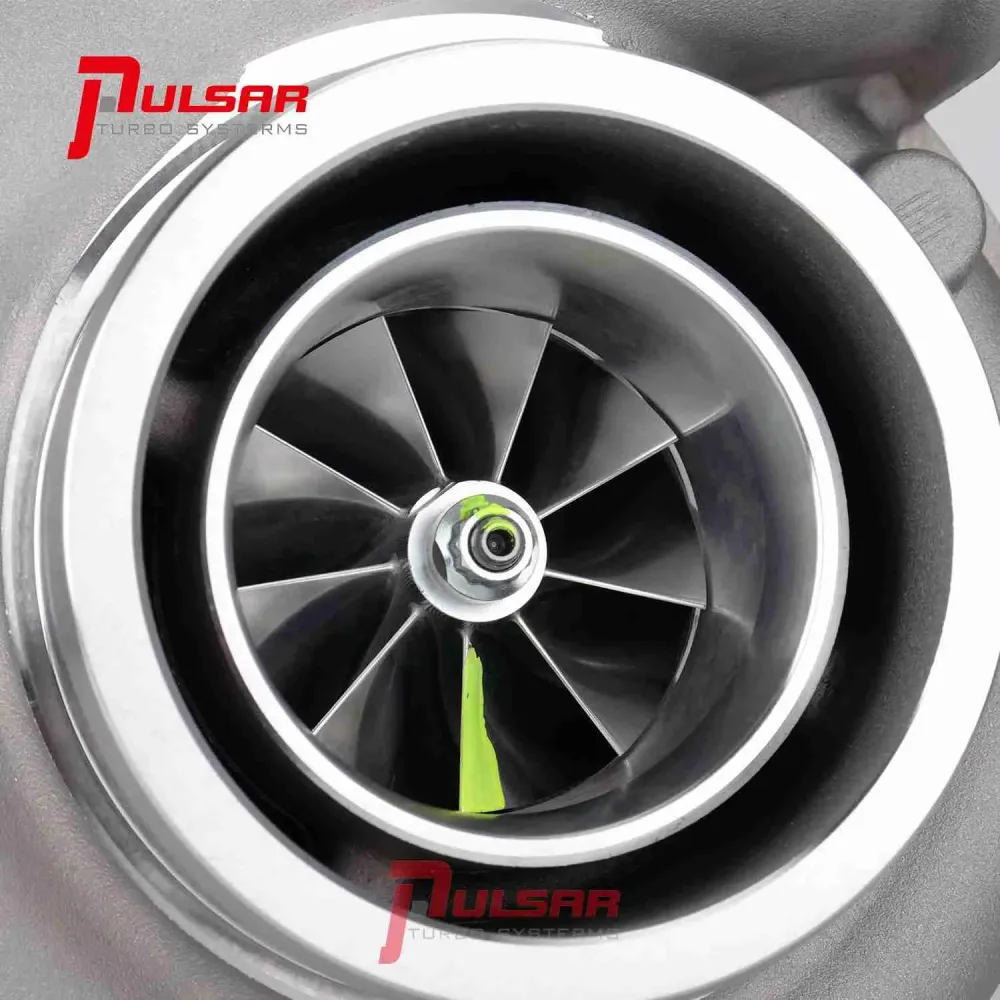

• 9-Blade Gen2 Billet Compressor Wheel featuring Extended Tapered Tip Technology for enhanced airflow
• Inconel 713c 9-Blade Turbine Wheel for high-temperature durability
• Gen2 Compressor Cover integrated with speed sensor port

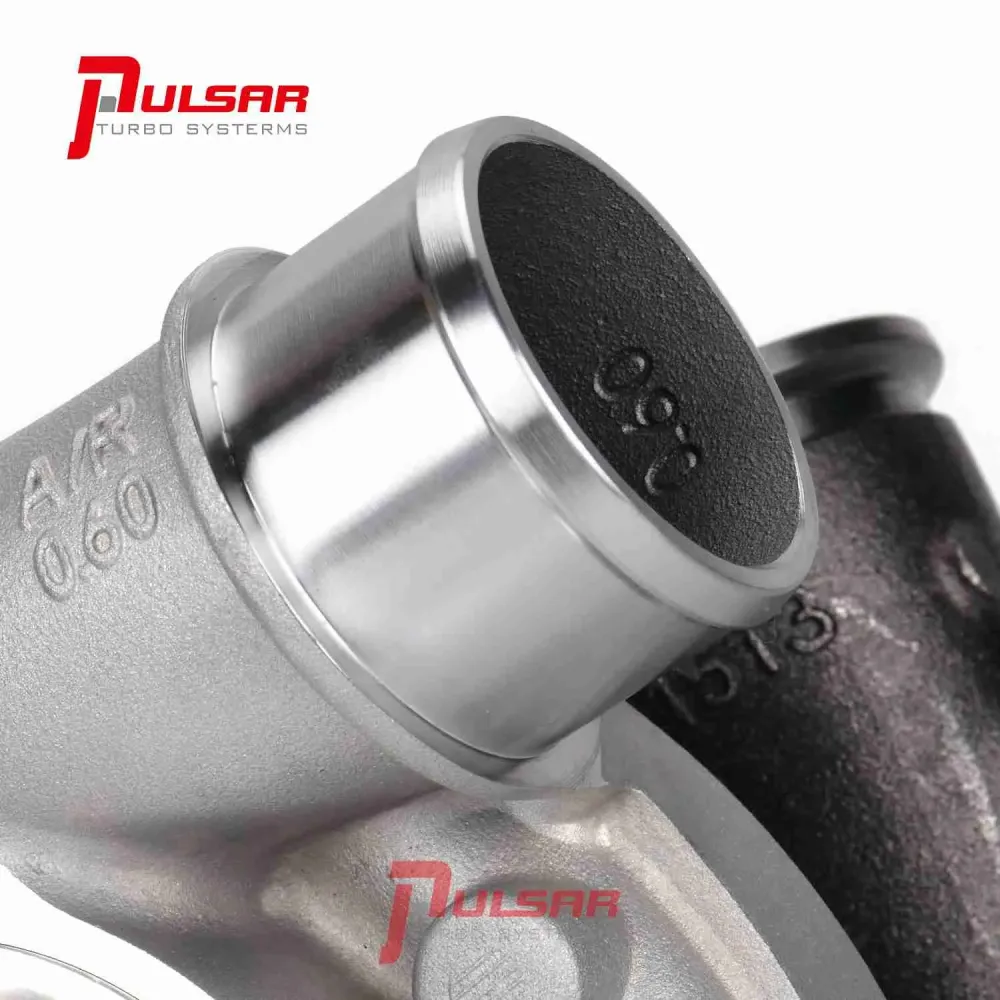

• Multiple turbine housing options: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82, 1.06 A/R with V-Band outlet
• V-Band flange kit(s) for exhaust housing included
• Maximum airflow: 65 lb/min, rated at 750 flywheel horsepower (FWHP)

Specifications

• Compressor Wheel: 58mm inducer / 76mm exducer
• Turbine Wheel: 68mm exducer / 62mm inducer
• Compressor Inlet: 4.0" hose
• Compressor Outlet: 2.0" hose
• Turbine Inlet: T4 flange
• Turbine Outlet: 3" V-Band (3.55" OD)
• Oil Feed: -4 AN connection to oil restrictor
• Oil Drain: Standard T3 flange
• Water Inlet/Outlet: M14x1.5

Water cooling is highly recommended for improved durability.
