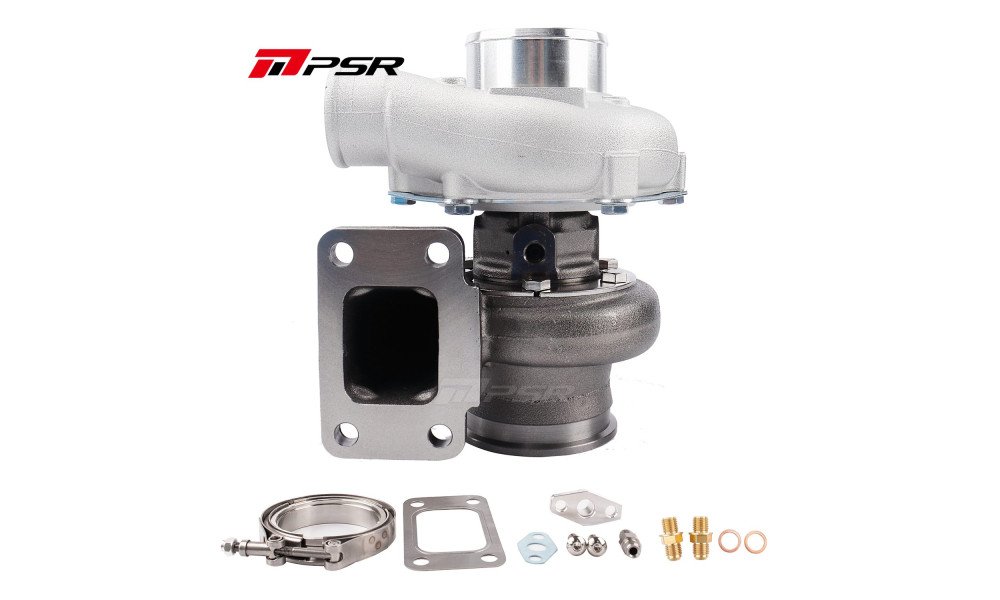

PSR3576 Gen2 Compact Dual Ball Bearing Turbocharger

• Dual ceramic ball bearing system for enhanced spool and durability
• 9-blade Gen2 billet compressor wheel with extended tapered tip technology
• Inconel 713c 9-blade turbine wheel for high-temperature resilience
• Multiple turbine housing options available
• V-band flange kit(s) for exhaust housing included
• Maximum airflow rate: 65 lb/min, rated at 750 flywheel horsepower (FWHP)

Turbine Housing: T3 inlet, V-band outlet, 0.82 A/R

• Compressor wheel: 58mm inducer / 76mm exducer
• Turbine wheel: 68mm exducer / 62mm inducer
• Compressor inlet: 3.0” hose
• Compressor outlet: 2.0” hose
• Turbine inlet: T3, T4, or 2.5″ V-band
• Turbine outlet: 3″ V-band (3.55″ OD)
• Oil feed: -4 AN connection to oil restrictor
• Oil drain: standard T3 flange
• Water in/outlet: M14 x 1.5

Water cooling is highly recommended for increased durability.
