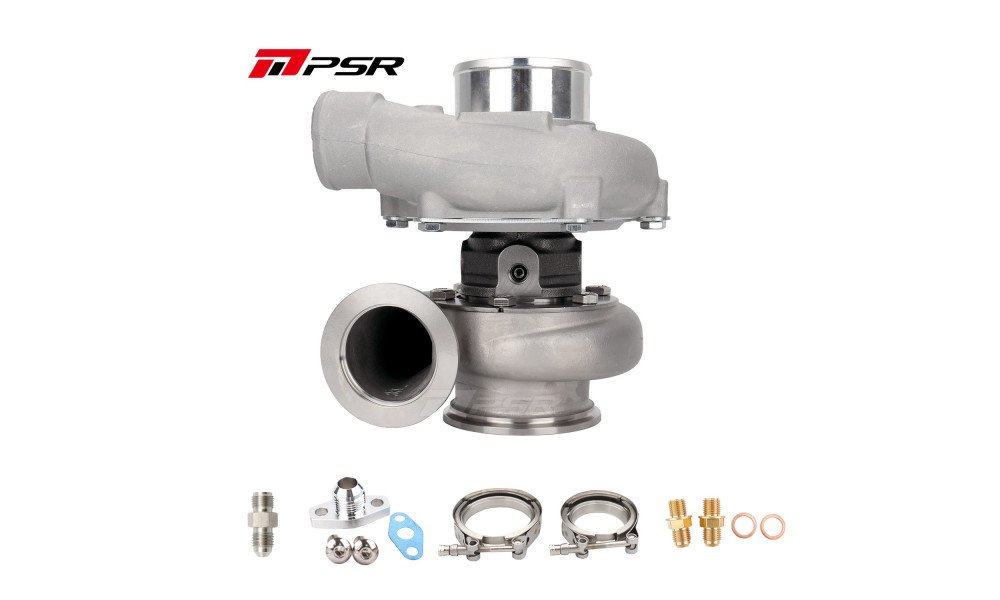

PSR3576 Gen2 Compact Dual Ball Bearing Turbocharger

The PSR3576 Gen2 is engineered for enthusiasts seeking responsive spool and robust power delivery in a compact package. Featuring a dual ceramic ball bearing system for improved durability and reduced friction, this turbocharger is built to handle demanding street and track applications.

• Dual Ceramic Ball Bearing System
• Gen2 9-Blade Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-Blade Turbine Wheel for high-temperature resilience
• Multiple turbine housing options available
• V-Band flange kit(s) for exhaust housing included
• Maximum airflow: 65 lb/min, rated for up to 750 flywheel horsepower (FWHP)

Turbine Housing: Stainless Steel V-Band Inlet, V-Band Outlet, 0.64 A/R

• Compressor Wheel: 58mm inducer / 76mm exducer
• Turbine Wheel: 68mm exducer / 62mm inducer
• Compressor Inlet: 3.0” hose
• Compressor Outlet: 2.0” hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connects to oil restrictor)
• Oil Drain: Standard T3 flange
• Water Inlet/Outlet: M14x1.5

Water cooling is highly recommended for increased durability and thermal stability.
