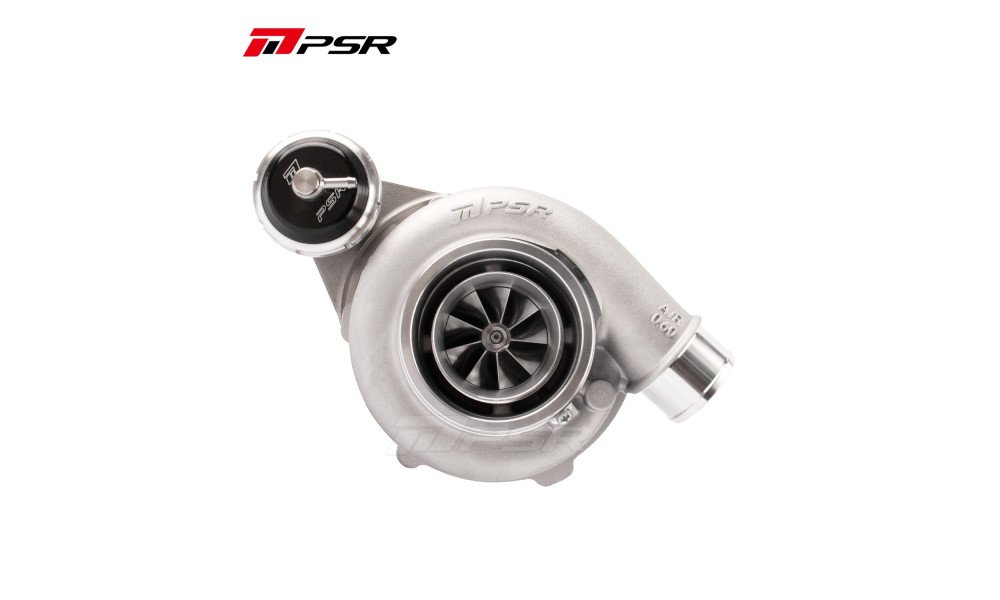

PSR3076 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for enhanced spool and durability
• 9-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10-Blade Turbine Wheel for high-temperature reliability
• Gen2 Compressor Cover with integrated speed sensor port
• Available turbine housings: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82 V-Band outlet; 0.82, 1.03 A/R dual v-band stainless steel
• V-Band Flange kit(s) for exhaust housing included
• Maximum airflow: ~65 lb/min, rated up to 750 FWHP

Compressor Housing: Standard

Turbine Housing: Dual V-Band 0.72 A/R with Internal Wastegate (IWG)

Actuator: PSR Logoed Billet, 15 psi

• Compressor Wheel: 58mm inducer / 76mm exducer
• Turbine Wheel: 60mm exducer / 55mm inducer
• Compressor Inlet: 4″ hose
• Compressor Outlet: 2″ hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connects to oil restrictor)
• Oil Drain: Standard T3 flange
• Water Inlet/Outlet: M14x1.5

Water cooling is highly recommended for increased durability.
