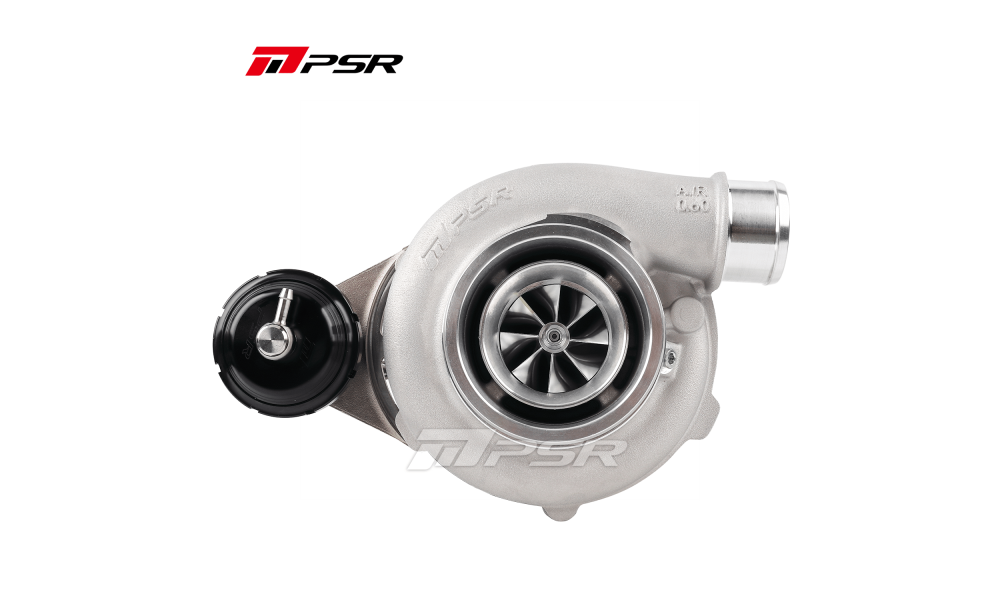

PSR3071 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel for high temperature resistance
• Gen2 Compressor Cover integrated with Speed Sensor Port
• Optional turbine housings: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82 with V-Band outlet; 0.82, 1.03 A/R dual v-band stainless steel
• V-Band Flange kit(s) for the exhaust housing included
• Maximum Air Flow Rate: ~60 lb/min, rated at 650 FWHP

Compressor Housing: Standard

Turbine Housing: Dual V-Band 0.72 A/R with IWG

Actuator: Billet 7.4 psi PSR Logoed

• Compressor Wheel: 54mm inducer / 71mm exducer
• Turbine Wheel: 60mm exducer / 55mm inducer
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connect to oil restrictor)
• Oil Drain: Standard T3 Flange
• Water Inlet/Outlet: M14 x 1.5

Water cooling is highly recommended for increased durability.
