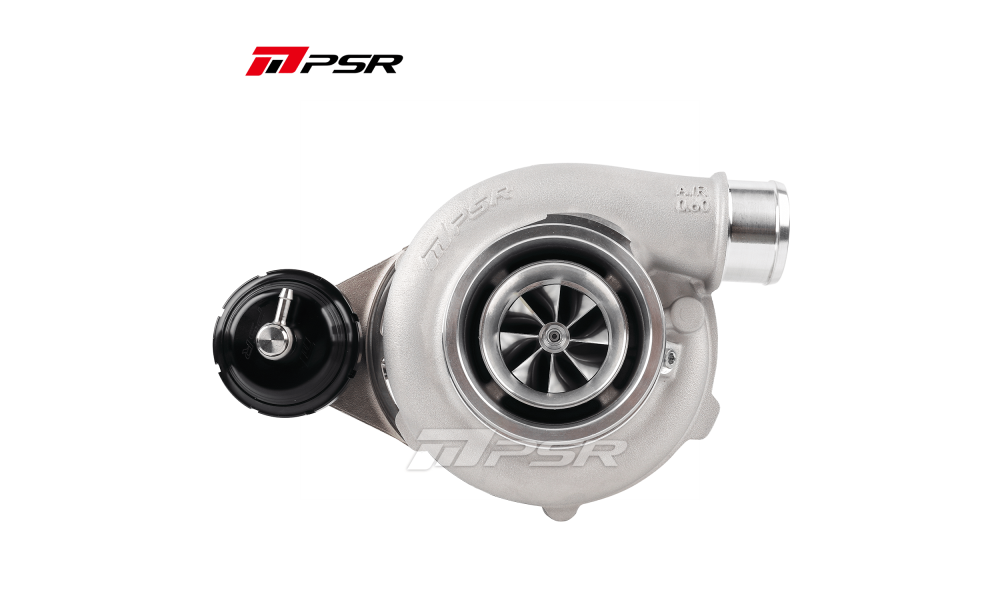

PSR3071 Gen2 Dual Ball Bearing Turbocharger

• Dual ceramic ball bearing system for improved spool and durability
• 8-blade Gen2 billet compressor wheel with extended tapered tip technology
• Inconel 713c 10-blade turbine wheel for high-temperature reliability
• Gen2 compressor cover integrated with speed sensor port
• Optional turbine housings: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82 v-band outlet; 0.82, 1.03 A/R dual v-band stainless steel
• V-band flange kit(s) for exhaust housing included
• Maximum airflow: ~60 lb/min, rated at 650 flywheel horsepower (FWHP)

Compressor Housing: Standard

Turbine Housing: Dual V-Band 0.72 A/R with internal wastegate (IWG)

Actuator: Billet 15psi PSR logoed

• Compressor wheel: 54mm inducer / 71mm exducer
• Turbine wheel: 60mm exducer / 55mm inducer
• Compressor inlet: 4″ hose
• Compressor outlet: 2″ hose
• Turbine inlet: T3, T4, or 2.5″ V-band
• Turbine outlet: 3″ V-band (3.55″ OD)
• Oil feed: -4 AN to oil restrictor
• Oil drain: standard T3 flange
• Water in/out: M14×1.5

Water cooling is highly recommended for increased durability.
