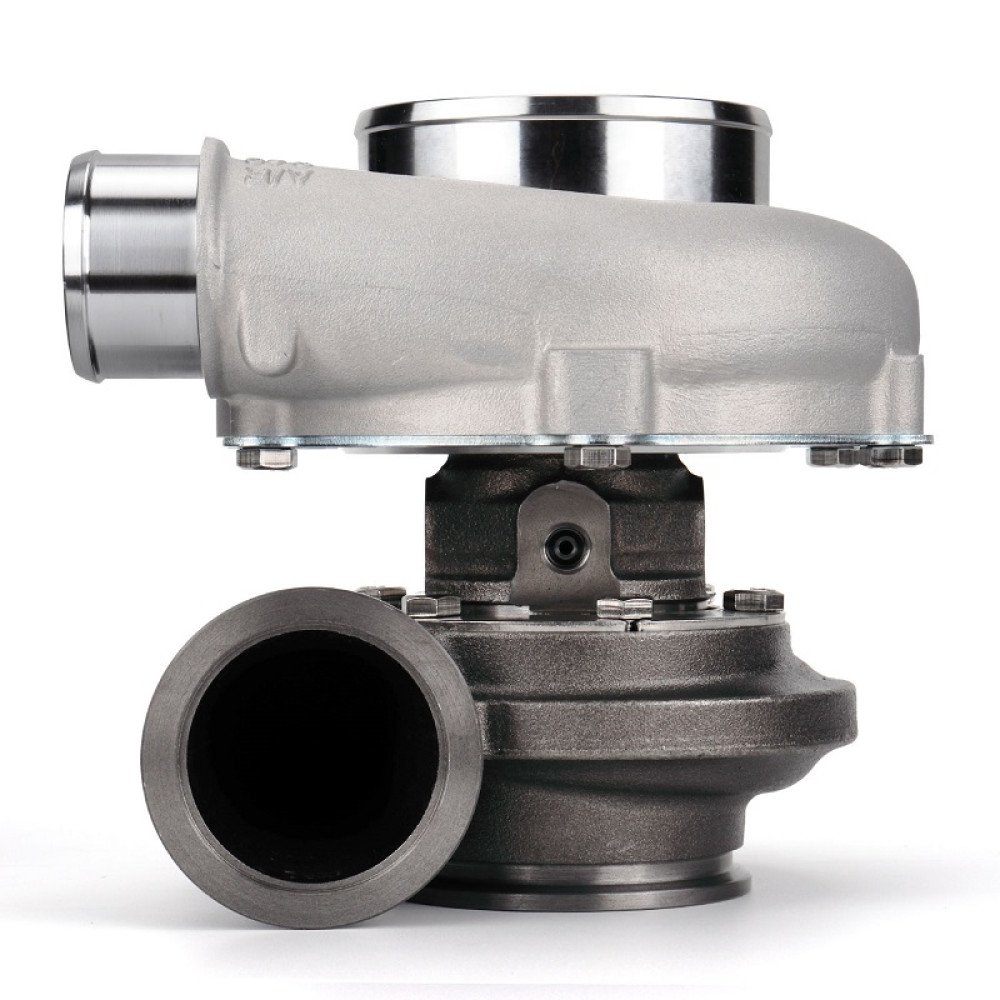

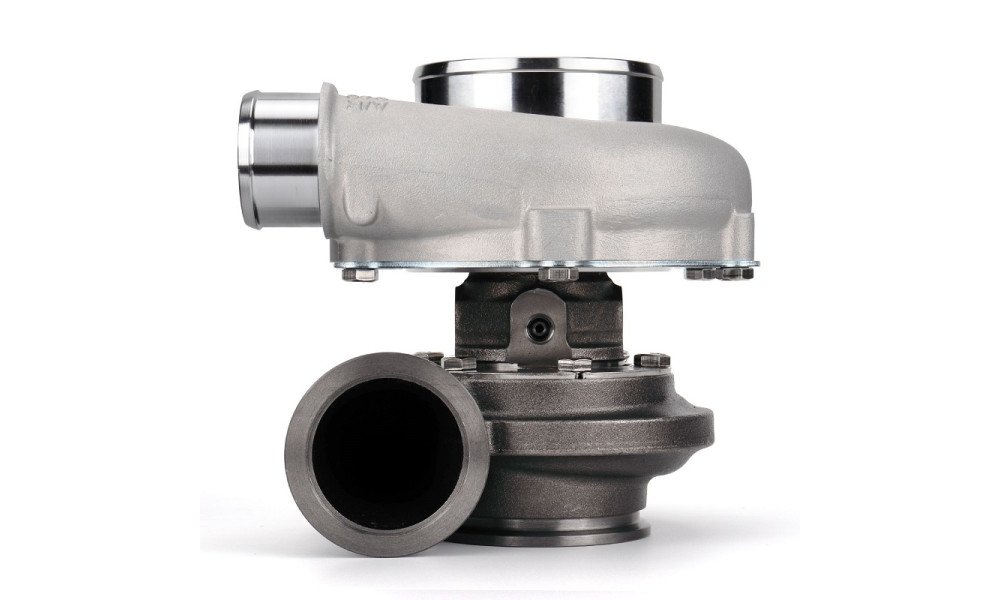

Pulsar PSR 3067 GEN2 Turbocharger – 565HP, .83 A/R, V-Band Inlet/Outlet

The Pulsar PSR 3067 GEN2 turbocharger is engineered for enthusiasts seeking reliable performance and versatile fitment. Designed for builds targeting up to 565 horsepower, this turbo features a compact yet efficient compressor and turbine wheel setup, optimized for responsive spool and robust top-end power.

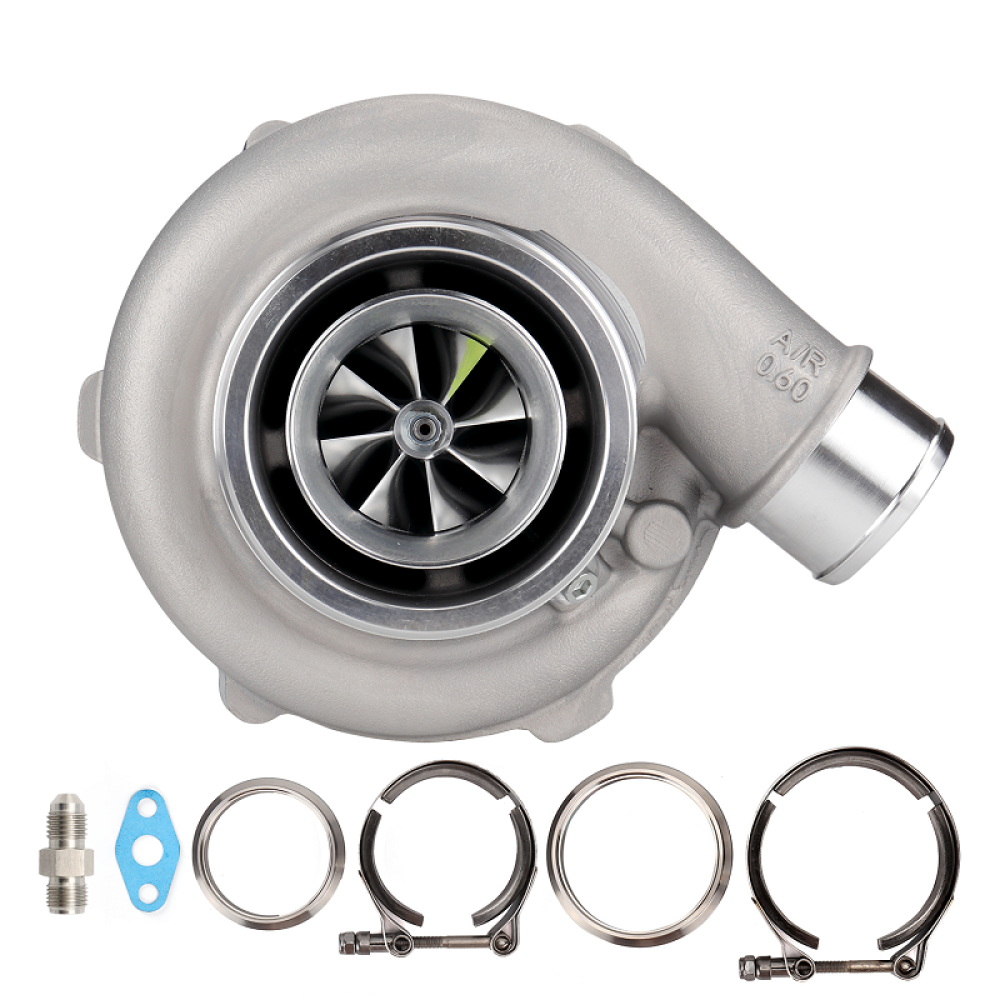

• Compressor Wheel: 50mm inducer x 67mm exducer

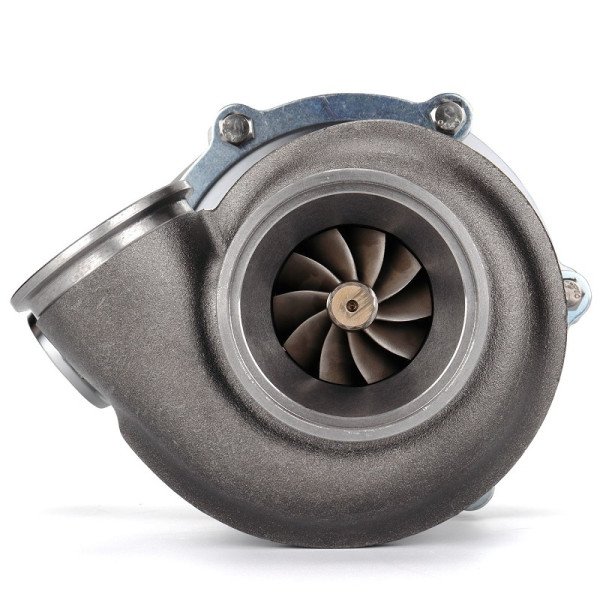

• Turbine Wheel: 60mm exducer x 55mm inducer
• Compressor Inlet: 3″ hose connection
• Compressor Outlet: 2″ hose connection
• Turbine Inlet: 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN connection (to oil restrictor)
• Oil Drain: Standard T3
• Water Inlet/Outlet Flange: M14 x 1.5

This turbo is ideal for custom builds where space, efficiency, and V-band compatibility are key priorities. All specifications listed are as supplied by the manufacturer.
