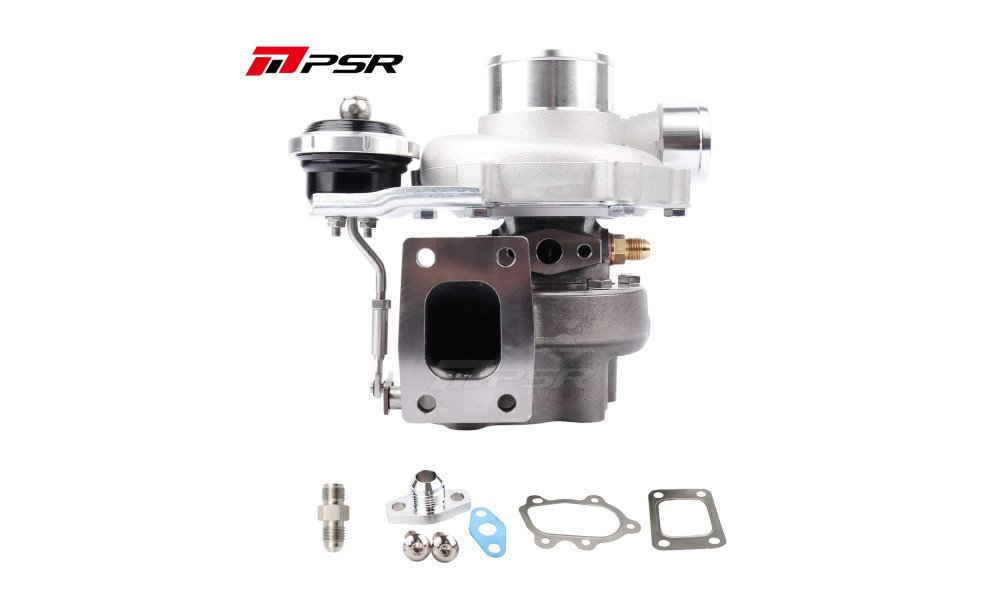

PSR3067 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 8-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10-Blade Turbine Wheel for high-temperature reliability
• Gen2 Compressor Cover integrated with Speed Sensor Port
• Available Turbine Housings:
  • 0.83, 1.01 A/R dual v-band turbine housing
  • T3 0.63, 0.82 V-Band outlet
  • 0.82, 1.03 A/R dual v-band stainless steel turbine housing
  • 0.86 A/R T25 Inlet 5-Bolts Outlet
• V-Band Flange kit(s) for exhaust housing included
• Max Air Flow Rate: ~60 lb/min, rated at 650 FWHP
• Compressor Housing: Standard
• Actuator: Billet 7.4psi with PSR logo
• Compressor Wheel: 50mm inducer / 67mm exducer
• Turbine Wheel: 60mm exducer / 55mm inducer
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet Options: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN (connects to oil restrictor)
• Oil Drain: Standard T3 Flange
• Water Inlet/Outlet: M14x1.5

Note: Water cooling is highly recommended for improved durability.
