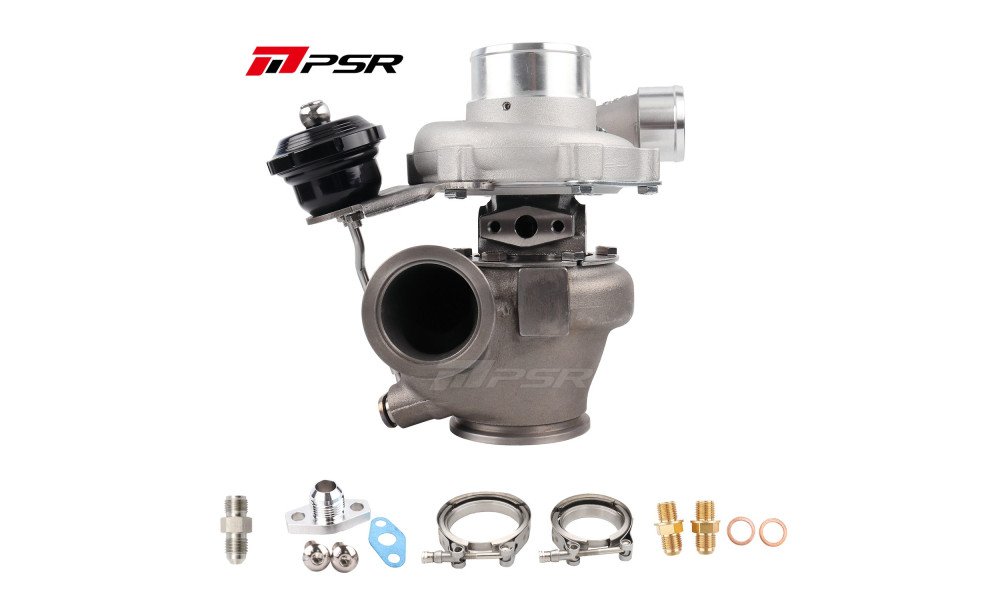

PSR3067 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for reduced friction and improved spool
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology for enhanced flow and efficiency
• Inconel 713c 10 Blade Turbine Wheel for superior heat resistance and durability
• Gen2 Cover with integrated speed sensor port
• Multiple turbine housing options: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82 v-band outlet; 0.82, 1.03 A/R dual v-band stainless steel
• V-Band flange kit(s) for exhaust housing included
• Maximum airflow: ~60 lb/min, rated for approximately 650 flywheel horsepower

Compressor Housing: Standard

Turbine Housing: Dual V-band 0.72 A/R with internal wastegate (IWG)

Actuator: Billet 15psi with PSR logo

• Compressor Wheel: 50mm inducer / 67mm exducer
• Turbine Wheel: 60mm exducer / 55mm inducer
• Compressor Inlet: 3″ hose
• Compressor Outlet: 2″ hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN connection to oil restrictor
• Oil Drain: Standard T3 flange
• Water In/Outlet: M14 x 1.5

For optimal durability, water cooling is highly recommended.
