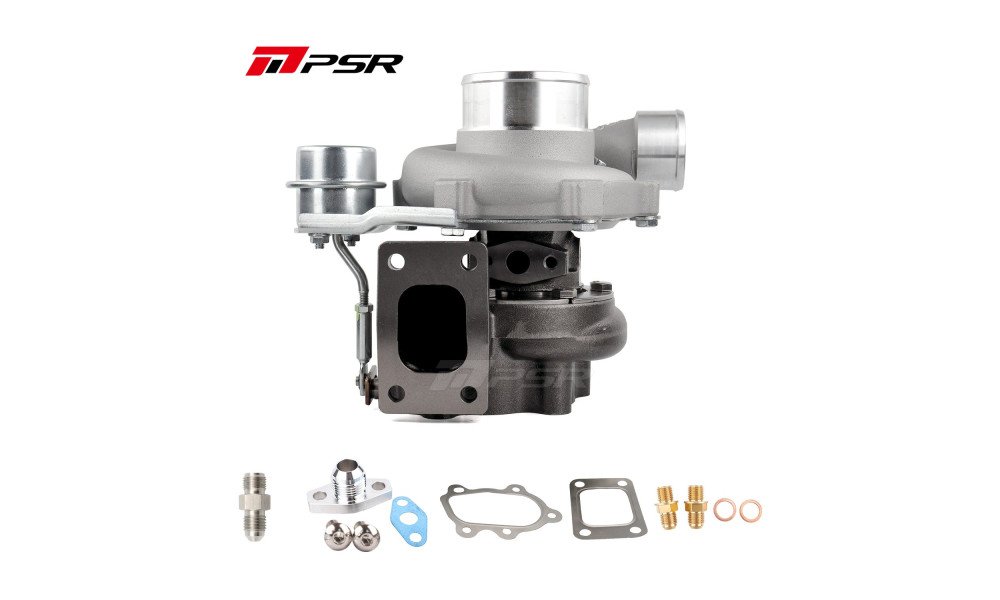

PSR3067 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel for high temperature resistance
• Gen2 Compressor Cover with Integrated Speed Sensor Port
• Available turbine housing options: 0.83, 1.01 A/R dual v-band; T3 0.63, 0.82 V-Band outlet; 0.82, 1.03 A/R dual v-band stainless steel
• V-Band Flange kit(s) for exhaust housing included
• Max airflow: ~60 lb/min, rated for up to 650 flywheel horsepower

Compressor Housing: Standard

Turbine Housing: 0.64 A/R T25 Inlet, 5-Bolt Outlet

Actuator: Stamping, 11.6 psi

• Compressor Wheel: 50mm inducer / 67mm exducer
• Turbine Wheel: 60mm exducer / 55mm inducer
• Compressor Inlet: 3″ hose
• Compressor Outlet: 2″ hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN fitting to oil restrictor
• Oil Drain: Standard T3 flange
• Water Inlet/Outlet: M14x1.5

Water cooling is highly recommended for improved durability.
