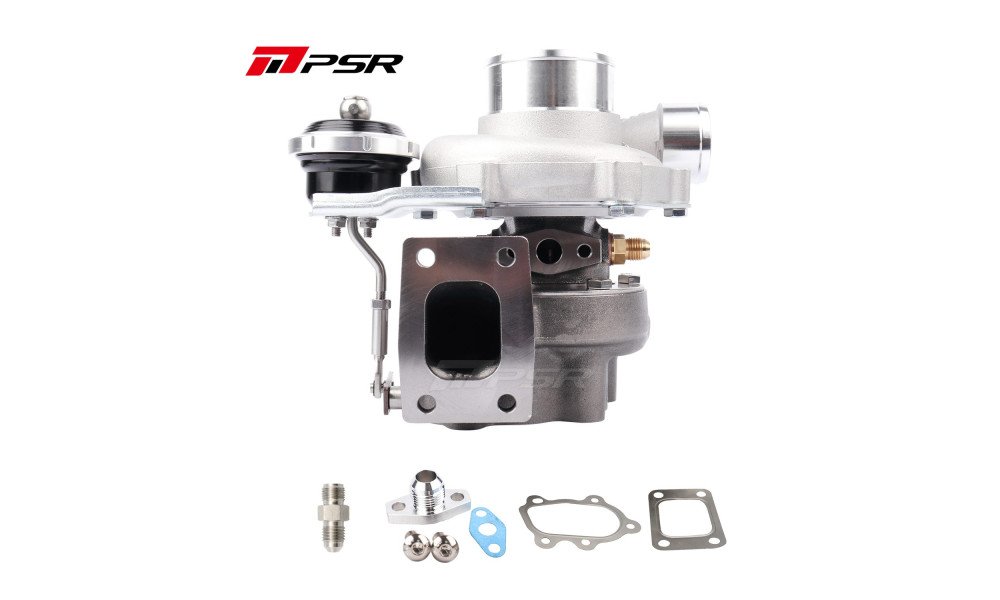

PSR2867 Gen2 Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System for improved spool and durability
• 8-Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-Blade Turbine Wheel for high-temperature resilience
• Gen2 Compressor Cover with integrated speed sensor port
• V-Band flange kit(s) for exhaust housing included
• Maximum airflow rate: approximately 45 lb/min, rated for 550 flywheel horsepower (FWHP)

Compressor Housing: Standard

Turbine Housing: T25 .86 A/R, 5 bolt

Actuator: PSR Billet, 15 psi

• Compressor Wheel: 50mm inducer / 67mm exducer
• Turbine Wheel: 54mm exducer / 47mm inducer
• Compressor Inlet: 3" hose
• Compressor Outlet: 2" hose
• Turbine Inlet: T25 or 2.5" V-Band
• Turbine Outlet: 5 bolt or 3" V-Band (3.55" OD)
• Oil Feed: -4 AN (connects to oil restrictor)
• Oil Drain: Standard T3 flange
• Water Inlet/Outlet: M14x1.5

Water cooling is highly recommended for improved durability.
